Overview

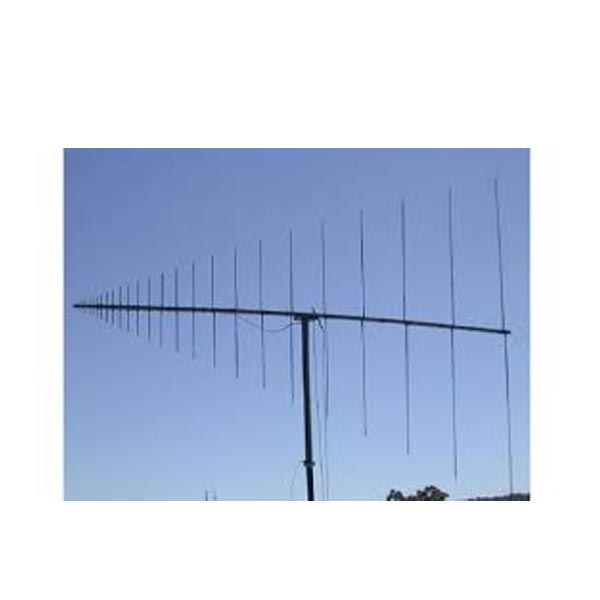

The LPDA is a directional log-periodic dipole array primarily designed for EW monitoring applications to cover  the 30 MHz to 2500 MHz frequency band with a typical gain of 7dBi. The polarization is adjustable between vertical and horizontal without lowering the mast For tactical applications this antenna is supplied with a boom that breaks into three sections and all the elements can be removed and stored in a roll-up canvas bag for compact storage. The antenna can be assembled and erected within 10 min by two people. For fixed installations the boom and elements are configured for a more permanent erection.
