Specifications
Selection
| Model | 7710 | 7720 | 7703 | 7713 |
| Test Channel | 2 | 8 | 2 | 2 |
| Impulse Voltage | 200V-10000V | 200V-5000V | 100V-5000V | 200V-10000V |
| Lowest Inductance | 100uH | 50uH | 0.5uH | 0.5uH |
| HARM analysis | – | – | ● | ● |
| HFLT analysis | – | – | ● | ● |
SPEC

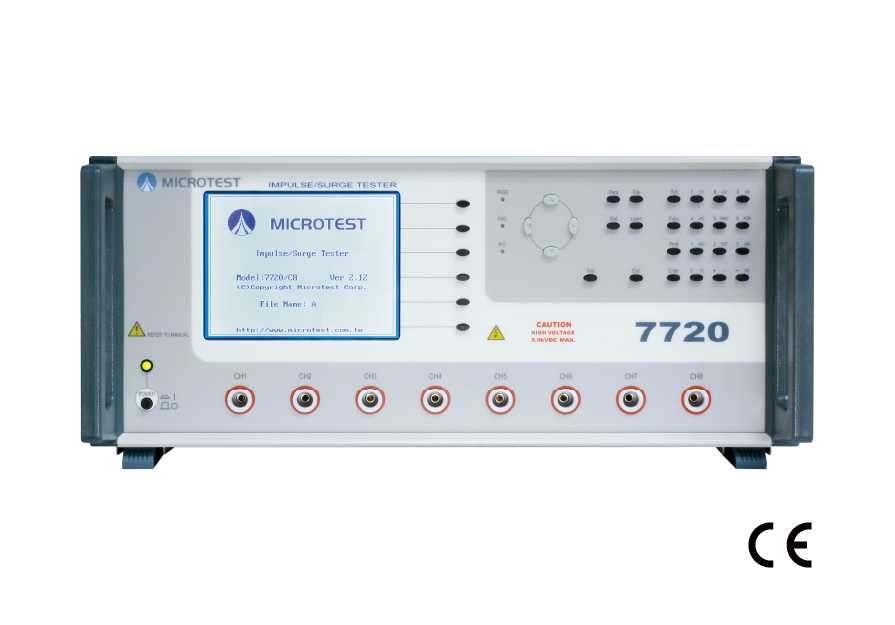

| Model | 7720 | |
| Test Channel | 8 | |
| Impulse Voltage | 200V-5000V (programmable ) | |
| Impulse Voltage Accuracy | ±2% | |
| Lowest Inductance | 50uH | |
| Measurement Time | 50mS | |
| Provides 5 waveform comparison | ||
| Total area comparison | When layer short happened, the loss of power on coil increase, the resonance damping coefficient increase, resonance amplitude decrease, the total area decrease. These are the basic parameters we check layer short.
By calculating and comparing the deference of area between golden sample and DUT. |
|
| Differential area comparison | Add up the difference between normal wave and DUT wave call “ Area differential”. When layer short happened, the inductance reduce(similar the transformer). The wave phase change and the area differential also change. This will show “fail” on the instrument. However, the parameter might cause deviation because of the deviation of inductance, resonance phase shift. (Silicon steel product such as motor and traditional transformer is not suitable)By calculating and comparing the deference of area between golden sample and DUT. To determine the degree of waveform overlap. Compare the inductance by this. |
|
| Wave comparison | Set a acceptable wave range, if the DUT’s wave is in this range shows “pass” otherwise, “fail” This parameter can judge both amplitude and phase of resonance wave. This can increase the detection capability of layer short. |
|
| Corona comparison | In pulse test, the insulation defect will cause discharge and create corona. This function is able to count the times that corona happened base on the degree of deviation. Detect the discharge phenomenon on the coil. |
|
| Flat comparison | If the layer short happened, the waveform will tremble. Therefore, the instrument will quantize and compared it. | |
SYSTEM
| PLC Remote Control | Test、About |
| PLC Remote Output Signal | PASS、FAIL、HV Output、Testing |
| Built-in Storage | 200 sets testing waveform |
| Power Supply | Voltage：98Vac-132Vac 或192Vac-264Vac |
| Frequency：50/60Hz ±5% | |
| Power consumption | 300VA |
| Environment | Temperature：10℃-40℃ |
| Humidity：20-90%RH | |
| Dimension | 435x190x522 mm (W*H*D) |
| Weight | 9 Kg |

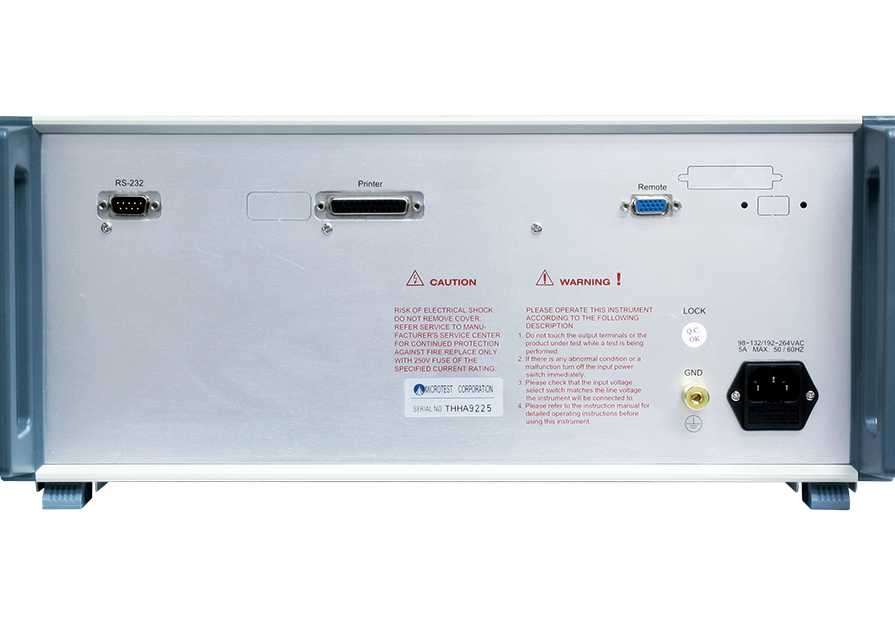

| Interface | RS-232、Remote、Printer |
| Display | 5.7″ dot-matrix (300*240 ) |
