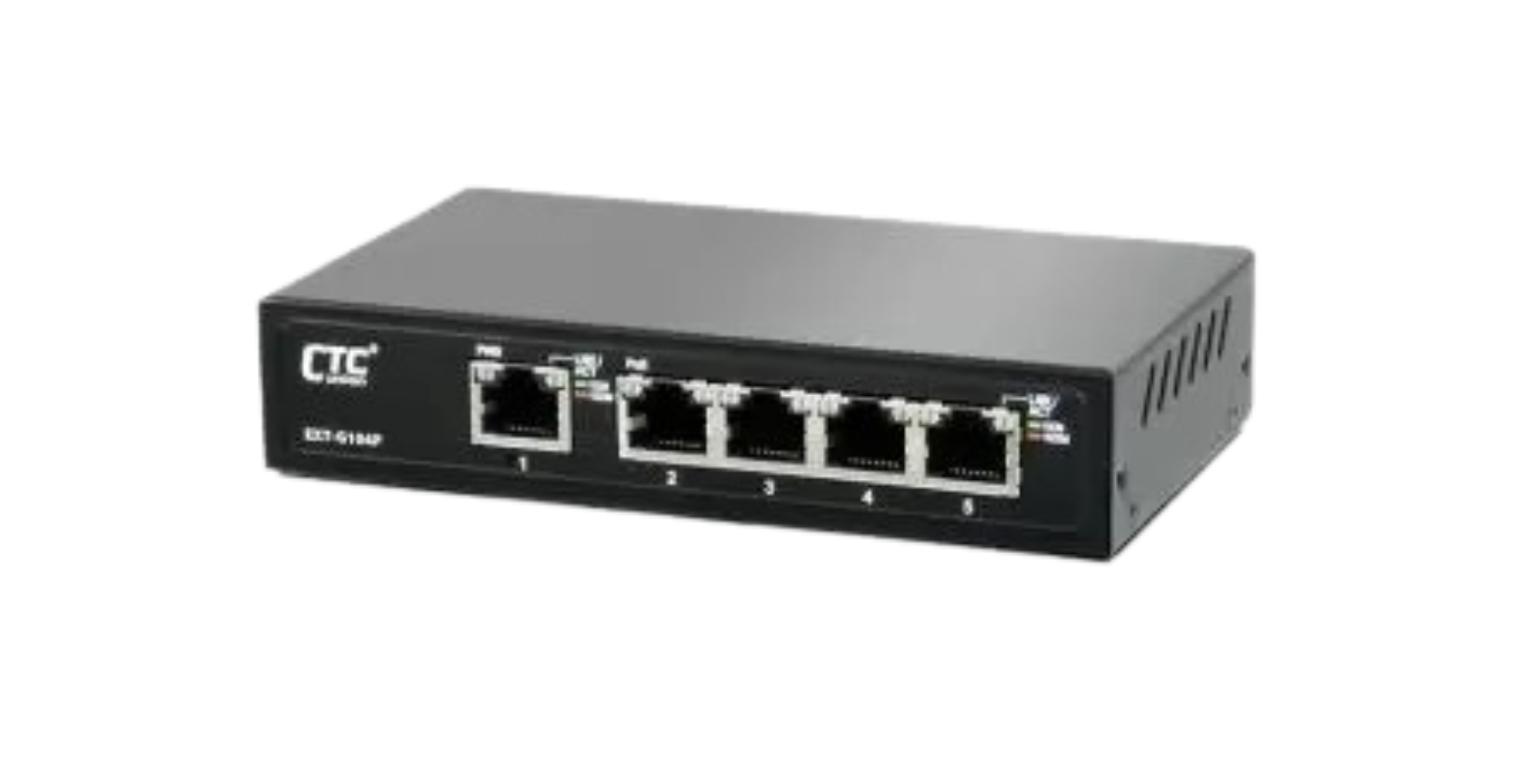

LAN Extender Gigabit PoE Extender EXT-G104P

Plug and Play installation
No additionally AC/DC power supply required
Extending the PoE signal for additional 100 meters

Application

The G.SHDSL.bis ATM EFM Router is 2/4/8wires Ethernet Bridge/Router that complies with G.991.2 standards and has a built-in 4-port 10Base-T /100Base-TX switch. The VDSL2 LAN Extender is a 1-port/4-port Gigabit Ethernet Copper Extender that supports an aggregated bandwidth up to 300Mbps with Downstream/Upstream:150/150 Mbps.

CTC Union Technologies unveils the 5 ports PoE extender, which is not powered via AC/DC power adaptor, model names as EXT-G104P. It is featured 1 port Gigabit based RJ45 in PoE++/PD compliant and 4 ports Gigabit based RJ45 in POE+/ PSE compliant. The PoE++/PD RJ45 port is powered by an externally PoE extender or injector complies to IEEE 802.3bt standard. It behaves as an extender to support more than 100 meters distance for power over Ethernet feeding.

IEEE Standard IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet, IEEE802.3ab 1000Base-T Gigabit Ethernet
IEEE802.3af PoE standard (15.4W), IEEE802.3at PoE+ standard (30W), IEEE802.3bt PoE++ standard (90W)
PoE/PD Input RJ45 pin assignment: Both 1/2 (+), 3/6 (-) and 4/5 (+), 7/8 (-), Auto MDI/MDIX, Auto negotiation function
PoE/PSE Output RJ45 pin assignment: 1/2 (+), 3/6 (-), Auto MDI/MDIX, Auto negotiation function
LED Indicator LED embedded on the RJ45 connectors, “Power” LED: PoE/PD powered success, “PoE” LED: PoE/PSE enabled
“Link/ACT” LED: Network indicator
Dimension 138mm(W) × 76.58mm(D) × 28mm(H)
Installation Wall mounting
Temperature 0 ~ 50˚C (operating), -10 ~ 70˚C (Storage)
Humidity 10% ~ 90% (non-condensing)
Regulatory Certification CE, FCC
