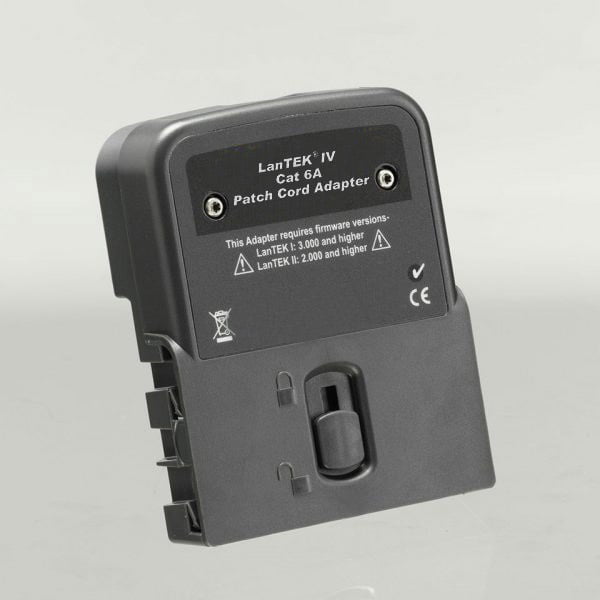

LT IV-Cat6A / Class Ea Patch Cord / MPTL Test Adapter (Single)

Key Features

Compatible with LanTEK IV certifiers
Supports TIA Cat 6A / ISO Class Ea patch cord certification (10G)
Replaceable RJ45 jack modules for quick field serviceability
Supports MPTL testing when paired with a permanent link adapter
Gold-plated contacts for low contact resistance and corrosion resistance
Precision mechanical design to minimize insertion loss and maintain mating geometry
Clear polarity markings and keyed connections to prevent mis-mating
Rugged, compact housing suitable for field use and travel
Repeatable, standards-compliant measurements for installation and troubleshooting

The LT IV-Cat6A / Class Ea Patch Cord / MPTL Test Adapter (Single) is a precision field accessory designed for use with LanTEK IV certifiers to validate TIA Cat 6A and ISO Class Ea patch cords. Optimized for 10 Gigabit Ethernet performance, the adapter provides accurate, repeatable verification of insertion loss, NEXT, return loss and other key parameters across the extended Cat 6A frequency range. User-replaceable RJ45 jack modules reduce downtime and cost of ownership, enabling rapid on-site servicing and consistent measurement integrity over heavy use cycles.

Built for reliability in demanding environments, the adapter uses high-quality contacts and a mechanically robust housing to minimize insertion loss and maintain stable mating geometry. Clear polarity markings and a compact, rugged form factor simplify field operations and prevent connection errors during high-volume certification or troubleshooting. When combined with a permanent link adapter the unit supports Modular Plug Terminated Link (MPTL) testing workflows, making it a flexible solution for installers, contractors, and certifiers who must document standards-compliant network performance.

**Technical Specifications**
Parameter	Specification
Test compatibility	LanTEK IV series certifiers
Supported categories	TIA Cat 6A / ISO Class Ea (10G)
Testing applications	Patch cord certification; MPTL testing (with permanent link adapter)
Connector interface	Replaceable RJ45 jack module (user-serviceable)
Standards compliance	TIA/EIA-568; ISO/IEC 11801 Class Ea
Impedance	100 Ω (balanced twisted pair)
Frequency range	Up to 500 MHz (Cat 6A / Class Ea)
Contact plating	Gold plated (typical)
Typical insertion loss	<0.5 dB (adapter contribution — typical, measured at reference frequencies)
Operating temperature	-10 °C to +60 °C
Storage temperature	-40 °C to +85 °C
Dimensions (approx.)	55 mm × 25 mm × 20 mm
Weight (approx.)	~50 g
Part number / SKU	LTIV-CAT6A-MPTL-ADP (example — confirm SKU with sales)
Compliance	RoHS compliant; suitable for professional cabling certification use

**Included Accessories**
Item	Description	Quantity
LT IV-Cat6A Patch Cord / MPTL Test Adapter (Single)	Main adapter unit with replaceable RJ45 jack module	1
Protective dust cap	Dust cover to protect RJ45 jack during transport and storage	1
Quick start guide	Setup, polarity and safety reference	1
Carry pouch	Padded pouch for safe field transport	1

**Optional Accessories (sold separately)**
Item	Description
Replacement RJ45 jack modules	Pack of user-replaceable jack modules to extend service life
Permanent link adapter	Required to form MPTL test configuration for full certification
Calibration verification kit	Reference cable and load for field verification and QA checks
Shielded extension lead	High-quality lead for remote or awkward test setups
