Handyscope / WiFiScope power supply

Features

Designed for efficient power delivery to portable measurement instruments
Lightweight and portable, weighing only 160 g for the power supply (250 g total with accessories)
Reliable and stable output voltage for consistent performance during use
Ideal for situations where USB power is insufficient or unavailable
Provides a safe and stable power connection with a male power connector (3.5 mm Ø outer ring for ground, 1.5 mm Ø center pin for positive power)
Ideal for international use with multi-region plug adapters for Europe, North America, Australia, and the UK
Ensures safe operation with overcurrent protection and built-in quality components
Easy to store and carry with a compact form factor and included power cord

The Handyscope / WiFiScope power supply is a small and efficient universal power supply to charge the WiFiScope WS4 DIFF, WiFiScope WS5, WiFiScope WS6 or WiFiScope WS6 DIFF battery or power these instruments or the Handyscope HS5, Handyscope HS6 or Handyscope HS6 DIFF when the USB cannot deliver enough power.

The Handyscope / WiFiScope power supply supports a wide input voltage range of 100 V AC to 240 V AC and supports both 50 Hz and 60 Hz mains power. It comes with four interchangeable mains plug adapters, suitable for Europe, North America, Australia and the United Kingdom.

Specifications

Specification	Details
Input Voltage Range	100 V to 240 V AC
Frequency Range	50 Hz to 60 Hz
Output Voltage	12 V DC
Maximum Current	2.0 A
Input Connections	Adapters for EU, US, UK, and AU
Output Connections	Male power connector
Outer Ring	3.5 mm Ø, Ground
Center Pin	1.5 mm Ø, Positive power
Dimensions (without adapter)	Length: 88 mm, Width: 30 mm, Height: 57 mm
Wire Length	1.8 m
Weight (Power Supply)	160 g
Weight (Total Set)	250 g
Suitable Instruments	WiFiScope WS4 DIFF, WS5, WS6, WS6 DIFF, Handyscope HS5, HS6, HS6 DIFF

Arbitrary Waveform Generators, Test & Measurement, Signal Sources

AFG-303x Series

Condition	New

Function Generators, Test & Measurement, Signal Sources

MODEL 315 The Perfect General Purpose Function Generator

Condition	New

Arbitrary Waveform Generators, Test & Measurement, Signal Sources

MODEL 660 ARBITRARY WAVEFORM GENERATOR

Condition	New

Accessories

The Handyscope / WiFiScope power supply is delivered with:

Amount Item
1 Handyscope / WiFiScope power supply

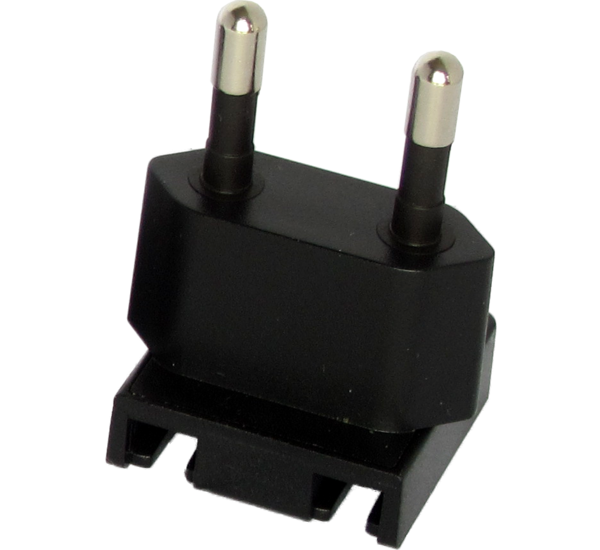

1 Mains plug adapter for Europe
1 Mains plug adapter for North America
1 Mains plug adapter for Australia

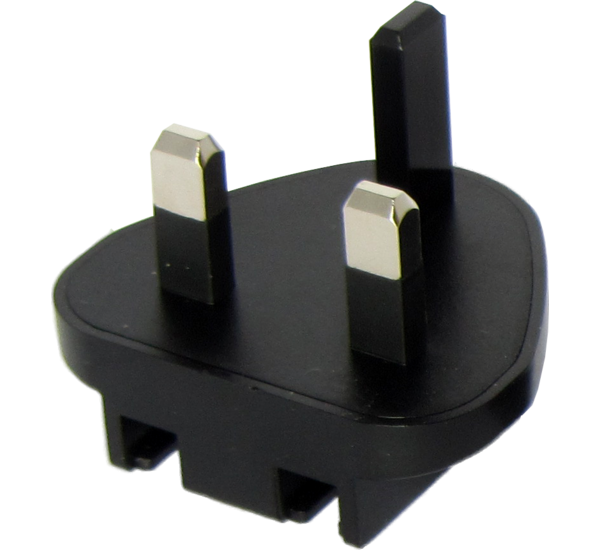

1 Mains plug adapter for the United Kingdom

Handyscope / WiFiScope power supply
