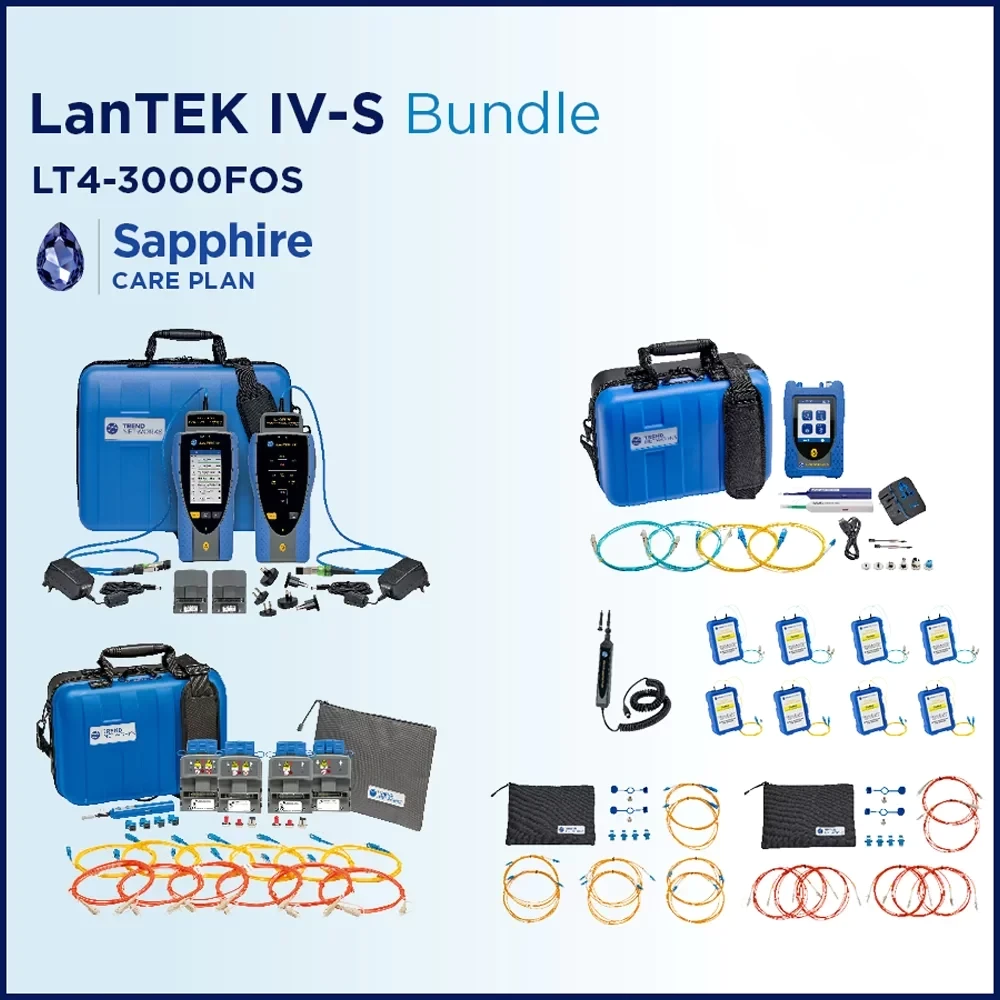

Bundle – LanTEK IV-S 3000MHz, FiberTEK IV, FiberMASTER OTDR, Accessories and Sapphire 1 Year | DCT

Key Features:

LanTEK IV-S 3000MHz cable certifier for high-speed copper certification
FiberTEK IV MM LED & SM Laser Kit with LC MM 50/125μm and LC SM 9/125μm
FiberMASTER Quad OTDR with OM3 and SM G.657 A1 launch cables (SC-SC, SC-LC)
FiberMASTER Video Inspection Probe for clean, reliable fiber connections
Permanent link and channel adapters included for versatile testing
1-year Sapphire Care Plan for full protection and support
Complete copper and fiber certification solution in one bundle

The LT4-3000FOS Bundle is a comprehensive solution designed to meet the rigorous demands of modern network certification and fiber testing. At its core, it features the LanTEK IV-S 3000MHz cable certifier, delivering accurate and reliable performance for copper certification with permanent link and channel adapters included for complete versatility. Paired with the FiberTEK IV MM LED and SM Laser Kit, equipped with LC MM 50/125μm and LC SM 9/125μm interfaces, this bundle ensures seamless multimode and singlemode fiber testing. Together, these tools provide professionals with a powerful combination of speed, precision, and ease of use for certifying both copper and fiber infrastructures.

To complement these core instruments, the bundle also includes the FiberMASTER Quad OTDR with a full set of launch cables for OM3 and SM G.657 A1 fiber types in SC-SC and SC-LC configurations, enabling accurate testing and fault detection across long fiber runs. A FiberMASTER Video Inspection Probe ensures clean connections and eliminates contamination issues that could affect performance. Additionally, the package comes with a 1-year Sapphire Care Plan, delivering comprehensive support and protection for your certifier. Altogether, the LT4-3000FOS bundle is engineered for efficiency, precision, and reliability, making it an all-in-one solution for network installers and technicians handling copper and fiber certification projects.

Component	Specification	Details
Bundle	Model / SKU	LT4-3000FOS — LanTEK IV-S 3000MHz + FiberTEK IV + FiberMASTER OTDR + Accessories + 1yr Sapphire
LanTEK IV-S 3000MHz	Test Bandwidth	Up to 3000 MHz (3 GHz)
	Standards & Cable Types	Cat 5e / Cat 6 / Cat 6A / Cat 7 / Cat 8; TIA/EIA and ISO/IEC channel & permanent link
	Measurements	Wiremap, Length, NEXT, PSNEXT, ELFEXT, PSELFEXT, ACR, ACR-F, Return Loss, Insertion Loss, Propagation Delay, Delay Skew
	Connectors & Adapters	RJ-45 test ports; includes permanent link adapters and channel adapters
	Display & Interface	Color LCD with easy UI, pass/fail LED indicators, USB-C / USB for data export, on-board job & report storage
	Battery & Physical	Rechargeable Li-ion battery (typical 6–10 hours depending on use), rugged housing, carry case included
FiberTEK IV (MM LED & SM Laser Kit)	Wavelengths	Multimode LED: 850 nm & 1300 nm; Singlemode Laser: 1310 nm & 1550 nm
	Interfaces	LC multimode 50/125 µm and LC singlemode 9/125 µm patchcords/adapters included
	Power & Loss Testing	Light source + optical power meter compatibility; supports insertion loss and end-to-end loss testing
	Display & Reporting	On-unit measurement results, USB export of results for reporting and certification
	Physical	Handheld, shock-resistant, soft pouch and fiber adapters included
FiberMASTER Quad OTDR	OTDR Channels / Wavelengths	Typical quad wavelengths (e.g., 850/1300 nm for MM and 1310/1550 nm for SM) — multi-wavelength fiber characterization
	Dynamic Range & Dead Zone	Designed for long-haul and short links (launch cables included to minimize event/attenuation dead zones)
	Launch Cables Included	2 × OM3 150 m (SC-SC), 2 × OM3 150 m (SC-LC), 2 × SM G.657 A1 150 m (SC-LC), 2 × SM G.657 A1 150 m (SC-SC)
	Functions	Trace acquisition, event/fault locating, distance and loss measurements, automatic analysis and PASS/FAIL
	Data & Connectivity	Store multiple traces, USB export, PC software compatibility for reporting and trace analysis
	Display & Controls	High-contrast display, intuitive menu with one-touch test and multi-trace comparison
	Power & Durability	Rechargeable battery with multi-hour runtime, rugged case, protective boot included
FiberMASTER Video Inspection Probe	Magnification & Optics	High magnification imaging for fiber end-face inspection (typically 200×–400× equivalent); multiple connector adapters (LC, SC, ST, MPO options)
	Functions	Live view, auto-focus, capture & save images, PASS/FAIL analysis for contamination & scratches
	Connectivity	USB or direct tether to display device; image export for reports
	Physical	Pocket-sized probe, protective caps, calibration reference card included
Launch Cables / Patchcords	OM3 Launch Cables	150 m OM3 multimode (50/125 µm) with SC-SC and SC-LC terminations (as specified)
	SM G.657 A1 Launch Cables	150 m bend-insensitive singlemode (9/125 µm) with SC-LC and SC-SC terminations
	Connector Types	SC-SC and SC-LC; polished connectors, protective end caps supplied
	Use	Used as launch and receive reference cables for OTDR testing to ensure accurate event detection
Accessories Included	Carrying & Protection	Rugged carry case or flight case (depending on kit), padded inserts for each instrument
	Adapters & Leads	Permanent link adapters, channel adapters, fiber adapter kits (LC/SC), USB / charging cables
	Documentation	User manuals, quick start guides, calibration certificates (where applicable)
	Calibration & Spare Parts	Reference calibration information; spare protective caps and small consumables included
	Software	PC reporting/analysis software license or download link; certificate/report templates supported
Sapphire Care Plan — 1 Year	Coverage	1-year protection plan covering defects, priority technical support, and standard repairs (terms vary by provider)
	Support	Priority phone/email support, firmware updates (if available), and return repair handling
	Turnaround	Expedited service handling under plan (subject to provider terms & local service center capabilities)
	Limitations	Coverage specifics (accidental damage, loaner units, on-site service) depend on plan terms — consult plan documentation
General Notes	Environmental & Safety	Operating temperature ranges and safety/proper laser handling guidelines apply — refer to individual product manuals for exact environmental limits and laser safety class information.
Validation	Certifications	Products typically meet relevant telecom and lab standards; confirm exact compliance and approvals in manufacturer datasheets.
Contact / Datasheets	Recommendation	For exact, model-level electrical/mechanical tolerances, dynamic ranges, dead-zone numbers, and official calibration data, consult the official datasheets or contact your supplier.

Accessory	Description	Quantity	Included With	Notes / Part Number (if applicable)
Rugged Carry Case	Hard or padded flight-style case with custom foam inserts to hold LanTEK IV-S, FiberTEK IV, OTDR, probes and accessories securely.	1	Bundle	Custom foam layout; protective locks and handle.
Soft Pouches / Tool Bags	Individual soft pouches for handheld units and probes for quick field use.	3	LanTEK IV-S, FiberTEK IV, Probe	Velcro closures; belt/strap loops.
AC Power Adapter / Charger	Universal AC charger with local plug adapters for charging instruments and spare batteries.	2	LanTEK IV-S, FiberMASTER OTDR	Input 100–240 VAC; output per unit spec.
USB-C / USB-A Data Cables	Data transfer and charging cables for connecting units to PC or power source.	3	All instruments	USB-C to USB-A and USB-C to USB-C included.
Spare Rechargeable Batteries	Replacement Li-ion battery packs to extend field runtime.	2	LanTEK IV-S, OTDR (model-specific)	Hot-swap recommended where supported; check model fit.
Perm. Link & Channel Adapters	Permanent link adapters and channel adapters for RJ-45 copper certification.	Set	LanTEK IV-S	Includes adapter jacks and short patch leads.
Fiber Adapter Kit	Multi-connector adapter set (LC, SC, ST, MPO) for inspection probe and test ports.	Full set	Probe, FiberTEK, OTDR	Includes hybrid adapters and protective caps.
Launch/Receive Cable Protective Caps	Dust caps and protective covers for launch cables and connectors during transport/storage.	Multiple	Launch Cables, Patchcords	Spare caps included (SC/LC sizes).
Launch Cables (OM3 & SM G.657 A1)	Long-length launch/receive cables (150 m) for OTDR dead-zone compensation and accurate event detection.	6	FiberMASTER OTDR	2× OM3 SC-SC, 2× OM3 SC-LC, 2× SM G.657 A1 (SC-LC/SC-SC).
Multimode & Singlemode Patchcords	Short reference patchcords for power meter/light source and field connection tests (LC & SC).	4–6	FiberTEK IV, OTDR	50/125 µm MM and 9/125 µm SM patchcords included.
Fiber Cleaning Kit	Lint-free wipes, isopropyl alcohol pads, connector cleaning sticks and cassette cleaners for end-face cleaning.	1 kit	Bundle	Consumables — replace as used.
Inspection Probe Tips & Spare Lens	Interchangeable probe tips and spare optics for LC/SC/ST/MPO inspection.	Set	FiberMASTER Video Inspection Probe	Calibration cap and reference card included.
Calibration Reference Card	Reference artifact for probe and connector inspection calibration and PASS/FAIL verification.	1	Probe	Used for on-site verification of inspection accuracy.
Quick Start Guides & Manuals	Printed quick start guides plus full PDF manuals on USB for each instrument.	Set	All instruments	Includes basic troubleshooting and safety notes.
Calibration Certificates	Factory calibration certificates and traceable test reports for main instruments (where applicable).	1 set	LanTEK IV-S, OTDR, FiberTEK	Dates and intervals shown; optional re-calibration services available.
PC Software License / USB Drive	Reporting and trace analysis software for exporting, formatting and printing certification reports.	1	Bundle	License key or download instructions included; Windows-compatible.
Spare Fuses & Small Consumables	Manufacturer-specified fuses, O-rings, and small replacement parts for field serviceability.	Assorted	LanTEK IV-S, OTDR	Model-specific; store in case compartment.
Shoulder Strap & Carry Handles	Comfort strap and handles for handheld units and case for easier transport on-site.	2–3	Cases, Handhelds	Removable and adjustable.
1-Year Sapphire Care Plan Documentation	Plan certificate, terms & conditions, support contact details and return procedure for warranty/repair.	1	Bundle	Priority support and repair handling—see plan docs for exact coverage.
