M12 and M23 connector against vibration and shock
STP, RSTP, MSTP, ITU-T G.8032 Ethernet Protection Ring (ERPS) for redundant cabling
Provides up to 5 instances that each supports µ-Ring, µ-Chain or Sub-Ring type for flexible uses
Supports IEEE 1588 PTP V2 for precise time synchronization to operate in Ordinary-Boundary, Peer to Peer Transparent Clock, End to End Transparent Clock, Master, Slave mode by each port
Supports EMS Management

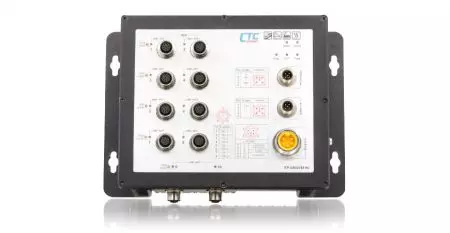

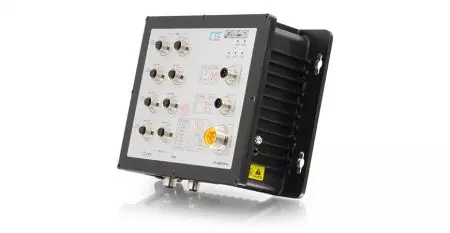

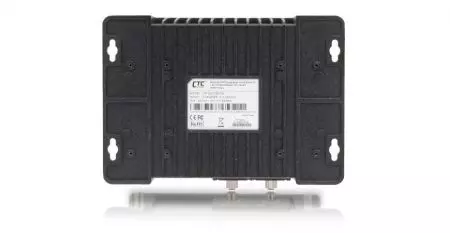

The ITP series models are managed, industrial grade, L2 GbE switches that provide 8x GbE UTP plus 2x GbE SFP or 10x GbE UTP Ports. Housed in rugged wall mountable enclosures, these switches are designed for the harshest environments. All ITP series switches use M12 connectors to ensure water-tight, robust connections and guarantee reliable connections against vibration and shock.

Standard Compliance

IEEE 802.3 10Base-T, 100Base-TX, 100Base-FX, 1000Base-T, 1000Base-X
IEEE 802.1d, 802.1w, 802.1s, 802.1Q, 802.1X, 802.1p, 802.1ab
ITU-T G.8032 / Y.1344 ERPS, ITU-T G.8031 / Y.1342 EPS
IEEE 802.3ac, 802.3ad, 802.3x, 802.1ad
IEEE 802.3az EEE (Energy Efficient Ethernet)

Specifications

VLAN ID 4094 IEEE 802.1Q VLAN ID
Switch Architecture: Back-plane (Switching Fabric) 20Gbps (Full wire-speed)
Data Processing: Store and Forward
Flow Control: IEEE 802.3x for full duplex mode, Back pressure for half duplex mode
Network Connector: 8x M12(8-Pin, Female, A-Code) 10/100/1000Base-T + 2x 100/1000Base-X SFP
Console: RS-232 (5-pin A-Code M12 male)
Network Cable: UTP/STP Cat. 5e cable or above
Reverse Polarity Protection: Supported
Overload Current Protection: Supported
CPU Watch Dog: Supported
LED Indicators: Power, Fault, CPU Act, Ring Master, UTP Link/Active, SFP Slot Link/Active
Jumbo Frame: 9.6KB
MAC Address Table: 8K
Memory Buffer: 512K Bytes for packet buffer
Device Memory: 16M Bytes Flash ROM, 128M Bytes RAM
Power Supply: 1x M23 (5-Pin, male) for redundant dual input
Power Consumption:
12VDC: 8.5W
24VDC: 9.2W
48VDC: 11W
Warning Message System: Syslog, SMTP/email event message, alarm relay
Alarm Relay Contact: 5-pin A-code M12 male, Relay outputs with current carrying capacity of 1A @24VDC
Operating Temperature: -40 ~ 75°C
Operating Humidity: 5% to 95% (Non-condensing)
Storage Temperature: -40 ~ 85°C
Housing: Rugged Metal, Fanless, IP67 grade housing for water, dust, and oil protection
Dimensions: 69 x 240 x 168mm (D x W x H)
Weight: 2.645kg
Installation Mounting: Wall mounting or DIN Rail mounting (Optional)
MTBF: 443,868 Hours (MIL-HDBK-217)
Warranty: 5 years

Certification

EMC CE
EMI (Electromagnetic Interference): FCC Part 15 Subpart B Class A, CE
Railway Traffic: EN50155, EN50121-4
Fire protection of railway vehicles: EN45545-2
Immunity for Heavy Industrial Environment: EN61000-6-2
Emission for Heavy Industrial Environment: EN61000-6-4

Environmental Protection Levels

EN61000-4-2 (ESD) Level 3
EN61000-4-3 (RS) Level 3
EN61000-4-4 (Burst) Level 3
EN61000-4-5 (Surge) Level 3
EN61000-4-6 (CS) Level 3
EN61000-4-8 (PFMF, Magnetic Field) Field Strength: 300A/m

Shock & Vibration Resistance

Shock: IEC-61373
Freefall: IEC 60068-2-32
Vibration: IEC-61373

Security & Management

IEEE 802.1X Port-Based, MAC-Based Authentication
RADIUS & TACACS+ Authentication
HTTPS, HTTP, SSL/SSH v2 Supported
Web UI, CLI, Telnet, SNMP, sFlow, Modbus/TCP Supported
DHCP, RARP, TTDP Supported
IP Source Guard, Port Mirroring
Syslog, e-mail, alarm relay for event logging
IEEE1588 PTP V2: Supports 5 operating modes
IPv6 Features: Telnet, SNMP, HTTP, SSH, NTP, ACL, QoS, TFTP
Green Ethernet: IEEE802.3az EEE for power optimization
Cable Diagnostic: UTP cable condition analysis

Optional Accessories

Industrial SFP Transceivers
Fiber Cable Gland
Cable/Connector & Din-Rail Kit

Model: ITP-G802SM Total Ports: 10 (8x M12 UTP, 2x SFP) Redundant Power Supply: Low Voltage 12/24/48VDC

Refurbished	Yes
Condition	Good

Refurbished	Yes
Condition	Good
