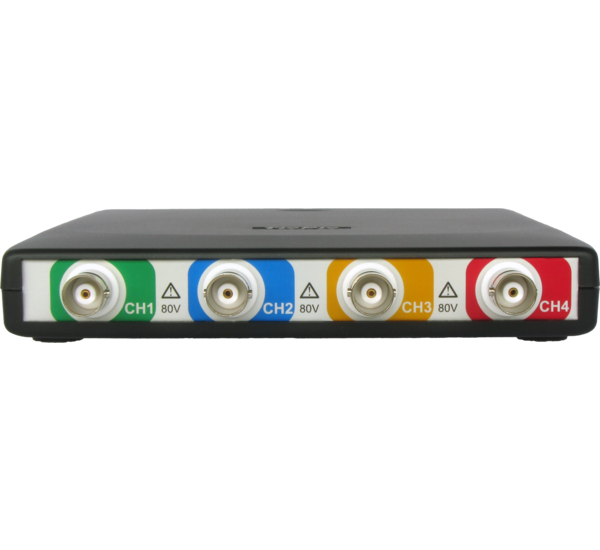

    Handyscope HS6-DIFF-200

    • 4 Differential Channels Four fully differential input channels provide accurate signal measurement with enhanced isolation for complex and high-voltage signals.
    • High-Speed Sampling A maximum sampling rate of 200 MSa/s ensures precise capture of fast, high-frequency signals and transients.
    • Streaming Capability Continuous real-time data acquisition with a max streaming speed of 40 MSa/s, supporting long-duration signal recording without data loss.
    • Deep Memory Offers up to 256 MSamples per channel, enabling detailed analysis of complex signals and extended monitoring sessions.
    • Portable & Powerful USB-powered design with seamless integration with TiePie engineering software, ideal for both lab and field applications.
    Send Enquiry

    Send Inquiry

    Key Features

    • 4 fully differential input channels
    • Max. sampling speed 200 MSa/s
    • Max. streaming speed 40 MSa/s
    • 14-bit high-resolution ADC
    • Deep memory up to 256 MSamples per channel
    • Galvanically isolated inputs for safe and accurate measurements
    • USB-powered for portability
    • Compatible with powerful TiePie Multi Channel software
    • Advanced triggering and signal analysis tools
    • Ideal for lab and field applications

    The Handyscope HS6-DIFF-200 is a professional-grade, differential USB oscilloscope engineered for high-precision signal measurement and analysis across a wide range of applications including electronics development, automotive diagnostics, and industrial maintenance. It offers four fully differential input channels with galvanic isolation, reducing noise and ensuring accurate measurement of floating and high-voltage signals. With a maximum sampling speed of 200 MSa/s per channel and 14-bit vertical resolution, it captures fast, high-frequency signals with excellent detail and accuracy. Its maximum streaming speed of 40 MSa/s allows for seamless real-time data acquisition directly to a computer’s hard drive, enabling the capture of extended signal sequences for thorough analysis. The HS6-DIFF-200 includes extremely deep memory up to 256 MSamples per channel, advanced trigger options, and built-in spectrum analysis and data logging capabilities. Powered and controlled via USB, it features a compact, rugged enclosure ideal for both field and lab use. It integrates seamlessly with TiePie engineering software, offering powerful tools like Multi Channel oscilloscope, function generator, and protocol analyzer, making it a versatile and indispensable tool for engineers and technicians demanding precision and flexibility.

    Handyscope HS6 DIFF specifications

    The tables below show detailed specifications of the Handyscope HS6 DIFF

    Acquisition system
    Number of input channels 4 analog
    CH1, CH2, CH3, CH4 Isolated female BNC
    Type Differential input
    Resolution User selectable in software
    Native 8, 12, 14 bit
    Enhanced 16 bit
    DC Accuracy 0.25 % (0.1 % typical) of full scale ± 1 LSB at 20°C to 25°C
    To achieve rated accuracy, allow the instrument to settle for 20 minutes. When subjected to extreme temperatures, allow additional time for internal temperatures to stabilize.
    Noise 305 µVrms (200 mV range, 12 bit, 50 MSa/s)
    90 µVrms (200 mV range, 16 bit, 6.25 MSa/s)
    Ranges (full scale) ±200 mV
    ±400 mV
    ±800 mV    		 ±2 V
    ±4 V
    ±8 V    		 ±20 V
    ±40 V
    ±80 V
    Coupling AC/DC
    Impedance 2 MOhm / 12 pF ± 1 %
    1 MOhm / 20 pF ± 1 % when SafeGround enabled
    Maximum voltage 200 V (DC + AC peak < 10 kHz)
    Maximum Common Mode voltage 200 mV to 800 mV ranges : 2 V
    2 V to 8 V ranges : 20 V
    20 V to 80 V ranges : 200 V
    Common Mode Rejection Ratio -47 dB
    Bandwidth HS6D-1000 HS6D-500 HS6D-200 HS6D-100 HS6D-50
    -3dB at 75 % of full scale input 250 MHz 250 MHz 250 MHz 100 MHz 100 MHz
    Limit, selectable per channel Off (250 MHz)
    150 MHz
    100 MHz
    50 MHz    		 Off (250 MHz)
    150 MHz
    100 MHz
    50 MHz    		 Off (250 MHz)
    150 MHz
    100 MHz
    50 MHz    		 Off (100 MHz)
    75 MHz
    50 MHz
    25 MHz    		 Off (100 MHz)
    75 MHz
    50 MHz
    25 MHz
    AC coupling cut off frequency (-3dB) ±1.5 Hz
    Channel Isolation 500 V
    Channel Separation -80 dB
    SureConnect Optionally available (option S)
    Maximum voltage on connection 200 V (DC + AC peak < 10 kHz)
    Resistance measurement Optionally available (option S)
    Ranges (Full scale) 100 Ω
    200 Ω
    500 Ω    		 1 kΩ
    2 kΩ
    5 kΩ    		 10 kΩ
    20 kΩ
    50 kΩ    		 100 kΩ
    200 kΩ
    500 kΩ    		 1 MΩ
    2 MΩ
    Accuracy 1 % of full scale
    Response time (to 95%) < 10 µs
    SafeGround Optionally available (option G)
    Maximum voltage on connection 200 V (DC + AC peak < 10 kHz)
    Maximum switch off current 500 mA
    Response time < 100 ns
    Maximum sampling rate HS6D-1000 HS6D-500 HS6D-200 HS6D-100 HS6D-50
    8 bit
    measuring one channel 1 GSa/s 500 MSa/s 200 MSa/s 100 MSa/s 50 MSa/s
    measuring two channels 500 MSa/s 200 MSa/s 100 MSa/s 50 MSa/s 20 MSa/s
    measuring three or four channels 200 MSa/s 100 MSa/s 50 MSa/s 20 MSa/s 10 MSa/s
    12 bit
    measuring one channel 500 MSa/s 200 MSa/s 100 MSa/s 50 MSa/s 20 MSa/s
    measuring two channels 200 MSa/s 100 MSa/s 50 MSa/s 20 MSa/s 10 MSa/s
    measuring three or four channels 100 MSa/s 50 MSa/s 20 MSa/s 10 MSa/s 5 MSa/s
    14 bit 100 MSa/s 50 MSa/s 20 MSa/s 10 MSa/s 5 MSa/s
    16 bit 6.25 MSa/s 3.125 MSa/s 1.25 MSa/s 625 kSa/s 312.5 kSa/s
    Maximum streaming rate 1 HS6D-1000 HS6D-500 HS6D-200 HS6D-100 HS6D-50
    8 bit
    measuring one channel 200 MSa/s2 100 MSa/s2 40 MSa/s 20 MSa/s 10 MSa/s
    measuring two channels 100 MSa/s3 50 MSa/s3 20 MSa/s 10 MSa/s 5 MSa/s
    measuring three or four channels 50 MSa/s4 25 MSa/s4 10 MSa/s 5 MSa/s 2.5 MSa/s
    12 bit
    measuring one channel 100 MSa/s3 50 MSa/s3 20 MSa/s 10 MSa/s 5 MSa/s
    measuring two channels 50 MSa/s4 25 MSa/s4 10 MSa/s 5 MSa/s 2.5 MSa/s
    measuring three or four channels 25 MSa/s5 12.5 MSa/s5 5 MSa/s 2.5 MSa/s 1.25 MSa/s
    14 bit
    measuring one channel 100 MSa/s3 50 MSa/s3 20 MSa/s 10 MSa/s 5 MSa/s
    measuring two channels 50 MSa/s4 25 MSa/s4 10 MSa/s 5 MSa/s 2.5 MSa/s
    measuring three or four channels 25 MSa/s5 12.5 MSa/s5 5 MSa/s 2.5 MSa/s 1.25 MSa/s
    16 bit 6.25 MSa/s6 3.125 MSa/s 1.25 MSa/s 625 kSa/s 312.5 kSa/s
    1. On some computers, the highest streaming rates may not be available, due to computer restrictions.
    2. ≤ 40 MSa/s when connected to USB 2.0
    3. ≤ 20 MSa/s when connected to USB 2.0
    4. ≤ 10 MSa/s when connected to USB 2.0
    5. ≤ 5 MSa/s when connected to USB 2.0
    6. ≤ 3.125 MSa/s when connected to USB 2.0
    Sampling clock source
    Internal TCXO
    Accuracy ± 0.0001 %
    Stability ± 1 ppm over 0°C to 55°C
    Time base aging ±1 ppm/year
    External LVDS, on CMI connectors
    Input frequency 10 MHz ± 1 %
    16.369 MHz ± 1 %
    Memory Standard model XM option
    8 bit resolution
    Measuring one channel 1 Mpts per channel 256 Mpts per channel
    Measuring two channels 512 Kpts per channel 128 Mpts per channel
    Measuring three or four channels 256 Kpts per channel 64 Mpts per channel
    12, 14, 16 bit resolution
    Measuring one channel 512 Kpts per channel 128 Mpts per channel
    Measuring two channels 256 Kpts per channel 64 Mpts per channel
    Measuring three or four channels 128 Kpts per channel 32 Mpts per channel
    Trigger Only available in scope/block mode, not in streaming mode
    System Digital, 2 levels
    Source CH1, CH2, CH3, CH4, OR, digital external
    Trigger modes Rising edge, Falling edge, Any edge
    Inside window, Outside window, Enter window, Exit window (time conditions only on Ch1)
    Pulse width (only on Ch1)
    Interval (only on Ch1)
    Level adjustment 0 to 100 % of full scale
    Hysteresis adjustment 0 to 100 % of full scale
    Resolution 0.006 % (14, 16 bits) / 0.025% (12 bits)
    Pre trigger 0 to selected record length, 1 sample resolution
    Post trigger 0 to selected record length, 1 sample resolution
    Trigger hold-off 0 to 63 MSamples, 1 sample resolution
    Trigger delay 0 to 8 GSamples, 1 sample resolution
    Digital external trigger
    Input Extension connector pins 1 and 2
    Range 0 to 2.5 V (TTL)
    Coupling DC
    Jitter ≤ 1 sample

    Multi-instrument synchronization
    Using CMI Synchronizing instruments via CMI is available when all instruments are connected via USB.
    Maximum number of instruments Limited by number of available USB ports
    Synchronization accuracy 0 ppm
    CMI interface 2x, CMI 1, CMI 2
    Required coupling cable TP-C50H Coupling cable CMI
    Maximum coupling cable length 50 cm
    Using WCMI Synchronizing instruments via WCMI is available when instruments are connected via USB, LAN and WiFi.
    Maximum number of instruments No limitation
    Required coupling module WCMI – 8, WCMI – 9
    Clock synchronization accuracy ≤ 1 ppm, typical ≤ 0.2 ppm
    Trigger jitter at sample rate 1 ≤ 1 MSa/s > 1 MSa/s
    2 x “5” ≤ ±2 samples ≤ ±2 µs
    “5” and “6”
    Trigger source “5” ≤ ±2 samples ≤ ±2 µs
    Trigger source “6” ≤ ±8 samples ≤ ±8 µs
    2 x “6” ≤ ±8 samples ≤ ±8 µs
    1. “5” = WiFiScope WS5 or Handyscope HS5. “6” = WiFiScope WS6 DIFF, WiFiScope WS6, Handyscope HS6 DIFF, Handyscope HS6, ATS610004DW-XMSG, ATS610004D-XMSG, ATS605004DW-XMS or ATS605004D-XMS

    Probe calibration
    Output Extension connector pins 3 (signal) and 6 (ground)
    Signal Square wave
    Level -1 V to 1 V
    Frequency 1 kHz

    Interface
    Interface USB 3.0 SuperSpeed (5 Gbit/s);
    (USB 2.0 HighSpeed compatible)

    Power Requirements
    Power From USB port or external input
    Consumption 5 VDC 1200 mA max
    External power From second USB port or power adapter

    Physical
    Instrument
    Height 25 mm (1 inch)
    Length 170 mm (6.7 inch)
    Width 140 mm (5.2 inch)
    Weight 500 g (17.6 ounce)
    USB cord length 1.8 m (70 inch)

    I/O connectors
    Channel 1, 2, 3, 4 Isolated BNC, female
    USB Fixed cable with USB 3.0 type A connector, 1.8 m
    Extension connector D-sub 9 pins female
    Power 3.5 mm power socket
    CMI I/O connectors 2 x HDMI type C socket

    System requirements
    PC I/O connection USB 2.0, USB 3.0 or USB 3.1
    Operating system Windows 10 / 11, 64 bits
    Linux

    Environmental conditions
    Operating
    Ambient temperature 20°C to 25°C (10°C to 40°C without specifications)
    Relative humidity 10 % to 90 %, non condensing
    Storage
    Ambient temperature -20°C to 70°C
    Relative humidity 5 % to 95 %, non condensing

    Certifications and Compliances
    CE mark compliance Yes
    RoHS Yes
    EN 55011:2009/A1:2010 Yes
    EN 55022:2006/A1:2007 Yes
    EN 61000-6-1:2007 Yes
    EN 61000-6-3:2007 Yes

    Package contents
    Instrument Handyscope HS6 DIFF
    Measure leads 4 x Measure lead TP-C812B, Differential BNC -> 4 mm banana plug
    Differential attenuator 4 x Differential attenuator TP-DA10
    Alligator clips, large Alligator Clip TP-AC80I – Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 large alligator clips
    Alligator clips, medium Alligator Clip TP-AC10I – Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 medium alligator clips
    Alligator clips, small Alligator Clip TP-AC5 – Set of 8: Green, Blue, Yellow, Red, 4 Black, 8 small alligator clips
    Accessories Handyscope / WiFiScope power supply, external power cable for USB port, Probe compensation cable TP-DB9-BNC-30 (only with option SafeGround)
    Software for Windows 10 / 11, 64 bits
    Drivers for Windows 10 / 11, 64 bits
    Software Development Kit for Windows 10 / 11, 64 bits, and Linux
    Manuals instrument manual and software user’s manuals
    color printed and digital
    WiFiScope WS5 WiFi oscilloscope WS5-540
    , ,
    WiFiScope WS5 WiFi oscilloscope WS5-540
    Read more
    WiFiScope WS6 DIFF WiFi oscilloscope WS6-DIFF-200S
    , ,
    WiFiScope WS6 DIFF WiFi oscilloscope WS6-DIFF-200S
    Read more
    WiFiScope WS5 WiFi oscilloscope WS5-540XM-W5
    , ,
    WiFiScope WS5 WiFi oscilloscope WS5-540XM-W5
    Read more

    Accessories

    Optional Accessories
    Optional accessories for the Handyscope HS6 DIFF need to be ordered separately
    Oscilloscope probe Oscilloscope Probe 1:1-1:10 – HP-3250I, only with SafeGround option G
    Measure lead single ended Measure lead TP-BNCI-100,  only with SafeGround option G
