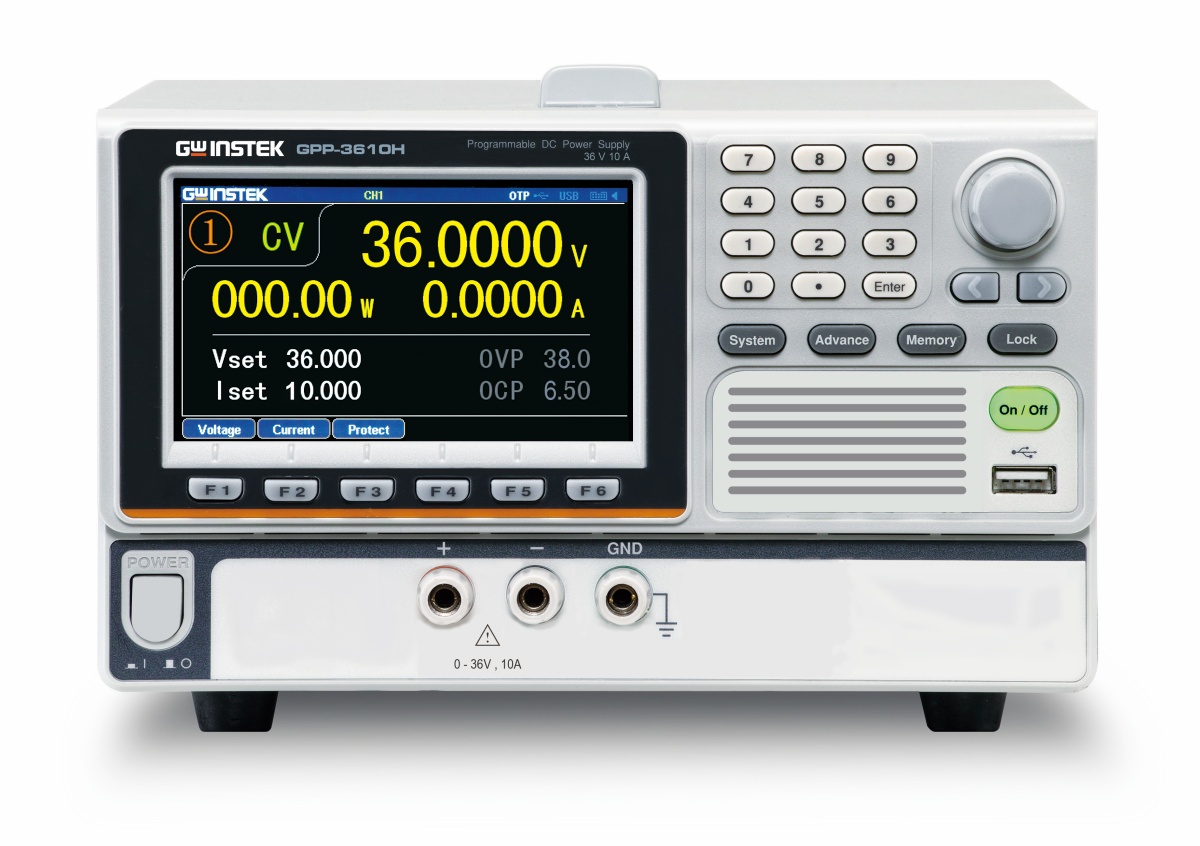

GPP-3610H Single-Channel Programmable DC Power Supply

Key Features

36V / 10A single-channel output with 360W power
High-resolution display for clear readouts
USB, LAN, and RS-232 remote control interfaces
Overvoltage, overcurrent, and overtemperature protection
Programmable voltage and current sequences
Data logging and monitoring capabilities
Compact, rack-mountable design
Ideal for lab, industrial, and automated testing environments

The GPP-3610H Single-Channel Programmable DC Power Supply is a high-performance, precision power source designed for demanding laboratory, industrial, and development applications. Delivering up to 36 volts and 10 amps of output, this unit offers 360 watts of clean, stable DC power through a single programmable channel. With its high-resolution display, intuitive user interface, and comprehensive protection features including overvoltage, overcurrent, and overtemperature safeguards, the GPP-3610H ensures reliable operation and precise control. It supports remote programming via USB, LAN, and RS-232 interfaces, allowing seamless integration into automated test systems or remote-controlled setups. The compact, robust design makes it ideal for both benchtop use and rack-mounted configurations, while features like programmable voltage/current sequences and data logging enhance its functionality for advanced testing needs.

Specifications

		GPP-3610H	GPP-7250
OUTPUT MODE
Number of Channel		CH1	CH1
Voltage		0 ~ 36.000V	0 ~ 72.000V
Current		0 ~ 10.0000A	0 ~ 5.0000A
Constant Voltage Operation
Line Regulation		≤ 0.01% + 3mV
Load Regulation		≤ 0.01% + 5mV
Ripple & Noise (5Hz-1MHz)		≤2mVrms
Transient Recovery Time		≤100µs (50% load change，minimum load
Temperature Coefficient		≤ 300ppm/°C
CONSTANT CURRENT OPERATION
Line Regulation		≤ 0.01% + 3mA
Load Regulation		≤ 0.01% + 3mA
Ripple & Noise		≤ 2mArms
RESOLUTION
Programming	Voltage/Current	1mV / 0.2mA	2mV / 0.1mA
Reedback	Voltage/Current	0.1mV / 0.2mA	0.1mV / 0.1mA
METER
Full Scale	Voltage/Current	36.5000V / 10.2000A	72.5000V / 5.2000A
Programming Resolution	Voltage/Current	5 digits / 6 digits
Reedback Resolution	Voltage/Current	6 digits / 6 digits
Setting Accuracy	Voltage	± (0.03% of reading + 10mV)
	Current	± (0.3% of reading + 10mA)
Readback Accuracy	Voltage	± (0.03% of reading + 10mV)
	Current	± (0.3% of reading + 10mA)
DC LOAD MODE
Display	Voltage	1 ~ 36.50V	1 ~ 72.50V
	Current	0 ~ 10.200A	0 ~ 5.200A
	Power	0 ~ 100.00W	0 ~ 100.00W
CV Mode	CH1	1.500V ~ 36.50V	1.500V ~ 72.50V
	Setting/Reedback Accuracy	≤±(0.1% + 30mV)	≤±(0.1% + 30mV)
	Resoltion	10mV	10mV
CC Mode	CH1	0 ~ 10.200A	0 ~ 5.200A
	Setting/Reedback Accuracy	≤±(0.3% + 10mA)	≤±(0.3% + 10mA)
	Resoltion	1mA	1mA
CR Mode	CH1	1Ω ~ 1kΩ	1Ω ~ 1kΩ
	Setting/Reedback Accuracy	≤±(3% + 1Ω)	≤±(3% + 1Ω)
		(voltage≥0.1V, and current≥0.1A)	(voltage≥0.1V, and current≥0.1A)
	Resoltion	1Ω	1Ω
PROTECTION
OVP	Power Mode	OFF,ON(0.5V ~ 38.0V)	OFF,ON(0.5V ~ 75.0V)
	Load Mode	OFF,ON(1.5V ~ 38.0V)	OFF,ON(1.5V ~ 75.0V)
	Setting Accuracy	±100mV
	Resoltion	100mV
OCP	Power Mode	OFF,ON(0.05A ~ 10.5A)	OFF,ON(0.05A ~ 5.50A)
	Load Mode	OFF,ON(0.05A ~ 10.5A)	OFF,ON(0.05A ~ 5.50A)
	Setting Accuracy	±20mA
	Resoltion	10mA
Insulation Resistance		Between chassis and terminal : 20MΩ or above (DC 500V)
		Between chassis and DC power cord : 30MΩ or above (DC 500V)
GENERAL
Operation Environment		Indoor use, Altitude: ≤ 2000m
		Ambient temperature: 0 ~ 40°C / Relative humidity: ≤ 80%
		Installation category: II / Pollution degree: 2
Storage Environment		TEMPERATURE: -10˚C ~ 70˚C / HUMIDITY: ≤70%
Power Input		AC 100V/120V/220V/230V±10%, 50/60Hz
Power Consumption		900VA, 680W
Dimensions & Weight		213 (W) x 145 (H) x 362 (D) mm ; Approx. 10kg
