2-wire test mode
-
AC & DC Hipot and insulation resistance testing
-
Open/short detection with intermittence monitoring
-
Component testing (R / C / Conductance / Diode)
-
Programmable multi-step auto test sequences
-
USB host for storage and firmware updates
-
Barcode scan support (optional)
-
Suitable for cable and harness production verification

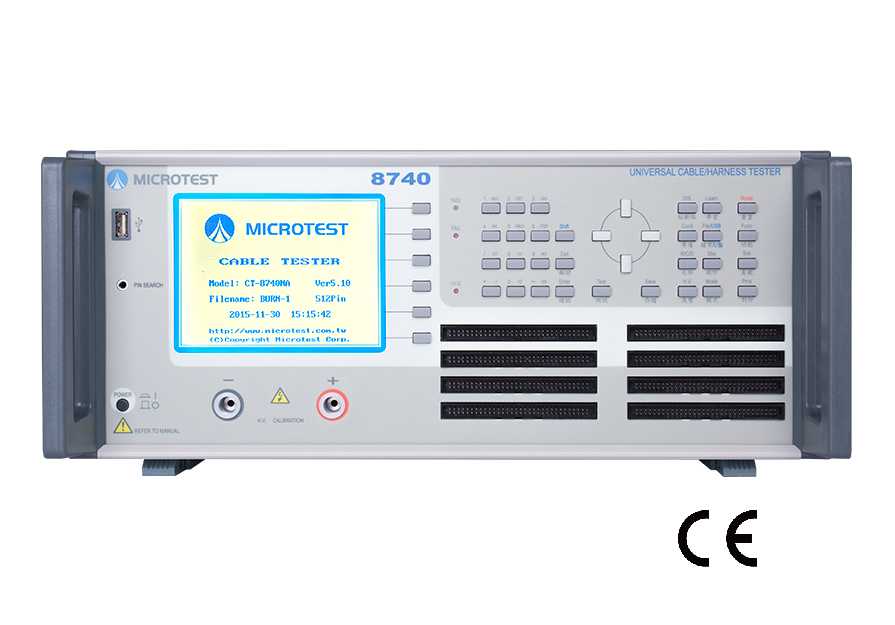

2-Wire Cable Tester Series 8740NA
- Supports 128 / 256 / 512 test pins, allowing flexible test coverage for various harness and connector configurations.
- Performs Open/Short, Resistance, Conductance, Capacitance, Diode, AC/DC Hipot, Leakage, and Insulation Resistance tests.
- Hipot ranges: AC 100–700V, DC 50–1000V, with ±5% output accuracy and 5VA power rating.
- Offers Auto / Manual / External Trigger test modes and can store up to 500 test setups with programmable sequence flow.

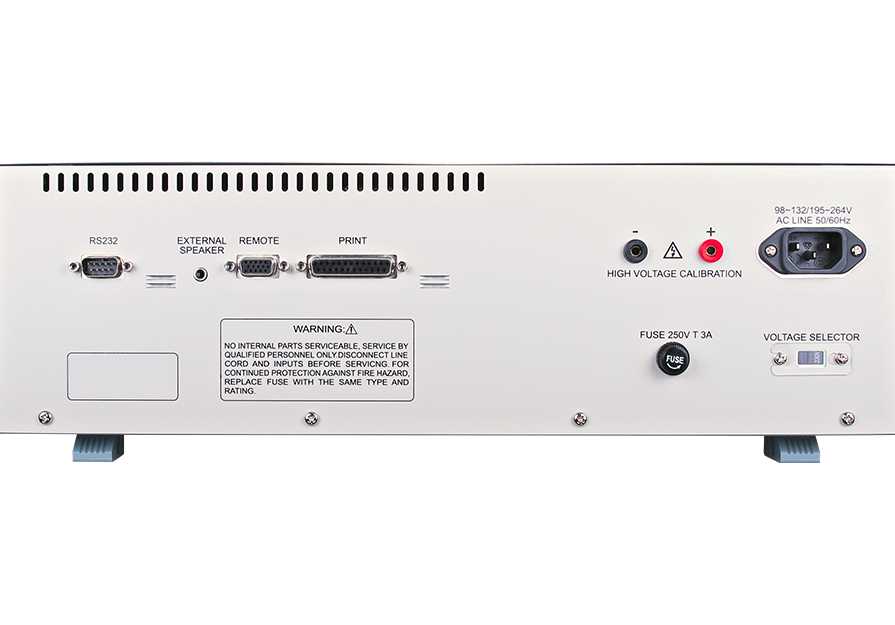

- Interfaces include USB Host, RS-232, and Remote I/O for PC-based operation, barcode scanning, automation control, and data export.
The 8740NA is a high-precision 2-wire cable tester designed for continuity, insulation, leakage, and component verification in connector assemblies and wiring harnesses. It supports up to 512 test pins and provides AC/DC Hipot testing with programmable automatic test flows, making it suitable for production lines, QC inspection, and harness manufacturing.
| Item | 8740NA |
|---|---|
| Test Pins | 128 / 256 / 512 |
| Measuring Mode | 2-wire |
| AC Output Voltage | 100–700V |
| DC Output Voltage | 50–1000V |
| Hipot Output Accuracy | ±5% |
| Rated Output | 5VA |
| Hipot Test Time | 0.01s |
| Max Wire Capacitance | 5µF |
| AC Leakage Current | 0.01mA–5mA |
| DC Leakage Current | 0.1µA–1000µA |
| Insulation Resistance | 1MΩ–10GΩ |
| Resistance Range | 10mΩ–2MΩ |
| Capacitance Range | 10pF–3µF |
| Test Modes | Auto / Manual / External Trigger |
| Storage | 500 setups |
| Interfaces | RS-232, USB Host, Remote I/O |
| Power Supply | 115/230Vac ±10%, 50/60Hz |
Standard
-
Power Cord
-
AK-8600F-2B/8740FA Probe
-
8730-J2 Fixture
-
Ground Wire
Optional
-
PC Link Software
-
Remote Control Cable
-
KB-9730K1 Barcode Scanner
-
FX000C Series Fixtures
-
Networking Interface
-
D-Sub Foot Switch (F76000T)
-
Printer
