200V–10000V adjustable impulse output
-
Supports AREA, DIFF, CORONA, LAPLACIAN, waveform and flat comparison
-
High-speed 200MHz / 9-bit waveform acquisition
-
Automatic breakdown detection and storage logging
-
Large 7-inch graphical display

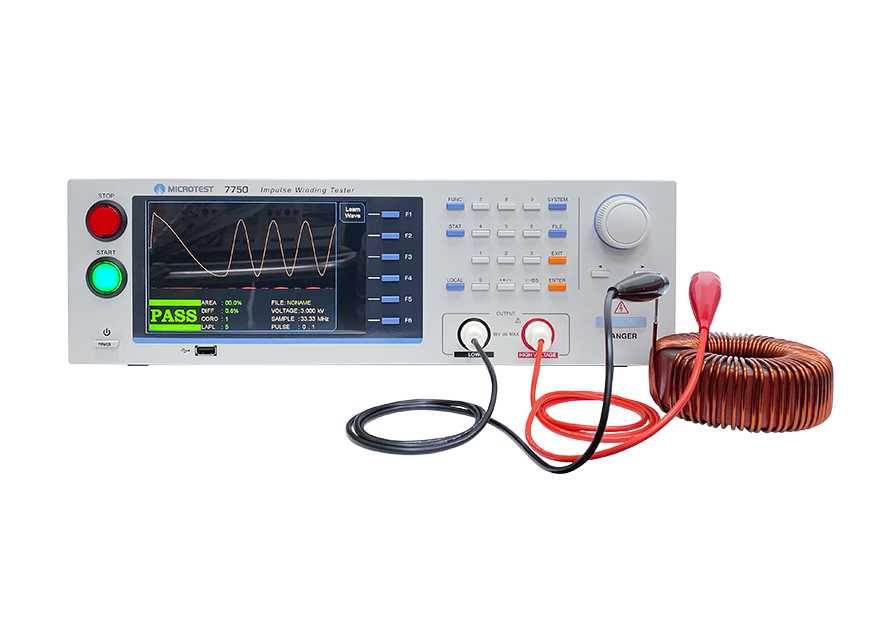

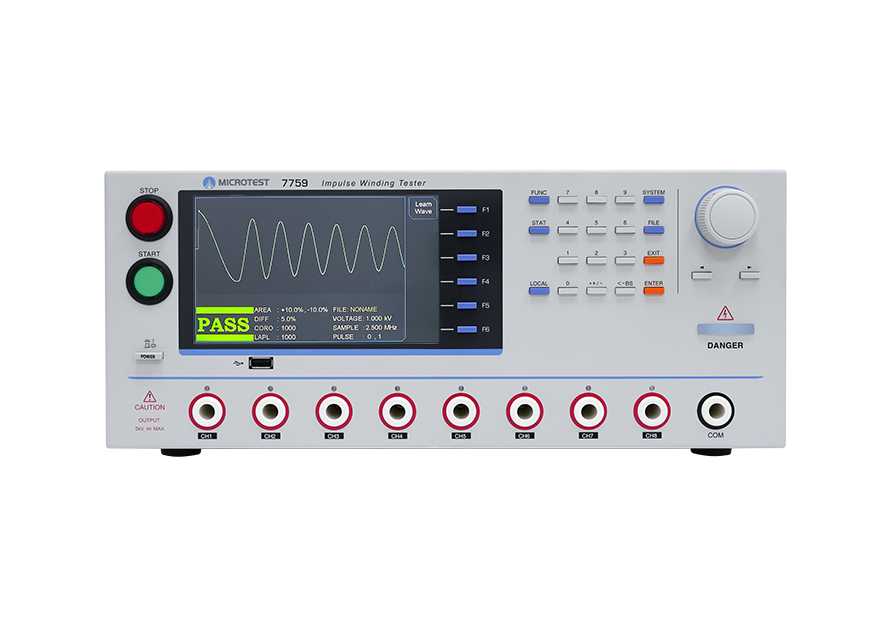

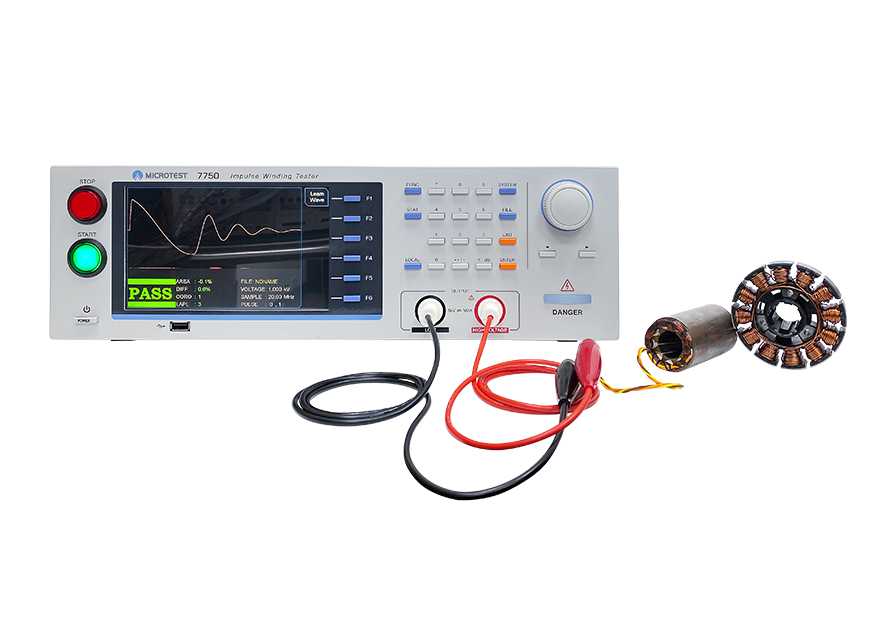

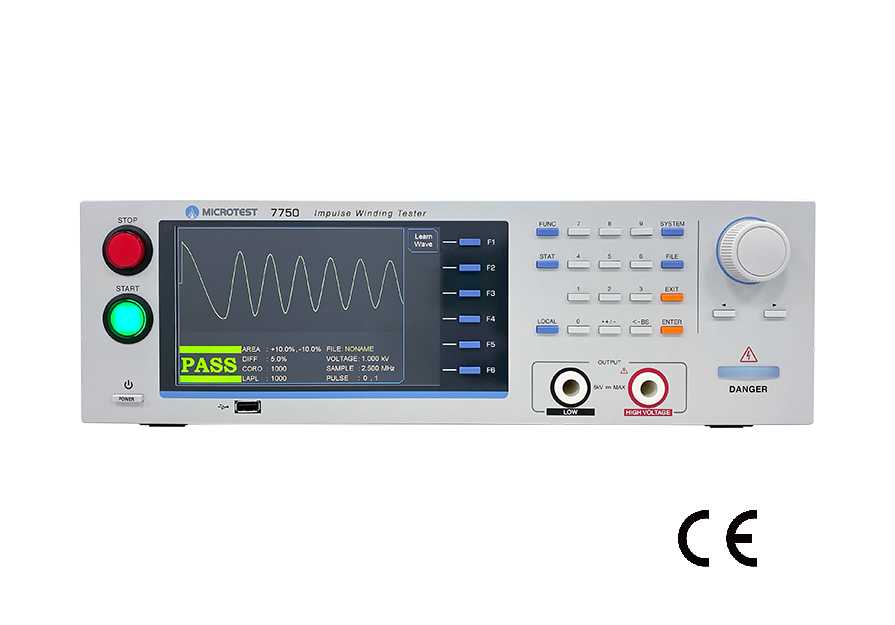

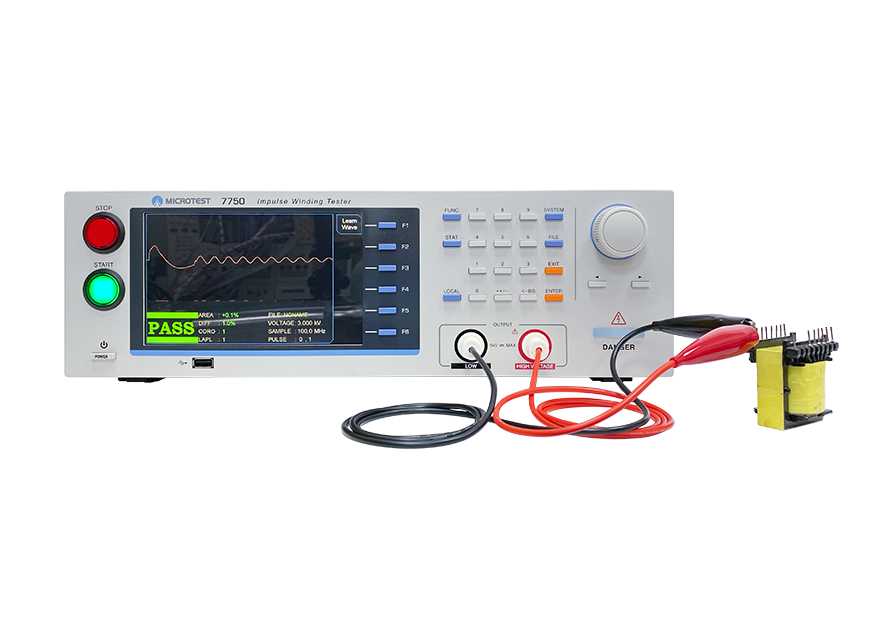

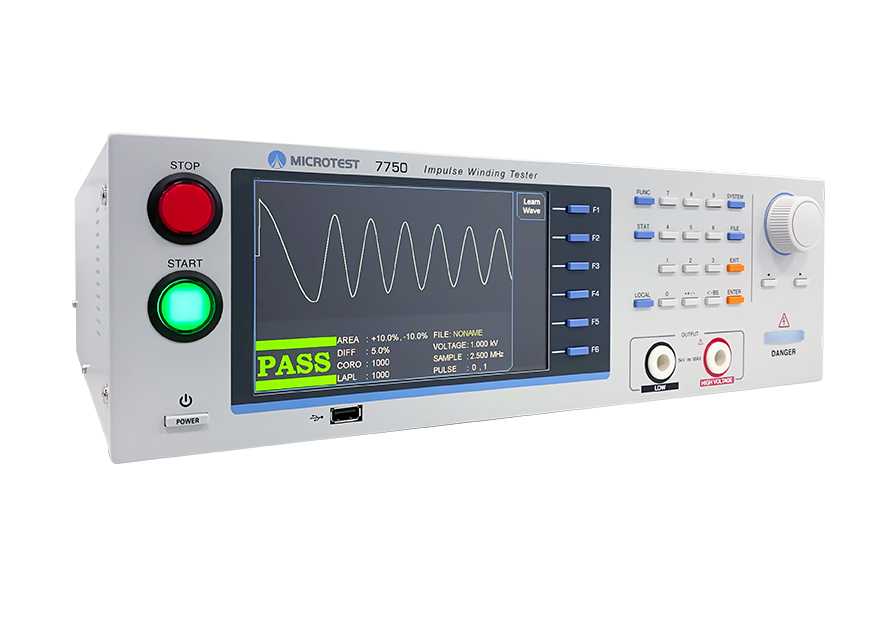

Impulse Winding Tester Series 7750-10
- Designed for high-voltage coil and transformer testing
- Detects insulation deterioration under stress conditions
- 200MHz waveform sampling ensures accurate analysis
- Supports multiple waveform comparison modes
- Suitable for industrial and power equipment production testing
The 7750-10 supports high-voltage impulse testing for large motors, power transformers, and heavy industrial coil systems. It identifies weak insulation and early breakdown characteristics under elevated stress. The high-speed sampling and comparison functions ensure reliable diagnostics for high-power equipment evaluation and production-level quality assurance.
| Parameter | 7750-10 |
|---|---|
| Impulse Voltage Range | 200V–10000V |
| Voltage Resolution | 5V |
| Test Inductance Range | ≥20µH |
| Voltage Accuracy | ±(1% of setting + 20V) |
| Pulse Number | Max. 32 |
| Sampling Rate | 200MHz / 9-bit |
| Test Rate | 10 tests/sec |
| Input Impedance | 20MΩ |
| Comparison Modes | AREA / DIFF / CORONA / LAPLACIAN / WAVEFORM / FLAT |
| Built-in Storage | 128 Records |

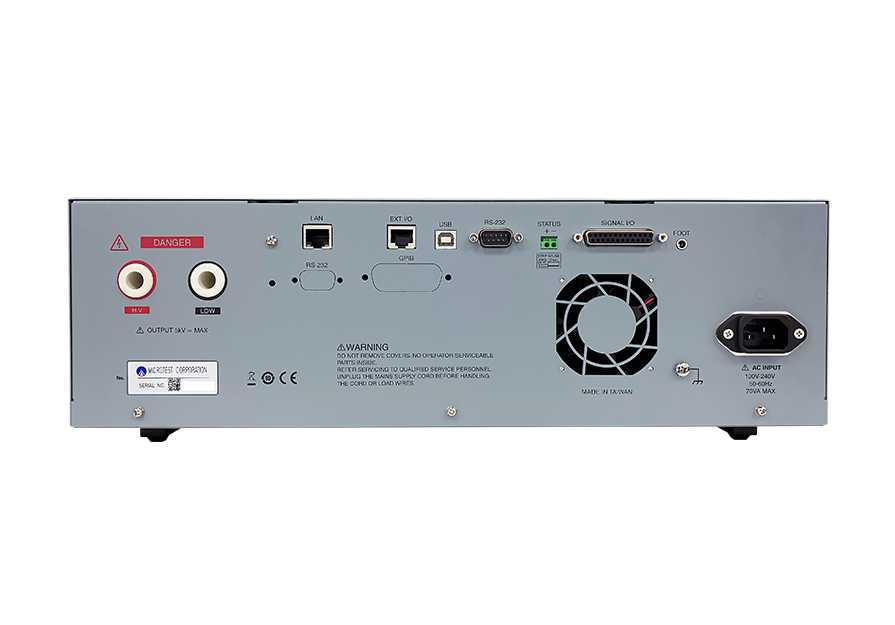

| Interface | RS-232, SIGNAL I/O, USB Host/Device (GPIB Optional) |
| Display | 7″ TFT (800×480) |
| Power Supply | 100–240Vac, 47–63Hz |
| Dimensions | 430 × 132 × 370 mm |
| Weight | ~7 kg |
Standard
-
Power Cord
-
Signal I/O Cable
-
User Manual
Optional
-
RS-232 Cable
-
Remote Control Cable
