USB Power Quality Analyzer Handyscope TP450-250XM

±450 V Differential Input: Fully galvanically isolated input for safe, direct connection to 110–230 V mains without external attenuators.
High Resolution: 16-bit analog-to-digital converter for accurate voltage waveform capture and detailed analysis.
Flexible Sampling Rates: Available in 50 kSa/s and 250 kSa/s versions to suit both basic and advanced measurement needs.
Large Memory Options: Models with up to 1 Mpts (XM versions) enable extended data logging and capture of long-duration events.
Multi-Function Capability: Operates as an oscilloscope, spectrum analyzer, data logger, multimeter, and protocol analyzer via Multi Channel software.
USB Powered: No external power supply required, ideal for portable and field use.
Cross-Platform Accessories: Supplied with test leads, probes, alligator clips, and global mains adapters for ready-to-use versatility.
Software Included: Compatible with Multi Channel software for real-time analysis, logging, and export on Windows 10/11 systems.
Compact and Lightweight: Pocket-sized form factor designed for mobile engineers, technicians, and educators.
Extended Warranty Options: Available models include up to 5-year warranty coverage.

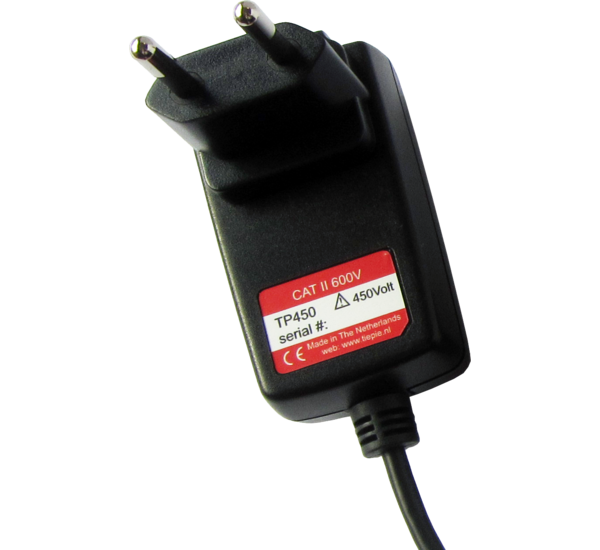

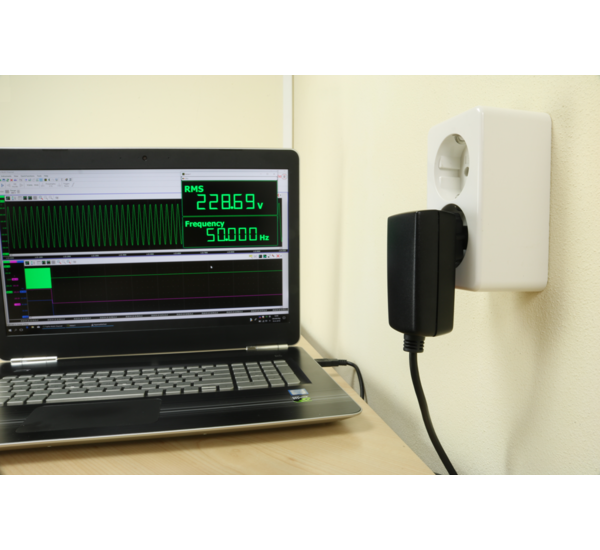

The Handyscope TP450 is a compact, USB-powered power quality analyzer designed for accurate and safe measurement of mains voltage. Engineered by TiePie Engineering, it features a fully galvanically isolated differential input that can handle up to ±450 V, making it ideal for direct connection to 110 V or 230 V mains power without requiring external probes or attenuators. With 16-bit resolution and sampling rates of up to 250 kSa/s (depending on the model), it delivers detailed and reliable waveform analysis across a wide frequency range.

Available in multiple configurations with up to 1 million samples of memory (XM models), the TP450 excels in long-term data logging, harmonic analysis, and power diagnostics. It functions as a versatile all-in-one instrument—oscilloscope, spectrum analyzer, multimeter, data logger, and protocol analyzer—when used with the included Multi Channel software for Windows 10/11.

Whether you’re a field technician, engineer, or educator, the TP450 offers professional-grade performance in a lightweight and portable form factor. It comes with measuring leads, probes, alligator clips, international mains adapters, and free software updates. Ideal for power quality monitoring, troubleshooting, and educational use.

Acquisition System

Input channel: 1 (CH1)
Input type: Galvanically isolated, differential
Voltage ranges (full scale): ±2 V, ±4 V, ±8 V, ±20 V, ±40 V, ±80 V, ±200 V, ±400 V, ±450 V
Resolution (varies by range):
- 2 V: 10.7 bits
- 4 V: 11.7 bits
- 8 V: 12.7 bits
- 20 V: 14 bits
- 40 V: 15 bits
- 80 V: 16 bits
- 200 V: 14.8 bits
- 400 V: 15.8 bits
- 450 V: 16 bits
Amplitude accuracy: ±0.5% of full scale
Coupling: DC
Noise: 1.6 mVrms (2 V range, 250 kSa/s)
Input impedance: 1 MΩ // 20 pF
Max input voltage (all ranges): 600 V CAT II (DC + AC peak, <10 kHz)
Max common mode voltage: 600 V (all ranges)
Galvanic isolation (input to USB): 5000 Vrms for 1 minute

Bandwidth (–3 dB)

TP450-250: 200 kHz
TP450-50: 25 kHz

Sampling Rate

Block mode:
- TP450-250: 1 Sa/s to 250 kSa/s
- TP450-50: 1 Sa/s to 50 kSa/s
Streaming mode:
- TP450-250: 1 Sa/s to 250 kSa/s
- TP450-50: 1 Sa/s to 50 kSa/s
Sampling clock source: Internal
Clock accuracy: ±25 ppm

Memory

Standard: 16,384 points
XM Option: 1,048,576 points

Trigger System

Available in: Scope/block mode only (not in streaming)
Type: Digital, 2 levels
Source: CH1
Trigger modes:
- TP450-250: Rising edge, Falling edge, Inside window, Outside window
- TP450-50: Rising edge, Falling edge
Level adjustment: 0 to 100% of full scale
Hysteresis adjustment: 0 to 100% of full scale
Resolution: 0.025% (16 bits)
Pre-trigger: 0 to full record length, 1 sample steps
Post-trigger: 0 to full record length, 1 sample steps

Interface

USB 2.0 High Speed (480 Mbit/s)
Backward compatible with USB 1.1 (12 Mbit/s) and USB 3.0

Power Requirements

Supplied via USB port
Power consumption: Max 100 mA (0.5 W)

Physical Dimensions

Height: 70 mm (2.75 in)
Length: 72 mm (2.83 in)
Width: 42 mm (1.65 in)
USB cable length: 3 m (118 in)
Weight: 160 g (5.6 oz)

I/O Connectors

Channel 1: Slide contacts with adapters for EU, US, AU, UK mains sockets
USB: Fixed cable with USB 2.0 Type-A connector

System Requirements

PC connection: USB port
OS: Windows 10 / 11 (64-bit)

Operating Environment

Ambient temperature: 20–25 °C (guaranteed), 10–40 °C (functional)
Relative humidity: 10–90% non-condensing
Altitude: <2000 m

Storage Environment

Temperature: –20 to 70 °C
Relative humidity: 5–95% non-condensing

Certifications and Compliance

CE compliant
RoHS compliant

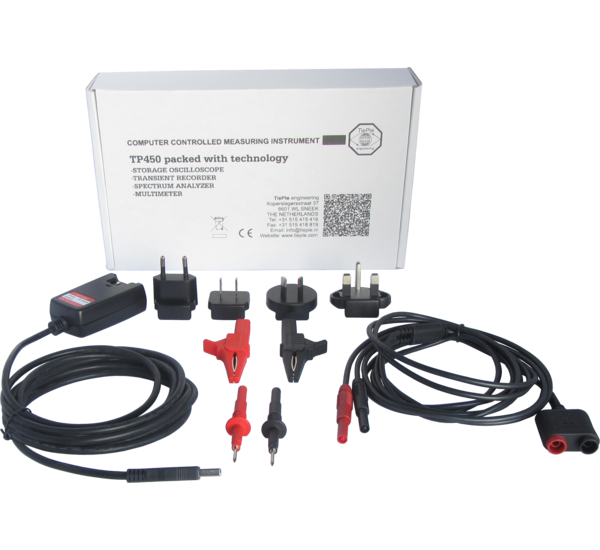

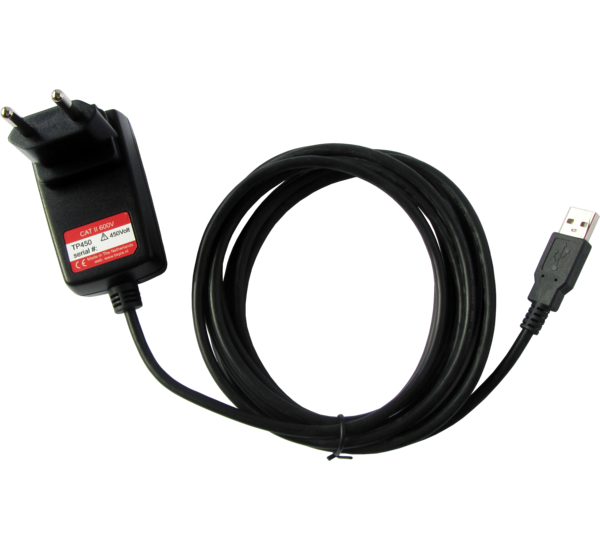

Instrument: Handyscope TP450 USB power quality analyzer

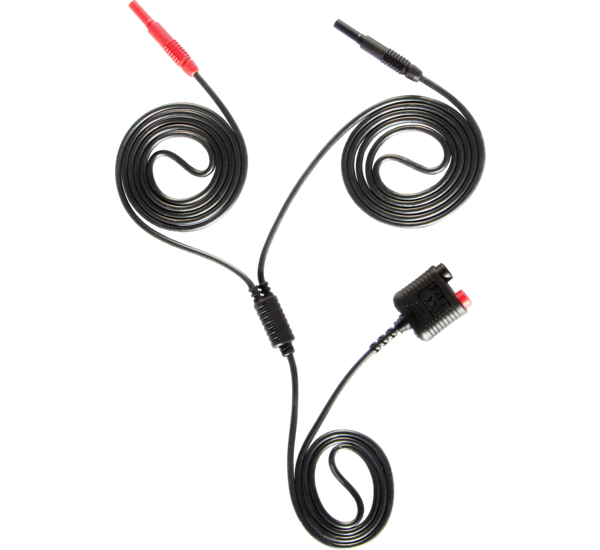

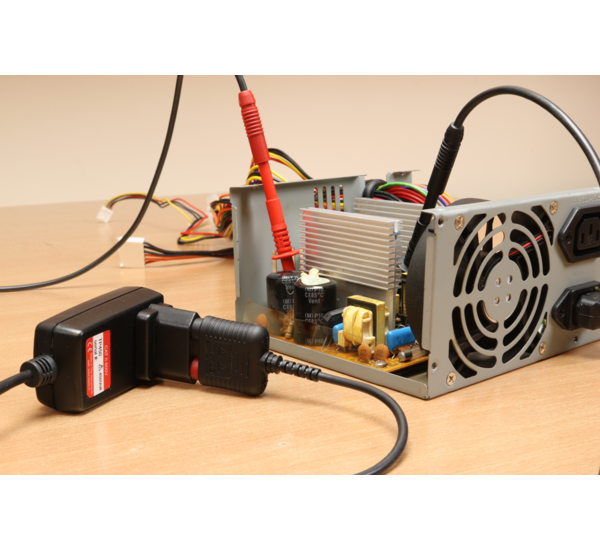

Measure lead: TP-C812C measuring lead

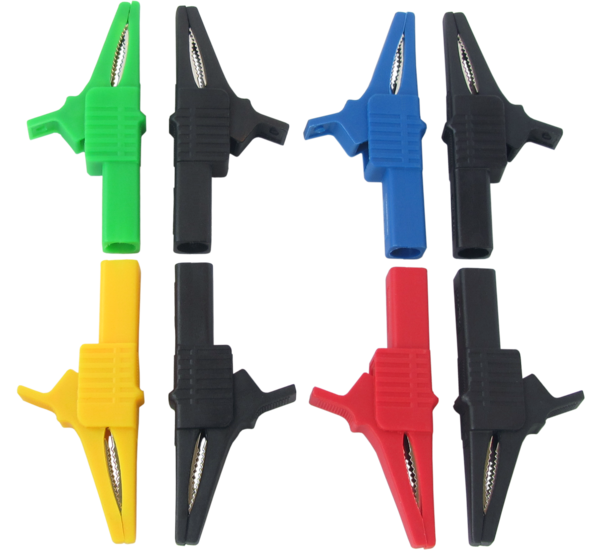

Alligator clips: TP-AC80I red and black alligator clips

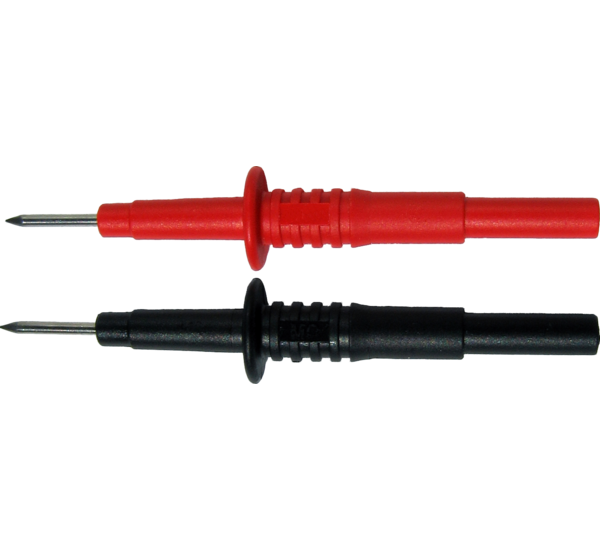

Test probe: TP-TP90 high-quality test probe

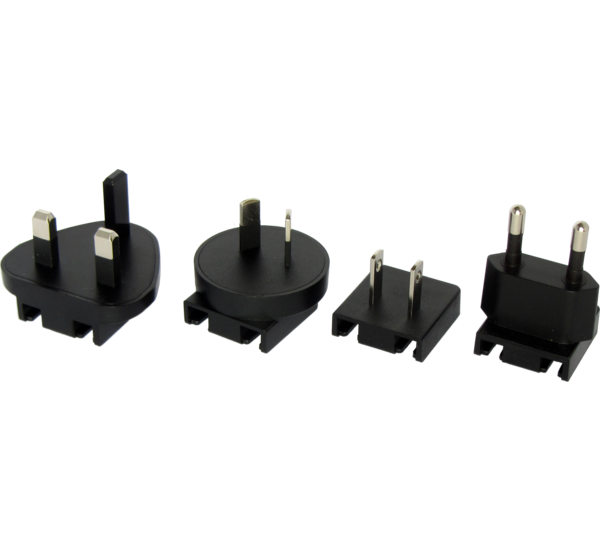

Accessories: Mains plug adapters for Europe, North America, Australia, and the United Kingdom
Software: Multi Channel software for Windows 10 / 11 (64-bit), downloadable from website
Drivers: Windows 10 / 11 (64-bit) drivers, downloadable from website
Software Development Kit (SDK): Available for Windows 10 / 11 (64-bit) and Linux, via website
Manuals: Color printed and digital user manuals for the instrument and software, accessible online
