- DDS Technique and FPGA Chip Design
- Frequency Range:0.1Hz~3MHz
- High Frequency Accuracy : ± 20ppm
- High Frequency Stability : ± 20ppm
- Max. Frequency Resolution : 100mHz
- Low Distortion Sine Wave : -55dBc,0.1Hz~200kHz
- Voltage Display (Only SFG-1013)

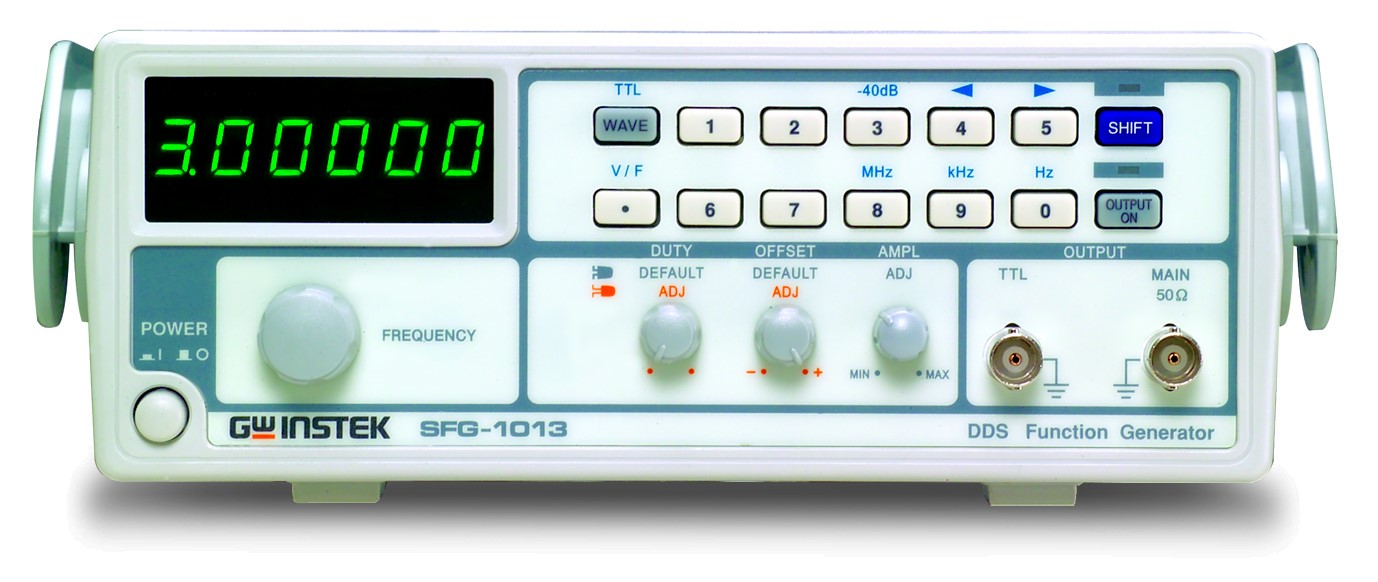

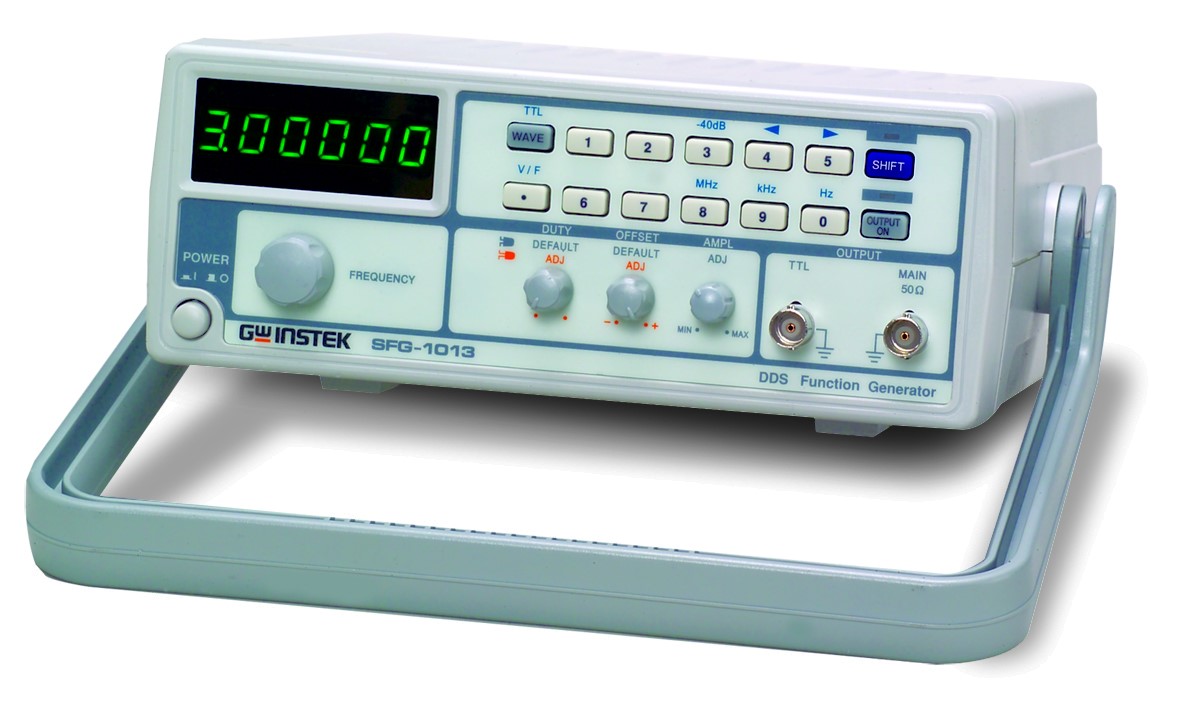

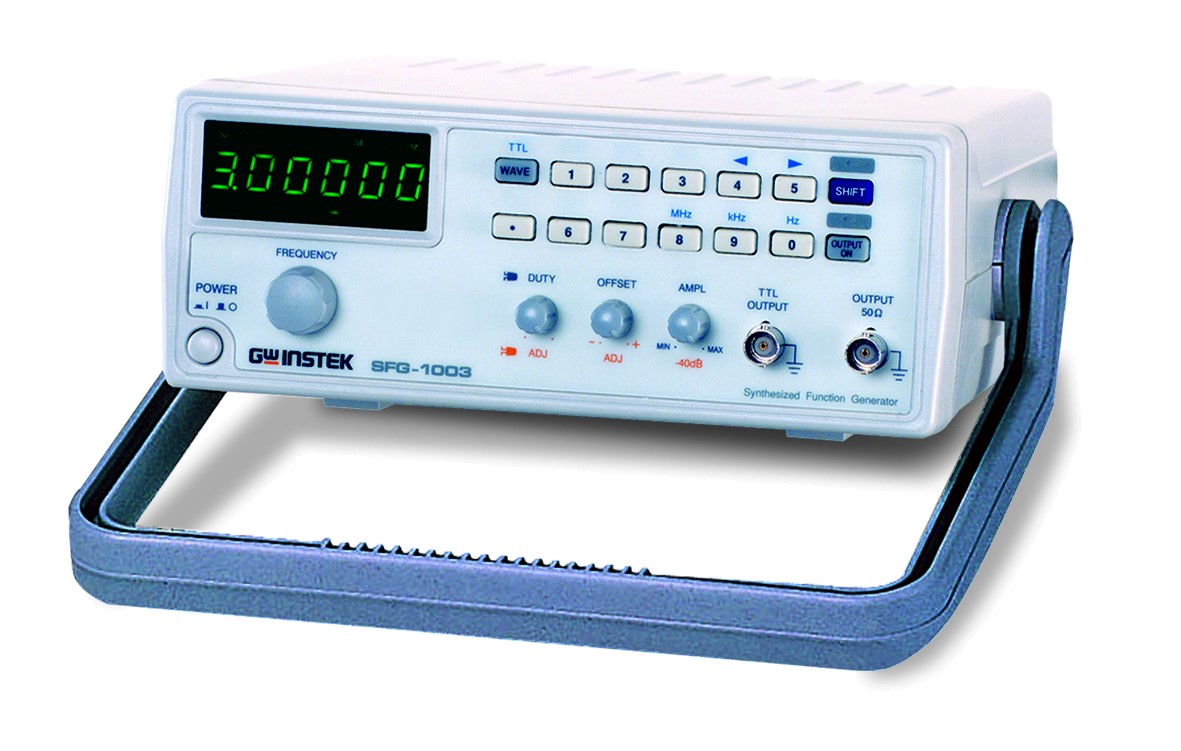

DDS Function Generator SFG-1013
- Offers a frequency range from 0.1 Hz to 3 MHz, with a frequency resolution of 0.1 Hz and a stability of ±20 ppm, ensuring reliable performance.
- Capable of generating sine, square, triangle, and TTL waveforms. It includes a 25% to 75% duty cycle range for square waves, ideal for varied applications.
- Amplitude range of 2 mVpp to 10 Vpp into a 50Ω load. The SFG-1013 ensures a ±20% accuracy at maximum amplitude, providing flexibility for different output needs.
- Sine wave harmonic distortion is >-55 dBc from 0.1 Hz to 200 kHz. Sine wave flatness is <±0.3 dB from 0.1 Hz to 1 MHz for high-quality output.
- Features a 6-digit LED display and operates on AC 100V to 240V. Compact design with dimensions of 220mm x 85mm x 260mm and a weight of about 2.8 kg.
The SFG-1000 Series, an economic function generator with high accuracy and high stability output, are designed based on the DDS (Direct Digital Synthesized) technology embedded in a large scale FPGA.
The 3MHz frequency range and the output waveform selection of Sine, Square, Triangle and TTL available in the SFG-1000 Series adequately provide the fundamental functions to ensure high confidence in test results. The DDS technology at an affordable price gives a high value solution to the users who need a signal source for accurate but simple measurement applications.
SFG-1000 Specifications
- Output Function:
- Sine, Square, Triangle, TTL
- Amplitude Range:
- 2mVpp to 10Vpp (50Ω load)
- Amplitude Accuracy:
- ±20% at maximum position (SFG-1013 only)
- Main Impedance:
- 50Ω ±10%
- Attenuator:
- -40dB ±1dB x 1
- DC Offset:
- <-5V ~ >+5V (50Ω load)
- Duty Range:
- 25% ~ 75%, ≤1MHz (Square Wave)
- Display:
- 6 digits LED display
- Sine/Square Waveform Range:
- 0.1Hz ~ 3MHz
- Triangle Waveform Range:
- 0.1Hz ~ 1MHz
- Frequency Resolution:
- 0.1Hz maximum
- Frequency Stability:
- ±20ppm Accuracy
- Frequency Aging:
- ±5ppm/year
- Sine Wave Harmonic Distortion:
- >-55dBc, 0.1Hz ~ 200kHz
- >-40dBc, 0.2MHz ~ 2MHz
- >-35dBc, 2MHz ~ 3MHz (At maximum position without any attenuation to 1/10 of any combination setting, TTL Off)
- Sine Wave Flatness:
- <±0.3dB 0.1Hz – 1MHz
- <±0.5dB 1MHz – 2MHz
- <±1dB, 2MHz – 3MHz (At the max amplitude relating to 1kHz)
- Triangle Wave Linearity:
- >98%, 0.1Hz ~ 100kHz
- >95%, 100kHz ~ 1MHz
- Square Wave Rise/Fall Time:
- <100ns (At maximum amplitude)
- TTL Output Level:
- High level: >3V
- Low level: <0.8V
- TTL Output Rise/Fall Time:
- <30ns
- Power Source:
- AC 100V ~ 240V, 50Hz/60Hz
- Dimensions:
- 220mm x 85mm x 260mm
- Weight:
- About 2.8kg
Accessories
- User Manual x1
- Power Cord x1
- Test Lead GTL-101 x1
