- Test Frequency 10Hz-200kHz/500kHz/1MHz
- 20 Channels
- Built-in Meter Mode
- Simultaneously display four parameters
- Basic accuracy up to ±0.1%
- Open circuit/short circuit function
- RS-232、Handler、LAN、USB Host 、Handler
- Pneumatic fixture F5620 built-in 100mA DC Bias
- USB Host storages can storage setting files, data and capture the screen
Transformer Tester 5260 Series 5265/5266/5267
- Wide Frequency Range Measures from 10Hz to 200kHz (optional 500kHz/1MHz) for comprehensive testing.
- 20 Testing Channels Simultaneously displays four parameters with high efficiency.
- Accurate Measurements Basic accuracy up to ±0.1%, with inductance, resistance, quality factor, capacitance, and turns ratio tests.
- Advanced Features Built-in LCR meter mode, open/short circuit detection, and 100mA DC bias support.
- Flexible Connectivity & Storage Includes RS-232, LAN, USB Host, and Handler interfaces; USB Host storage for settings, data, and screen captures.

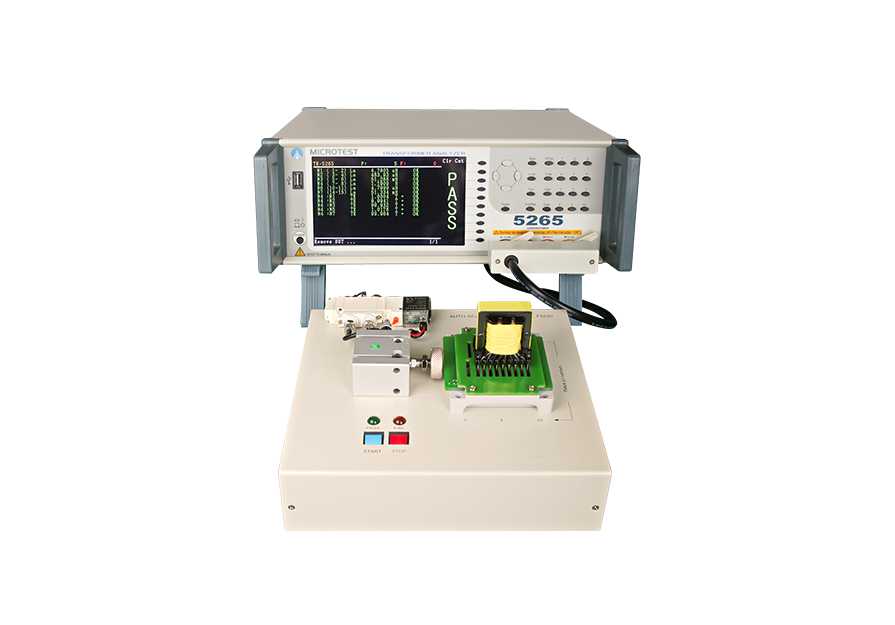

The MICROTEST 5260 Series Transformer Tester is a versatile and comprehensive testing device designed to measure critical parameters for transformer products. It offers a wide frequency range from 10Hz to 200kHz (with optional 500kHz and 1MHz capabilities), and supports 20 testing channels for simultaneous measurements. The tester is capable of measuring inductance, leakage inductance, DC resistance, AC resistance, quality factor, capacitance, turns ratio, and can also detect pin short circuits. With a built-in LCR meter mode, it provides high accuracy of up to ±0.1% and includes an open circuit/short circuit function. Additionally, the device features a 100mA DC bias capability, integrated pneumatic fixture (F5620), and supports USB Host storage for saving settings, data, and screen captures. For enhanced connectivity, it includes RS-232, Handler, LAN, and USB interfaces. Customized testing fixtures are also available to meet specific customer requirements.
Specifications
Selection
| Model | 5260 Series | ||
| Test Channel | 20 | ||
| Test Frequency | 10Hz-200kHz | ||
| Other | 5265 | 5266 | 5267 |
| 10Hz-200kHz | 10Hz-500kHz | 10Hz-1MHz | |
SPEC
| Frequency Resolution | 5 digits | |
| Basic Accuracy | ±0.1% | |
| AC Drive Level | 10mV-2Vrms | |
| DC Drive Level | 10mV-2V | |
| Output Impedance | 100Ω | |
| DC Bias Current | 100mA (F5620) | |
| Turn | Inductance or Voltage
Test Freqeuncy：50Hz-200kHz |
|
| Test Mode | Meter Mode / List Mode | |
| Parameters Measurement | Inductance (L)、Impedance (Z)、Capacitance (C)、Resistance (R)、Conductance (G)、Susceptance (B)、Admittance (Y)、Alternating Current Resistance (ACR)、Quality Factor (Q)、θ、Direct Current Resistance (DCR)、Leakage Inductance、Turn Ratio、Balance、Short Circuit | |
Parameters
| Parameters | Range | Basic Accuracy
(AC parameter:1kHz) |
Speed |
| L, LK | 0.1nH ~ 9999.99H | 0.1% | 25ms |
| C | 0.00001pF ~ 999.99mF | 0.1% | 25ms |
| Q,D | 0.00001 ~ 99999 | 0.0005 | 25ms |
| Z,X,R | 0.00001Ω ~ 99.9999MΩ | 0.1% | 25ms |
| Y | 0.01nS ~ 99.9999S | 0.1% | 25ms |
| θ | -180°~ +180° | 0.03° | 25ms |
| DCR | 0.1mΩ ~ 99.999 MΩ | 0.1% | 25ms |
| Turn | 0.1 ~ 99999.9 turns | 0.5% | 50ms |
| Pin-Short | 12 pairs, between pin to pin | – | 15ms |
System
| ESR | Series / Parallel |
| Calibration | Open Circuit / Short Circuit |
| Built-in stroage | testing files 128 sets |
| Operation | Auto / Manual / Remote Trigger |
| Power Supply | Voltage：98Vac-132Vac or 195Vac-264Vac |
| Frequency：47-63Hz | |
| Power consumption | 300VA |
| Environment | Temperature：10℃-40℃ |
| Humidity：10-90%RH | |
| Dimension (W*H*D) | 344x145x343 mm (W*H*D) |
| Weight | 9 Kg |

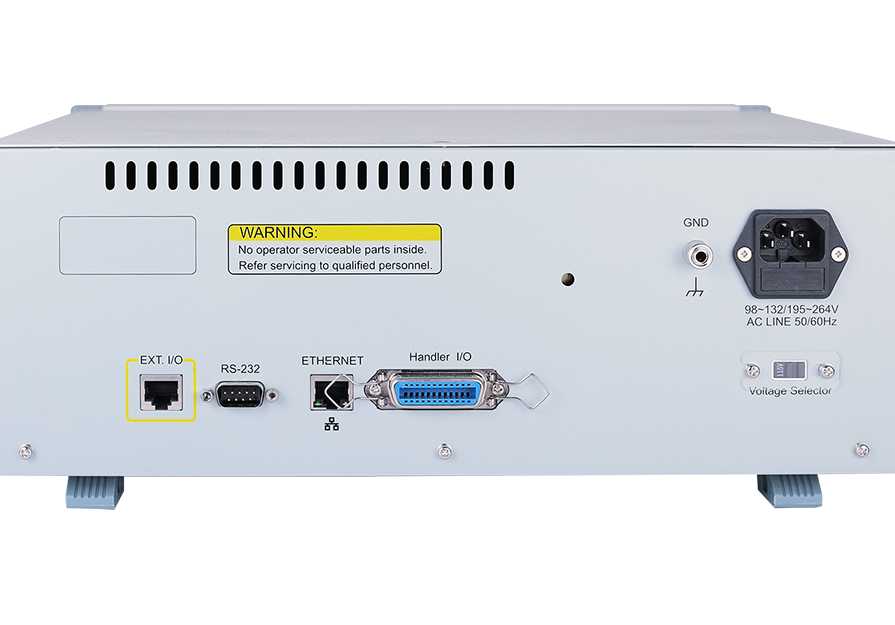

| Interface | RS-232、Handler、LAN、USB Host、EXT. I/O |

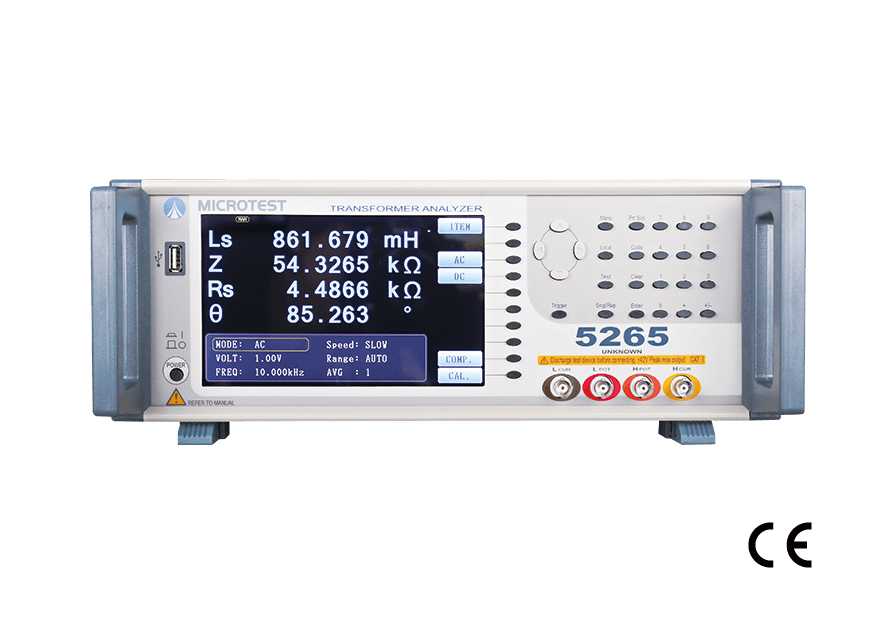

| Display | 800*480 Color Screen, 7″ TFT |
Standard Accessories
| Power Cord | |
| Fixture (F5620) |  |
| Foot Switch (F522010) | |
Optional Accessories
| PC Link Software | |
| Cable (RS-232) | |
| Signal output box (Handler Box) | |
| Signal output box (FX-000C26) |  |
