• An advanced cable verifier designed to test voice, data, and video installations across twisted pair and coaxial media, ensuring versatile use in residential, commercial, and industrial networks.
• Quickly identifies wiring issues such as opens, shorts, miswires, and split pairs with clear digital and visual feedback, minimizing troubleshooting time.
• Detects active Ethernet links and supports Power over Ethernet (PoE) verification, confirming network readiness before deployment.
• Integrated AnyWARE Cloud connectivity enables real-time storage, access, and sharing of test reports, improving team collaboration and documentation.

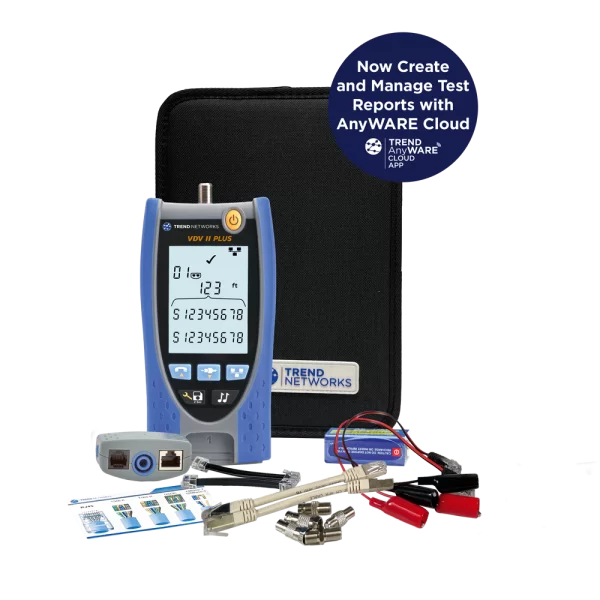

• Supplied with tester, dual port remote, coax remote, battery, and multilingual guide in a rugged, field-ready design.
Key Features
The VDV II Plus is an advanced voice, data, and video cable verifier designed to accurately test network cabling across a wide range of installations. Featuring an easy-to-use interface and a high-resolution display, the VDV II Plus enables technicians to detect wiring faults including opens, shorts, miswires, and split pairs. It verifies continuity and detects active Ethernet connections, providing both digital and visual confirmation. Whether working with twisted pair or coaxial cables, the device ensures fast, reliable verification for residential, commercial, and industrial networks.
The VDV II Plus also supports AnyWARE Cloud Reporting, allowing users to store, manage, and share test results from the field in real time. This enhances documentation and reporting efficiency, particularly for large-scale projects or collaborative teams. The kit includes a tester, dual port remote, coax remote, alkaline battery, and a multilingual user guide, all in a rugged, compact form factor built for field reliability.
| Category | Specification |
|---|---|
| Product Name | VDV II Plus — Voice, Data & Video Cable Verifier |
| Purpose | Fast, accurate verification of twisted-pair and coaxial cabling for residential, commercial, and industrial networks. |
| Typical Users | Network installers, field technicians, service engineers, system integrators |
| Form Factor | Handheld tester with removable remote modules; ruggedized housings for field use |
| Display | High-resolution color LCD for clear wiremap, test status, and menu navigation |
| Dimensions | Approx. 160 × 78 × 34 mm (model dependent) — compact handheld design |
| Weight | Approx. 220–300 g (including battery; model dependent) |
| Supported Cable Types | Twisted pair (UTP/STP — Cat3/Cat5e/Cat6/Cat6A), coaxial (RG-6/RG-59 and similar) |
| Connectors / Interfaces | RJ45 (8P8C) ports for twisted pair; coax connector (F-type or BNC depending on variant); remote port interfaces; optional USB / data port for PC connectivity (model dependent) |
| Wiremap & Continuity | Detects opens, shorts, miswires, split pairs, and continuity on all 8 conductors; displays wiremap diagram |
| Active Network Detection | Detects presence of PoE, active Ethernet link, and link speed indication (10/100/1000 where supported) |
| Coax Tests | Continuity and mapping for coaxial runs; compatibility with coax remote terminator for video/data installations |
| Additional Tests | Digital confirmation of pair assignments, short/length diagnostics (where supported), visual pass/fail indication |
| Included Components |
|
| Power Source | Single or multiple alkaline cells (AA/CR123 format depending on model) — replaceable; optional rechargeable variants or USB charging on select models |
| Battery Life | Typical field life: 20–40 hours standby / variable depending on usage and display backlight (manufacturer spec) |
| Cloud Integration | AnyWARE Cloud Reporting compatible — upload, store, manage, and share test results in real time (app account required) |
| Local Data | On-device storage of recent test results (capacity varies by model); export via USB or cloud sync |
| Reporting Formats | Cloud-based reports (PDF/CSV) via AnyWARE Cloud; local export options subject to model capabilities |
| Operating Temperature | Typical range: 0°C to +50°C (check model-specific datasheet for exact limits) |
| Storage Temperature | -20°C to +70°C (model dependent) |
| Humidity | Non-condensing up to 95% RH (operational limits may vary) |
| Safety & Compliance | Meets relevant regional safety and EMC standards (CE, RoHS, FCC where applicable). Check model marking for certifications. |
| Optional Accessories | Carrying case, spare remote terminators, coax adapter kit (F/BNC/RCA), USB data cable, rechargeable battery pack, patch cables (Cat5e/Cat6), calibration/service kit |
| Warranty & Service | Manufacturer limited warranty (typically 1–3 years depending on region); calibration and repair services available through authorized service centers |
| Notes | Technical detail levels (exact dimensions, weight, battery type, and extended test lists) vary by SKU and regional variant — consult the official datasheet or product label for model-specific specifications. |
| Accessory | Included | Qty | Description | Compatibility | Notes |
|---|---|---|---|---|---|
| VDV II Plus Tester Unit | Yes | 1 | Main handheld device with high-resolution display and intuitive interface for cable verification. | Twisted pair and coaxial cables | Core component of the kit. |
| Dual Port Remote | Yes | 1 | Remote terminator for twisted-pair testing; enables wiremap and continuity checks at the far end. | RJ45 (UTP/STP up to Cat6/6A) | Essential for remote verification. |
| Coax Remote | Yes | 1 | Remote terminator for coaxial cable verification and mapping. | Coaxial runs (RG-6, RG-59) | Used in video and broadband installations. |
| Alkaline Battery | Yes | 1 | Primary power source for the tester; pre-installed or supplied separately. | Tester unit | Replaceable; type may vary by region. |
| Multi-language User Guide | Yes | 1 | Printed or digital guide with step-by-step instructions for setup, testing, and AnyWARE Cloud use. | All users | Languages vary by package. |
| Quick Start Card | Varies by kit | 1 | Concise card with simple instructions and basic diagrams for first-time use. | All users | Included in some kits only. |
| Carrying Case | No (Optional) | 1 | Protective case for transporting the tester and accessories securely. | Tester + remotes | Optional; soft or hard case versions available. |
| Patch Cables | No (Optional) | Set | Short Cat5e/Cat6 cables used for connection during test setup. | RJ45 ports on tester | Optional; length and rating vary. |
| Coax Adapter Kit | No (Optional) | Set | Adapters (F-type, BNC, RCA) to support different coax connectors during testing. | Coax remote and tester ports | Optional accessory for diverse coax systems. |
| USB Data Cable | No (Optional) | 1 | USB cable for firmware updates or data transfer (if supported by model). | Tester unit ↔ PC | Model dependent. |
| Rechargeable Battery Pack | No (Optional) | 1 | Rechargeable pack as an alternative to alkaline batteries for extended field use. | Tester unit | Optional; charger sold separately. |
| Additional Remote Units | No (Optional) | Set | Extra dual port or coax remotes for testing multiple runs simultaneously. | Twisted-pair / coaxial cabling | Optional for advanced installations. |
