NaviTEK IE – Industrial Ethernet Tester | DCT

Key Features

Touchscreen display for intuitive operation
End-to-end industrial Ethernet verification with remote unit
Supports PROFINET and standard Ethernet protocols
Rechargeable NiMH power module for long runtime
USB Wi-Fi adapter for wireless data transfer and reporting
Includes PROFINET RJ45-to-M12 D-coded adapter cables
Rugged carrying case for secure transport and field protection
Multi-region PSU adapters (EU/UK/US) included
Lightweight, portable design suitable for harsh industrial environments

The NaviTEK IE – Industrial Ethernet Tester is a rugged and versatile solution designed for industrial Ethernet network verification and troubleshooting. Equipped with a high-performance test unit and a remote unit, it allows technicians to efficiently measure cable continuity, network performance, and signal integrity in demanding industrial environments. The touchscreen interface ensures intuitive operation, while the rechargeable power module and multi-region PSU adapters enable extended field use without interruption. With integrated USB Wi-Fi, data transfer, and reporting are streamlined, supporting rapid documentation and network management tasks.

This comprehensive kit is optimized for industrial Ethernet protocols such as PROFINET and supports M12 D-coded connectivity via included adapter cables. The kit includes patch cables, a quick reference guide, and a rugged carrying case for organized transport and protection of the equipment. Lightweight yet durable, the NaviTEK IE tester enables precise network analysis, fault detection, and commissioning, making it an essential tool for industrial network engineers, automation technicians, and maintenance teams who require reliability and efficiency in harsh environments.

Specification	Details
Model	NaviTEK IE – Industrial Ethernet Tester
Display	High-resolution color touchscreen
Connectivity	Industrial Ethernet, PROFINET, standard RJ45 LAN, USB Wi-Fi adapter
Power	Rechargeable NiMH module; PSU adapters included (EU/UK/US)
Patch Cables	2x 30cm Cat. 5e STP
PROFINET Adapter	2x RJ45 (m) to M12 (f) D-coded, 1m (R151058)
Remote Unit	Supports end-to-end Ethernet testing and fault location
Carrying Case	Rugged, padded with compartments for unit, remote, cables, and accessories
Weight	Approx. 2.1 kg including power module and remote
Dimensions	Approx. 210 × 110 × 60 mm (tester unit only)
Operating Temperature	0 °C to +45 °C
Storage Temperature	-20 °C to +60 °C

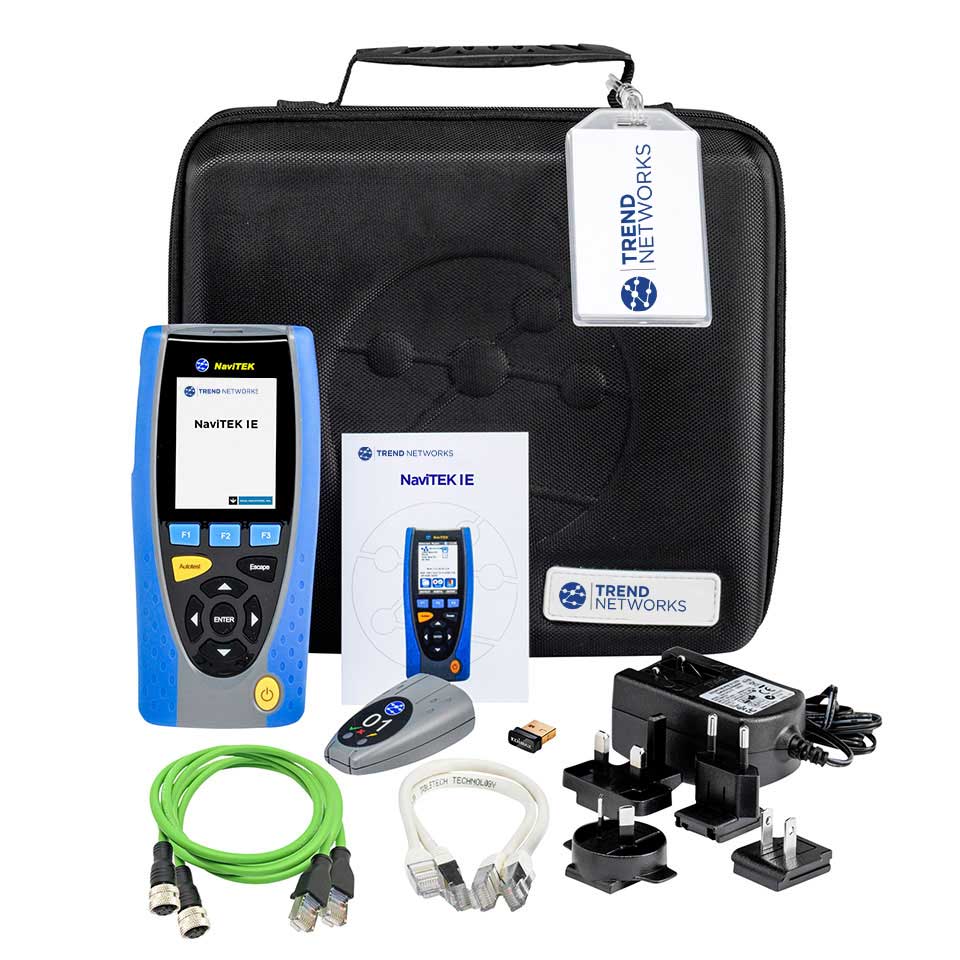

Accessory	Description
NaviTEK IE Test Unit	Main industrial Ethernet tester with touchscreen display
Remote Unit No. 1	Supports end-to-end Ethernet cable testing and fault location
Rechargeable Power Module	NiMH battery for extended field operation
PSU Adapters	EU, UK, US adapters for universal power compatibility
Patch Cables	2x 30cm Cat. 5e STP for setup and testing
USB Wi-Fi Adapter	Enables wireless data transfer and reporting
Quick Reference Guide	Instructions for operation, setup, and test procedures
Carrying Case	Rugged case with compartments for test unit, remote, cables, and accessories
PROFINET Adapter Cables	2x RJ45 (male) to M12 (female) D-coded, 1m (R151058)

NaviTEK IE – Industrial Ethernet Tester
