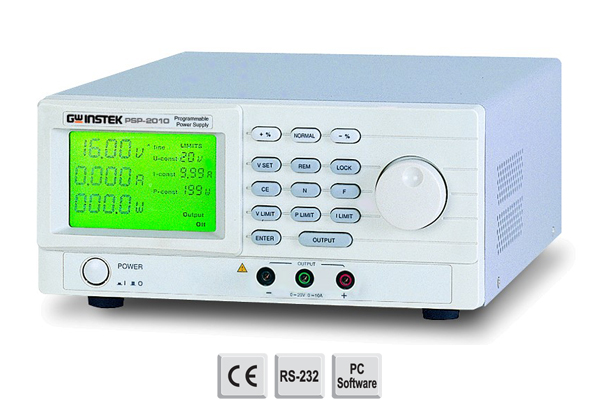

PSP-2010 200W Programmable Switching D.C. Power Supply

Key Features

200W programmable DC power supply
Adjustable output voltage and current
Digital display for voltage and current readings
Multiple protection features (over-voltage, over-current, over-temperature)
Remote control capability via PC interface
Compact and lightweight design
Suitable for lab and industrial applications

The PSP-2010 200W Programmable Switching D.C. Power Supply is a high-performance, precision power source designed for demanding laboratory, industrial, and educational applications. Delivering up to 20V and 10A with a total output power of 200W, it features a user-friendly interface with a bright LCD display for clear readouts of voltage, current, and power settings. This compact yet robust unit offers advanced programmability via USB, RS-232, and optional GPIB interfaces, enabling seamless integration into automated test systems. Built with high-efficiency switching technology, it ensures stable, low-noise output and enhanced energy efficiency. Safety features such as overvoltage protection (OVP), overcurrent protection (OCP), and overtemperature protection (OTP) safeguard both the device and connected equipment. The PSP-2010 is an ideal solution for applications requiring reliable, programmable D.C. power with precise control and flexible connectivity.

PSP-Series Specifications

The specifications apply when the PSP-Series is powered on for at least 30 minutes under +20°C~+30°C.

	PSP-603	PSP-405	PSP-2010
OUTPUT
Voltage	0~60V	0~40V	0~20V
Current	0~3.5A	0~5A	0~10A
VOLTAGE REGULATION
Load	≦10mV
Line	≦0.05%
CURRENT REGULATION
Load	≦5mV
Line	≦0.05%
RIPPLE
Voltage (mVrms)	≦20mV
Current (mVrms)	≦10mA
RESOLUTION
Voltage	20mV	10mV	10mV
Current	2mA	2mA	5mA
PROGRAM ACCURACY
Voltage	± 0.05% rdg ± 4digits	± 0.05% rdg ± 3digits	± 0.05% rdg ± 3digits
Current	± 0.1% rdg + 5digits	± 0.1% rdg + 5digits	± 0.3% rdg + 10digits
READBACK (METER) RESOLUTION
Voltage	Same as Resolution
Current	Same as Resolution
READBACK (METER) ACCURACY
Voltage	Same as program accuracy
Current	Same as program accuracy
PROTECTION
	OVL/OCL/OPL/OTP
OUTPUT ON/OFF CONTROL
	Yes
DISPLAY
	LCD
INTERFACE
	RS-232C (Standard)
POWER SOURCE
	AC 230V ±15%, AC 115V ±15%, 50/60Hz
DIMENSIONS & WEIGHT
	225(W) x 100(H) x 305(D)mm / Approx. 4kg

Accessories

User Manual X 1, Power Cord X 1
Test Lead GTL-104*1 ; European Test Lead GTL-204* 1

Optional Accessories
GTL-232A RS-232C Cable
GRA-428 Rack Mount Kit, 19″, 3U Size
