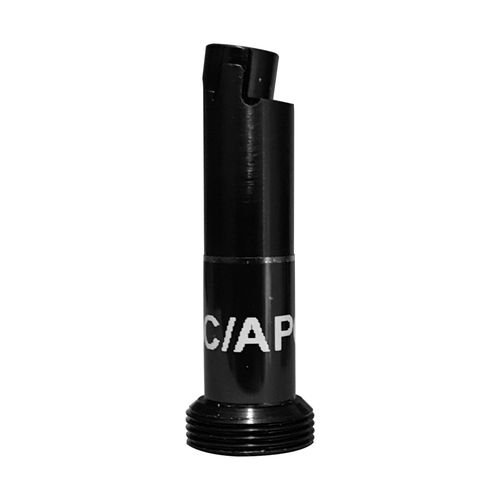

    FiberMASTER Video Inspection Probe Tip – FC/APC

    • Precision FC/APC probe tip engineered to preserve angled-polish geometry while providing exact ferrule alignment for clear, repeatable endface imaging with the FiberMASTER Video Inspection Probe.

    • Quick-change, tool-free mounting enables fast on-site tip swaps, cutting downtime during installations, troubleshooting, and certification jobs.

    • Built from wear-resistant materials to withstand thousands of insertions and frequent cleaning cycles while maintaining alignment tolerances for reliable results.

    • Seamlessly integrates with CertSoft and FiberMASTER instruments for automated Pass/Fail analysis and traceable inspection records across projects.

    • Supplied with protective dust caps, compatible with standard cleaning pens/swabs, and ideal for field and laboratory FC/APC inspection and maintenance.

    Send Enquiry

    Send Inquiry

    Key Features

    • FC/APC-specific angled-polish ferrule interface

    • Precise ferrule alignment for repeatable imaging

    • Quick-change, tool-free installation and removal

    • Wear-resistant stainless steel/composite construction

    • Preserves APC mating angle to reduce false positives from reflections

    • Compatible with FiberMASTER Video Inspection Probe and CertSoft workflows

    • Supplied with protective dust caps and spare O-ring

    • Rated for high insertion/removal cycle life

    • Compact, lightweight and field-portable

    • Supports standard cleaning procedures (pens, swabs, IPA)

    The FiberMASTER FC/APC probe tip is purpose-built for precise endface inspection of FC angled physical contact (APC) connectors. Its ferrule interface and angled-polish geometry preserve the APC mating angle while providing stable optical alignment with the FiberMASTER Video Inspection Probe, enabling sharp, high-contrast images that make contamination, scratches and polishing defects easy to find. When used with the FiberMASTER system and CertSoft test-management software, the tip supports consistent Pass/Fail grading and traceable inspection records for installation, maintenance and certification workflows.

    Rugged and field-ready, the FC/APC tip is manufactured from wear-resistant materials and engineered for repeatable performance through thousands of insertions and cleanings. The quick-change, tool-free mounting system lets technicians swap tips on-site in seconds, reducing downtime on live jobs. Supplied with protective dust caps and designed to work with standard fiber cleaning tools, this tip is ideal for technicians who need accurate, repeatable inspections of FC/APC connectors in lab and field environments.

    FiberMASTER FC/APC Probe Tip — Specifications
    Parameter Specification
    Tip Type FC/APC port / bulkhead inspection tip (angled-polish)
    Connector Compatibility FC connectors with APC (angled physical contact) ferrules
    Material Stainless steel housing with wear-resistant alignment sleeve (passivated finish)
    Mounting Quick-change, tool-free mounting for FiberMASTER Video Inspection Probe
    Dimensions Approx. 20 mm length × 6 mm diameter (tip body only)
    Weight ~5 g
    Field of View (FOV) Impact Optimized for FC/APC ferrule imaging; nominal FOV ~200 µm with standard probe optics
    Durability Rated for >10,000 insertion/removal cycles under normal use; corrosion-resistant finish
    Operating Temperature -10°C to +50°C
    Storage Temperature -30°C to +70°C
    Cleaning Compatible with fiber cleaning pens, swabs and IPA solutions; avoid abrasive cleaners
    Included Items 1 × FC/APC probe tip, 2 × dust caps, 1 × O-ring, 1 × retaining collar, packaging
    Compliance RoHS, CE
    Warranty Two-year limited warranty (terms apply)
    Part Number R240-VIP-FC-APC (example / configurable by vendor)
    FiberMASTER Video Inspection Probe Tip – LC
    FiberMASTER Video Inspection Probe Tip – LC
    Read more
    FiberMASTER MM/SM power meter with MM/SM light source
    FiberMASTER MM/SM power meter with MM/SM light source
    Read more
    FiberMASTER Video Inspection Probe Tip – 2.5mm
    FiberMASTER Video Inspection Probe Tip – 2.5mm
    Read more
    FiberMASTER FC/APC Probe Tip — Accessories
    Accessory Description
    Protective Dust Caps (x2) Snap-on caps to protect the tip and connector interface from dust and damage when stored.
    Quick-Change Retaining Collar Retention ring used to lock the tip into the FiberMASTER probe quick-change interface.
    Spare O-ring Replacement sealing O-ring to ensure a snug, dust-resistant fit during use.
    Cleaning Pen Compatibility Compatible with standard fiber cleaning pens and swabs for ferrule and tip maintenance (sold separately).
    Identification Label Adhesive ID sticker for inventory, calibration date, or asset tracking.
    Protective Packaging Foam-cut insert inside a protective box for secure shipping and storage.
