Frequency range: 1 ~ 2 GHz
-
Insertion loss: 0.6 dB
-
VSWR: 1.25
-
Isolation: 20 dB
-
Amplitude balance: 0.4 dB
-
Phase balance: 4°
-
Power rating: 30 W
-
Connector type: SMA(f)

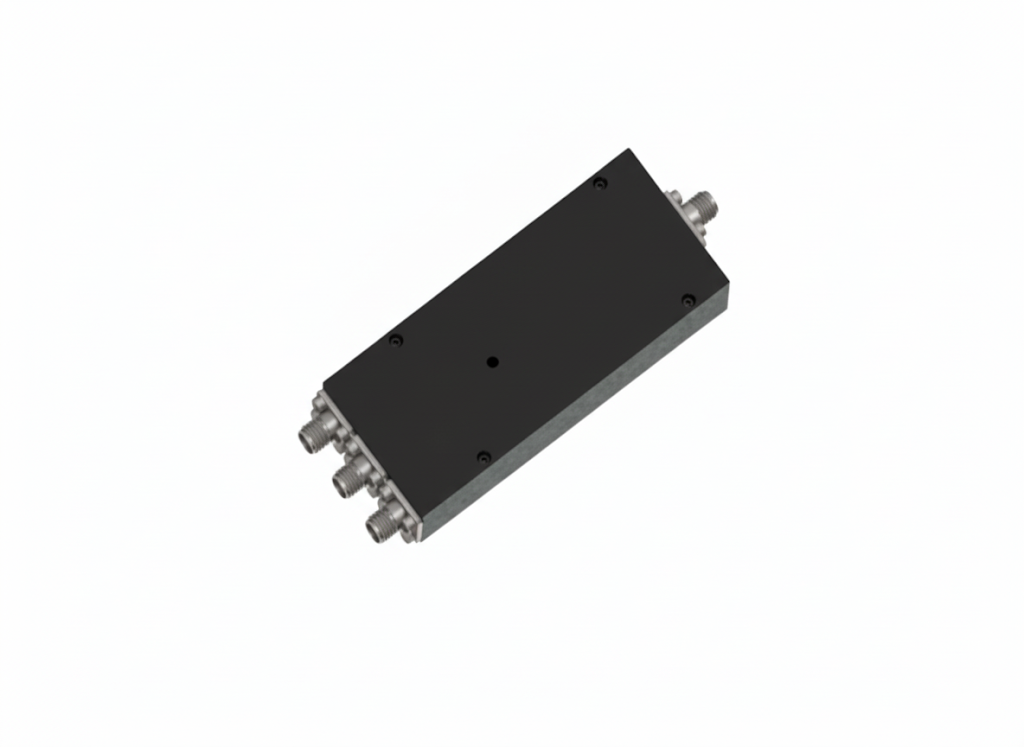

3-Way Power Divider Series PPD3-01000200-30-S
- Operates from 1 to 2 GHz for RF communication and testing use.
- Ultra-low insertion loss of 0.6 dB ensures superior signal performance.
- Maintains 1.25 VSWR for efficient impedance matching.
- Provides 20 dB isolation for clean, interference-free signal division.
- Supports 30 W power handling with SMA female connectors.
The PPD3-01000200-30-S is a precision 3-way power divider designed for the 1 to 2 GHz frequency range, ideal for RF testing, telecommunications, and signal distribution applications. It features a remarkably low insertion loss of 0.6 dB and a VSWR of 1.25, ensuring efficient power transmission and minimal reflection. With 20 dB port-to-port isolation, it effectively reduces signal interference and crosstalk for stable system performance. The amplitude balance of 0.4 dB and phase balance of 4° ensure accurate and uniform power division. Supporting up to 30 W of input power, this model uses durable SMA female connectors, providing excellent mechanical stability and long-term reliability in both laboratory and field setups.
| Parameter | Specification |
|---|---|
| Model Number | PPD3-01000200-30-S |
| Frequency Range | 1 ~ 2 GHz |
| Insertion Loss (dB) | 0.6 |
| VSWR | 1.25 |
| Isolation (dB) | 20 |
| Amplitude Balance (dB) | 0.4 |
| Phase Balance (°) | 4 |
| Input Power (W) | 30 |
| Connector Type | SMA(f) |
