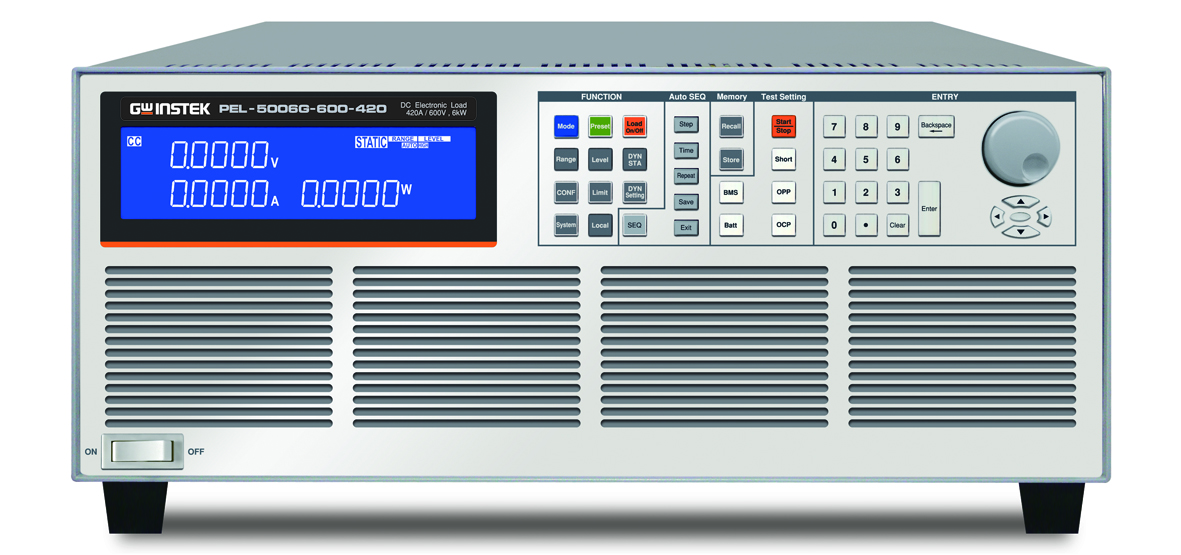

PEL-5006G-600-420 High Power DC Electronic Load

Features

5 digital V / A / W Meter can be displayed on Large LCD display simultaneously
Flexible CC, CR, CV, CP, CV + CL, CV + PL, Dynamic and short circuit operation modes
Not only CC, CR, and CP mode have parallel operation functions, but CV mode also has parallel operation functions
Surge Test mode for Capacitive load for current rising transient test
Max. dynamic mode slew rate：24 A/μs (6 kW model)；20 A/μs (5 kW model)；16 A/μs (4 kW model)
Voltage meter display can be configured as polarity positive（”＋”）or negative(“－”）
Master-slave control is up to 1 Master and 7 Slaves
Optional Interface: GPIB, RS232, USB, LAN
SEQ Load Mode’s programmable function allows for ultra-high-speed step changes from 0.02 to 999000 ms in CC or CP mode
Provide battery BMS protection test function
Optional PEL-032 load current waveform generator to provide the battery actual discharge current waveform simulation
Built-in test modes include Battery Discharge, BMS, Short circuit, OCP, OPP test modes
Turbo mode can withstand up to 1.5 times the current and power electronic load within 2 sec. period, most fit BMS, Short circuit, OCP, OPP test
Protection against V, I, W, and ℃

Standard Accessories

SLS10B RED; PLUG CONN 20 A RED T × 1

SLS10B BLK; PLUG CONN 20 A BLK T × 1

PTV1-12；PIN TRML × 4

HD-DSUB 15pin MALE to MALE 150 cm × 1

RND SCREW M4x0.7+S+P L=20 mm × 4

Hexagon head M8*1.25 L=25 mm NI × 2

K-NUT M4X0.7 NI × 4

NUT M8X1.25 NI × 2

WASHER INSIDE DIA-8.5 OUTSIDE × 4

SPRING WASHER INSIDE φ8 × 2

PEL-5004G,PEL-5005G,PEL5006G handles ： PEL-028 × 1

Rack Mount Kit For PEL5004G,PEL-5005G,PEL-5006G ： PEL-031 × 1

Optional accessories

PEL-030 GPIB+RS232 interface
PEL-023 RS232 interface
PEL-032 Load current waveform generator with RS232 interface
PEL-022 GPIB interface
PEL-025
USB interface + USB driver

(The driver can be downloaded）

PEL-024
LAN interface + LAN driver

(The driver can be downloaded）

GTL-250 GPIB Cable, 1 m GPIB cable
GTL-248 GPIB Cable, 2 m GPIB cable
GTL-246 USB Cable, 1.2 m USB cable

GW Instek PEL-5000G series single-channel electronic load provides 150 V/ 600 V/ 1200 V models with a power range of 4 kW to 6 kW. PEL-5000G has a total of 9 models featuring different combinations of power, voltage, and current. It can test and verify the specifications of batteries, electric vehicle chargers/charging stations and electric vehicle batteries. PEL-5000G supports parallel connection for same voltage specification and different power models. PEL-5000G can support up to 8 units connected in parallel to provide a maximum power of 48 kW.

For the scenario of Battery Charger testing, PEL-5000G specifically provides four battery discharge modes, namely CV+Current Limit test mode, CV+Power Limit test mode, CC mode and CP mode. Users can choose a suitable test mode according to the test requirements.

For Battery Discharge Function, users can set the discharge cut-off voltage, discharge time, or discharge capacity (Ah) in CC or CP mode to meet the battery testing requirements.

In order to meet the verification requirements of different DUTs, PEL-5000G provides a variety of test functions, Surge current test mode, automated OCP, OPP test functions and 150 sets of parameter storage function. The 1200 V model of PEL-5000G not only provides full power output at 1000 V, but also provides 60% power output at 1200 V output, which is higher than the 50% power output of other manufacturers of similar electronic loads.

High-voltage batteries or chargers directly connected to the electronic load may cause damage to the electronic load. PEL-5000G has a built-in slow starter, which not only protects the DC load, but also saves the user’s installation cost and setting time for measurement on 600 V/1200 V models.

The communication interfaces supported by PEL-5000G include GPIB, RS232, USB, and LAN. The power, voltage and current of each model are shown in the following table:

Power / Voltage	150 V		600 V		1200 V
4 kW	PEL-5004G-150-400	(400 A)	PEL-5004G-600-280	(280 A)	PEL-5004G-1200-160	(160 A)
5 kW	PEL-5005G-150-500	(500 A)	PEL-5005G-600-350	(350 A)	PEL-5005G-1200-200	(200 A)
6 kW	PEL-5006G-150-600	(600 A)	PEL-5006G-600-420	(420 A)	PEL-5006G-1200-240	(240 A)
