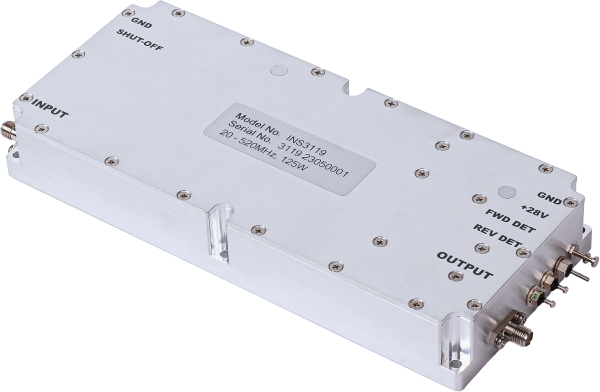

The INS3119 Broadband Amplifier is built for wide frequency operations from 20 MHz to 520 MHz, ideal for broadband RF applications
It delivers high output power of 125 Watts with a strong gain of 51 dB, ensuring powerful and consistent signal amplification
Compact and durable design with dimensions of 185 x 80 x 27 mm allows easy integration into various system configurations
Operates on a 28 Volt power supply with 12 Amps current, providing reliable performance under continuous operation
Supports CW, FM, and AM modulation, making it suitable for communication, industrial, and test environments
Key Features
Wide frequency range for versatile broadband RF applications
High output power with excellent signal linearity
Strong gain for effective and stable amplification
Supports CW, FM, and AM modulation formats
Compact and rugged design for easy system integration
Efficient operation with 28V power supply
Ideal for communication, industrial, and testing environments
The INS3119 Broadband Amplifier is a precision-engineered RF power amplifier built to perform across a wide frequency range, making it a versatile solution for various broadband applications. Designed for reliability and high efficiency, it delivers strong output power and excellent linear gain, ensuring minimal signal distortion and optimal amplification. Whether you’re working with CW, FM, or AM modulation, the INS3119 provides stable performance under continuous operation, making it ideal for use in communication systems, test labs, and industrial RF environments.
With its compact footprint and rugged construction, the INS3119 is easy to integrate into both portable and fixed systems. It operates on a standard 28V power supply and is designed for energy-efficient use, even under high-output demands. The amplifier’s robust thermal handling and consistent signal integrity make it suitable for mission-critical environments where performance cannot be compromised. Engineered with quality and precision, the INS3119 offers the dependability and flexibility required for modern RF system design.
| INS3119 Broadband Amplifier – Specifications | |
|---|---|
| Frequency Range | 20 MHz to 520 MHz |
| Output Power (Pout) | 125 Watts |
| Gain | 51 dB |
| Operating Voltage | 28 Volts |
| Current Consumption | 12 Amps |
| Dimensions | 185 mm x 80 mm x 27 mm |
| Supported Modulation Types | CW, FM, AM |
| Application | Broadband RF amplification for communication, testing, and industrial systems |
| INS3119 Broadband Amplifier – Included Accessories | |
|---|---|
| Accessory | Description |
| DC Power Cable | Heavy-duty cable designed to handle 28V and 12A current, providing safe and stable power connection |
| Mounting Brackets | Custom-fit brackets and screws for secure installation in system racks or enclosures |
| RF Connectors | Pre-installed or included connectors (SMA or N-type, depending on configuration) for RF input/output integration |
| Cooling Heatsink or Plate (Optional) | Thermal management accessory to ensure stable performance during continuous operation |
| User Manual | Detailed guide covering installation steps, electrical specifications, safety instructions, and maintenance |
| Test and Compliance Report (Optional) | Factory-issued performance certificate validating electrical characteristics and compliance with quality standards |
