Delivers high-efficiency RF amplification for band-specific applications such as LTE and 5G networks.
Engineered with hybrid IC technology for compact size, stability, and enhanced thermal performance.
Offers excellent linearity and low distortion, supporting high data throughput and signal integrity.
Designed with integrated thermal protection and matched ports for easy, reliable system integration.
Ideal for telecom infrastructure, wireless broadband, and mission-critical communication systems requiring robust amplification.
Key Features
Band-specific design for optimized RF performance
High linearity ensures minimal signal distortion
Compact hybrid IC for easy system integration
Internally matched input and output ports
Excellent gain and power efficiency
Wide operating voltage range
Integrated thermal protection circuitry
Stable performance in harsh environments
Ideal for LTE, 5G, and broadband systems
Supports public safety and infrastructure deployments

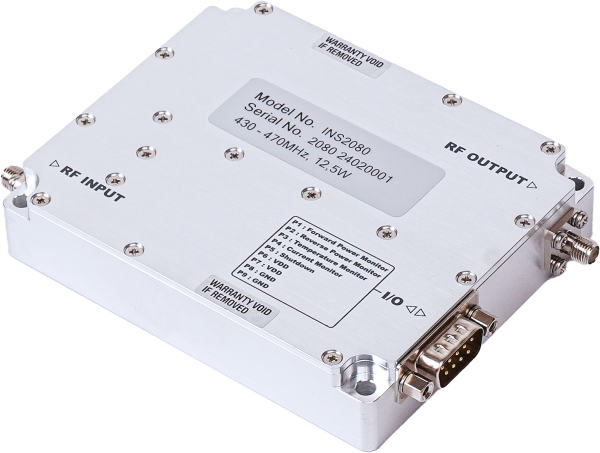

The INS2080 Band Specific Power Amplifier is a high-performance RF module engineered for precision amplification within designated frequency bands, catering to advanced wireless communication systems such as LTE, 5G, and private networks. Built using hybrid IC technology, the amplifier delivers high linearity, robust gain, and superior efficiency, ensuring optimal signal integrity across transmission paths. Its compact design and internally matched input/output ports simplify integration into RF platforms while minimizing component count and board space. With a frequency-specific architecture, the INS2080 guarantees optimal performance tailored to specific cellular and broadband deployment needs.
Designed to operate reliably under demanding conditions, the INS2080 includes built-in thermal management and protection circuitry, allowing consistent operation across a wide temperature range. Its rugged construction supports long-term stability in base stations, remote radio heads, and small cell systems. Whether deployed in public safety networks, infrastructure equipment, or broadband wireless solutions, the INS2080 offers a cost-effective and scalable solution for high-reliability RF amplification.
Specifications
| Specification | Details |
|---|---|
| Model | INS2080 |
| Frequency Range | 2620 – 2690 MHz |
| Gain | 25 dB (typical) |
| Output Power (P1dB) | +27 dBm (typical) |
| Gain Flatness | ±0.5 dB |
| Input Return Loss | ≥ 12 dB |
| Output Return Loss | ≥ 14 dB |
| Power Supply Voltage | +28 V DC |
| Current Consumption | ≤ 500 mA |
| Operating Temperature | -40°C to +85°C |
| Package Type | Hybrid IC Module |
| Dimensions | 55 mm x 35 mm x 10 mm |
| Applications | LTE, 5G, wireless broadband, public safety systems |
| Accessory | Description |
|---|---|
| Heatsink Assembly | Custom-designed heatsink for optimal thermal dissipation and prolonged amplifier life. |
| Mounting Bracket Kit | Includes brackets and screws for secure and vibration-resistant installation. |
| RF Connector Adapters | High-frequency adapters for flexible connectivity with various test setups. |
| Power Cable Assembly | Pre-terminated cable with connectors for reliable DC power input. |
| EMI Shield Cover | Optional cover to reduce electromagnetic interference in sensitive environments. |
| Thermal Interface Pad | High-conductivity thermal pad to enhance heatsink performance. |
| User Manual | Comprehensive guide for installation, safety, and troubleshooting. |
Enjoy:
Send Enquiry For:
INS2080 Band Specific Power Amplifier
