Key Features:
High-efficiency band-specific amplification for targeted frequency ranges
Low noise design ensuring clear and stable signal transmission
Compact and durable construction for versatile integration
High linearity performance for improved signal integrity
Reliable operation for telecommunications, broadcasting, and RF applications

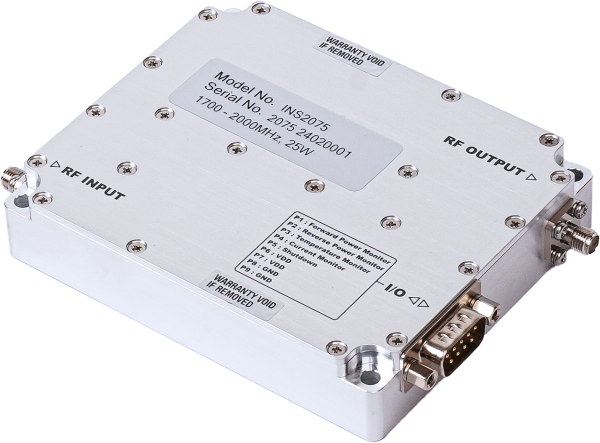

The INS2075 Band Specific Power Amplifier is engineered to deliver high-performance amplification tailored for precise frequency bands, ensuring optimal efficiency and reliability across demanding applications. Designed with advanced circuitry, this amplifier enhances signal strength while maintaining low noise levels, resulting in superior clarity and stable communication. Its compact yet robust build makes it suitable for integration into a wide range of wireless systems, offering consistent performance even in challenging environments. With its high linearity and efficiency, the INS2075 is an ideal choice for professionals who require reliable amplification without compromising signal quality.
Built for durability and precision, the INS2075 is optimized to meet the requirements of modern telecommunications, broadcasting, and specialized RF applications. Its band-specific design minimizes interference while maximizing output, providing a stable and powerful solution for mission-critical operations. Whether used in laboratory testing, commercial systems, or field deployments, this amplifier ensures dependable functionality and long-term performance. With its blend of advanced technology and rugged construction, the INS2075 Band Specific Power Amplifier offers a trusted solution for enhancing signal performance across targeted frequency bands.
| Specification | Value | Notes |
|---|---|---|
| Frequency Start | 1700 MHz | As provided (start value) |
| Frequency Stop | 1000 MHz | As provided (stop value) |
| Frequency Range | 1000 – 1700 MHz | Presented as an inclusive range (low — high). |
| Output Power (Pout) | 25 W | Rated continuous output power. |
| Output Power (dBm) | ≈ 44.0 dBm | 10·log₁₀(25 W) + 30 (rounded) |
| Gain | 44 dB | Small-signal gain (typical). |
| Supply Voltage | 28 V | Nominal DC supply. |
| Supply Current | 3.5 A | Nominal operating current. |
| Estimated Input Power (Voltage × Current) | 98 W | 28 V × 3.5 A = 98 W (electrical power drawn from supply). |
| Estimated Efficiency | ≈ 25.5% | (Pout / Input Power) × 100 = 25 W / 98 W (rounded). |
| Size (L × W × H) | 110 × 90 × 22 mm | Length × Width × Height (millimetres). |
| Application | CW / FM / AM | Continuous wave and analog modulation support. |
| Environmental / Mechanical Notes | — | Specify operating temperature, cooling, mounting and IP rating if required. |
| Connectors | — | Specify RF and DC connector types (e.g., N-type, SMA) if needed. |
| Compliance & Safety | — | List regulatory approvals (CE, FCC, RoHS) if applicable. |
| Accessory | Part Number | Description | Compatibility | Quantity Included | Required / Optional | Warranty / Support | Notes |
|---|---|---|---|---|---|---|---|
| DC Power Supply (48 V, 10 A) | INS-PS48-10 | Industrial-grade switching power supply with over-current and over-voltage protection, IEC mains lead included. | INS2075 | 1 | Required | 1 year manufacturer warranty | Use only approved supply to maintain amplifier warranty. |
| RF Input Cable — N-type Male to N-type Male, 50 Ω, 1 m | INS-CBL-N-1M | Low-loss coaxial cable suitable for connecting source to amplifier input; PTFE dielectric for stability. | INS2075 (N-type port) | 1 | Required | 90 days | Inspect connectors for wear before each use. |
| RF Output Cable — N-type Male to N-type Male, 1 m | INS-CBL-OUT-1M | High-power rated cable for output path; rated to amplifier maximum power and temperature. | INS2075 (N-type port) | 1 | Required | 90 days | Ensure proper torque on connectors to prevent VSWR issues. |
| Mounting Bracket Kit (Rack and Wall) | INS-MBK-2075 | Includes 19″ rack ears, wall mounts, screws and installation template for flexible mounting options. | INS2075 | 1 kit | Optional | 1 year | Rack ears removable for field installations. |
| Cooling Fan Module (Hot-swap) | INS-FAN-HS | Replacement hot-swap fan assembly with dust filter and monitor sensor for thermal protection. | INS2075 | 1 | Optional / Recommended | 6 months | Recommended for high ambient temperature environments. |
| Remote Control & Monitoring Module (Ethernet / RS-232) | INS-RM-E232 | Networked controller for remote status, alarm reporting, and basic parameter tuning via web UI or CLI. | INS2075 (control port) | 1 | Optional | 1 year | Requires firmware v1.2+ for full SNMP support. |
| Spare Fuses (Pack of 4) | INS-FUSE-250 | Fast-acting fuses matched to amplifier input protection circuit (pack of 4 for serviceability). | INS2075 | 4 | Optional / Recommended | 90 days | Store in a dry environment; replace only with identical rating. |
| RF Attenuator (Fixed, 10 dB, 50 W) | INS-ATT-10-50W | Inline attenuator for level adjustment and testing; 50 W continuous power rating. | INS2075 | 1 | Optional | 6 months | Use when testing or to prevent overdrive during commissioning. |
| Dummy Load (50 Ω, 200 W) | INS-DL-200W | High-power resistive load for safe testing and tuning of amplifier output without an antenna. | INS2075 | 1 | Optional / Strongly Recommended | 1 year | Always use when performing bench power-up without an antenna attached. |
| RF Combiner / Splitter (Optional) | INS-COMB-2×1 / INS-SPLIT-1×2 | Passive RF combiner or splitter for combining multiple inputs or distributing output to multiple loads. | INS2075 (when multi-unit configuration required) | 1 | Optional | 6 months | Select based on insertion loss and power handling requirements. |
| N-type Connector Maintenance Kit | INS-CONN-KIT | Includes torque wrench, weatherproofing kit (heat-shrink, sealing tape), and cleaning tools for RF connectors. | INS2075 | 1 kit | Optional | 90 days | Use proper torque values to avoid connector damage. |
| Factory Calibration Certificate | INS-CAL-2075 | Full traceable calibration report showing output power, gain, and spectral purity measurements. | INS2075 | 1 | Optional / Available | Calibration valid for 12 months | Recommended for critical deployments and acceptance testing. |
| User Manual & Quick Start Guide (PDF & Paper) | INS-MAN-2075 | Comprehensive manual with installation, safety, electrical diagrams, and troubleshooting steps; quick-start sheet for field engineers. | INS2075 | 1 set | Included | Documentation support included | Keep manual accessible near installation site. |
