Delivers high-efficiency RF power amplification tailored for specific communication bands, ensuring optimized signal performance across applications.
Features advanced support for digital predistortion (DPD), enabling excellent linearity and minimal distortion in high-data-rate systems.
Compact and rugged construction makes it suitable for both indoor and outdoor deployments in LTE, 5G, and defense systems.
Integrated with protection features including over-voltage, over-temperature, and reverse polarity for reliable long-term operation.
Offers stable gain, low noise figure, and exceptional signal clarity for mission-critical communication environments.
Key Features
High-efficiency RF amplification
Supports specific communication frequency bands
Low noise and high linearity performance
Digital predistortion (DPD) compatible
Stable gain across operating band
Compact and rugged design
Over-voltage and over-temperature protection
Suitable for LTE, 5G, and defense systems
Reliable performance in harsh environments
Easy system integration

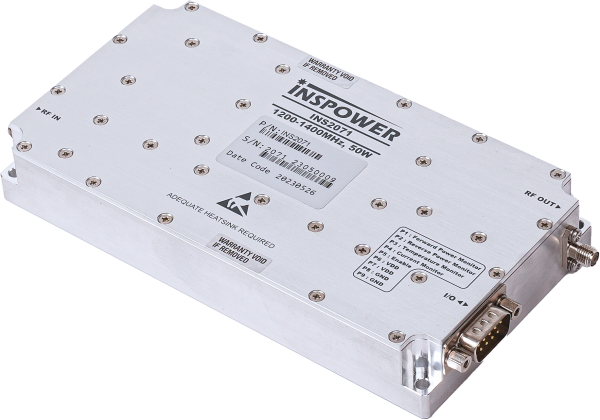

The INS2071 Band Specific Power Amplifier is a high-performance RF amplifier engineered to deliver exceptional signal amplification within defined frequency bands. Designed for critical applications such as wireless infrastructure, LTE, 5G, and defense communications, the INS2071 offers a perfect balance of power efficiency, gain stability, and low noise performance. With support for digital predistortion (DPD), the amplifier ensures accurate signal reproduction and minimal distortion, even under demanding modulation conditions. Its compact design allows for easy integration into various systems, while maintaining robust mechanical and electrical integrity.
This amplifier features a high gain profile with excellent flatness across the operating band, making it ideal for both narrowband and broadband use. Built-in protection mechanisms guard against over-voltage, over-temperature, and reverse polarity to ensure long-term reliability and operational safety. Engineered for environments where performance and durability are paramount, the INS2071 offers dependable output power with minimal maintenance. Whether deployed in stationary installations or mobile platforms, it provides scalable RF performance suited for advanced communication systems.
| Specification | Details |
|---|---|
| Model | INS2071 |
| Frequency Range | Band-specific (customizable per request) |
| Output Power | Up to 50 Watts |
| Gain | 45 dB (typical) |
| Gain Flatness | ±1.0 dB over operating band |
| Noise Figure | < 5 dB |
| Input/Output VSWR | ≤ 1.5:1 |
| Harmonics | ≤ -45 dBc |
| Third Order Intercept | > +50 dBm |
| DC Supply Voltage | +28 VDC (nominal) |
| Power Consumption | < 150 Watts (typical) |
| DPD Compatibility | Yes |
| Impedance | 50 Ohms |
| Cooling Method | Integrated heatsink with forced air |
| Operating Temperature | -40°C to +60°C |
| Storage Temperature | -55°C to +85°C |
| Dimensions | 180 mm x 120 mm x 40 mm (L x W x H) |
| Weight | Approx. 1.2 kg |
| Connectors | SMA or N-type (customizable) |
| Protection Features | Over-voltage, over-temperature, reverse polarity |
| Accessory | Description |
|---|---|
| DC Power Cable | Heavy-duty power cable for +28VDC connection with secure locking connector |
| RF Input Cable | High-quality coaxial cable with SMA connector for input signal |
| RF Output Cable | Shielded coaxial cable with N-type or SMA connector for output signal |
| Mounting Brackets | Adjustable brackets for secure panel or rack installation |
| Cooling Fan Assembly | External fan unit for enhanced thermal management in enclosed environments |
| User Manual | Printed or digital manual with detailed installation, operation, and safety instructions |
| Optional Heatsink | Extended heatsink block for passive cooling support |
| Test Report | Factory-issued performance validation report specific to the unit |
| Protective Cover | Custom-fit dust cover for safe storage and protection when not in use |
