High Gain & Low Noise Delivers strong signal amplification with minimal noise, ensuring superior performance in sensitive RF environments.
Wideband Operation Supports a broad frequency range, ideal for multi-band wireless, radar, and communication systems.
Compact Hybrid Design Integrates active and passive components in a single package, reducing space and simplifying integration.
Robust & Reliable Hermetically sealed for durability and equipped with built-in thermal and RF protection for long-term stability.
Optimized for Performance Features high linearity and internally matched ports, making it suitable for both driver and output stages in demanding RF systems.
Key Features
Wide frequency range for versatile RF applications
High gain with excellent signal stability
Low noise figure for enhanced signal clarity
Internally matched input and output stages
Compact hybrid IC design for easy integration
High linearity for minimal signal distortion
Hermetically sealed package for rugged environments
Thermal and RF protection built-in
Suitable for wireless, radar, and defense systems
Reliable performance across varying conditions

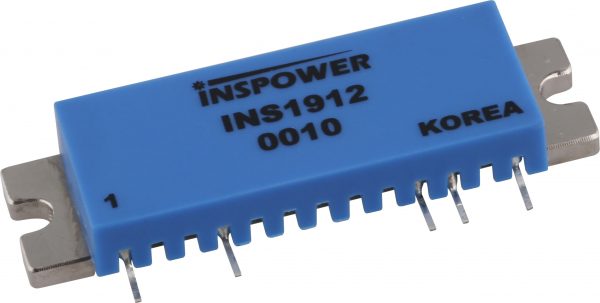

The INS1912 RF Hybrid IC Amplifier is a high-performance, integrated amplifier module engineered for demanding RF and microwave applications. Combining active and passive components into a single hybrid design, it delivers excellent gain, stability, and wideband performance across a broad frequency range. This amplifier is specifically optimized for use in wireless infrastructure, radar systems, and RF communication equipment, offering consistent output power and low noise characteristics. With its compact, hermetically sealed package, the INS1912 ensures reliable operation even in harsh environments.
Built using advanced GaAs or LDMOS technology (depending on the variant), the INS1912 provides high linearity and efficiency, making it ideal for both driver and final stage amplification. It features internally matched input and output stages for simplified system integration, along with built-in thermal and RF protection features. Whether used in commercial or defense applications, the INS1912 RF Hybrid IC Amplifier supports robust and efficient signal amplification, maintaining signal integrity across critical RF pathways.
Specifications
| Parameter | Specification |
|---|---|
| Model | INS1912 |
| Frequency Range | 800 MHz – 2.7 GHz |
| Gain | 22 dB (typical) |
| Noise Figure | 2.5 dB (typical) |
| Output Power (P1dB) | +30 dBm (typical) |
| Input Return Loss | ≥ 12 dB |
| Output Return Loss | ≥ 14 dB |
| Power Supply Voltage | +12 V DC |
| Current Consumption | 250 mA (typical) |
| Package Type | Hermetically Sealed Hybrid IC |
| Operating Temperature | -40°C to +85°C |
| Applications | Wireless Infrastructure, Radar Systems, RF Communication |
| Accessory | Description |
|---|---|
| RF Coaxial Cables | High-frequency SMA/N-type cables for optimal signal transmission with minimal loss. |
| Power Supply Unit (12V DC) | Stable DC power supply with current protection for safe operation. |
| Heatsink or Cooling Fan | Optional thermal management components to ensure consistent performance. |
| Mounting Hardware | Custom brackets or hardware for stable mechanical installation. |
| RF Surge Protector | Protects the amplifier from voltage spikes and lightning-related surges. |
| EMI Shielding Kit | Additional shielding material to reduce electromagnetic interference. |
| Status Monitoring Interface | Optional diagnostic cable or board for monitoring temperature and power status. |
