Key Features
- Max. sampling speed 500 MSa/s
- Max. streaming speed 100 MSa/s
- 60 MHz bandwidth
- 8-bit vertical resolution
- Touchscreen interface
- Advanced triggering and math functions
- USB and Ethernet connectivity
- Compact and portable design
Handyscope HS6-500
- Max Sampling Speed of 500 MSa/s Provides precise waveform capture, ideal for high-frequency signals, offering exceptional resolution for detailed analysis in complex applications.
- Max Streaming Speed of 100 MSa/s Ensures continuous real-time data streaming, perfect for monitoring dynamic signals and performing in-depth analysis over extended periods.
- 60 MHz Bandwidth Supports a wide range of signal types, from simple analog waveforms to complex digital signals, offering versatility for various testing scenarios.
- Intuitive Touchscreen Interface Easy-to-use touchscreen with quick access to key settings, making setup and operation hassle-free.
- Compact, Portable Design Lightweight and easy to carry, designed for professionals needing a reliable, portable oscilloscope for field use and on-site analysis.
The Handyscope HS6-500 is a cutting-edge portable oscilloscope that delivers exceptional performance with a maximum sampling rate of 500 MSa/s and a streaming speed of up to 100 MSa/s, making it ideal for high-frequency signal analysis. Featuring 8-bit vertical resolution and a bandwidth of 60 MHz, this oscilloscope is well-suited for analyzing a wide range of waveforms, including digital, analog, and mixed signals. It offers an intuitive touch screen interface for easy operation and a variety of advanced measurement features, including automatic waveform detection, advanced triggering options, and extensive math functions. The device is equipped with a large internal memory for storing waveform data and supports USB and Ethernet connectivity, allowing for easy integration with computers for further analysis and data logging. The HS6-500 also supports external probes and accessories for flexibility in measurement applications. With its compact, lightweight design, it is an ideal tool for on-the-go professionals working in fields such as telecommunications, electronics development, automotive diagnostics, and laboratory research. The Handyscope HS6-500 provides reliable, high-quality signal analysis in a portable format, making it an invaluable asset for both field and bench applications.
Handyscope HS6 Specifications
Acquisition system |
|||||
|---|---|---|---|---|---|
| Number of input channels | 4 analog | ||||
| CH1, CH2, CH3, CH4 | Female BNC | ||||
| Type | Single ended input | ||||
| Resolution | User selectable in software | ||||
| Native | 8, 12, 14Â bit | ||||
| Enhanced | 16Â bit | ||||
| DC Accuracy | 0.25 % (0.1 % typical) of full scale ± 1 LSB at 20°C to 25°C To achieve rated accuracy, allow the instrument to settle for 20 minutes. When subjected to extreme temperatures, allow additional time for internal temperatures to stabilize. |
||||
| Noise | 240 µVrms (200 mV range, 12 bit, 50 MSa/s) 90 µVrms (200 mV range, 16 bit, 6.25 MSa/s) |
||||
| Ranges (full scale) | ±200 mV ±400 mV ±800 mV |
±2 V ±4 V ±8 V |
±20 V ±40 V ±80 V |
||
| Coupling | AC/DC | ||||
| Impedance | 1 MΩ / 20 pF ± 1 % | ||||
| Maximum voltage | 200Â V (DC + AC peak < 10Â kHz) | ||||
| Bandwidth | HS6-1000 | HS6-500 | HS6-200 | ||
| -3dBÂ at 75 % of full scale input | 250Â MHz | 250Â MHz | 250Â MHz | ||
| Limit, selectable per channel | Off (250 MHz) 150 MHz 100 MHz 50 MHz |
Off (250Â MHz) 150Â MHz 100Â MHz 50Â MHz |
Off (250Â MHz) 150Â MHz 100Â MHz 50Â MHz |
||
| AC coupling cut off frequency (-3dB) | ±1.5 Hz | ||||
| SureConnect | Optionally available (option S) | ||||
| Maximum voltage on connection | 200Â V (DC + AC peak < 10Â kHz) | ||||
| Resistance measurement | Optionally available (option S) | ||||
| Ranges (Full scale) | 100 Ω 200 Ω 500 Ω |
1 kΩ 2 kΩ 5 kΩ |
10 kΩ 20 kΩ 50 kΩ |
100 kΩ 200 kΩ 500 kΩ |
1 MΩ 2 MΩ |
| Accuracy | 1 % of full scale | ||||
| Response time (to 95%) | < 10 µs | ||||
| Maximum sampling rate | HS6-1000 | HS6-500 | HS6-200 | ||
| 8Â bit | |||||
| measuring one channel | 1 GSa/s | 500 MSa/s | 200 MSa/s | ||
| measuring two channels | 500 MSa/s | 200 MSa/s | 100 MSa/s | ||
| measuring three or four channels | 200 MSa/s | 100 MSa/s | 50 MSa/s | ||
| 12Â bit | |||||
| measuring one channel | 500 MSa/s | 200 MSa/s | 100 MSa/s | ||
| measuring two channels | 200 MSa/s | 100 MSa/s | 50 MSa/s | ||
| measuring three or four channels | 100 MSa/s | 50 MSa/s | 20 MSa/s | ||
| 14Â bit | 100 MSa/s | 50 MSa/s | 20 MSa/s | ||
| 16Â bit | 6.25 MSa/s | 3.125 MSa/s | 1.25 MSa/s | ||
| Maximum streaming rate 1 | HS6-1000 | HS6-500 | HS6-200 | ||
| 8Â bit | |||||
| measuring one channel | 200 MSa/s2 | 100 MSa/s2 | 40 MSa/s | ||
| measuring two channels | 100 MSa/s3 | 50 MSa/s3 | 20 MSa/s | ||
| measuring three or four channels | 50 MSa/s4 | 25 MSa/s4 | 10 MSa/s | ||
| 12Â bit | |||||
| measuring one channel | 100 MSa/s3 | 50 MSa/s3 | 20 MSa/s | ||
| measuring two channels | 50 MSa/s4 | 25 MSa/s4 | 10 MSa/s | ||
| measuring three or four channels | 25 MSa/s5 | 12.5 MSa/s5 | 5 MSa/s | ||
| 14Â bit | |||||
| measuring one channel | 100 MSa/s3 | 50 MSa/s3 | 20 MSa/s | ||
| measuring two channels | 50 MSa/s4 | 25 MSa/s4 | 10 MSa/s | ||
| measuring three or four channels | 25 MSa/s5 | 12.5 MSa/s5 | 5 MSa/s | ||
| 16Â bit | 6.25 MSa/s6 | 3.125 MSa/s | 1.25 MSa/s | ||
| Sampling clock source | |||||
| Internal | TCXO | ||||
| Accuracy | ± 0.0001 % | ||||
| Stability | ± 1 ppm over 0°C to 55°C | ||||
| Time base aging | ±1 ppm/year | ||||
| External | LVDS, on CMI connectors | ||||
| Input frequency | 10 MHz ± 1 % 16.369 MHz ± 1 % |
||||
| Memory | Standard model | XMÂ option | |||
| 8Â bit resolution | |||||
| Measuring one channel | 1 Mpts per channel | 256 Mpts per channel | |||
| Measuring two channels | 512 Kpts per channel | 128 Mpts per channel | |||
| Measuring three or four channels | 256 Kpts per channel | 64 Mpts per channel | |||
| 12, 14, 16Â bit resolution | |||||
| Measuring one channel | 512 Kpts per channel | 128 Mpts per channel | |||
| Measuring two channels | 256 Kpts per channel | 64 Mpts per channel | |||
| Measuring three or four channels | 128 Kpts per channel | 32 Mpts per channel | |||
| Trigger | Only available in scope/block mode, not in streaming mode | ||||
| System | Digital, 2 levels | ||||
| Source | CH1, CH2, CH3, CH4, OR, digital external | ||||
| Trigger modes | Rising edge, Falling edge, Any edge Inside window, Outside window, Enter window, Exit window (time conditions only on Ch1) Pulse width (only on Ch1) Interval (only on Ch1) |
||||
| Level adjustment | 0 to 100 % of full scale | ||||
| Hysteresis adjustment | 0 to 100 % of full scale | ||||
| Resolution | 0.006 % (14, 16Â bits) / 0.025% (12Â bits) | ||||
| Pre trigger | 0 to selected record length, 1 sample resolution | ||||
| Post trigger | 0 to selected record length, 1 sample resolution | ||||
| Trigger hold-off | 0 to 63Â MSamples, 1 sample resolution | ||||
| Trigger delay | 0 to 8Â GSamples, 1 sample resolution | ||||
| Digital external trigger | |||||
| Input | Extension connector pins 1 and 2 | ||||
| Range | 0 to 2.5Â V (TTL) | ||||
| Coupling | DC | ||||
| Jitter | ≤ 1 sample | ||||
Multi-instrument synchronization |
|||||
| Using CMI | Synchronizing instruments via CMI is available when all instruments are connected via USB. | ||||
| Maximum number of instruments | Limited by number of available USB ports | ||||
| Synchronization accuracy | 0 ppm | ||||
| CMI interface | 2x, CMI 1, CMI 2 | ||||
| Required coupling cable | TP-C50H Coupling cable CMI | ||||
| Maximum coupling cable length | 50Â cm | ||||
| Using WCMI | Synchronizing instruments via WCMI is available when instruments are connected via USB, LAN and WiFi. | ||||
| Maximum number of instruments | No limitation | ||||
| Required coupling module | WCMI – 8, WCMI – 9 | ||||
| Clock synchronization accuracy | ≤ 1 ppm, typical ≤ 0.2 ppm | ||||
| Trigger jitter at sample rate 1 | ≤ 1 MSa/s | > 1 MSa/s | |||
| 2 x “5” | ≤ ±2 samples | ≤ ±2 µs | |||
| “5” and “6” | |||||
| Trigger source “5” | ≤ ±2 samples | ≤ ±2 µs | |||
| Trigger source “6” | ≤ ±8 samples | ≤ ±8 µs | |||
| 2 x “6” | ≤ ±8 samples | ≤ ±8 µs | |||
Probe calibration |
|||||
| Output | Extension connector pins 3 (signal) and 6 (ground) | ||||
| Signal | Square wave | ||||
| Level | -1Â V to 1Â V | ||||
| Frequency | 1Â kHz | ||||
Interface |
|||||
| Interface | USB 3.0 SuperSpeed (5Â Gbit/s); (USB 2.0 HighSpeed compatible) |
||||
Power Requirements |
|||||
| Power | From USB port or external input | ||||
| Consumption | 5Â VDCÂ 1200Â mA max | ||||
| External power | From second USB port or power adapter | ||||
Physical |
|||||
| Instrument | |||||
| Height | 25Â mm (1Â inch) | ||||
| Length | 170Â mm (6.7Â inch) | ||||
| Width | 140Â mm (5.2Â inch) | ||||
| Weight | 500Â g (17.6Â ounce) | ||||
| USB cord length | 1.8Â m (70Â inch) | ||||

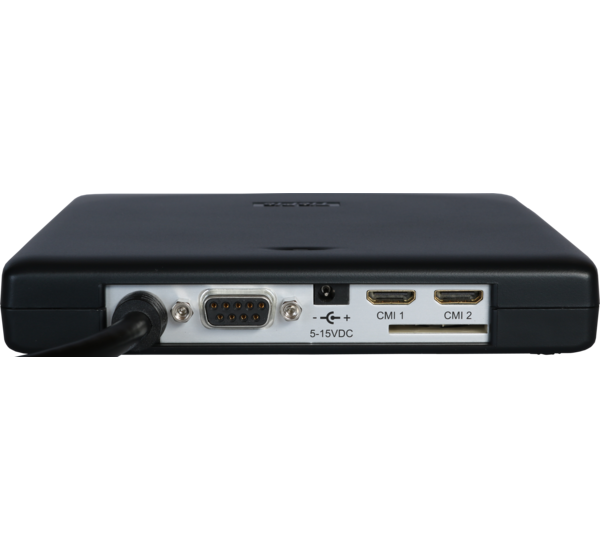

I/O connectors |
|||||
| Channel 1, 2, 3, 4 | BNC, female | ||||
| USB | Fixed cable with USB 3.0 type A connector, 1.8Â m | ||||
| Extension connector | D-sub 9 pins female | ||||
| Power | 3.5Â mm power socket | ||||
| CMI I/O connectors | 2 x HDMI type C socket | ||||
System requirements |
|||||
| PC I/O connection | USB 2.0, USB 3.0 or USB 3.1 | ||||
| Operating system | Windows 10 / 11, 64 bits Linux (via libtiepie-hw SDK) |
||||
Environmental conditions |
|||||
| Operating | |||||
| Ambient temperature | 20°C to 25°C (10°C to 40°C without specifications) | ||||
| Relative humidity | 10 % to 90 %, non condensing | ||||
| Storage | |||||
| Ambient temperature | -20°C to 70°C | ||||
| Relative humidity | 5 % to 95 %, non condensing | ||||
Certifications and Compliances |
|||||
| CE mark compliance | Yes | ||||
| RoHS | Yes | ||||
| EN 55011:2009/A1:2010 | Yes | ||||
| EN 55022:2006/A1:2007 | Yes | ||||
| EN 61000-6-1:2007 | Yes | ||||
| EN 61000-6-3:2007 | Yes | ||||
Package contents |
|||||
| Instrument | Handyscope HS6 | ||||
| Probes | 4 x Oscilloscope Probe 1:1-1:10 – HP-3250I | ||||
| Accessories | Handyscope / WiFiScope power supply, external power cable for USB port, Probe compensation cable TP-DB9-BNC-30 | ||||
| Software | for Windows 10 / 11, 64 bits | ||||
| Drivers | for Windows 10 / 11, 64 bits, | ||||
| Software Development Kit | for Windows 10 / 11, 64 bits, and Linux | ||||
| Manuals | instrument manual and software user’s manuals color printed and digital |
||||
Accessories
Optional Accessories |
|||||
|---|---|---|---|---|---|
| Optional accessories for the Handyscope HS6 need to be ordered separately | |||||
| Measure lead single ended | Measure lead TP-BNCI-100 | ||||
