    Handyscope HS6-1000

    • Max. Sampling Speed of 1 GSa/s Captures fast and high-resolution waveforms for accurate signal analysis.
    • Max. Streaming Speed of 200 MSa/s Efficiently streams data for long-term monitoring without data loss.
    • Portable and Compact Lightweight design for easy transport and ideal for field measurements and remote locations.
    • Versatile Use Suitable for various applications, including electronics testing, troubleshooting, and research.
    • Advanced Functionality Features real-time waveform analysis, multiple trigger modes, and a user-friendly interface for easy operation. Perfect for professionals requiring fast and precise measurements in diverse environments.
    Send Enquiry

    Send Inquiry

    Key Features

    • Max. Sampling Speed 1 GSa/s for high-resolution waveform capture.
    • Max. Streaming Speed 200 MSa/s for continuous data acquisition.
    • Portable Design Compact and lightweight for easy field use.
    • Advanced Analysis Real-time waveform analysis and automated measurements.
    • Versatile Applications Suitable for electronics testing, troubleshooting, and research.

    The Handyscope HS6-1000 is a cutting-edge, portable digital oscilloscope that combines high-speed performance with versatile functionality, making it ideal for engineers, technicians, and researchers. With a maximum sampling speed of 1 GSa/s, it delivers highly accurate and detailed waveform capture, essential for analyzing fast signals. The oscilloscope also supports a streaming speed of 200 MSa/s, enabling long-duration data acquisition without data loss, which is crucial for continuous monitoring. Its lightweight, compact design enhances portability, making it easy to carry and set up in various environments, from labs to field applications. The HS6-1000 is equipped with an intuitive interface, offering advanced features such as real-time waveform analysis, automated measurements, and multiple trigger modes for precise signal capture. This oscilloscope is well-suited for applications in electronics, automotive, telecommunications, and industrial testing, providing reliable performance in both basic and complex troubleshooting tasks. Its combination of speed, portability, and advanced analysis tools ensures efficient and accurate testing, even in demanding conditions.

    Handyscope HS6 Specifications

    Acquisition system
    Number of input channels 4 analog
    CH1, CH2, CH3, CH4 Female BNC
    Type Single ended input
    Resolution User selectable in software
    Native 8, 12, 14 bit
    Enhanced 16 bit
    DC Accuracy 0.25 % (0.1 % typical) of full scale ± 1 LSB at 20°C to 25°C
    To achieve rated accuracy, allow the instrument to settle for 20 minutes. When subjected to extreme temperatures, allow additional time for internal temperatures to stabilize.
    Noise 240 µVrms (200 mV range, 12 bit, 50 MSa/s)
    90 µVrms (200 mV range, 16 bit, 6.25 MSa/s)
    Ranges (full scale) ±200 mV
    ±400 mV
    ±800 mV    		 ±2 V
    ±4 V
    ±8 V    		 ±20 V
    ±40 V
    ±80 V
    Coupling AC/DC
    Impedance 1 MΩ / 20 pF ± 1 %
    Maximum voltage 200 V (DC + AC peak < 10 kHz)
    Bandwidth HS6-1000 HS6-500 HS6-200
    -3dB at 75 % of full scale input 250 MHz 250 MHz 250 MHz
    Limit, selectable per channel Off (250 MHz)
    150 MHz
    100 MHz
    50 MHz    		 Off (250 MHz)
    150 MHz
    100 MHz
    50 MHz    		 Off (250 MHz)
    150 MHz
    100 MHz
    50 MHz
    AC coupling cut off frequency (-3dB) ±1.5 Hz
    SureConnect Optionally available (option S)
    Maximum voltage on connection 200 V (DC + AC peak < 10 kHz)
    Resistance measurement Optionally available (option S)
    Ranges (Full scale) 100 Ω
    200 Ω
    500 Ω    		 1 kΩ
    2 kΩ
    5 kΩ    		 10 kΩ
    20 kΩ
    50 kΩ    		 100 kΩ
    200 kΩ
    500 kΩ    		 1 MΩ
    2 MΩ
    Accuracy 1 % of full scale
    Response time (to 95%) < 10 µs
    Maximum sampling rate HS6-1000 HS6-500 HS6-200
    8 bit
    measuring one channel 1 GSa/s 500 MSa/s 200 MSa/s
    measuring two channels 500 MSa/s 200 MSa/s 100 MSa/s
    measuring three or four channels 200 MSa/s 100 MSa/s 50 MSa/s
    12 bit
    measuring one channel 500 MSa/s 200 MSa/s 100 MSa/s
    measuring two channels 200 MSa/s 100 MSa/s 50 MSa/s
    measuring three or four channels 100 MSa/s 50 MSa/s 20 MSa/s
    14 bit 100 MSa/s 50 MSa/s 20 MSa/s
    16 bit 6.25 MSa/s 3.125 MSa/s 1.25 MSa/s
    Maximum streaming rate 1 HS6-1000 HS6-500 HS6-200
    8 bit
    measuring one channel 200 MSa/s2 100 MSa/s2 40 MSa/s
    measuring two channels 100 MSa/s3 50 MSa/s3 20 MSa/s
    measuring three or four channels 50 MSa/s4 25 MSa/s4 10 MSa/s
    12 bit
    measuring one channel 100 MSa/s3 50 MSa/s3 20 MSa/s
    measuring two channels 50 MSa/s4 25 MSa/s4 10 MSa/s
    measuring three or four channels 25 MSa/s5 12.5 MSa/s5 5 MSa/s
    14 bit
    measuring one channel 100 MSa/s3 50 MSa/s3 20 MSa/s
    measuring two channels 50 MSa/s4 25 MSa/s4 10 MSa/s
    measuring three or four channels 25 MSa/s5 12.5 MSa/s5 5 MSa/s
    16 bit 6.25 MSa/s6 3.125 MSa/s 1.25 MSa/s
    1. On some computers, the highest streaming rates may not be available, due to computer restrictions.
    2. ≤ 40 MSa/s when connected to USB 2.0
    3. ≤ 20 MSa/s when connected to USB 2.0
    4. ≤ 10 MSa/s when connected to USB 2.0
    5. ≤ 5 MSa/s when connected to USB 2.0
    6. ≤ 3.125 MSa/s when connected to USB 2.0
    Sampling clock source
    Internal TCXO
    Accuracy ± 0.0001 %
    Stability ± 1 ppm over 0°C to 55°C
    Time base aging ±1 ppm/year
    External LVDS, on CMI connectors
    Input frequency 10 MHz ± 1 %
    16.369 MHz ± 1 %
    Memory Standard model XM option
    8 bit resolution
    Measuring one channel 1 Mpts per channel 256 Mpts per channel
    Measuring two channels 512 Kpts per channel 128 Mpts per channel
    Measuring three or four channels 256 Kpts per channel 64 Mpts per channel
    12, 14, 16 bit resolution
    Measuring one channel 512 Kpts per channel 128 Mpts per channel
    Measuring two channels 256 Kpts per channel 64 Mpts per channel
    Measuring three or four channels 128 Kpts per channel 32 Mpts per channel
    Trigger Only available in scope/block mode, not in streaming mode
    System Digital, 2 levels
    Source CH1, CH2, CH3, CH4, OR, digital external
    Trigger modes Rising edge, Falling edge, Any edge
    Inside window, Outside window, Enter window, Exit window (time conditions only on Ch1)
    Pulse width (only on Ch1)
    Interval (only on Ch1)
    Level adjustment 0 to 100 % of full scale
    Hysteresis adjustment 0 to 100 % of full scale
    Resolution 0.006 % (14, 16 bits) / 0.025% (12 bits)
    Pre trigger 0 to selected record length, 1 sample resolution
    Post trigger 0 to selected record length, 1 sample resolution
    Trigger hold-off 0 to 63 MSamples, 1 sample resolution
    Trigger delay 0 to 8 GSamples, 1 sample resolution
    Digital external trigger
    Input Extension connector pins 1 and 2
    Range 0 to 2.5 V (TTL)
    Coupling DC
    Jitter ≤ 1 sample

    Multi-instrument synchronization
    Using CMI Synchronizing instruments via CMI is available when all instruments are connected via USB.
    Maximum number of instruments Limited by number of available USB ports
    Synchronization accuracy 0 ppm
    CMI interface 2x, CMI 1, CMI 2
    Required coupling cable TP-C50H Coupling cable CMI
    Maximum coupling cable length 50 cm
    Using WCMI Synchronizing instruments via WCMI is available when instruments are connected via USB, LAN and WiFi.
    Maximum number of instruments No limitation
    Required coupling module WCMI – 8, WCMI – 9
    Clock synchronization accuracy ≤ 1 ppm, typical ≤ 0.2 ppm
    Trigger jitter at sample rate 1 ≤ 1 MSa/s > 1 MSa/s
    2 x “5” ≤ ±2 samples ≤ ±2 µs
    “5” and “6”
    Trigger source “5” ≤ ±2 samples ≤ ±2 µs
    Trigger source “6” ≤ ±8 samples ≤ ±8 µs
    2 x “6” ≤ ±8 samples ≤ ±8 µs
    1. “5” = WiFiScope WS5 or Handyscope HS5.
      “6” = WiFiScope WS6 DIFF, WiFiScope WS6, Handyscope HS6 DIFF, Handyscope HS6, ATS610004DW-XMSG, ATS610004D-XMSG, ATS605004DW-XMS or ATS605004D-XMS

    Probe calibration
    Output Extension connector pins 3 (signal) and 6 (ground)
    Signal Square wave
    Level -1 V to 1 V
    Frequency 1 kHz

    Interface
    Interface USB 3.0 SuperSpeed (5 Gbit/s);
    (USB 2.0 HighSpeed compatible)

    Power Requirements
    Power From USB port or external input
    Consumption 5 VDC 1200 mA max
    External power From second USB port or power adapter

    Physical
    Instrument
    Height 25 mm (1 inch)
    Length 170 mm (6.7 inch)
    Width 140 mm (5.2 inch)
    Weight 500 g (17.6 ounce)
    USB cord length 1.8 m (70 inch)

    I/O connectors
    Channel 1, 2, 3, 4 BNC, female
    USB Fixed cable with USB 3.0 type A connector, 1.8 m

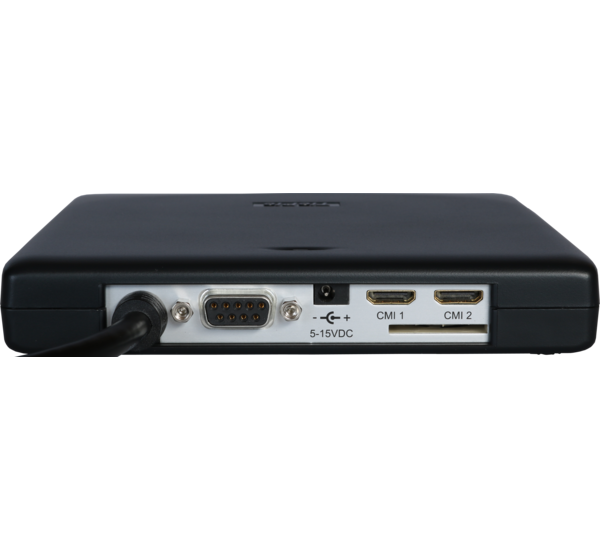

    Extension connector D-sub 9 pins female
    Power 3.5 mm power socket
    CMI I/O connectors 2 x HDMI type C socket

    System requirements
    PC I/O connection USB 2.0, USB 3.0 or USB 3.1
    Operating system Windows 10 / 11, 64 bits
    Linux (via libtiepie-hw SDK)

    Environmental conditions
    Operating
    Ambient temperature 20°C to 25°C (10°C to 40°C without specifications)
    Relative humidity 10 % to 90 %, non condensing
    Storage
    Ambient temperature -20°C to 70°C
    Relative humidity 5 % to 95 %, non condensing

    Certifications and Compliances
    CE mark compliance Yes
    RoHS Yes
    EN 55011:2009/A1:2010 Yes
    EN 55022:2006/A1:2007 Yes
    EN 61000-6-1:2007 Yes
    EN 61000-6-3:2007 Yes

    Package contents
    Instrument Handyscope HS6
    Probes 4 x Oscilloscope Probe 1:1-1:10 – HP-3250I
    Accessories Handyscope / WiFiScope power supply, external power cable for USB port, Probe compensation cable TP-DB9-BNC-30
    Software for Windows 10 / 11, 64 bits
    Drivers for Windows 10 / 11, 64 bits,
    Software Development Kit for Windows 10 / 11, 64 bits, and Linux
    Manuals instrument manual and software user’s manuals
    color printed and digital
