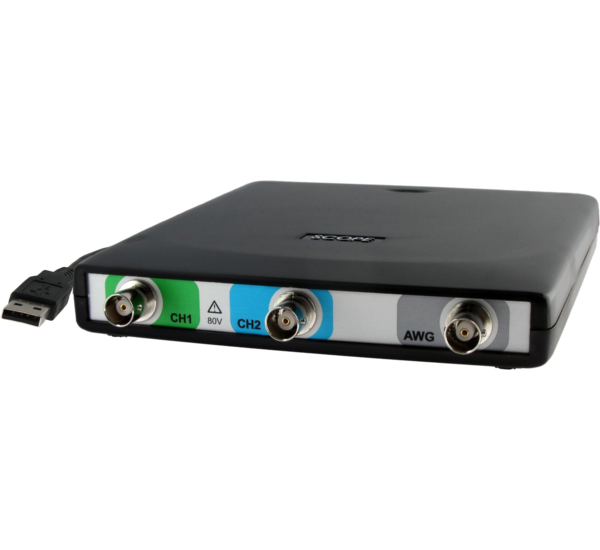

    Handyscope HS5-110

    • Max. Sampling Speed 100 MSa/s, providing high-speed data capture and accurate waveform analysis for both slow and fast signals.
    • Max. Streaming Speed 5 MSa/s, ensuring smooth and uninterrupted real-time signal streaming for extended monitoring or recording tasks.
    • AWG Frequency Built-in arbitrary waveform generator with up to 10 MHz frequency, enabling users to generate a wide variety of test waveforms for different applications.
    • Portability The compact and lightweight design makes it easy to carry, ideal for both laboratory setups and mobile field use.
    • Versatility Perfect for electronics testing, signal troubleshooting, waveform generation, and research applications in labs, workshops, and educational environments.
    Send Enquiry

    Send Inquiry

    Key Features

    • Max. Sampling Speed 100 MSa/s for precise waveform capture.
    • Max. Streaming Speed 5 MSa/s for continuous data acquisition.
    • AWG Frequency 10 MHz for waveform generation.
    • Portability Compact and lightweight for easy transport.
    • User-Friendly Intuitive interface for quick signal analysis.
    • Durable Built for both lab and field use.
    • Flexible Ideal for signal testing and troubleshooting.

    The Handyscope HS5-110 is a cutting-edge, compact digital oscilloscope designed to deliver high-performance signal analysis and generation for professionals, engineers, and researchers. With a maximum sampling speed of 100 MSa/s, it ensures accurate capture of fast signals, offering a detailed view of waveforms and allowing for precise measurements of high-frequency phenomena. The oscilloscope is equipped with a maximum streaming speed of 5 MSa/s, providing continuous data acquisition over extended periods while maintaining optimal performance without data loss. This feature makes it especially suitable for long-duration signal monitoring and complex diagnostic tasks. Additionally, the Handyscope HS5-110 includes a built-in arbitrary waveform generator (AWG) capable of producing signal frequencies up to 10 MHz, empowering users to generate custom test signals for a variety of applications, from simple waveform generation to more complex signal simulations. Its portability and intuitive user interface make it an excellent choice for fieldwork, research labs, educational settings, and electronics development environments. The device’s robust capabilities are packed into a lightweight, space-efficient design, ensuring that users can easily integrate it into their workflow. Whether for signal troubleshooting, testing, or measurement, the Handyscope HS5-110 offers an ideal balance of performance, portability, and ease of use for demanding applications.

    Handyscope HS5 Specifications

    Acquisition system
    Number of input channels 2 analog
    CH1, CH2 BNC, female
    Type Single ended
    Resolution User selectable in software
    Native 8, 12, 14 bit
    Enhanced 16 bit
    DC Accuracy 0.25 % (0.1 % typical) of full scale ± 1 LSB
    Noise 300 µVrms (200 mV range, 12 bit, 50 MSa/s)
    85 µVrms (200 mV range, 16 bit, 6.25 MSa/s)
    Ranges (Full scale) ±200 mV
    ±400 mV
    ±800 mV    		 ±2 V
    ±4 V
    ±8 V    		 ±20 V
    ±40 V
    ±80 V
    Coupling AC/DC
    Impedance 1 MΩ / 25 pF ± 1 %
    Maximum voltage 200 V (DC + AC peak < 10 kHz)
    Maximum voltage 1:10 probe 600 V (DC + AC peak < 10 kHz)
    Bandwidth (-3dB) at 75 % of full scale input
    Ch1 250 MHz
    Ch2 250 MHz (serial number < 41382 : 100 MHz)
    AC coupling cut off frequency (-3dB) ±1.5 Hz
    SureConnect Optionally available (option S)
    Maximum voltage on connection 200 V (DC + AC peak < 10 kHz)
    Resistance measurement Optionally available (option S)
    Ranges (Full scale) 100 Ω
    200 Ω
    500 Ω    		 1 kΩ
    2 kΩ
    5 kΩ    		 10 kΩ
    20 kΩ
    50 kΩ    		 100 kΩ
    200 kΩ
    500 kΩ    		 1 MΩ
    2 MΩ
    Accuracy 1 % of full scale
    Response time (to 95%) < 10 µs
    Maximum sampling rate HS5-540 HS5-530 HS5-220 HS5-110 HS5-055
    8/12 bit, measuring one channel 500 MSa/s 500 MSa/s 200 MSa/s 100 MSa/s 50 MSa/s
    8/12 bit, measuring two channels 200 MSa/s 200 MSa/s 100 MSa/s 50 MSa/s 20 MSa/s
    14 bit 100 MSa/s 100 MSa/s 50 MSa/s 20 MSa/s 10 MSa/s
    16 bit 6.25 MSa/s 6.25 MSa/s 3.125 MSa/s 1.25 MSa/s 625 kSa/s
    Maximum streaming rate 1 HS5-540 HS5-530 HS5-220 HS5-110 HS5-055
    8 bit, measuring one channel 40 MSa/s 40 MSa/s 20 MSa/s 10 MSa/s 4 MSa/s
    8 bit, measuring two channels 20 MSa/s 20 MSa/s 10 MSa/s 5 MSa/s 2 MSa/s
    12/14 bit, measuring one channel 20 MSa/s 20 MSa/s 10 MSa/s 5 MSa/s 2 MSa/s
    12/14 bit, measuring two channels 10 MSa/s 10 MSa/s 5 MSa/s 2 MSa/s 1 MSa/s
    16 bit 6.25 MSa/s 6.25 MSa/s 3.125 MSa/s 1.25 MSa/s 625 kSa/s
    Memory Standard model XM option
    Measuring one channel 256 KSamples per channel 64 MSamples per channel
    Measuring two channels 128 KSamples per channel 32 MSamples per channel
    Sampling clock source
    Internal TCXO
    Accuracy ± 0.0001 %
    Stability ± 1 ppm over 0°C to 55°C
    Time base aging ±1 ppm/year
    External LVDS, on auxiliary connectors
    Input range 10 MHz ± 1 %
    Trigger Only available in scope/block mode, not in streaming mode
    System Digital, 2 levels
    Source CH1, CH2, OR, digital external
    Generator start, Generator new period, Generator stop
    Trigger modes Rising edge, Falling edge, Any edge
    Inside window, Outside window, Enter window, Exit window
    Pulse width
    Level adjustment 0 to 100 % of full scale
    Hysteresis adjustment 0 to 100 % of full scale
    Resolution 0.006 % (14, 16 bits) / 0.025% (12 bits)
    Pre trigger 0 to selected record length, 1 sample resolution
    Post trigger 0 to selected record length, 1 sample resolution
    Trigger hold-off 0 to 63 MSamples, 1 sample resolution
    Trigger delay 0 to 16 GSamples, 1 sample resolution
    Segmented trigger Available on models with extended memory option XM, available via libtiepie-hw SDK
    Maximum number of segments 1024
    Minimum segment length 1 sample
    Maximum segment length 32 M / number of segments
    64 M / number of segments measuring one channel
    Trigger rearm time Sample frequency dependent, < 700 ns on highest sample frequency
    Digital external trigger
    Input Extension connector pins 1, 2 and 3
    Range 0 to 2.5 V (TTL)
    Coupling DC
    Jitter Depending on source and sample frequency
    Source = channel ≤ 1 sample
    Source = external or generator
    Sample frequency = 500 MSa/s ≤ 8 samples
    Sample frequency < 500 MSa/s ≤ 4 samples
    Sample frequency ≤ 100 MSa/s ≤ 1 sample

    Arbitrary Waveform Generator (independent from acquisition system)
    Waveforms
    Standard Sine, square, triangle, pulse, noise, DC
    Signal characteristics
    Sine HS5-540 HS5-530 HS5-220 HS5-110 HS5-055
    Frequency range 1 µHz to 40 MHz 1 µHz to 30 MHz 1 µHz to 20 MHz 1 µHz to 10 MHz 1 µHz to 5 MHz
    Amplitude flatness Relative to 1 kHz
    < 100 kHz ±0.1 dB
    < 5 MHz ±0.15 dB
    < 20 MHz ±0.3 dB (Amplitude ≤ 11 V (22 Vpp))
    < 30 MHz ±0.4 dB (Amplitude ≤ 9 V (18 Vpp))
    < 40 MHz ±1 dB (Amplitude ≤ 7.5 V (15 Vpp))
    Spurious (non harmonic)
    < 100 kHz -75 dBc
    100 kHz to 1 MHz -70 dBc
    1 MHz to 10 MHz -60 dBc
    10 MHz to 15 MHz -55 dBc
    15 MHz to 20 MHz -45 dBc
    20 MHz to 30 MHz -35 dBc
    30 MHz to 40 MHz -30 dBc
    Square HS5-540 HS5-530 HS5-220 HS5-110 HS5-055
    Frequency range 1 µHz to 30 MHz 2 1 µHz to 30 MHz 1 µHz to 20 MHz 1 µHz to 10 MHz 1 µHz to 5 MHz
    Rise/fall time < 8 ns
    Overshoot < 1 %
    Variable duty cycle 0.01 % to 99.99 %
    Asymmetry 0 % of period + 5 ns (@ 50 % Duty cycle)
    Jitter (RMS) < 50 ps
    Triangle HS5-540 HS5-530 HS5-220 HS5-110 HS5-055
    Frequency range 1 µHz to 30 MHz 2 1 µHz to 30 MHz 1 µHz to 20 MHz 1 µHz to 10 MHz 1 µHz to 5 MHz
    Nonlinearity (of peak output) < 0.01 %
    Symmetry 0 % – 100 %, 0.1 % steps
    Pulse
    Period 100 ns to 1000 s
    Pulse width 15 ns to 1000 s
    Variable edge time 8 ns to 1 s
    Overshoot < 1 %
    Jitter (rms) < 50 ps
    Noise
    Bandwidth (typical) 30 MHz
    Arbitrary HS5-540 HS5-530 HS5-220 HS5-110 HS5-055
    Frequency range 0.4 nHz to 30 MHz 0.4 nHz to 30 MHz 0.4 nHz to 20 MHz 0.4 nHz to 10 MHz 0.4 nHz to 5 MHz
    Maximum sample rate 240 MSa/s 240 MSa/s 200 MSa/s 100 MSa/s 50 MSa/s
    Length
    Standard model 1 to 256 KiSamples
    XM option 1 to 64 MiSamples
    Rise/Fall time < 8 ns
    Nonlinearity (of peak output) < 0.01 %
    Settling time < 8 ns to 10 % final value
    Jitter (RMS) < 50 ps
    Common characteristics
    Number of output channels 1 analog, BNC, female
    DAC resolution 14 bit
    Output range frequency ≤ 10 MHz frequency ≤ 20 MHz frequency ≤ 30 MHz frequency ≤ 40 MHz
    At open circuit -12 to +12 V (24 Vpp) -11 to +11 V (22 Vpp) -9 to +9 V (18 Vpp) -7.5 to +7.5 V (15 Vpp)
    Amplitude
    Ranges (at open circuit) 0.12 V (0.24 Vpp) 1.2 V (2.4 Vpp) 12 V (24 Vpp)
    Resolution 12 bit
    Accuracy 0.4 % of range
    DC offset
    Range -12 to +12 V at open circuit
    Resolution 12 bit
    Accuracy 0.4 % of range
    Noise level
    0.12 V range 900 µVRMS
    1.2 V range 1.3 mVRMS
    12 V range 1.5 mVRMS
    Coupling DC
    Impedance 50 Ω
    Overload protection Output turns off automatically when overload is applied. Instrument will tolerate a short circuit to ground indefinitely.
    Burst
    Waveforms Sine, square, triangle, noise, arbitrary
    Count 1 to 65535
    Trigger Software, external
    Sweep Available on models with extended memory option XM
    Waveforms Sine, square, triangle
    Type Linear, logarithmic
    Direction Up, down
    Trigger Software, external
    System characteristics
    System Constant Data Size
    Memory
    Standard model 256 KiSamples
    Option XM 64 MiSamples
    Operating modes Continuous, triggered, gated
    Maximum sample rate HS5-540 HS5-530 HS5-220 HS5-110 HS5-055
    240 MSa/s 240 MSa/s 200 MSa/s 100 MSa/s 50 MSa/s
    Sampling source Internal TCXO
    Accuracy ±0.0001 %
    Stability ±1 ppm over 0°C to +55°C
    Time base aging ±1 ppm/year

    Multi-instrument synchronization
    Using CMI Synchronizing instruments via CMI is available when all instruments are connected via USB.
    Maximum number of instruments Limited by number of available USB ports
    Synchronization accuracy 0 ppm
    CMI interface 2x, CMI 1, CMI 2
    Required coupling cable TP-C50H Coupling cable CMI
    Maximum coupling cable length 50 cm
    Using WCMI Synchronizing instruments via WCMI is available when instruments are connected via USB, LAN and WiFi.
    Maximum number of instruments No limitation
    Required coupling module WCMI – 8, WCMI – 9
    Clock synchronization accuracy ≤ 1 ppm, typical ≤ 0.2 ppm
    Trigger jitter at sample rate 1 ≤ 1 MSa/s > 1 MSa/s
    2 x “5” ≤ ±2 samples ≤ ±2 µs
    “5” and “6”
    Trigger source “5” ≤ ±2 samples ≤ ±2 µs
    Trigger source “6” ≤ ±8 samples ≤ ±8 µs
    2 x “6” ≤ ±8 samples ≤ ±8 µs
    1. “5” = WiFiScope WS5 or Handyscope HS5.
      “6” = WiFiScope WS6 DIFF, WiFiScope WS6, Handyscope HS6 DIFF, Handyscope HS6, ATS610004DW-XMSG, ATS610004D-XMSG, ATS605004DW-XMS or ATS605004D-XMS

    Interface
    Interface USB 2.0 High Speed (480 Mbit/s);
    (USB 1.1 Full Speed (12 Mbit/s) and USB 3.0 compatible)

    Power Requirements
    Power From USB port or external input
    Consumption 5 VDC 2000 mA max
    External power From second USB port or power adapter

    Physical
    Instrument height 25 mm (1 inch)
    Instrument length 170 mm (6.7 inch)
    Instrument width 140 mm (5.2 inch)
    Weight 430 g (15 ounce)
    USB cord length 1.8 m (70 inch)

    I/O connectors
    Channel 1, 2 BNC, female
    Generator BNC, female
    USB Fixed cable with USB 2.0 and USB 1.1 type A connector, 1.8 m
    Extension connector D-sub 9 pins female
    Power 3.5 mm power socket
    Auxiliary I/O connectors 2 x HDMI type C socket

    System requirements
    PC I/O connection USB 1.1, USB 2.0 or newer
    Operating system Windows 10 / 11, 64 bits, 32 and 64 bits
    Linux (via libtiepie-hw SDK)

    Environmental conditions
    Operating
    Ambient temperature 0 to 55°C
    Relative humidity 10 % to 90 %, non condensing
    Storage
    Ambient temperature -20 to 70°C
    Relative humidity 5 % to 95 %, non condensing

    Certifications and Compliances
    CE mark compliance Yes
    RoHS Yes
    EN 55011:2009/A1:2010 Yes
    EN 55022:2006/A1:2007 Yes
    EN 61000-6-1:2007 Yes
    EN 61000-6-3:2007 Yes
    Handyscope HS6-DIFF-500XM
    ,
    Handyscope HS6-DIFF-500XM
    Read more
    WiFiScope WS6 DIFF WiFi oscilloscope WS6-DIFF-200S
    , ,
    WiFiScope WS6 DIFF WiFi oscilloscope WS6-DIFF-200S
    Read more
    FTD10000, 7GHz Transient Digitizer
    , ,
    FTD10000, 7GHz Transient Digitizer
    Condition

    New
    Read more

    Accessories

    Package contents
    Instrument Handyscope HS5
    Oscilloscope probes 2 x Oscilloscope Probe 1:1-1:10 – HP-3250I
    Accessories Handyscope / WiFiScope power supply, external power cable for USB port
    Software for Windows 10 / 11, 64 bits, via website
    Drivers for Windows 10 / 11, 64 bits, via website
    Software Development Kit for Windows 10 / 11, 64 bits, and Linux, via website
    Manuals instrument manual and software user’s manuals
    color printed and digital, via website

    Enjoy:

    • Nearly 30 Years of Experience
    • Reliable Suppliers
    • Quality Products
    • Free Technical Consultation
    • Tailoring Custom Solution
    • Expert Technical Support
    • No Hidden-Fees

    Send Enquiry For:

    Handyscope HS5-110

    Israel's Leading Businesses Choose DCT

    Israel's Leading Businesses Choose DCT

    DCT’s Skilled Management Team has more than twenty-five years of experience and expertise in the local business environment, coupled with a highly motivated group of employees, positions us as the preferred supplier among the major customers in the industry.

    DCT Competitive Edge is the prompt response to our customer needs, the online and on-site direct technical support, professional consulting for the best cost/performance solution, on-time delivery, long-term maintenance, and support.

    More About Us

    Still Conflicted? Let's Talk.

    +972 (0) 3-923-2227
    Don’t hesitate to contact us
    +972 (0) 54-420-1920
    For Emergencies

    We can get back to you!

    Need a Rugged Device?

    Fill in the form!

    A variety of tablets are available for all use cases.
    - only solutions - No obligations -

    Our experts can help you find just about anything.

    What Were You Looking For? Let us help.
