USB Oscilloscope Handyprobe HP3-20XMPS

Safely measures signals up to 800 V peak with a full differential input, eliminating the need for external attenuators and reducing the risk of ground loops.
Captures fast and detailed signal behavior with a maximum sampling rate of 100 MSamples/s in block mode and 10 MSamples/s in streaming mode.
Supports accurate analysis of high-frequency signals with a 50 MHz bandwidth, ideal for electronic and automotive applications.
Stores extensive waveform data with 1 MiSamples of internal memory for in-depth signal examination.
Includes a specially designed low-noise differential measuring lead that enables interference-free measurements across two-meter terminal separation.

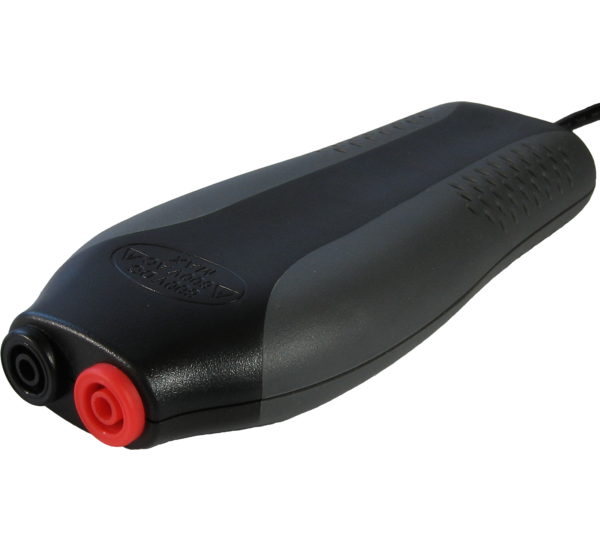

Features a lightweight, compact body with rubberized grips and wrist strap support for convenient handheld operation.
Powered entirely through USB 2.0, removing the need for external power supplies and enhancing portability.
Functions as an oscilloscope, multimeter, spectrum analyzer, and Y-t recorder via included Multi Channel software.
Offers a wide range of real-time mathematical and signal processing functions, including filtering, integration, and complex operations.
Enables long-duration, uninterrupted streaming measurements limited only by PC hard drive space for extended diagnostics.

The Handyprobe HP3 from TiePie Engineering sets a new benchmark in portable measurement technology. This compact USB oscilloscope features a fully differential input capable of measuring voltages up to 800 V peak, making it ideal for applications where safety and signal integrity are paramount. With a maximum sampling rate of 100 MSamples/s and a memory depth of 1 MiSamples, the HP3 offers the performance needed for capturing and analyzing fast signals with high resolution and accuracy.

Designed for mobility and ease of use, the Handyprobe HP3 fits comfortably in hand, with a durable housing and soft rubber grips. Its USB-powered design eliminates the need for external power supplies, making it truly portable. A special low-noise measuring lead has been developed to complement the HP3’s differential input. This lead allows measurements over distances up to two meters between terminals, without the interference typically associated with conventional coaxial cables.

The differential input design not only enhances measurement flexibility but also provides additional protection to the connected PC by avoiding direct ground connections. This feature is especially beneficial in high-voltage or isolated systems, where traditional oscilloscopes might pose a safety risk or fail to deliver accurate readings.

The Handyprobe HP3 is more than just an oscilloscope. Paired with TiePie’s powerful Multi Channel measurement software, it transforms into a multimeter, spectrum analyzer, and Y-t recorder. The software supports a wide range of mathematical functions and signal processing tools, such as integration, differentiation, filtering, and complex multi-step operations. Results can be viewed in customizable formats and saved for further analysis.

For extended recordings, the HP3 supports continuous streaming measurements, limited only by the computer’s storage capacity. This makes it ideal for long-term monitoring and analysis in fields like power electronics, automotive diagnostics, and industrial automation. With its advanced features and robust design, the Handyprobe HP3 delivers professional-grade measurement capabilities in a truly portable form.

Acquisition System

Input channels: 1
CH1 connection: Isolated 4 mm banana sockets
Input type: Differential
Resolution: 10 bits
Amplitude accuracy: 0.3% of full scale
Input ranges (full scale):
- ±200 mV, ±400 mV, ±800 mV
- ±2 V, ±4 V, ±8 V
- ±20 V, ±40 V, ±80 V
- ±200 V, ±400 V, ±800 V
Coupling: AC/DC
Input impedance: 2.1 MΩ // 15 pF
Noise: 540 µVrms (200 mV range, 50 MSa/s)
Maximum input voltage (all ranges):
600 VRMS CAT II; derates 3 dB/decade above 20 kHz to 25 Vp-p at 50 MHz
Maximum common mode voltage:
- 200 mV to 8 V range: 12 V
- 20 V to 80 V range: 120 V
- 200 V to 800 V range: 800 V
CMRR (Common Mode Rejection Ratio): 60 dB
Bandwidth (-3 dB): 50 MHz
AC coupling cut-off (-3 dB): 1.5 Hz
Rise time: 10 ns
Overshoot: 1%

Sampling Rates

Maximum real-time sampling rate:
- HP3-100: 100 MSa/s
- HP3-20: 20 MSa/s
- HP3-5: 5 MSa/s
Maximum streaming rate:
- HP3-100: 10 MSa/s
- HP3-20: 2 MSa/s
- HP3-5: 500 kSa/s
Sampling clock source: Internal, quartz
Clock accuracy: ±0.01%
Clock stability: ±100 ppm (–40 °C to +85 °C)
Time base aging: ±5 ppm/year

Memory

Standard model: 16,384 samples
XM option: 1,048,576 samples

Trigger System

(Only in scope/block mode; not in streaming mode)

Type: Digital, 2 levels
Source: CH1
Modes: Rising edge, Falling edge
Trigger level adjustment: 0–100% of full scale
Hysteresis adjustment: 0–100% of full scale
Resolution: 0.1% (10 bits)
Pre-trigger: 0–1,048,576 samples (1 sample resolution)
Post-trigger: 0–1,048,576 samples (1 sample resolution)
Trigger hold-off: 0–4,194,303 samples (1 sample resolution)

Interface

USB: USB 2.0 High Speed (480 Mbit/s)
(Compatible with USB 1.1 Full Speed and USB 3.0)

Power Requirements

Power via USB port: Max 400 mA (2 W)

Physical Dimensions

Height: 25 mm (1 inch)
Length: 177 mm (6.9 inches)
Width: 68 mm (2.7 inches)
USB cable length: 1.8 m (70 inches)
Weight: 290 g (10.2 oz)

I/O Connectors

Channel 1: Isolated 4 mm banana sockets
USB: Fixed cable with USB 2.0 Type A connector

System Requirements

PC I/O connection: USB
Operating systems:
- Windows 10 / 11 (64-bit)
- Linux (via libtiepie-hw SDK)

Operating Environment

Ambient temperature: 0 to 55 °C
Relative humidity: 10% to 90%, non-condensing

Storage Environment

Ambient temperature: -20 to 70 °C
Relative humidity: 5% to 95%, non-condensing

Certifications and Compliance

CE Mark: Yes
RoHS Compliant: Yes

The Handyprobe HP3 is available as Professional set (option PS) and as standard set. The sets contain:

Professional Set (Option PS)

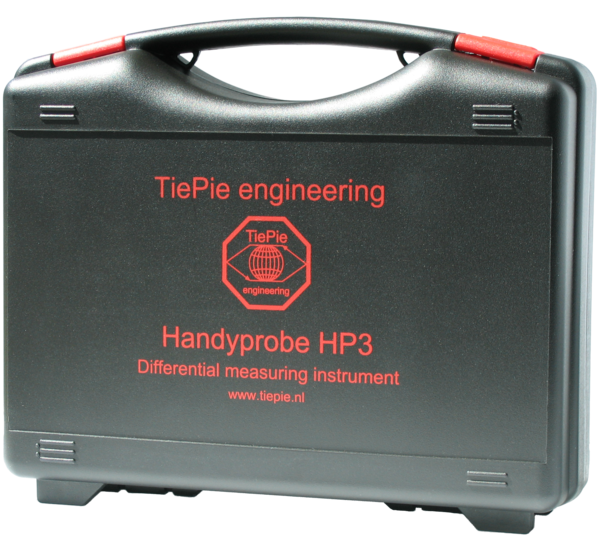

Carry case: Carry case BB271
Instrument: Handyprobe HP3
Measure lead: TP-C812A
Alligator clips: TP-AC80I
Test probe: TP-TP90
Accessories: Wrist strap
Software: For Windows 10 / 11, 64 bits
Drivers: For Windows 10 / 11, 64 bits
Software Development Kit: For Windows 10 / 11, 64 bits, and Linux
Manuals: Instrument and software user manuals – color printed and digital

Standard Set

Carry case: Cardboard box
Instrument: Handyprobe HP3
Measure lead: (Not included)
Alligator clips: (Not included)
Test probe: (Not included)
Accessories: (Not included)
Software: For Windows 10 / 11, 64 bits
Drivers: For Windows 10 / 11, 64 bits
Software Development Kit: For Windows 10 / 11, 64 bits, and Linux
Manuals: Instrument and software user manuals

USB Oscilloscope Handyprobe HP3-20XMPS
