Spectrum Analyzer GSP-9330

Spectrum Analyzer GSP-9330

  • The GSP-9330 covers a frequency range from 9 kHz to 3.25 GHz, making it ideal for a wide spectrum of RF analysis applications including telecommunications, broadcasting, and EMI testing.
  • With a resolution of 1 Hz and frequency stability of ±0.025 ppm over temperature, it delivers precise and stable measurements, even in fluctuating environmental conditions.
  • Offering a displayed average noise level (DANL) as low as -142 dBm (preamp on), and phase noise down to -113 dBc/Hz, the analyzer is well-suited for detecting low-level signals.
  • Includes powerful functions such as marker counter, spectrogram, RMS and quasi-peak detection, and supports up to four simultaneous traces for comprehensive signal analysis.
  • Comes with multiple I/O options including USB, LAN, RS-232, and optional GPIB and tracking generator, enabling integration with automated test systems and expanded measurement capability.
Send Enquiry

  • Frequency Range: 9kHz ~ 3.25GHz
  • 0.025ppm Frequency Stability and 1ppm aging Rate
  • RBW: 1Hz ~ 1MHz (3dB), 6dB EMI Filter: 200Hz, 9kHz, 120kHz, 1MHz
  • Fastest sweep time: 204us
  • Sensitivity: -149 dBm/Hz (@PreAmp on)
  • Built-in Preamplifier, 50dB Attenuator, and Sequence Function
  • Built-in EMC pretest function, Quasi-Peak/Average EMI detect mode
  • Built-in 2FSK Analysis, AM/FM/ASK/FSK Demodulation & Analysis
  • Built-in P1dB point, Harmonic, CHPW, OCBW, ACPR, SEM, TOI, CNR, CTB, CSO, N-dB bandwidth, Noise Marker, Frequency Counter, TDP, Gated Sweep
  • Built-in Spectrogram, Topographic and Split-Window Display Modes
  • Remote control EMI measurement software: SpectrumShot
  • Remote Control Interface: LAN, USB, RS-232
  • Options: Tracking Generator, GPIB Interface

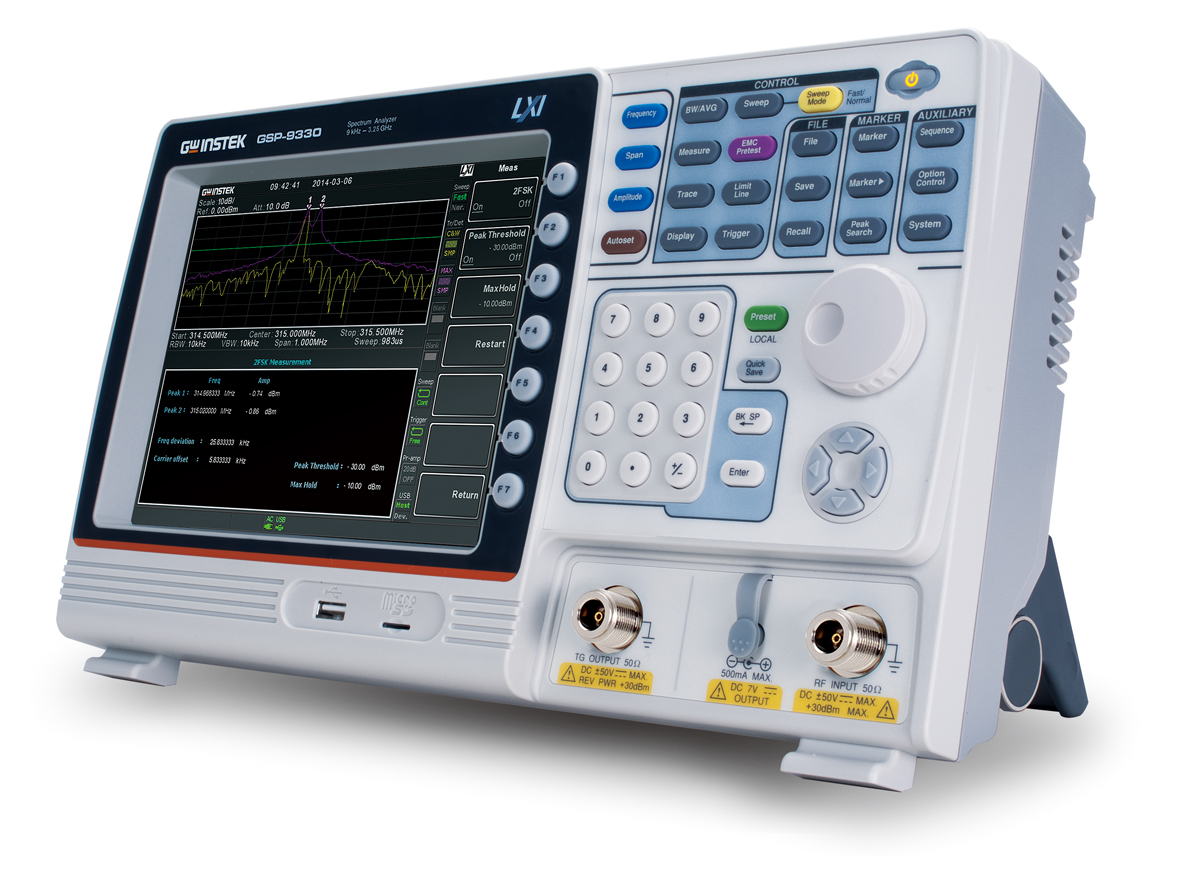

The brand new GSP-9330, a high test speed spectrum analyzer with 3.25 GHz, provides the fastest 204 μs sweep speed. Users, via high speed sweep time, can easily handle and analyze modulation signals.  The keys to handling modulated signals are fast sweep time and signal demodulation functions.  In addition to the analog AM/FM demodulation and analysis function, GSP-9330 also provides digital signal ASK/FSK, and 2FSK demodulation and analysis capabilities. Nowadays, EMC issues are very crucial to product’s design processes. Therefore, GSP-9330 has incorporated the EMC pretest solution to facilitate EMC tests.  The simple and easy EMC pretest procedures from GSP-9330 can tremendously shorten users’ product launch timeline.

Fastest Sweep Speed Up to 204μs

For measuring signals, speed is one of the specifications to be considered. Perhaps, it is the most important specification. GSP-9330 provides sweep speed up to 204 μs.  Users, via high speed sweep time, can easily capture transient signals such as Tire-pressure monitoring system (TPMS), frequency/amplitude modulation signals, Bluetooth frequency hopping signals, tuned oscillator or other interfering signals under ISM Band.

Modulation Signal Analysis and Processing

2FSK

The keys to handling modulated signals are fast sweep time and signal demodulation function.  In addition to the analog AM/FM demodulation and analysis function, GSP-9330 also provides ASK/FSK digital signal demodulation capability. For the widely-utilized, low-cost and low power consumption 2FSK modulation signals, GSP-9330 also provides the complete test and analysis function to address the requirements.

EMC Pretest Solution

EMC ICON

GSP-9330 can meet customers’ EMC pretest requirements on the product development and verification stages. Users can detect and resolve problems at the early product development stage that can save time and money for product development and verification fee.  As a result, users can expedite the process of products launch.  GSP-9330 has the built-in EMI dedicated 200/9 k/120 k/1 MHz filter, 20 dB low noise amplifier and Quasi-Peak/Average detection mode to conduct radiation and conduction tests after collocating with the probe set.

GKT-008, the radiation test probe set, provides a complete near field test probe set to simplify the complex measurement procedures and to simulate 3m/10m far field tests from the labs. Using GKT-008 can greatly save engineers’ debugging time and the money for going back and forth to the labs. GKT-008 can collocate with the Tracking Generator function of GSP-9330 to conductEMSpretests.

For conduction tests, GKT-008 can collocate with LISN and Isolated Transformer to conduct electromagnetic conduction tests. If users concern EUT’s large voltage variation or complexity, applying a Transient Limiter will make test equipment safer.

Frequency

  • Range: 9 kHz to 3.25 GHz
  • Resolution: 1 Hz
  • Frequency Reference Accuracy:
    • ± (elapsed time × aging rate) + stability over temperature + supply voltage stability
  • Aging Rate: ±1 ppm max., 1 year after last adjustment
  • Stability Over Temperature: ±0.025 ppm (0–50 °C)
  • Supply Voltage Stability: ±0.02 ppm



Frequency Readout

  • Accuracy: ± (marker indication × reference accuracy + 10% × RBW + resolution)
  • Trace Points: 6 to 601
  • Marker Frequency Counter:
    • Resolution: 1 Hz, 10 Hz, 100 Hz, 1 kHz
    • Accuracy: ± (marker freq. × ref. accuracy + resolution)
    • Condition: RBW/Span ≥ 0.02; Mkr level to DNL > 30 dB
  • Span Range: 0 Hz (zero span), 100 Hz to 3.25 GHz
    • Resolution: 1 Hz
    • Accuracy: ± frequency resolution (RBW auto)



Phase Noise (Typ. @ 1 GHz, RBW 1 kHz, VBW 10 Hz)

  • 10 kHz offset: < -88 dBc/Hz
  • 100 kHz offset: < -95 dBc/Hz
  • 1 MHz offset: < -113 dBc/Hz



Resolution Bandwidth (RBW) Filter

  • Bandwidths: 1 Hz to 1 MHz (1-3-10 sequence)
    • 200 Hz, 9 kHz, 120 kHz, 1 MHz (-6 dB)
  • Accuracy:
    • ±8% (1 MHz)
    • ±5% (<1 MHz)
  • Shape Factor: < 4.5:1 (-60 dB : -3 dB)



Video Bandwidth (VBW) Filter

  • Bandwidths: 1 Hz to 1 MHz (1-3-10 sequence)



Amplitude

  • Measurement Range:
    • 100 kHz–1 MHz: DANL to +18 dBm
    • 1 MHz–10 MHz: DANL to +21 dBm
    • 10 MHz–3.25 GHz: DANL to +30 dBm
  • Input Attenuator: 0–50 dB, 1 dB steps, auto/manual
  • Max Input Level:
    • Avg Power: ≤ +33 dBm (attenuator ≥10 dB)
    • DC Voltage: ±50 V
  • 1 dB Compression:
    • 0 dBm at 1st Mixer (preamp off)
    • -22 dBm at Preamp (preamp on)



Displayed Average Noise Level (DANL)

  • Preamp Off (0 dB Attenuation):
    • 9 kHz–100 kHz: < -93 dBm
    • 100 kHz–1 MHz: < -90 dBm – 3×(f/100 kHz)
    • 1 MHz–2.7 GHz: < -122 dBm
    • 2.7–3.25 GHz: < -116 dBm
  • Preamp On (0 dB Attenuation):
    • 100 kHz–1 MHz: < -108 dBm – 3×(f/100 kHz)
    • 1 MHz–10 MHz: < -142 dBm
    • 10 MHz–3.25 GHz: < -142 dBm + 3×(f/1 GHz)



Level Display

  • Scales: Log, Linear
  • Units: dBm, dBmV, dBuV, V, W
  • Marker Readout:
    • Log: 0.01 dB
    • Linear: 0.01% of ref. level
  • Display Modes: Trace, Topographic, Spectrogram
  • Traces: 4
  • Detectors: Positive-peak, negative-peak, sample, normal, RMS, Average (EMI), Quasi-Peak (EMI)
  • Trace Functions: Clear & Write, Max/Min Hold, View, Blank, Average



Amplitude Accuracy

  • Absolute Accuracy:
    • Preamp Off: ±0.5 dB (Ref. level 0 dBm, 10 dB Attenuation)
    • Preamp On: ±0.6 dB (Ref. level -30 dBm, 0 dB Attenuation)
  • Frequency Response (20–30 °C, Ref. 160 MHz):
    • Preamp Off:
      • 100 kHz–2 GHz: ±0.5 dB
      • 2–3.25 GHz: ±0.7 dB
    • Preamp On:
      • 1 MHz–2 GHz: ±0.6 dB
      • 2–3.25 GHz: ±0.8 dB
  • Attenuation Switching Uncertainty: ±0.25 dB
  • RBW Filter Switching Uncertainty: ±0.25 dB
  • Overall Amplitude Accuracy: ±1.5 dB



Spurious Response

  • 2nd Harmonic Intercept:
    • +35 dBm (<775 MHz), +60 dBm (≥775 MHz)
  • 3rd-Order Intercept: > +1 dBm (300 MHz–3.25 GHz)
  • Input Related Spurious: < -60 dBc
  • Residual Response: < -90 dBm



Sweep

  • Sweep Time:
    • Span > 0 Hz: 204 µs to 1000 s
    • Span = 0 Hz: 50 µs to 1000 s (min res. 10 µs)
  • Modes: Continuous, Single
  • Triggers: Free Run, Video, External
  • Slope: Positive/Negative edge



RF Preamplifier (Standard)

  • Frequency Range: 1 MHz–3.25 GHz
  • Gain: 18 dB nominal

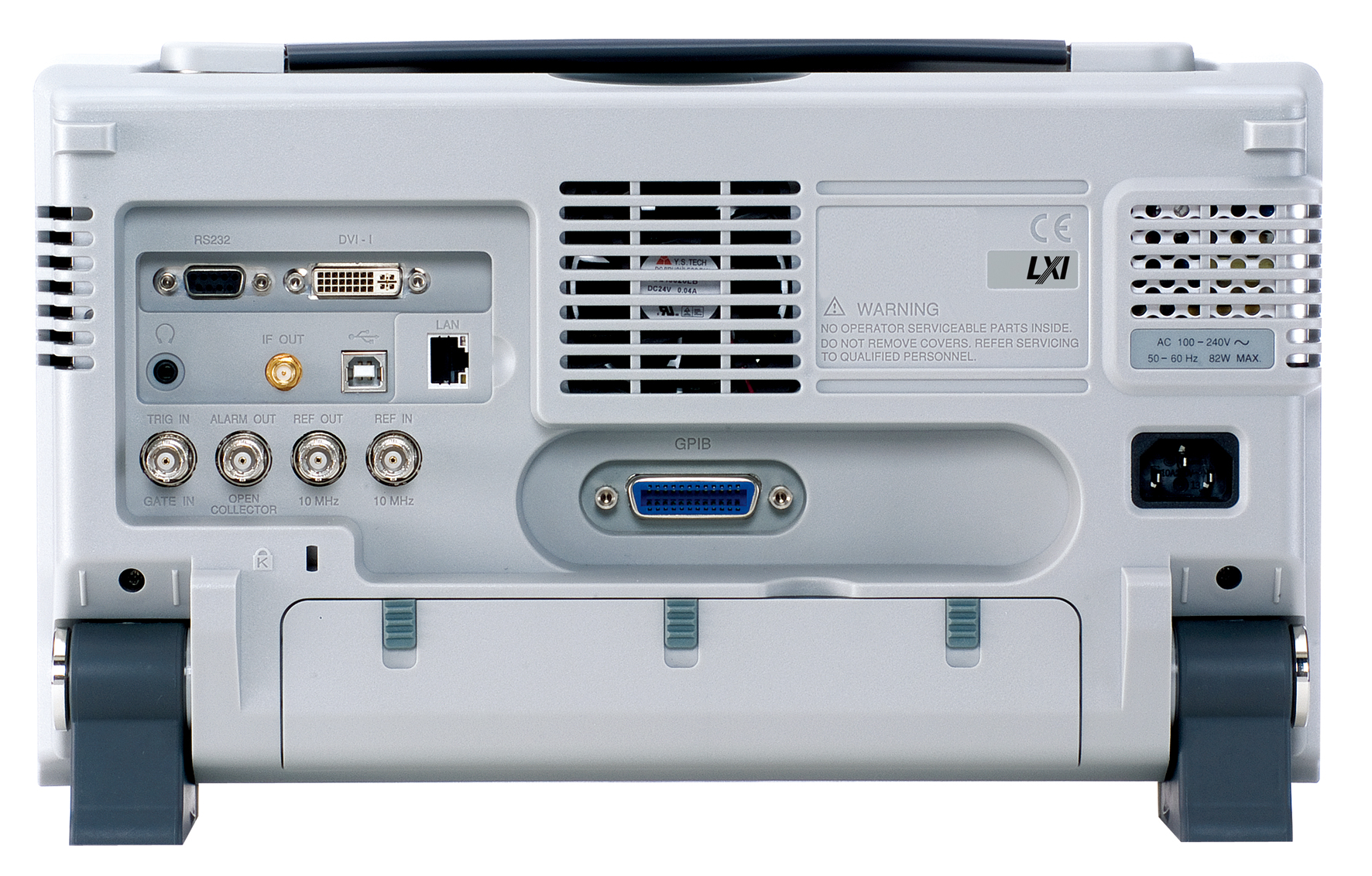

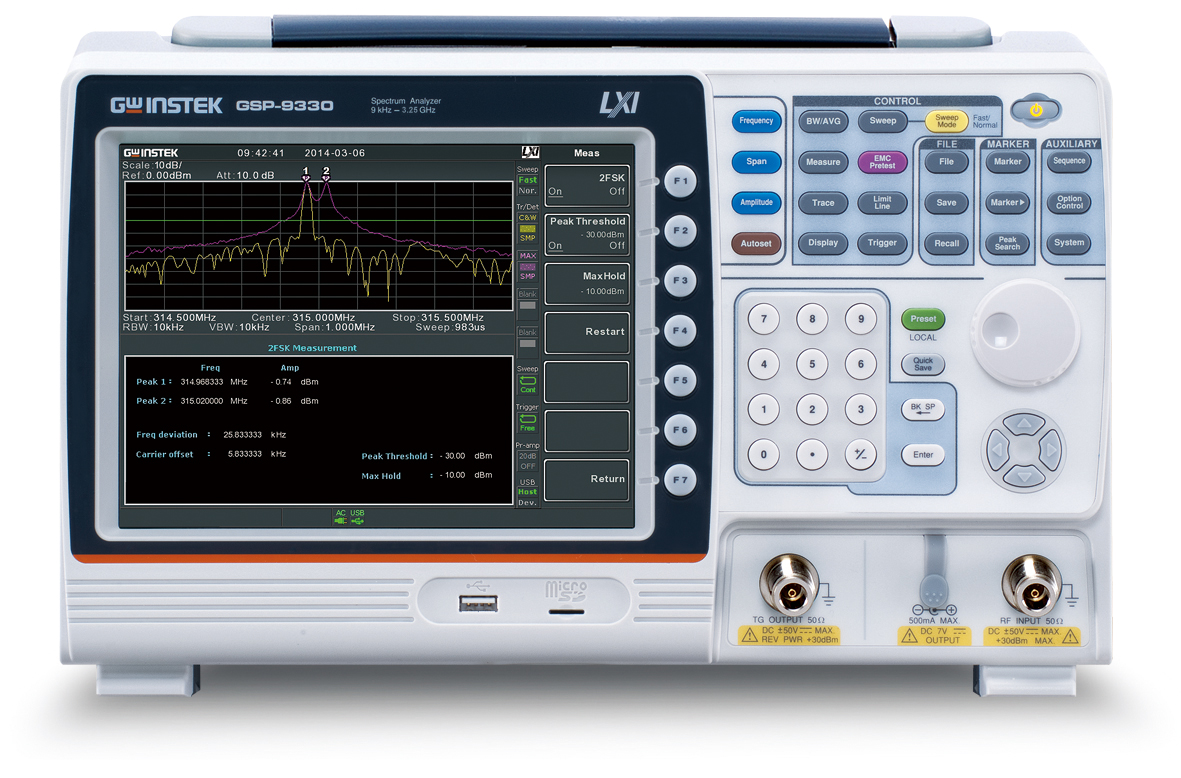

Front Panel I/O

  • RF Input: N-type, 50 Ω, VSWR <1.6:1 (≥10 dB attn)
  • Option Power: SMB male, +7 V / 500 mA max
  • USB Host: Type-A, USB 2.0
  • microSD: Up to 32 GB (microSD/microSDHC)



Rear Panel I/O

  • Ref Output: BNC, 10 MHz, 3.3V CMOS, 50 Ω
  • Ref Input: BNC, 10 MHz, -5 to +10 dBm
  • Alarm Output: BNC, open-collector
  • Trigger/Gated Sweep: BNC, 3.3V CMOS
  • LAN: RJ-45, 10/100Base-T, Auto-MDIX
  • USB Device: Type-B, USB TMC, USB 2.0
  • IF Output: SMA, 886 MHz, -25 dBm
  • Earphone Output: 3.5mm stereo (mono wired)
  • Video Output: DVI-I (analog/digital)
  • RS232: D-sub 9-pin (Tx, Rx, RTS, CTS)
  • GPIB (Optional): IEEE-488



Power

  • AC Input: 100–240 V, 50/60 Hz, auto-ranging
  • Battery Pack (Optional):
    • 6-cell Li-ion, 3S2P, 10.8 V, 5200 mAh, 56 Wh
  • Power Consumption: < 65 W



Environmental & Physical

  • Warm-up Time: < 30 minutes
  • Operating Temp: +5 °C to +45 °C
  • Storage Temp: -20 °C to +70 °C
  • Weight: 4.5 kg (with all options)
  • Dimensions: 210 × 350 × 100 mm (8.3 × 13.8 × 3.9 in)



Calibration

  • Recommended cycle: 1 year
  • Services available via GW Instek’s authorized centers



Tracking Generator (Optional)

  • Frequency Range: 100 kHz to 3.25 GHz
  • Output Power: -50 dBm to 0 dBm (0.5 dB steps)
  • Accuracy: ±0.5 dB @ 160 MHz, -10 dBm
  • Flatness:
    • 100 kHz–2 GHz: ±1.5 dB
    • 2–3.25 GHz: ±2 dB
  • Level Switching Uncertainty: ±0.8 dB
  • Harmonics: < -30 dBc (typical @ -10 dBm)
  • Reverse Power Protection: +30 dBm max
  • Output Connector: N-type, 50 Ω
  • VSWR: < 1.6:1 (≥12 dB attenuation)



Standard Accessories

  • Power Cord
  • Certificate of Calibration
  • CD-ROM (with Quick Start Guide
  • User Manual, Programming Manual
  • SpectrumShot Software
  • SpectrumShot Guide & IVI Driver)



Options

  • GSP-93T1 Tracking Generator
  • Option 02 BatteryPack
  • GSP-93G1 GPIB Interface



Optional Accessories

  • GSC-009, Soft Carrying Case
  • GRA-415, Rack Adapter Panel



Free Download

  • SpectrumShot PC Software for Windows System
  • IVI Driver Supports LabVIEW/LabWindows/CVI Programming

Enjoy:
