- Frequency Range:
- – GSP-8800: 9kHz ~ 8.0GHz
- – GSP-8380: 9kHz ~ 3.8GHz
- – GSP-8180: 9kHz ~ 1.8GHz
- RBW: 1Hz ~ 1MHz in 1-3-5-10 steps
- VBW: 10Hz ~ 3MHz in 1-3-5-10 steps
- Phase Noise: -104 dBc/Hz
- Sensitivity: -160dBm/Hz Typical @PreAmp On
- Built-in AM/FM Demodulation
- Built-in Time Spec Function
- Measurement Function: ACPR/OCBW/CHPW, NdB BW, Pass-Fail, Freq. Counter, Noise Marker
- Built-in 20dB Preamplifier
- Communication Interface: LAN, USB Host/Device
- Display: 10.4″ XGA Output (1024*768)
- Options: Tracking Generator, EMI Filter

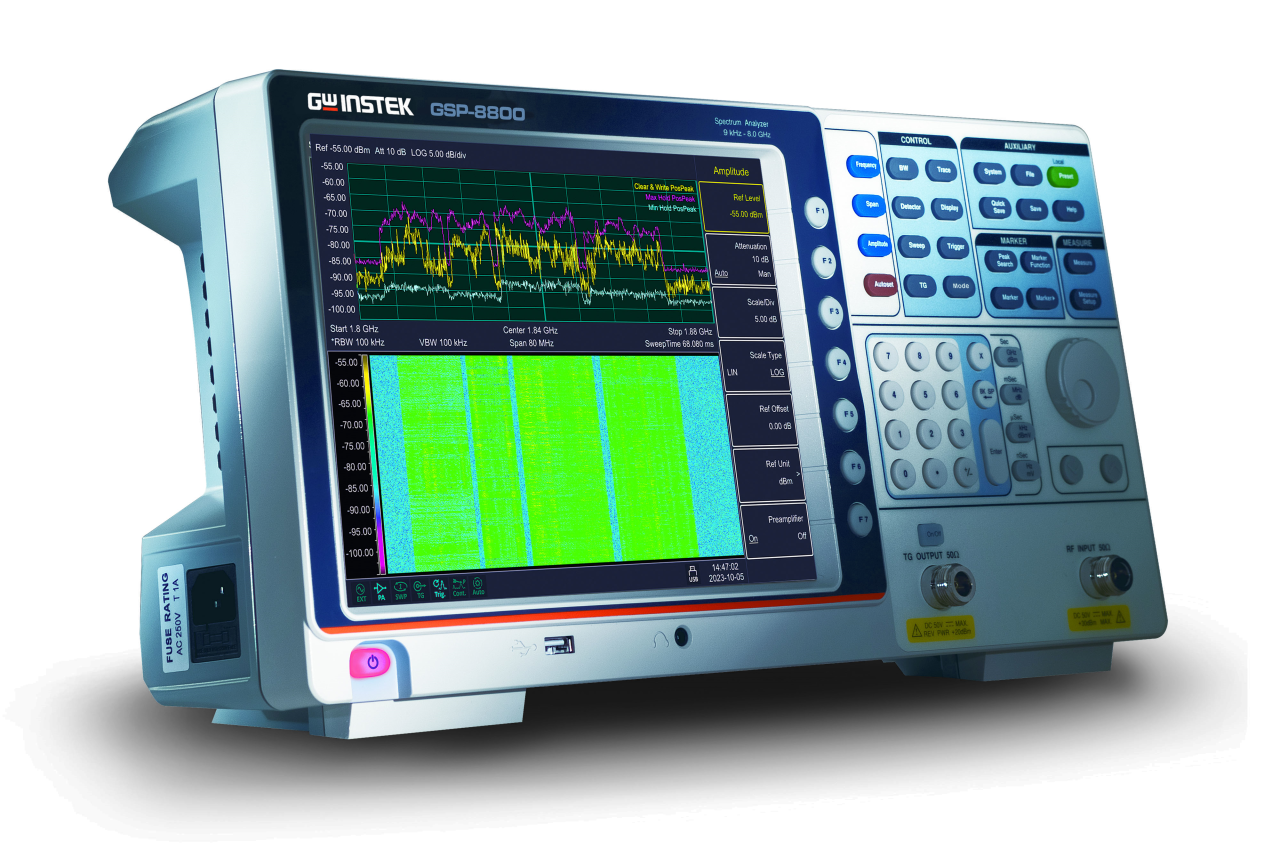

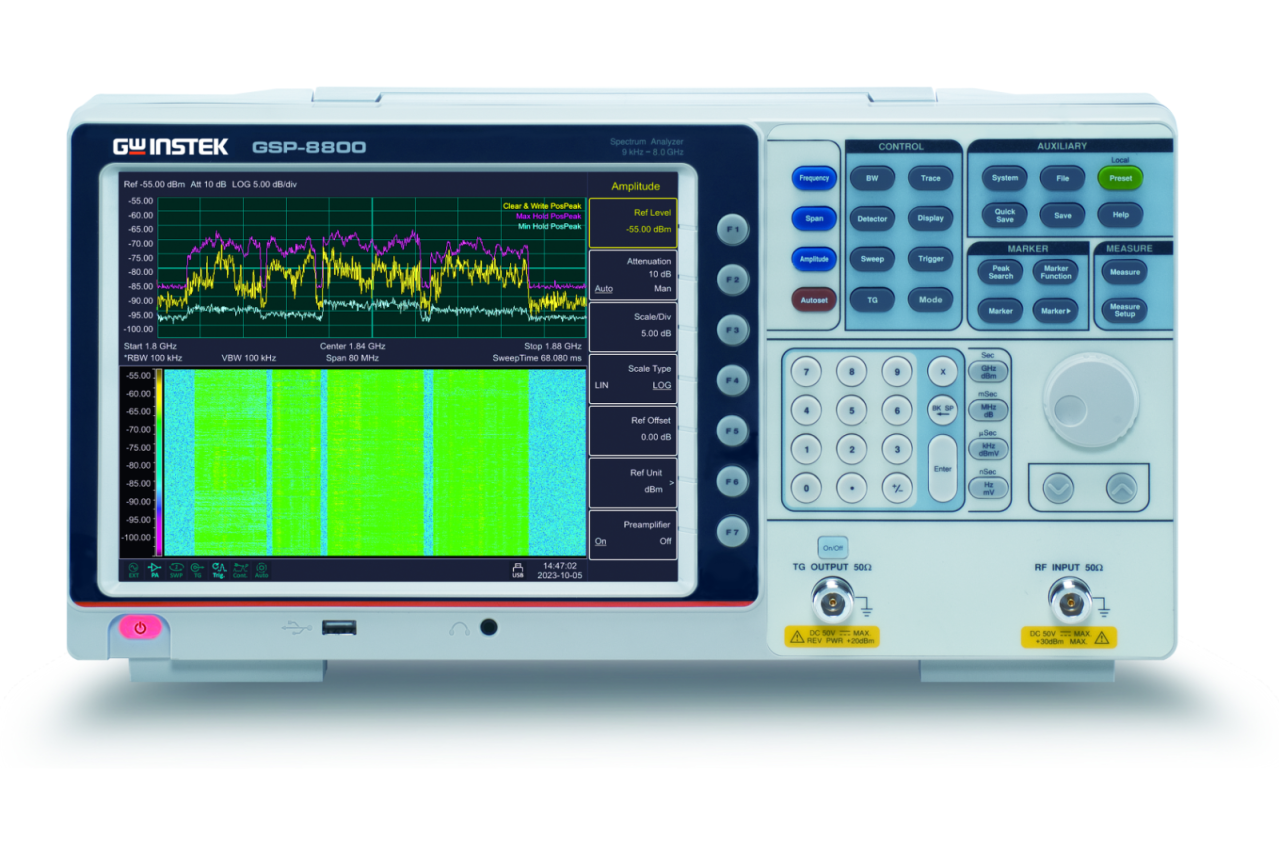

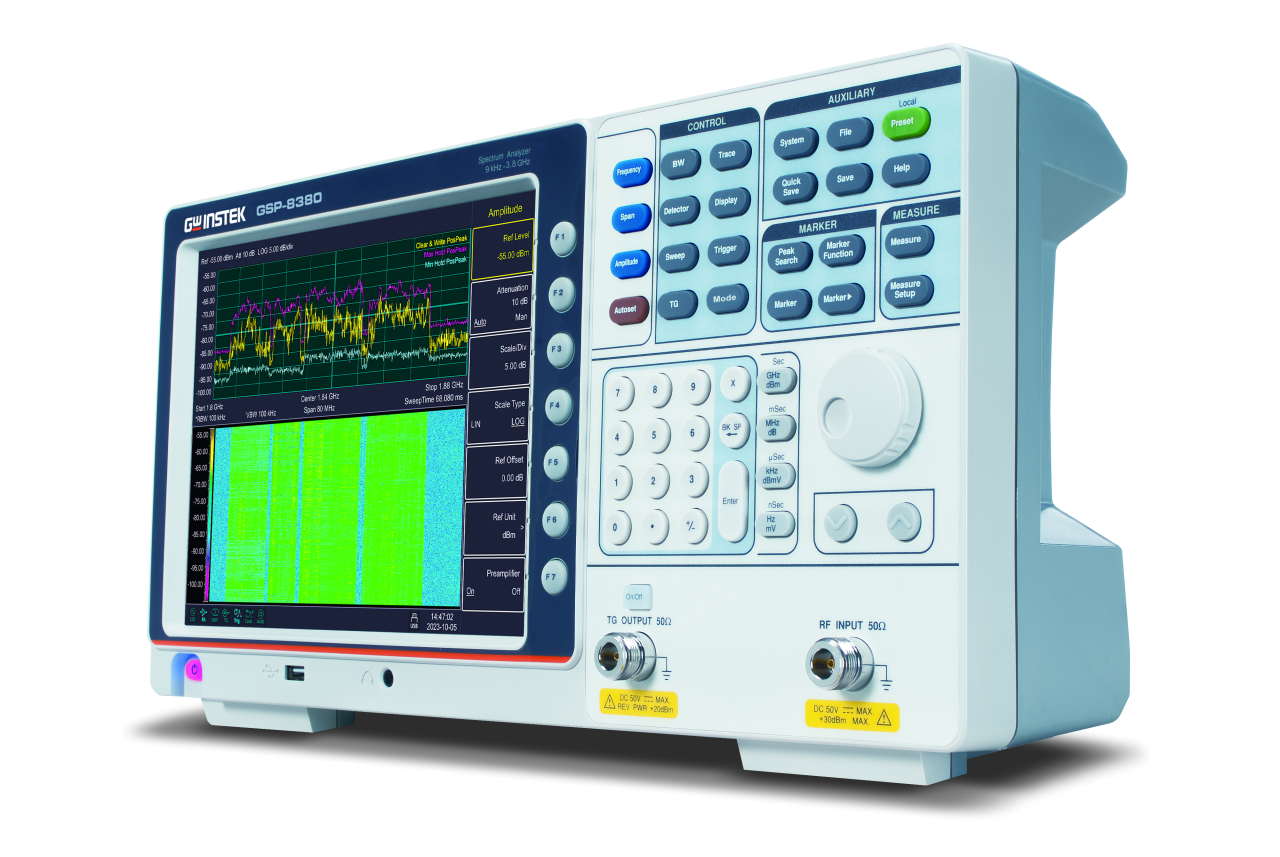

Spectrum Analyzer GSP-8800
- The GSP-8800 analyzes signals from 9 kHz to 8 GHz, making it suitable for a wide range of RF applications, including low-frequency and microwave analysis.
- As part of the GSP-8000 series, the GSP-8800 provides 1 Hz resolution for precise frequency analysis, enabling engineers to distinguish between closely spaced signals.
- The GSP-8800 features low SSB phase noise and a wide span range, allowing for detailed examination of signal characteristics and evaluation of signal purity.
- The GSP-8800 provides accurate amplitude measurement capabilities, ensuring reliable and precise measurements of signal strength for applications like signal power determination.
- Designed for demanding RF analysis in engineering and testing, the GSP-8800’s combination of frequency range, resolution, low phase noise, and amplitude accuracy makes it a valuable asset.
The GSP-8000 series, brand new general spectrum analyzers from GW Instek, features three frequency ranges, namely 8.0GHz, 3.8GHz and 1.8GHz. The series is suitable for teaching research, R&D verification, and the test requirements of radio frequency products during production and development stages. The series provides 1Hz ~ 1MHz resolution bandwidth (RBW), 10Hz ~ 3MHz video bandwidth (VBW), -104dBc/Hz phase noise, a 20dB preamplifier, and the lowest noise floor of -160dBm/Hz (typical).
With respect to measurement applications, GSP-8000 has built-in Time Spec function, AM/FM signal demodulation function, channel test (Channel Power Measurement) function, Pass-Fail function, etc. The Time Spec function can simultaneously observe and display the correlation between power, frequency and time. ACPR/OCBW/CHPW tests can be used to test adjacent channels, power occupation bandwidth ratio, and channel power. The Pass-Fail function can be used to determine whether the signal is within the set range. Users can use these functions to conduct a wide range of measurement applications.
GSP-8000 utilizes a 10.4-inch TFT LCD large-size screen with XGA (1024*768) resolution to allow an easy observation of test signals. For communication interface, GSP-8000 provides two interfaces: USB and LAN. Through the USB Host, users can quickly retrieve the files stored after measurements, while USB Device and LAN interface allow users to control the instrument through dedicated PC software, or use the corresponding command set to design the required program.
GSP-8000 also provides two options, namely TG and EMI Filter. Customers need to decide the TG function when placing an order. Other options can be activated through the corresponding software authorization (Soft-Key), which greatly improves usage efficiency.
 |
GSP-8180 | GSP-8380 | GSP-8800 |
TG Option | V | V | X |
EMI Option | V | V | V |
Open via Keycode
- Frequency:
- Frequency Range:
- GSP-8180: 9 kHz to 1.8 GHz
- GSP-8380: 9 kHz to 3.8 GHz
- GSP-8800: 9 kHz to 8.0 GHz
- Frequency Resolution: 1 Hz
- Span Range: 10 Hz, 100 Hz to maximum frequency of the instrument
- Span Uncertainty: span / (sweep points – 1)
- Internal Frequency Reference: 10.000000 MHz
- Reference Frequency Accuracy: (days from last calibrate x frequency aging rate) + temperature stability + initial accuracy
- Temperature Stability: <1ppm (15°C to 35°C)
- Aging Rate: <1ppm/year
- Initial Accuracy: <1ppm
- SSB Phase Noise (fc = 1 GHz, RBW = 1 kHz, VBW = 1kHz, 20°C to 30°C, average ≥ 40):
- 10 kHz offset: ≤-104 dBc/Hz
- 100 kHz offset: <-106 dBc/Hz (Typical)
- 1 MHz offset: <-115 dBc/Hz (Typical)
- Resolution Bandwidth: 1 Hz to 1 MHz (1-3-5-10 sequence)
- RBW Uncertainty: <5%, Typical, RBW ≤ 1 MHz
- Resolution Filter Shape Factor (60dB:3dB): <5:1, Typical, digital and close to Gaussian shape
- Video Bandwidth (VBW): 10 Hz to 3 MHz
- Frequency Range:
- Amplitude and Level:
- Amplitude Measurement Range:
- GSP-8180: DANL to +10 dBm (100 kHz to 1 MHz, Preamp Off), DANL to +20 dBm (1 MHz to 1.8 GHz, Preamp Off)
- GSP-8380: DANL to +10 dBm (100 kHz to 1 MHz, Preamp Off), DANL to +20 dBm (1 MHz to 3.8 GHz, Preamp Off)
- GSP-8800: DANL to +10 dBm (100 kHz to 10 MHz, Preamp Off), DANL to +20 dBm (10 MHz to 8 GHz, Preamp Off)
- Reference Level: -80 dBm to +30 dBm, 0.01 dB step
- Preamplifier: 20 dB, 100 kHz to Maximum Frequency Range
- Input Attenuation: 0 to 40 dB, in 1 dB steps
- Maximum Input DC Voltage: 50 VDC
- Maximum Continuous Power: +30 dBm, Average continuous power
- Displayed Average Noise Level (DANL): (See document for detailed DANL specifications for each model and preamp setting)
- Frequency Response: (See document for detailed Frequency Response)
- RBW Switch Uncertainty: ±0.2 dB, Log resolution
- Input Attenuation Uncertainty: 1 to 40 dB ±0.5 dB
- Absolute Amplitude Uncertainty: (See document for detailed Absolute Amplitude)
- VSWR: (See document for detailed VSWR)
- Amplitude Measurement Range:
- Distortion and Spurious Response:
- Second harmonic distortion: -65 dBc
- Third-order intermodulation: +10 dBm
- 1 dB Gain Compression: >-2 dBm
- Residual response: <-85 dBm
- Input related spurious: <-60 dBc
- Sweep:
- Sweep Time Range:
- 10 ms to 3000 s (Non-zero Span)
- 1 ms to 3000 s (Zero Span)
- Sweep Mode: Continuous; Single
- Sweep Time Range:
- Tracking Generator (Option 01):
- Frequency Range: 100 kHz to Maximum Frequency Range
- Output power level range: -40 dBm to 0 dBm
- Output power level resolution: 1 dB
- Output flatness: ±3 dB
- Maximum safe reverse level: Average total power: +30 dBm, DC: ±50 VDC
- Impedance: 150 Ω, Nominal
- Connector: N Type Female
- Frequency Counter:
- Resolution: 1 Hz, 10 Hz, 100 Hz, 1 kHz
- Accuracy: (frequency indication x frequency reference accuracy) + counter resolution

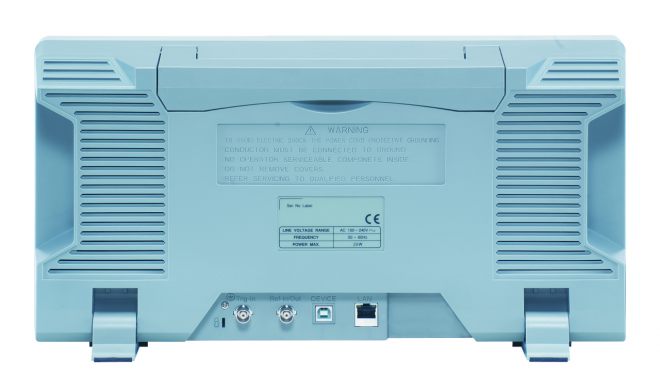

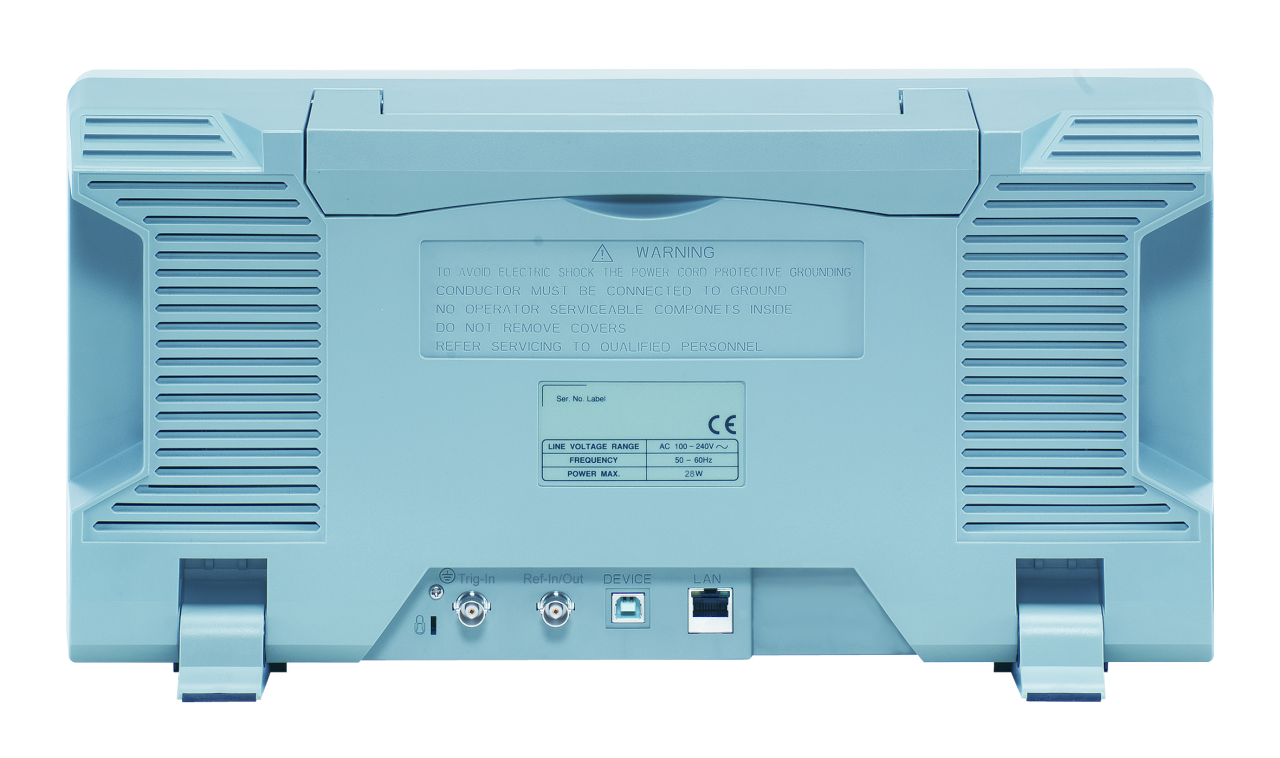

- Inputs and Outputs:
- RF Input:
- Impedance: 150 Ω, Nominal
- Connector: N Type Female
- Reference Input:
- Connector: BNC Female
- 10MHz Reference Amplitude: 0 dBm to +10 dBm
- Trigger Input:
- Impedance: 1 KΩ
- Connector: BNC Female
- 10MHz Reference Amplitude: BNC Female
- USB:
- USB Host: Connector: A Plug, Protocol: USB 2.0 (Host End)
- USB Device: Connector: B Plug, Protocol: 2.0 Version
- LAN: RJ-45, supports 10Base-T/100Base-Tx, TCP/IP Interface
- RF Input:
- General:
- Display:
- Type: TFT LCD
- Resolution: 1024 x 768
- Size: 10.4 inches
- Color: 65,536 colors
- Remote Control: USB Device (B Plug, supports USB TMC)
- Mass Memory: Internal Memory: 256 MBytes
- Operating Temperature: 0°C to 40°C
- Storage Temperature: -20°C to 70°C
- Relative Humidity: ≤95% (0 to 30°C), 75% (30°C to 40°C)
- Power Consumption: 28W
- Dimensions & Weight: 421 mm (W) x 221 mm (H) x 115 mm (D); Approximately 5.0 kg (without package)
- AC Power Socket: 100V to 240V, 50/60Hz
- Display:
Standard Accessories
- Power cord
- Factory certification
- Safety information
- USB Cable
- (GSP-8000 no longer provides paper manuals, all files need to be downloaded from the website)
Optional Information
- For GSP-8180:
GSP-8180E1, EMI activation option - For GSP-8380:
GSP-8380E1, EMI activation option - For GSP-8800:
GSP-8800E1, EMI activation option
Free Download
- Dedicated remote control PC software, software supports Windows 7 / 8 / 10 / 11.
