- Frequency Range : 150kHz ~ 3GHz
- Autoset Function
- Noise Floor: ≦-100dBm
- RBW Range : 30kHz, 100kHz, 300kHz, 1MHz
- ACPR/CHPW/OCBW Measurement
- 3 Traces in Different Colors
- Split Window Function
- Limit Line Function
- Remote Control Software
- Presentation Material for Training Courses
- Support Interface : USB Device/Host, RS-232C

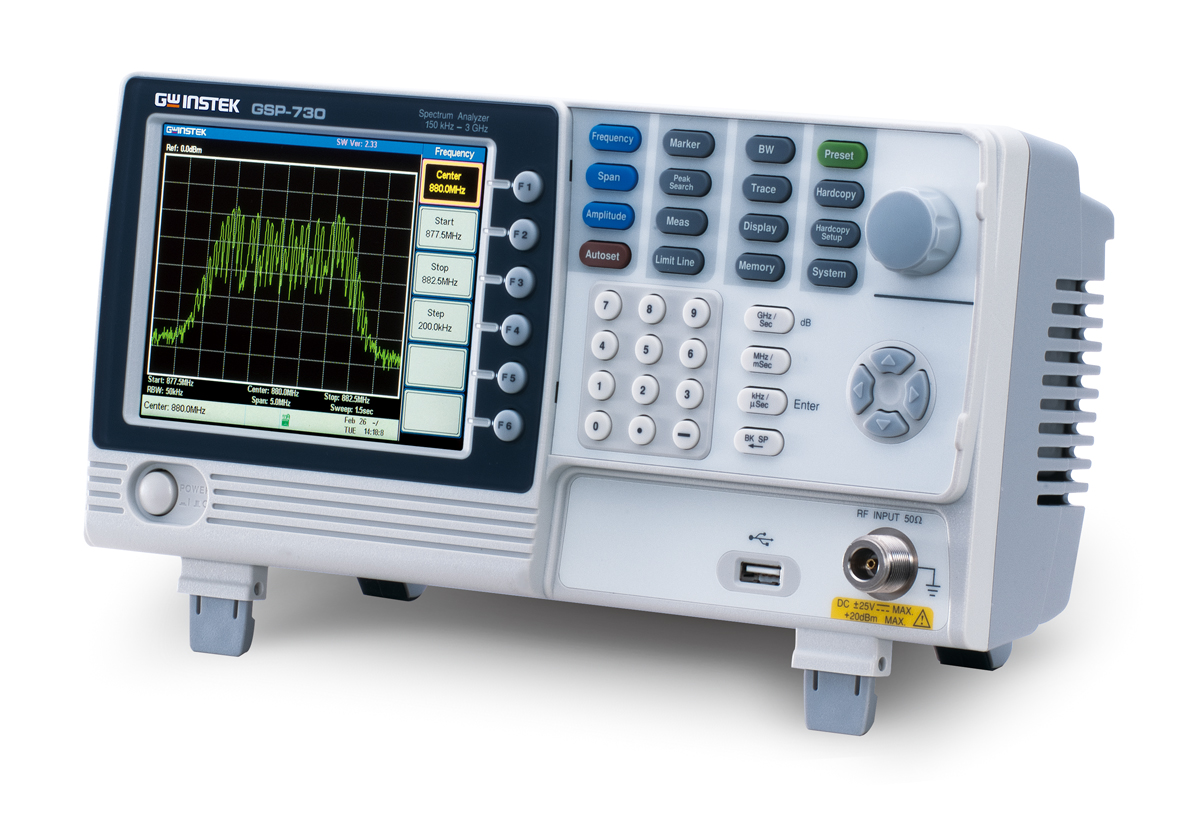

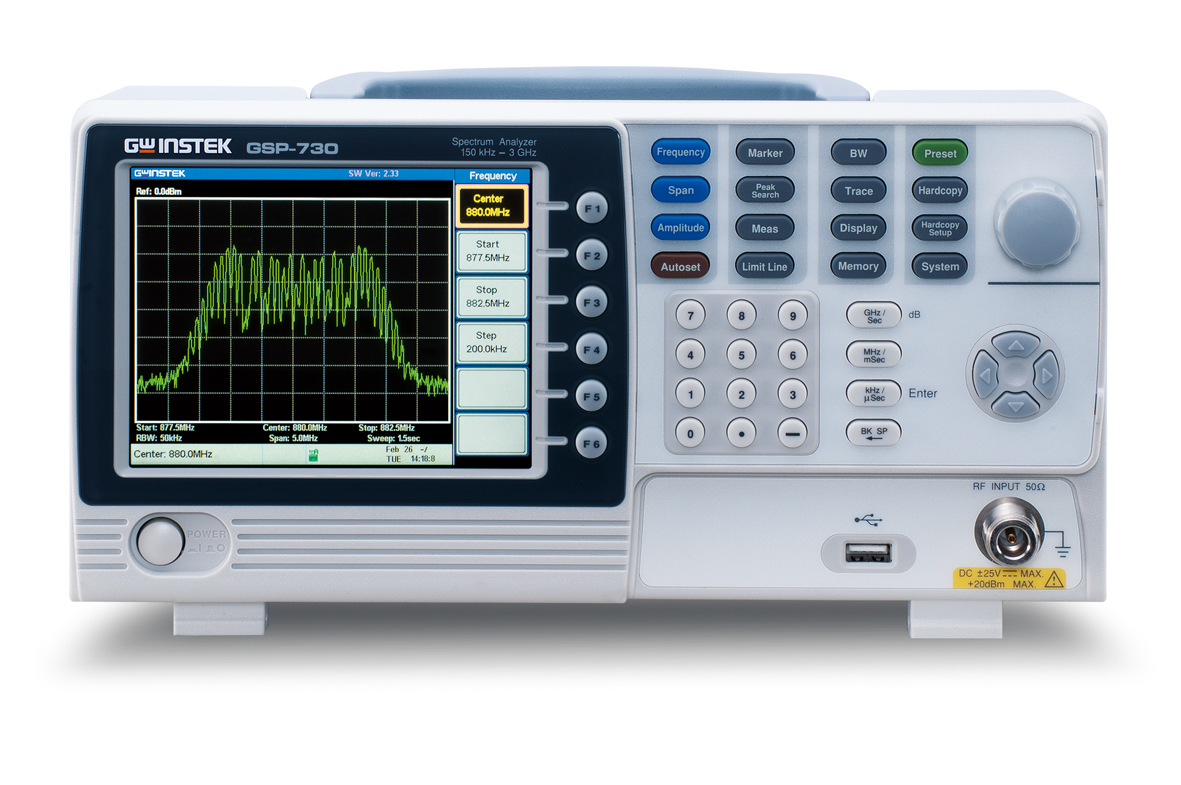

Spectrum Analyzer GSP-730
- The GSP-730 operates from 150kHz to 3GHz, with a center frequency resolution of 0.1MHz and accuracy within 50kHz. It offers a frequency span setting range of 1MHz to 3GHz, accurate to within 3%, and includes resolution bandwidth settings of 30KHz, 100KHz, 300KHz, and 1MHz.
- The device features a reference level input range from +20 to -40dBm (units in dBm, dBV, dBV) and a typical average noise level of ≤ -100dBm at 1GHz (RBW: 30kHz). It also has a frequency characteristic accuracy of ±2dB at 1GHz.
- The GSP-730 has an input impedance of 50ohm, an input VSWR of less than 2.0, and can handle an input damage level of +30dBm (CW average power) and 25VDC. It uses an N connector for input.
- The GSP-730’s sweep time ranges from 300ms to 8.4s, with an accuracy of ±2% over the full frequency span.

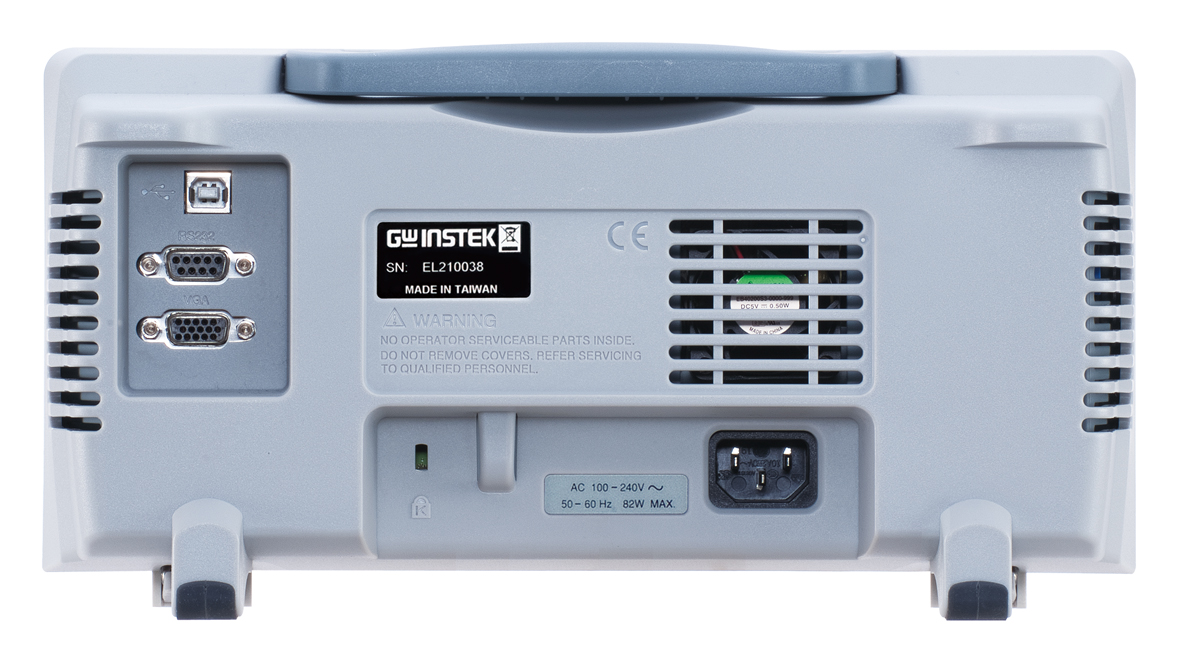

- The GSP-730 includes a 640*480 RGB color LCD, RS-232C, USB, and VGA interfaces. It operates on AC 100~240V, 50/60Hz. Its dimensions are 296 x 153 x 105 mm, and it weighs approximately 2.2kg.
Turn-key Solution for RF and Communication Experiment Courses
GW Instek GSP-730 is a 3 GHz Spectrum Analyzer mainly developed to fulfill the demands of RF Communication educations. Budget constraint and insufficient teaching tools are normally the two hurdles for schools to provide high-quality courses for RF communication experiments. A moderate spectrum analyzer, GSP-730, featuring full functions should provide, along with GRF-1300 / GRF-1300AÂ training kit possesses a unique position in the field as an economical turn-key solution for 3GHz RF Communication Experiment courses.
With its components, GSP-730 Spectrum Analyzer, GRF-1300 / GRF-1300A Trainer and a PC, properly connected, a tangible system is integrated for performing ongoing experiments while the lecture is given. Using a PC, the teacher can present teaching material with PowerPoint slide and simultaneously control GSP-730 and GRF-1300Â / GRF-1300A to perform experiments and get spectrum displays and parameter readings on the PC screen. GSP-730 and GRF-1300Â / GRF-1300A easily transferred the current teaching materials, including the PowerPoint slides, textbook, and a remote control software, into electronic-teaching system.
Fully-electronic RF training system
The combination of GSP-730 and GRF-1300Â / GRF-1300A forms a fundamental training system for RF communication and telecommunication classes in the universities, colleges, vocational schools, and the training centers in military as well as private companies. Instead of the tremendous cost of the installation of new training system, the conjunction of GSP-730 and GRF-1300Â / GRF-1300A provides an economic solution to eliminate two obstacles, budget constraint and insufficiency of teaching tools.
GSP-730 Specifications
- Frequency:
- Frequency Range: 150kHz to 3GHz
- Center Frequency:
- Setting Resolution: 0.1MHz
- Accuracy: Within 50kHz (frequency span: 0.3GHz to 2.6GHz, 20°C ± 5°C)
- Frequency Span:
- Setting Range: 1MHz to 3GHz
- Accuracy: Within 3% (frequency span: 0.3GHz to 2.6GHz, 20°C ± 5°C)
- Resolution Bandwidth:
- Setting Range: 30KHz, 100KHz, 300KHz, 1MHz
- SSB Phase Noise: -85dBc/Hz (typical, 500kHz offset, RBW: 30kHz, Sweep time: 1.5s, Span: 1MHz @ 1GHz)
- Inherent Spurious Response: Less than -45dBc @ -40dBm Reference Level (typical: less than -50dBc)
- Amplitude:
- Reference Level:
- Input Range: +20 to -40dBm
- Unit: dBm, dBV, dBV
- Average Noise Level: ≤ -100dBm (typical, center frequency: 1GHz, RBW: 30kHz)
- Frequency Characteristic:
- Accuracy: Within ±2dB (1GHz); SPAN: 5MHz; Ref. Level 0dBm, input signal -10dBm;
- Within ±3.0dB @300MHz~2.6GHz
- Within ±6.0dB @ 80~300MHz, 2.6~3GHz
- Input:
- Input Impedance: 50ohm
- Input VSWR: Less than 2.0 @ input attenuation ≥ 10dB
- Input Damage Level: +30dBm (CW average power), 25VDC
- Input Connector: N connector
- Reference Level:
- Sweep:
- Sweep Time:
- Setting Range: 300ms to 8.4s, auto (not adjustable)
- Accuracy: Within ±2% (frequency span: full span)
- Sweep Time:
- General:
- Communication:
- Display: 640*480 RGB color LCD
- Interface:
- RS-232C: Sub-D female-D 9 pins
- USB Connector: USB Host/Device full speed supported
- VGA Output: Sub-D female 15 pins
- Power Source: AC 100~240V, 50/60Hz
- Communication:
- Other:
- Operating Temperature: 5 to 45°C (Guaranteed at 25°C ± 5°C, without soft carrying case)
- Operating Humidity: Less than 45°C / 90%RH
- Storage Temperature: -20 to 60°C, less than 60°C / 70%RH
- Dimensions: 296 (L) x 153 (W) x 105 (H) mm
- Weight: Approximately 2.2kg
- Quick Start manual *1
- User Manual CD *1
- Power Cord *1
