GPP-7250 Single-Channel Programmable DC Power Supply

GPP-7250 Single-Channel Programmable DC Power Supply

  • Output Range Provides 0 V to 72 V and 0 A to 5 A, delivering a maximum of 360 W of stable, precise DC power for a wide range of applications.
  • Standard Interfaces Equipped with LAN, USB, RS-232, and external I/O interfaces for seamless integration with automated systems, enabling remote control and monitoring.
  • Optional GPIB Interface An optional GPIB interface offers enhanced flexibility, allowing integration with legacy equipment and existing control systems.
  • Advanced Protection Includes overvoltage (OVP), overcurrent (OCP), and overtemperature (OTP) safeguards, ensuring safe and reliable operation under various conditions.
  • Versatile Applications Ideal for use in R&D, testing, and production environments, offering precise voltage and current control for diverse devices and systems.
Send Enquiry

Key Features

  • Single-channel programmable DC power supply
  • Output range: 0 V to 72 V / 0 V to 5 A
  • Maximum power output: 360 W
  • Standard interfaces LAN, USB, RS-232, Ext I/O
  • Optional GPIB interface for legacy system support
  • High precision voltage and current control
  • Built-in protection: OVP, OCP, OTP
  • Supports remote control and automation
  • Ideal for R&D, production, and QA testing

The GPP-7250 Single-Channel Programmable DC Power Supply is a robust and versatile power solution engineered for precision electronic testing and development environments. It offers a wide output voltage range from 0 to 72 V and a maximum current of 5 A, delivering up to 360 W of clean, regulated DC power through a single channel. This model is designed for both bench-top and system integration use, featuring high-resolution digital control, user-friendly interface, and accurate real-time readback of voltage, current, and power measurements. Equipped with standard communication interfaces including LAN (Ethernet), USB, RS-232, and external I/O, the GPP-7250 enables remote monitoring, control, and automation, enhancing test efficiency and flexibility. For advanced integration in legacy systems, an optional GPIB interface is also available. The power supply incorporates overvoltage, overcurrent, and overtemperature protection mechanisms, ensuring device safety and reliability during operation. Its programmable features include sequencing, ramping, and list modes, making it ideal for dynamic testing scenarios, while its compact design and intuitive front panel make it suitable for both novice users and experienced engineers in R&D labs, production lines, and quality assurance settings.

Specifications

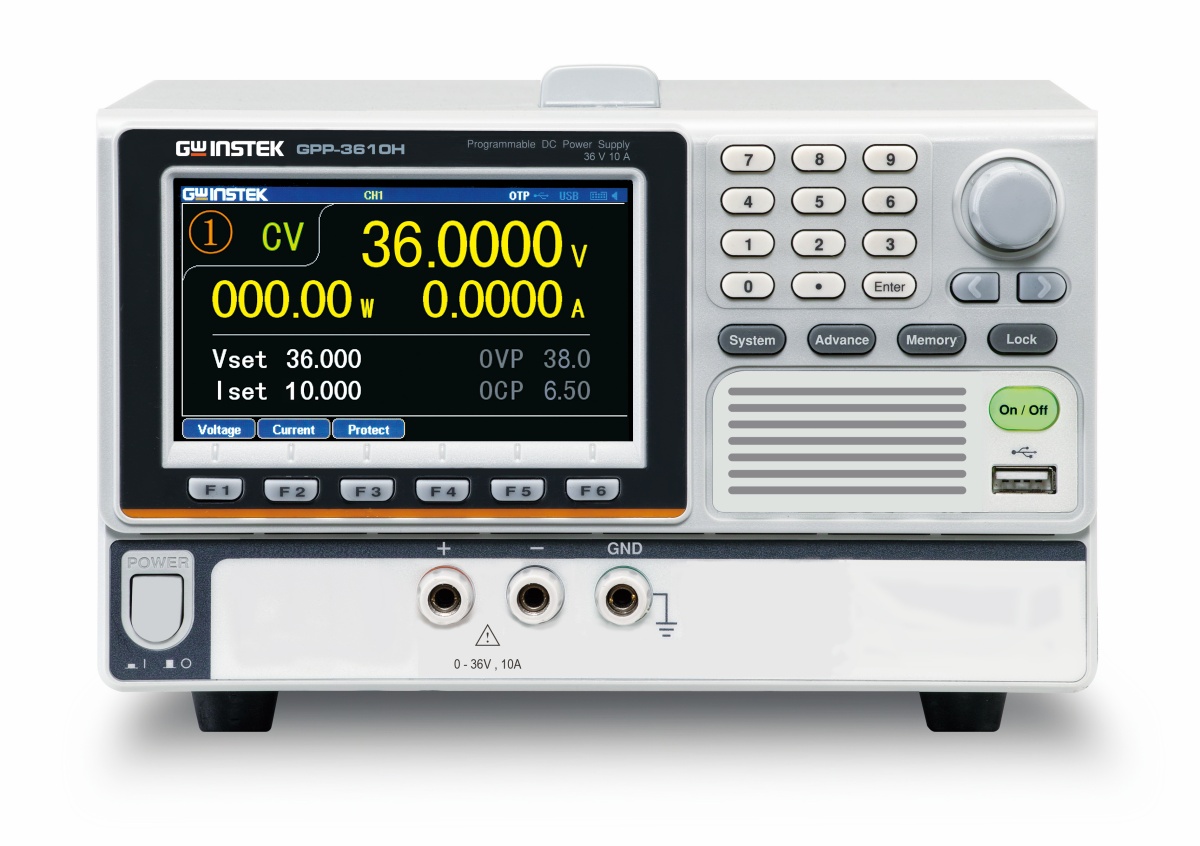

GPP-3610H GPP-7250
OUTPUT MODE
Number of Channel CH1 CH1
Voltage 0 ~ 36.000V 0 ~ 72.000V
Current 0 ~ 10.0000A 0 ~ 5.0000A
Constant Voltage Operation
Line Regulation ≤ 0.01% + 3mV
Load Regulation ≤ 0.01% + 5mV
Ripple & Noise (5Hz-1MHz) ≤2mVrms
Transient Recovery Time ≤100µs (50% load change,minimum load
Temperature Coefficient ≤ 300ppm/°C
CONSTANT CURRENT OPERATION
Line Regulation ≤ 0.01% + 3mA
Load Regulation ≤ 0.01% + 3mA
Ripple & Noise ≤ 2mArms
RESOLUTION
Programming Voltage/Current 1mV / 0.2mA 2mV / 0.1mA
Reedback Voltage/Current 0.1mV / 0.2mA 0.1mV / 0.1mA
METER
Full Scale Voltage/Current 36.5000V / 10.2000A 72.5000V / 5.2000A
Programming Resolution Voltage/Current 5 digits / 6 digits
Reedback Resolution Voltage/Current 6 digits / 6 digits
Setting Accuracy Voltage ± (0.03% of reading + 10mV)
Current ± (0.3% of reading + 10mA)
Readback Accuracy Voltage ± (0.03% of reading + 10mV)
Current ± (0.3% of reading + 10mA)
DC LOAD MODE
Display Voltage 1 ~ 36.50V 1 ~ 72.50V
Current 0 ~ 10.200A 0 ~ 5.200A
Power 0 ~ 100.00W 0 ~ 100.00W
CV Mode CH1 1.500V ~ 36.50V 1.500V ~ 72.50V
Setting/Reedback Accuracy ≤±(0.1% + 30mV) ≤±(0.1% + 30mV)
Resoltion 10mV 10mV
CC Mode CH1 0 ~ 10.200A 0 ~ 5.200A
Setting/Reedback Accuracy ≤±(0.3% + 10mA) ≤±(0.3% + 10mA)
Resoltion 1mA 1mA


CR Mode

CH1 1Ω ~ 1kΩ 1Ω ~ 1kΩ
Setting/Reedback Accuracy ≤±(3% + 1Ω) ≤±(3% + 1Ω)
(voltage≥0.1V, and current≥0.1A) (voltage≥0.1V, and current≥0.1A)
Resoltion
PROTECTION


OVP

Power Mode OFF,ON(0.5V ~ 38.0V) OFF,ON(0.5V ~ 75.0V)
Load Mode OFF,ON(1.5V ~ 38.0V) OFF,ON(1.5V ~ 75.0V)
Setting Accuracy ±100mV
Resoltion 100mV


OCP

Power Mode OFF,ON(0.05A ~ 10.5A) OFF,ON(0.05A ~ 5.50A)
Load Mode OFF,ON(0.05A ~ 10.5A) OFF,ON(0.05A ~ 5.50A)
Setting Accuracy ±20mA
Resoltion 10mA
Insulation Resistance Between chassis and terminal : 20MΩ or above (DC 500V)
Between chassis and DC power cord : 30MΩ or above (DC 500V)
GENERAL
Operation Environment Indoor use, Altitude: ≤ 2000m
Ambient temperature: 0 ~ 40°C / Relative humidity: ≤ 80%
Installation category: II / Pollution degree: 2
Storage Environment TEMPERATURE: -10˚C ~ 70˚C / HUMIDITY: ≤70%
Power Input AC 100V/120V/220V/230V±10%, 50/60Hz
Power Consumption 900VA, 680W
Dimensions & Weight 213 (W) x 145 (H) x 362 (D) mm ; Approx. 10kg



Standard Accessories

  • Power cord
  • Test Lead: GTL-104Ax1, GTL-105Ax1

Optional Accessories

USB Cable GTL-246 USB 2.0 A-B type


Optional Accessories (Manufacturer installed only)

  • GPIB Interface
