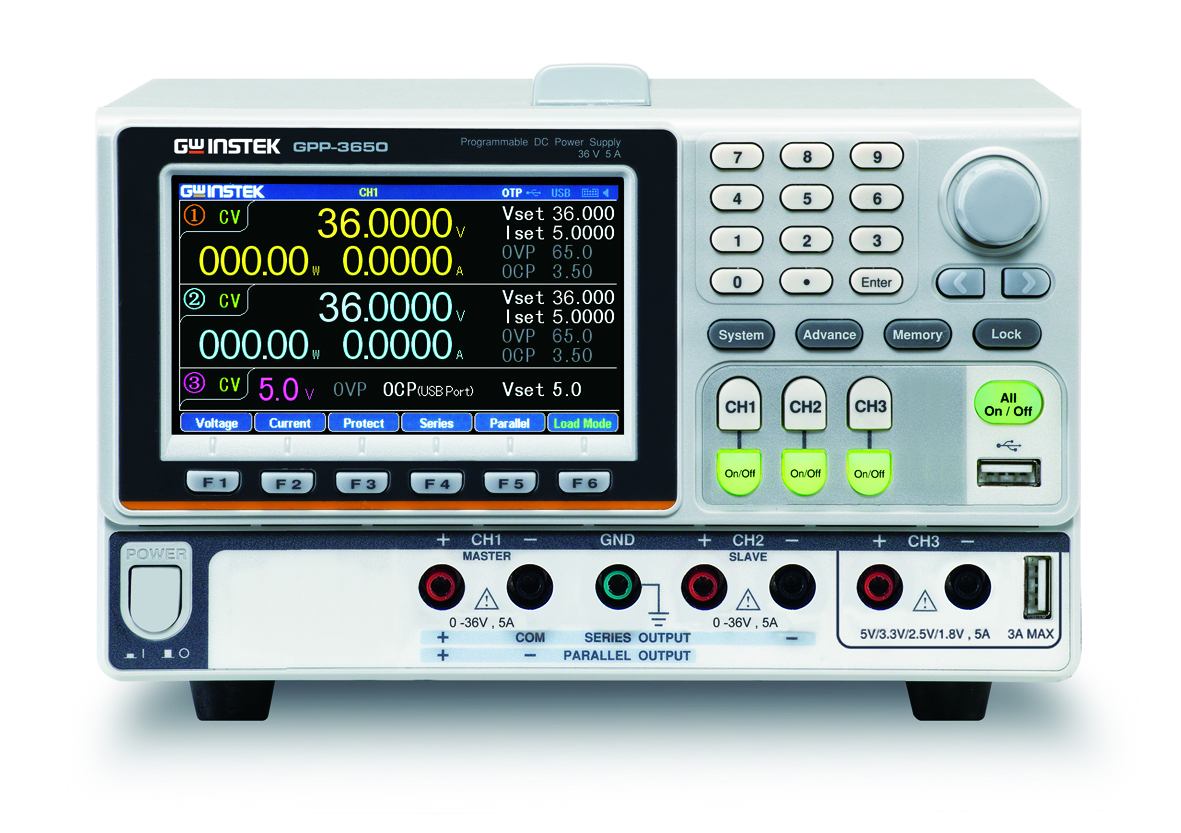

GPP-3650 (GPIB) Triple-Channel Programmable DC Power Supply

GPP-3650 (GPIB) Triple-Channel Programmable DC Power Supply

  • Triple Output Channels Features CH1 and CH2 with 0–36V/0–5A variable outputs, and CH3 with fixed 1.8V/2.5V/3.3V/5V at 5A, supporting a wide range of applications.
  • High Power Capacity Delivers a total maximum power output of 385W, suitable for powering multiple devices or high-load circuits simultaneously.
  • Precise Programmability Offers accurate voltage and current control, ideal for development, testing, and quality assurance environments.
  • GPIB Interface Enables seamless integration into automated systems for remote monitoring and control.
  • Versatile and Reliable Designed for engineers, labs, and production lines requiring stable, multi-channel power in one compact unit.
Send Enquiry

Key Features

  • Triple independent output channels
  • Maximum total power output of 385W
  • CH1 & CH2: 0–36V / 0–5A adjustable outputs
  • CH3: Fixed output at 1.8V, 2.5V, 3.3V, or 5V; up to 5A
  • GPIB interface for remote control and automation
  • Ideal for R&D, testing, and production environments

The GPP-3650 (GPIB) Triple-Channel Programmable DC Power Supply is a high-performance, precision instrument designed for versatile testing and development applications in laboratories and production environments. Featuring three independent output channels, it delivers a combined maximum power output of 385W. Channels 1 and 2 offer adjustable voltage ranges from 0 to 36V and current ranges up to 5A, ideal for powering a wide variety of devices and circuits with precision and stability. Channel 3 provides fixed selectable voltages of 1.8V, 2.5V, 3.3V, or 5V at a constant 5A, making it perfect for powering digital logic and microcontroller systems. With GPIB interface support, it enables seamless integration into automated test systems, and its programmable functionality ensures accurate, repeatable control for complex test setups. Built with safety, flexibility, and reliability in mind, the GPP-3650 is an essential tool for engineers, technicians, and researchers requiring multi-channel power solutions.

Specifications

GPP-3060 GPP-6030 GPP-3650
Output Mode
Number of Channel CH1 CH2 CH3 CH1 CH2 CH3 CH1 CH2
Voltage 0 ~ 30.000V 0 ~ 30.000V 1.8V/2.5V/3.3V/5.0V, ±5% 0 ~ 60.000V 0 ~ 60.000V 1.8V/2.5V/3.3V/5.0V, ±5% 0 ~ 36.000V 0 ~ 36.000V
Current 0 ~ 6.0000A 0 ~ 6.0000A 5A (USB Port 3A) 0 ~ 3.0000A 0 ~ 3.0000A 5A (USB Port 3A) 0 ~ 5.0000A 0 ~ 5.0000A
Tracking Series Voltage / Current 0 ~ 60.000V / 0 ~ 6.0000A 0 ~ 120.000V / 0 ~ 3.0000A 0 ~ 72.000V / 0 ~ 5.0000A
Tracking Parallel Voltage / Current 0 ~ 30.000V / 0 ~ 12.0000A 0 ~ 60.000V / 0 ~ 6.0000A 0 ~ 36.000V / 0 ~ 10.0000A
Warning The CH3 output current from the 2 terminals should Not exceed 5A.
Constant Voltage Operation
Line Regulation ≤0.01% + 3mV ≤3mV ≤0.01% + 3mV ≤3mV ≤0.01% + 3mV
Load regulation ≤0.01% + 5mV (rating current ≤10A) ≤5mV ≤0.01% + 5mV (rating current ≤10A) ≤5mV ≤0.01% + 5mV (rating current ≤10A)
Ripple & noise (5Hz-1MHz) ≤1mVrms ≤2mVrms ≤1mVrms ≤2mVrms ≤1mVrms
Transient recovery time ≤100µs
(50% load change,minimum load 0.5A)
Temperature coefficient ≤300ppm/°C
Constant Current Operation
Line Regulation ≤0.01% + 3mA
Load regulation ≤0.01% + 3mA
Ripple & noise ≤2mArms
Resolution
Programming Voltage 1mV

2mV

2mV
Current 0.2mA 0.1mA 0.1mA
Reedback Voltage 0.1mV 0.1mV 0.1mV
Current 0.1mA 0.1mA 0.1mA
Tracking Operation(CH1/CH2)


Tracking error

≤0.1% +10mV of Master







≤0.2% +20mV of Master







≤0.1% +10mV of Master
(No Load, with load add load regulation ≤

200mV)

(No Load, with load add load regulation ≤

200mV)

(No Load, with load add load regulation ≤

200mV)



Parallel regulation

Line ≤0.01% + 3mV ≤0.01% + 3mV ≤0.01% + 3mV
Load ≤0.01% + 5mV (rating current ≤10A) ≤0.01% + 5mV (rating current ≤10A) ≤0.01% + 5mV (rating current ≤10A)
≤0.02% + 5mV (rating current > 10A) ≤0.02% + 5mV (rating current > 10A) ≤0.02% + 5mV (rating current > 10A)
Series regulation Line ≤0.01% + 5mV ≤0.01% + 5mV ≤0.01% + 5mV
Load ≤200mV ≤200mV ≤200mV
Ripple & noise ≤2mVrms(5Hz-1MHz) ≤2mVrms(5Hz-1MHz) ≤2mVrms(5Hz-1MHz)
Note Tracking is not supported in LOAD mode.
Meter
Full Scale Voltage 32.0000V 1.8V/2.5V/3.3V/5.0V 62.0000V 1.8V/2.5V/3.3V/5.0V 36.0000V
Current 6.2000A







3.2000A







5.2000A
Programming

Resolution

Voltage 5 digits 5 digits 5 digits
Current 5 digits 5 digits 5 digits
Reedback Resolution Voltage 6 digits 6 digits 6 digits
Current 5 digits 5 digits 5 digits
Setting accuracy Voltage ± (0.03% of reading + 10mV) ± (0.03% of reading + 10mV) ± (0.03% of reading + 10mV)
Current ± (0.3% of reading + 10mA) ± (0.3% of reading + 10mA) ± (0.3% of reading + 10mA)
Readback accuracy Voltage ± (0.03% of reading + 10mV) ± (0.03% of reading + 10mV) ± (0.03% of reading + 10mV)
Current ± (0.3% of reading + 10mA) ± (0.3% of reading + 10mA) ± (0.3% of reading + 10mA)
DC Load Mode


Display

Voltage 1 ~ 32.00V 1 ~ 62.00V 1 ~ 36.5.00V
Current 0 ~ 6.200A 0 ~ 3.200A 0 ~ 5.200A
Power 0 ~ 50.00W 0 ~ 50.00W 0 ~ 50.00W


CV Mode

CH1/CH2 1.500V – 32.00V 1.500V – 62.00V 1.500V – 36.50V
Setting Accuracy ≤±(0.1% + 30mV) ≤±(0.1% + 30mV) ≤±(0.1% + 30mV)
Reedback Accuracy ≤±(0.1% + 30mV) ≤±(0.1% + 30mV) ≤±(0.1% + 30mV)
Resoltion 10mV 10mV 10mV
GPP-3060 GPP-6030 GPP-3650


CC Mode

CH1/CH2 0 ~ 6.200A

0 ~ 3.200A

0 ~ 5.200A

Setting Accuracy ≤±(0.3% + 10mA) ≤±(0.3% + 10mA) ≤±(0.3% + 10mA)
Reedback Accuracy ≤±(0.3% + 10mA) ≤±(0.3% + 10mA) ≤±(0.3% + 10mA)
Resoltion 1mA 1mA 1mA






CR Mode

CH1/CH2 1Ω- 1kΩ 1Ω- 1kΩ 1Ω- 1kΩ
Setting Accuracy ≤±(3% + 1Ω) ≤±(3% + 1Ω) ≤±(3% + 1Ω)
(voltage≥0.1V, and current≥0.1A) (voltage≥0.1V, and current≥0.1A) (voltage≥0.1V, and current≥0.1A)
Reedback Accuracy ≤±(3% + 1Ω) ≤±(3% + 1Ω) ≤±(3% + 1Ω)
(voltage≥0.1V, and current≥0.1A) (voltage≥0.1V, and current≥0.1A) (voltage≥0.1V, and current≥0.1A)
Resoltion
Protection


OVP

Power Mode OFF,ON(0.5V-35.0V) Fixed 5.5V OFF,ON(0.5V-65.0V) Fixed 5.5V OFF,ON(0.5V-38.0V) Fixed 5.5V
Load Mode OFF,ON(1.5V-35.0V) OFF,ON(1.5V-65.0V) OFF,ON(1.5V-38.0V)
Setting Accuracy ±100mV
Resoltion 100mV


OCP

Power Mode OFF,ON(0.05A-6.50A) 3.1A(USB port) OFF,ON(0.05A-3.50A) 3.1A(USB port) OFF,ON(0.05A-5.50A) 3.1A(USB port)
Load Mode OFF,ON(0.05A-6.50A) OFF,ON(0.05A-3.50A) OFF,ON(0.05A-5.50A)
Setting Accuracy ±20mA
Resoltion 10mA


Insulation resistance

Between chassis and terminal 20MΩ or above (DC 500V)
Between chassis and DC power cord 30MΩ or above (DC 500V)
General


Operation Environment

Indoor use, Altitude: ≤2000m
Ambient temperature: 0 ~ 40°C
Relative humidity: ≤80%
Installation category: II / Pollution degree: 2
Storage Environment TEMPERATURE: -10°C ~ 70 °C
HUMIDITY: ≤70%
Power Input AC 100V/120V/220V/230V±10%, 50/60Hz
Power Consumption 900VA, 680W


Accessories

CD User manual x1, Quick Start manual x1, Power Code x1
Test lead: GTL-104A x 3
(Europe) Test lead: GTL-204A x 3, GTL-201A x1
Dimensions 213 (W) x 145 (H) x 362 (D) mm
Weight Approx. 10kg



Standard Accessories

  • CD (User manual), Quick Start manual, Power cord
  • Test Lead: GTL-104A x 3
  • European Test Leads: GTL-204A x3, GTL-201A x1

Optional Accessories

USB Cable GTL-246 USB 2.0 A-B type
RACK GRA-449-E Rack Mount Kit (EIA), 19″, 3U Size
RACK GRA-449-J Rack Mount Kit (JIS), 19″, 3U Size



Optional Accessories (Manufacturer installed only)

  • GPIB
