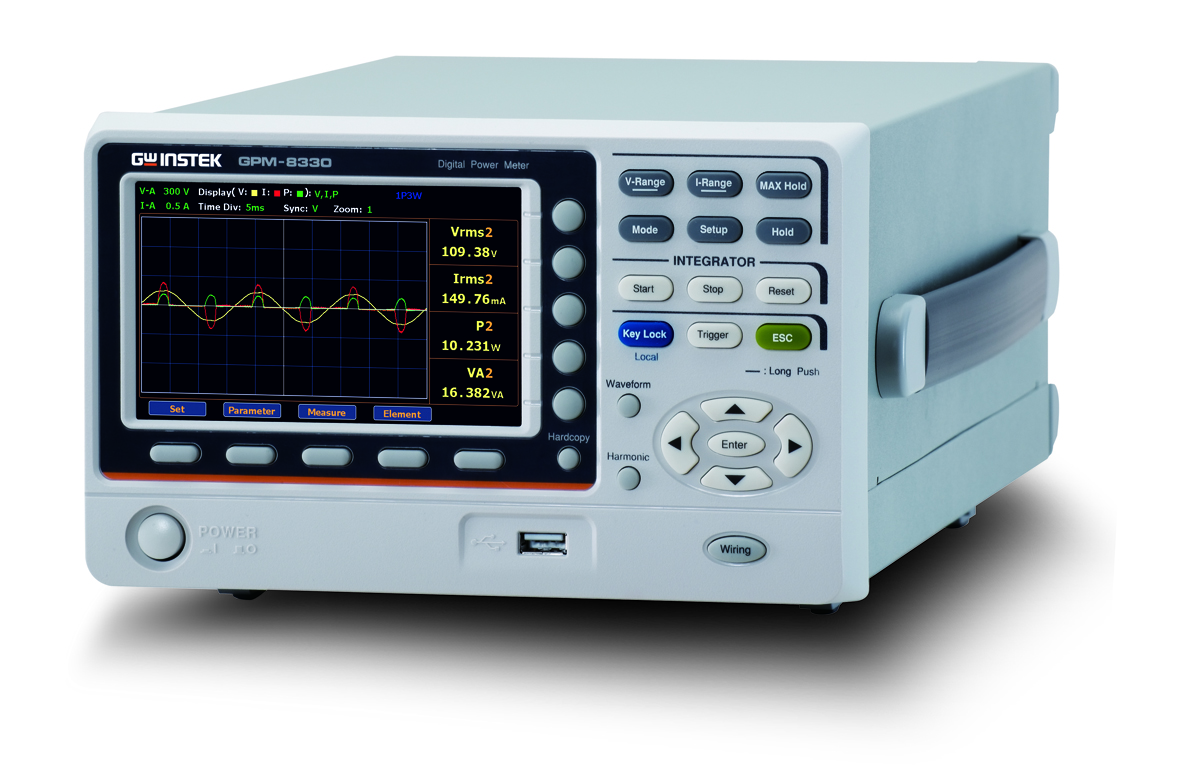

GPM-8330 Digital Power Meter

Features

5” TFT LCD
Voltage/Current Test Freq. Bandwidth: DC, 0.1Hz~ 100kHz

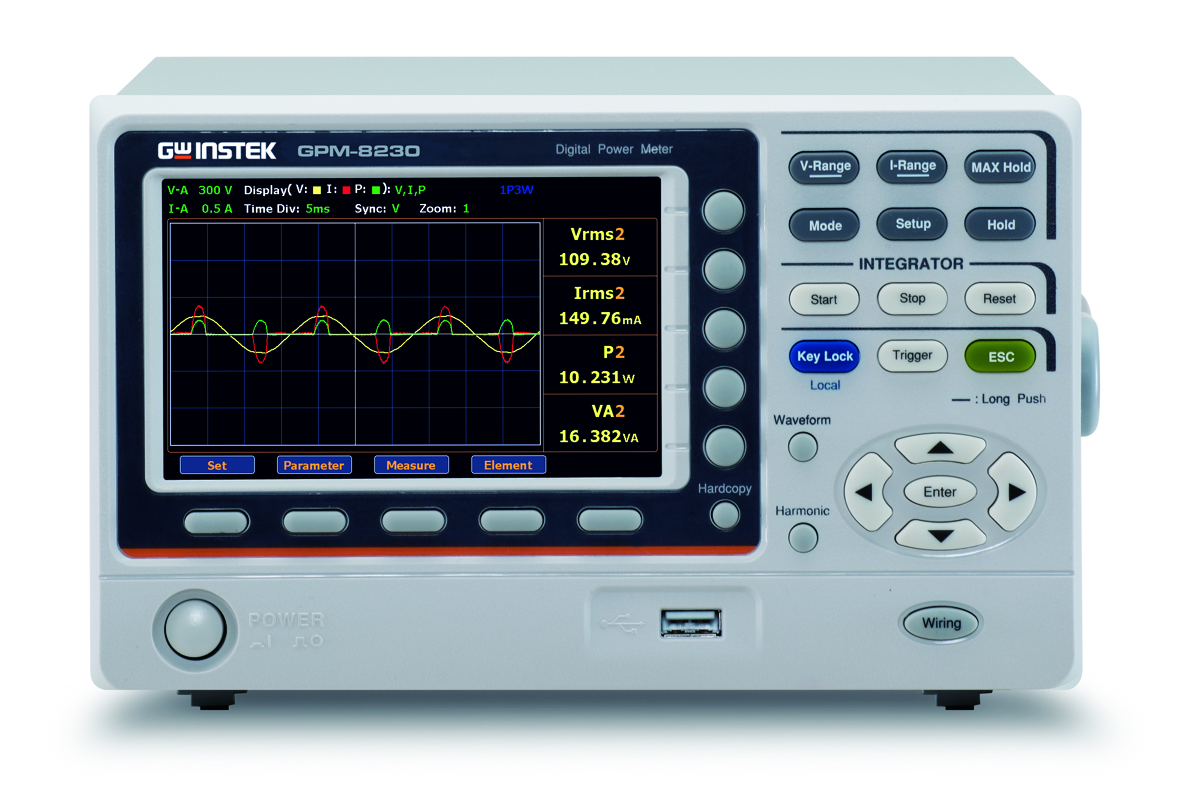

Waveform Display : V (Voltage), I (Current), P (Wattage)
Distorted wave Current/Voltage measurement: full range for CF=3, and half range for CF=6 (or 6A)
Meeting IEC 61000-4-7 harmonic measurement (50/60Hz)
Wiring selecting button (1P3W,3P3W,3P4W,3V3A)
Harmonic measurement & analysis up to 50 orders
Auto ranging function for Integration mode
Screen Capture through USB host

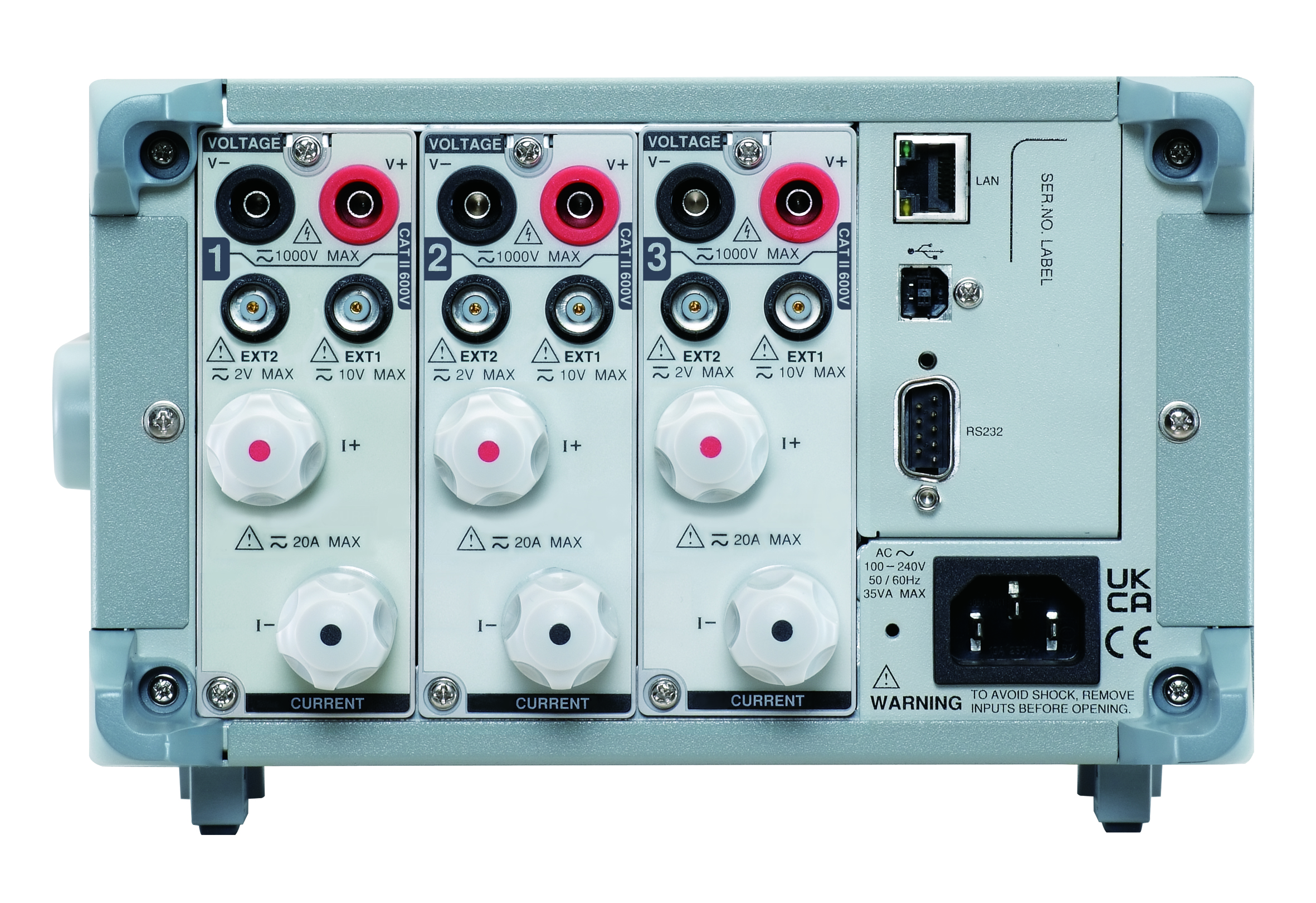

Provide external current sensor input (EXT1/EXT2)
Standard Interface: RS-232C, USB device/ host, LAN；Optional Interface: GPM-DA12 – GPIB + Digital I/O (factory installed only)

Standard Accessories

Safety Instruction Sheet x 1, Power cord x 1
Test lead GTL-209 x 2, Test lead GTL-212A x 2 ~ GPM-8320
Test lead GTL-209 x 3, Test lead GTL-212A x 3 ~ GPM-8330
CD x 1 (including complete user manual and USB driver)
DA12 cable GTL-214 (available for GPM-8320/8330 with GPM-DA12 only)

Optional Accessories

GPM-DA12 GPIB+DA12 Interface (including cable, GTL-214)
Note : The option is 2-in-1 interface and must be installed in factory.
GCP-300 Current Probe (suitable for the external input, EXT2, connection)
GTL-209 Test Lead, Banana to Bare-wire, Approx. 1000mm
GTL-212A Test Lead, O-Type to Bare-wire, Approx. 1000mm
GTL-214 DA12 Cable, Approx. 1000mm
GTL-232 RS-232C cable, 9-pin Female to 9-pin, null modem for computer, Approx. 2000mm
GTL-246 USB Cable, A-B type, Approx. 1200mm
GTL-258 GPIB Cable, 25-pin Micro-D connection, Approx. 1900mm
GRA-452 Rack Mount Kit, 19” 3U size

GW Instek GPM-8320/8330 are digital power meters designed specifically for measuring power in three-phase AC power sources, making it suitable for most electrical and electronic product testing applications (GPM-8320 provides 2 modules, and GPM-8330 provides 3 modules). These models have a testing bandwidth of DC, 0.1Hz~100 kHz and feature 16-bit A/D converters and a sampling rate of 300 kHz. A 5-inch TFT LCD display, 5 digits of measurement readings, 25 different power measurement parameters, and high precision measurement capabilities are also provided.

GPM-8320/8330 also feature waveform display capabilities (voltage/current/power), the integration measurement function, harmonics measurement and analysis of multiple orders (50/60Hz measurement complies with IEC61000-4-7 requirements), external sensor input terminals, and a variety of communications interfaces. These features help users achieve clear, convenient, and accurate power measurements, making them the most fully-featured and cost-effective power meters in the same category.

GPM-8320/8330 provide multiple input voltage configuration wiring modes (1P3W/3P3W/3P4W/3V3A). Users can choose the wiring mode according to their specific requirements to measure parameters for specific wiring methods, and even calculate efficiency. In addition, for a rated input voltage of 1000V and an input current of 20A, they support a minimum current range of 0.5A (resolution of 0.1mA), power measurement resolution of 0.1mW, crest factor of 3 (for half range, the CF can reach up to 6 or 6A), and voltage/current/power measurement accuracy of ±0.1% reading ±0.05% range. Users can select different measurement modes (AC+DC/ AC/ DC/ V-MEAN) to provide up to 25 related parameters for power measurement.

These parameters include voltage (Vrms/ Vac/ Vdc/ Vmn/ V+pk / V-pk), current (Irms/ Iac/ Idc/ I+pk/ I-pk), frequency (VHz/ IHz), power (P/ P+pk/ P-pk), crest factor (CFV/ CFI), apparent power (VA), reactive power (VAR), power factor (PF), phase angle (DEG), total harmonic distortion (THDV/ THDI), maximum current ratio (MCR), and MATH calculation function. Therefore, they provide the best range and accuracy support for measuring the power consumption of electrical and electronic products.
