GPM-8310 Digital Power Meter

GPM-8310 Digital Power Meter

  • Single-phase AC power meter with DC, 0.1Hz to 100kHz test bandwidth, ensuring high-precision measurements for power analysis.
  • Features a 16-bit A/D converter and 300kHz sampling rate, providing accurate voltage, current, and power measurements.
  • Supports 25 power measurement parameters, including Vrms, Irms, power factor, total harmonic distortion (THD), crest factor, and phase angle.

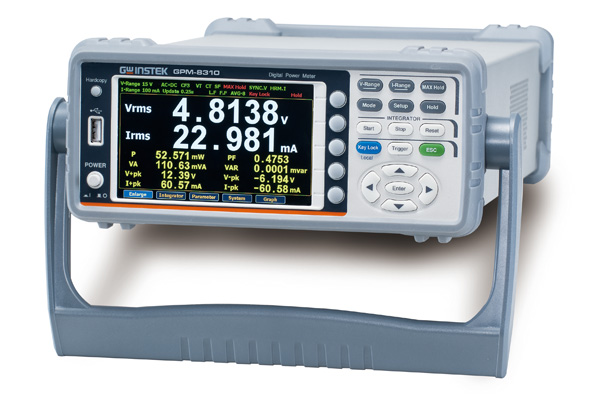

  • 5-inch TFT LCD screen with waveform display allows real-time visualization of voltage, current, and power waveforms.
  • Multiple communication interfaces (USB, RS-232C, LAN, GPIB) enable seamless integration with automated test systems and data logging applications.
Send Enquiry

Features

5”TFT LCD
DC, 0.1Hz ~ 100kHz voltage/current test bandwidth
Two numerical display modes: General mode: displays 2 main test items + 8 secondary test items ; Simple mode: displays the test values of 4 main test items
Waveform display: V (voltage), I (current), P (power)
The current/voltage can be measured to a deformed wave with CF of 3, and the half-range CF can reach 6 or 6A
Listed as an accepted device for SPEC Power® testing
50th order of harmonic measurement and analysis (value and bar graph)
Integration function supports automatic level-changing

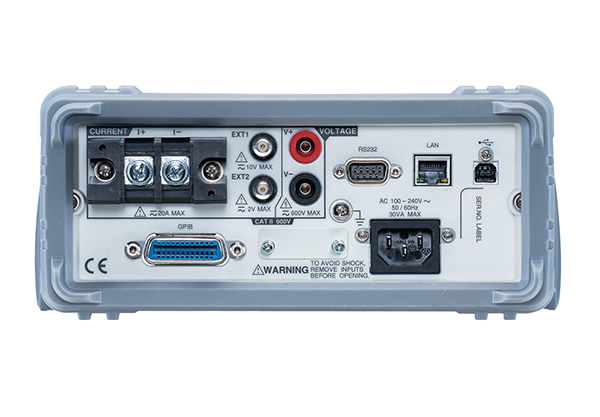

External current sensor input terminals (EXT1/EXT2)
Standard interfaces: RS-232C, USB device/ host, LAN, GPIB

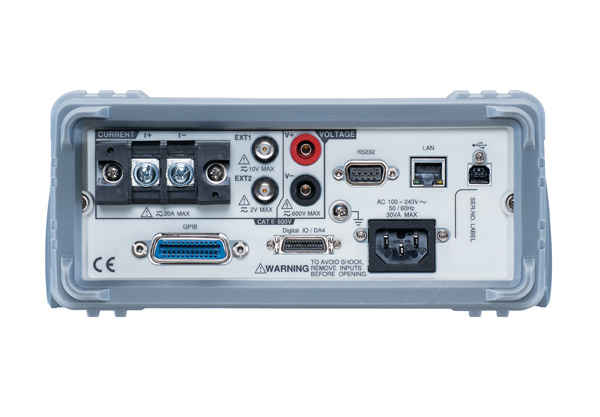

Optional interface: Digital I/O (DA4) (must be installed before leaving the factory)

Standard Accessories

Safety Instruction Sheet x 1, Power cord x 1
Test lead GTL-209 x 1, Test lead GTL-212 x 1
CD x 1 (including complete user manual and USB driver)
DA4 cable GTL-214 (available for GPM-8310 with DA4 only)

Optional

GPM-DA4 DA4 Interface (including cable, GTL-214)
Note : Optional DA4 interface must be installed in factory.

Optional Accessories

GPM-001 Test Fixture (including GTL-210 x 2, GTL-213 x 1)
GPM-001 (EU) Test Fixture (including GTL-210 x 2, GTL-213 x 1)
GCP-300 Current Probe (suitable for the external input, EXT2, connection)
GTL-209 Test Lead, Banana to Bare-wire, Approx. 1000mm
GTL-210 Test Lead, Banana to Banana, Approx. 1000mm
GTL-212 Test Lead, O-Type to Bare-wire, Approx. 1000mm
GTL-213 Test Lead, O-Type to Banana, Approx. 1000mm
GTL-214 DA4 Cable, Approx. 1000mm
GTL-232 RS-232C cable, 9-pin Female to 9-pin, null modem for computer, Approx. 2000mm
GTL-246 USB Cable, A-B type, Approx. 1200mm
GTL-248 GPIB Cable, Approx. 2000mm
GRA-422 Rack Mount Kit, 19” 2U size
GRA-454 Rack Mount Kit (19″ 2U) for one set or two sets





User Manual (e-book version)Click here



GW Instek GPM-8310 is a digital power meter for single-phase (1P/2W) AC power measurement. Features include DC, 0.1Hz~100kHz test bandwidth, 16bits A/D, and 300 kHz sampling rate. It adopts 5” TFT LCD screen with a five-digit measurement display and provides 25 power measurement related parameters, and has a high-precision measurement capability. It also features the ability to display waveform (voltage/current/power), the integration measurement function, harmonic measurement and analysis of each order, external sensor input terminals, and various communication interfaces, etc., to help users achieve clear, convenient and accurate power measurements. This power meter is a most cost-effective power meter with most complete functionalities among the products of the same category.

Download Data Sheet for more Information.

Click here

Manual User  Click here

Click here

Brochure Click here

Click here
