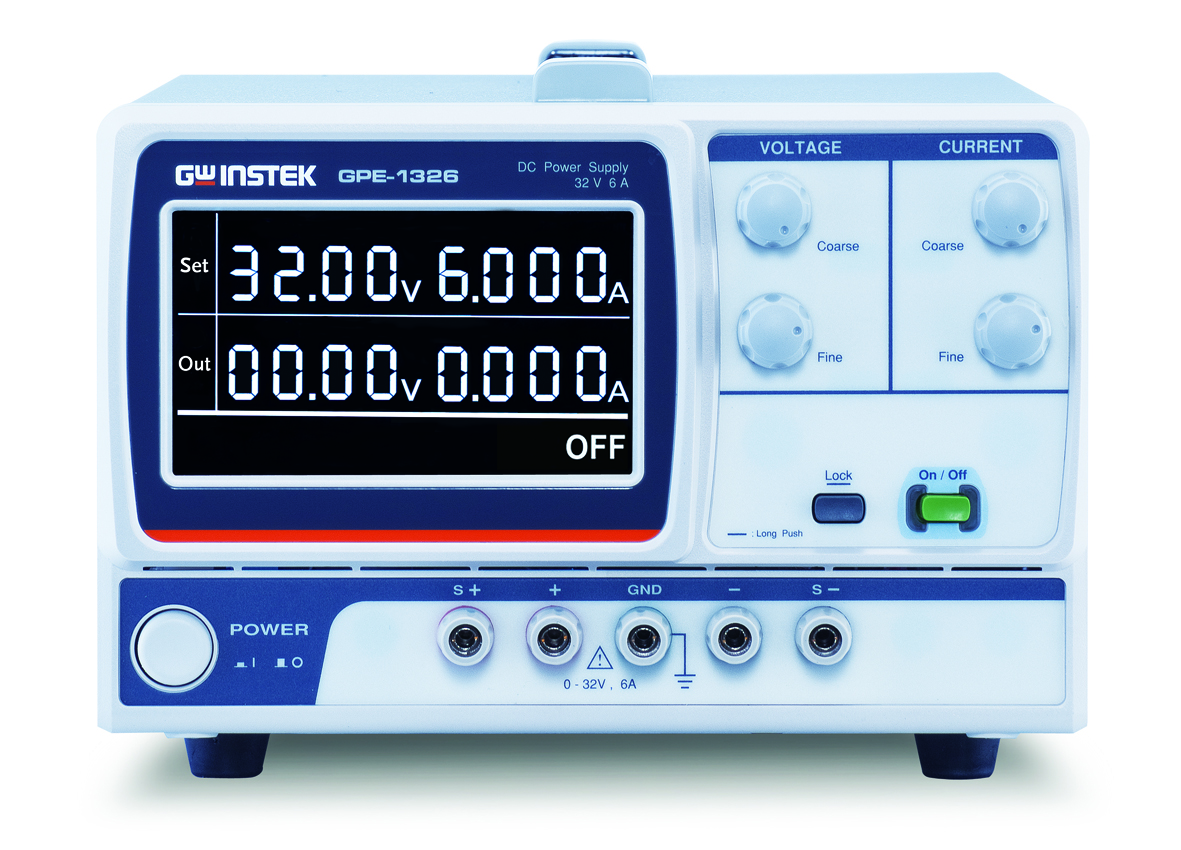

GPE-1326 Single Output Linear D.C. Power Supply

GPE-1326 Single Output Linear D.C. Power Supply

  • Independent Isolated Output Provides a single, isolated output, suitable for a wide range of applications.
  • 4.3 Inch LCD Display Large, clear display for easy monitoring of voltage and current settings.
  • High Precision Offers 100mV/10mA setting and readback resolution, ensuring accurate power adjustments for sensitive devices.
  • Remote I/O Control Supports analog control for Output ON/OFF, providing flexibility in remote operation.
  • Smart Cooling & Optional Terminals Features a quiet, efficient cooling fan for low-noise operation, along with optional European Jack Type terminals for versatile connectivity.
Send Enquiry

Key Features

  • 1 Independent Isolated Output
  • 4.3 Inch LCD Display
  • Setting & Readback Resolution 100mV / 10mA (*1)
  • Output ON/OFF Easy toggle for power control
  • Analog Control (Remote I/O) For Output ON / OFF
  • Set View Function Check original V/I settings during output
  • Key Lock Function For enhanced security
  • Tracking Series and Parallel Operation Flexible configuration options
  • Smart Cooling Fan Achieves low noise during operation
  • Optional European Jack Type Terminal For added connectivity options

The GPE-1326 Single Output Linear DC Power Supply is engineered for precise and stable power delivery, offering an adjustable output voltage range and a current limit feature to accommodate a wide variety of electronic devices. With a high-resolution digital display, users can easily monitor and set their desired output parameters, ensuring accurate performance during testing or development. The unit utilizes a linear regulation system to minimize output ripple and noise, providing a clean and noise-free power supply for sensitive circuits. It is designed with a robust build quality and includes multiple protective mechanisms, including overvoltage, overcurrent, and overtemperature shutdown, ensuring safe operation under any conditions. Additionally, the GPE-1326 features both coarse and fine control knobs for easy adjustment and precise calibration, and its versatile design supports both local and global applications with a wide input voltage range. The power supply’s quiet operation and compact size make it ideal for laboratory benches, R&D environments, educational institutions, and industrial testing, providing dependable and stable power for all types of electronic testing and development needs.

GPE-X323 Specifications

The specifications apply when the GPE-X323 is powered on for at least 30 minutes under +20°C~+30°C.

GPE-4323 GPE-3323 GPE-2323 GPE-1326
Output Mode
Number of Channel CH1 CH2 CH3 CH4 CH1 CH2 CH3 CH1 CH2 CH1
Voltage 0~32V 0~32V 0~5V 0~15V 0~32V 0~32V 5.0V 0~32V 0~32V 0~32V
Current 0~3A 0~3A 0~1A 0~1A 0~3A 0~3A 5A 0~3A 0~3A 0~6A
Tracking Series Voltage 0~64V —- 0~64V —- 0~64V —-
Tracking Parallel Current 0~6A 0~6A 0~6A
Constant Voltage Operation
Line Regulation ≦0.01%+3mV
Load Regulation ≦0.01%+3mV(rating current ≦3A)
≦0.02%+5mV(rating current >3A)
Ripple & Noise ≦1mVrms(5Hz~1MHz)
Recovery Time ≦100μs(50% Load Change, minimum load 0.5A)
Constant Current Operation
Line Regulation ≦0.2%+3mA
Load Regulation ≦0.2%+3mA
Ripple & Noise ≦3mArms
Tracking Operation(CH1,CH2)
Tracking Error ≦0.1%+10mV of Master(0~32V) No Load , with Load add load regulation≦100mV)


Parallel Regulation

Line: ≦0.01%+3mV
Load:≦0.01%+3mV(rating current≦3A)
≦0.02%+5mV(rating current>3A)
Series Regulation Line: ≦0.01%+5mV
Ripple & Noise Load:≦100mV
CH3 Operation for (GPE-3323)
Output Voltage 5.0V, ±5%
Output Current 5A
Line Regulation ≦3mV
Load Regulation ≦5mV
Ripple & Noise 1mVrms(5Hz~1MHz)
Meter
Voltage Resolution 100mV(*1)
Current Resolution 10mA(*1)
Setting Accuracy Voltage±(0.1% of reading +30mV)
Current±(0.3% of reading +6mA)
Readback Accuracy Voltage±(0.1% of reading +30mV)
Current±(0.3% of reading +6mA)
Insulation
Chassis and Terminal 20MΩ or above (DC 500V)
Chassis and AC Cord 30MΩ or above (DC 500V)
Environment Condition
Operation Temp 0~40℃
Storage Temp -10~70℃
Operating Humidity ≦80% RH
Storage Humidity ≦70% RH
Other
Power Source AC100V/120V/220V±10%; 230V(+10%~-6%); 50/60Hz
Dimensions & Weight 210(W)x 155(H) x 306(D) mm ; Approx. 7kg

(*1): For a higher resolution (10mV/ 1mA), please follow the setting procedure of the user manual on p35.

When using a higher resolution, the current or voltage adjustment may be limited by the knob sensibility.

Accessories

User Manual (CD) x 1 ; Power Cord x 1

GPE-1326 Test Lead GTL-104 x 1 ; GTL-105 x 1 ; or European GTL-204A x 1, GTL-203A x1
