Series Digital Storage Oscilloscopes GDS-3502

Series Digital Storage Oscilloscopes GDS-3502

  • The GDS-3502 offers 500MHz bandwidth with a real-time sampling rate of 5GSa/s, ensuring precise signal capture for high-frequency applications in design, testing, and troubleshooting environments.
  • With 2 analog channels, it provides reliable and efficient measurement capabilities for engineers focused on dual-signal analysis, without sacrificing performance or accuracy.
  • Includes advanced features like FFT, waveform math, serial bus decoding, and a wide range of triggering options to support in-depth signal inspection and debugging.
  • Features a 10.1-inch capacitive touchscreen with a modern graphical interface, making operation intuitive and reducing setup time during complex measurement tasks.
  • Equipped with USB, LAN, and HDMI ports for flexible data transfer, remote operation, and display output—ideal for lab, field, or classroom environments requiring efficient workflow integration.
Send Enquiry

  • 500/350/250/150MHz with 2/4 Channels
  • 5GSa/s RT or 100GSa/s ET Sampling Rate
  • Independent Memory for Each Channel
  • VPO Technology
  • Large 8-inch 800×600 Display
  • Split Screen Function
  • 3 Built-in Impedances (50Ω/75Ω/1MΩ)
  • Power Analysis Software (Optional)
  • Serial Bus Analysis Software for I2C, SPI and UART (Optional)

A Hi-tech DSO Platform

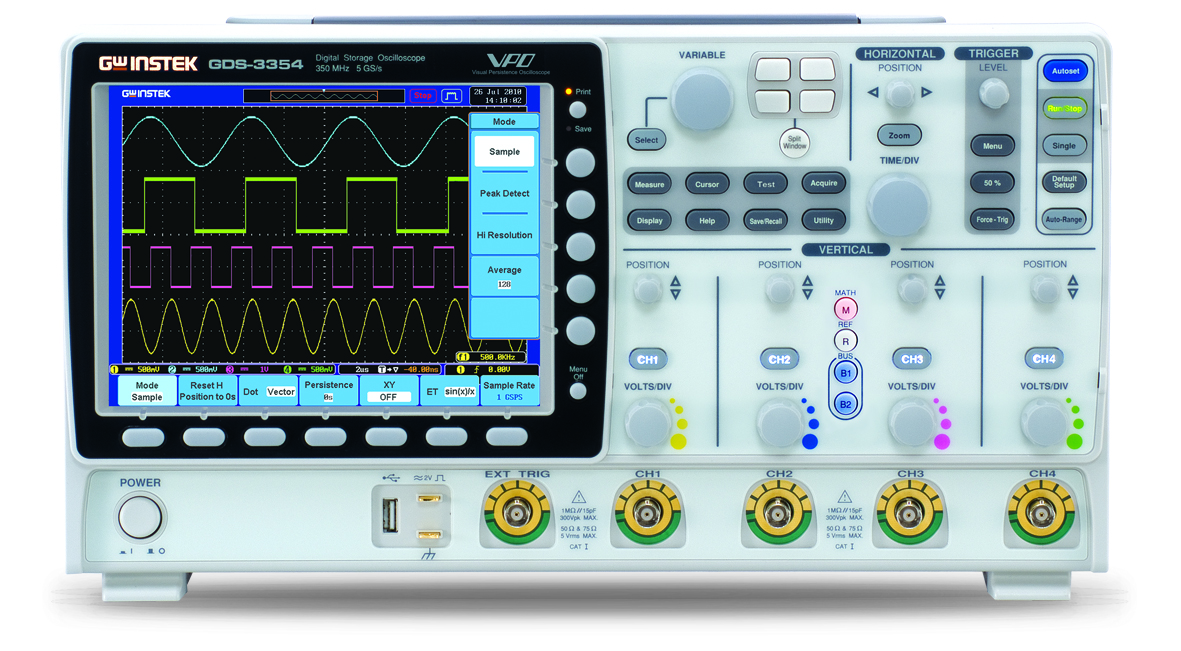

The GDS-3000 Series is a platform of 4-input channels, 500MHz bandwidth, 5GSa/s sampling rate, and VPO waveform display. The split screen feature has been designed to meet the requirements of multi-window & multi-signal tests in the research and the manufacturing fields. The optional power analysis software and the optional serial bus analysis software are available to facilitate the engineer’s tasks in testing and manufacturing of the associated products.

The differential probe, GDP-025, GDP-050 & GDP-100, and current probes, GCP-020, GCP-100 and GCP-530 & GCP-1030, are coming along with the GDS-3000 Series to provide total solutions for a wide variety of applications in the industry, service and education market sectors. The GDS-3000 Series, a high-tech platform carrying thoughtful features, brings very high customer value to both general purpose market and professional market.

Model-Specific

  • GDS-3502
    • Channels: 2 + Ext
    • Bandwidth: DC – 500MHz (-3dB)
    • Calculated Rise Time: 700ps



  • GDS-3504
    • Channels: 4 + Ext
    • Bandwidth: DC – 500MHz (-3dB) (Note: The bandwidth of the 75Ω input impedance is limited to 150MHz only)
    • Calculated Rise Time: 700ps



Common

  • Vertical
    • Resolution: 8 bit
    • Sensitivity: @1MΩ: 2mV~5V/div; @50/75Ω: 2mV~1V/div
    • Input Coupling: AC, DC, GND
    • Input Impedance: 1MΩ//15pF
    • DC Gain Accuracy: ±3% full scale
    • Polarity: Normal & Invert
    • Maximum Input Voltage: @1 MΩ: 300Vrms, CAT I; @50/75 Ω: 5 Vrms max
    • Offset Position Range: 2mV/div~100mV/div : ±0.5V; 200mV/div~5V/div : ±25V
    • Bandwidth Limit: Dependent on the oscilloscope bandwidth (BW)
      • BW=150: Full/20MHz
      • BW=250: Full/20MHz/100MHz
      • BW=350: Full/20MHz/100MHz/200MHz
      • BW=500: Full/20MHz/100MHz/200MHz/350MHz



  • Trigger
    • Waveform Signal Process: Add, subtract, multiply, and divide waveforms, FFT, FFTrms, Integration*, Differentiation* (*: App installation required)
    • FFT: Spectral magnitude. Set FFT Vertical Scale to Linear RMS or dBV RMS, and FFT Window to Rectangular, Hamming, Hanning, or Blackman-Harris.
    • Sources: CH1, CH2, CH3, CH4, Line, EXT
    • Modes: Auto (supports Roll Mode for 100 ms/div and slower), Normal, Single Sequence
    • Type: Edge, Pulse Width(Glitch), Video, Pulse Runt, Rise & Fall(Slope), Alternate, Event-Delay(1~65535 events), Time-Delay(Duration) (10ns~10s), I²C*, SPI*, UART* (*optional)
    • Runt: Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again.
    • SPI (optional): Trigger on SS, MOSI, MISO, or MOSI and MISO on SPI buses.
    • I2C (optional): Trigger on Start, Repeated Start, Stop, Missing ACK, Address (7 or 10 bit), Data, or Address and Data on I²C buses.
    • UART (optional): Trigger on Tx Start Bit, Rx Start Bit, Tx End of Packet, Rx End of Packet, Tx Data, Rx Data, Tx Parity Error, and Rx Parity Error.
    • Holdoff range: 10ns to 10s
    • Coupling: AC, DC, LF rej., HF rej., Noise rej.
    • Sensitivity:
      • GDS-31XX ~ GDS-33XX: DC~ 50MHz Approx. 1div or 10mV; 50MHz~150MHz Approx. 1.5div or 15mV; 150MHz~350MHz Approx. 2div or 20mV
      • GDS-350X: DC~ 50MHz Approx. 1div or 1.0mV; 50MHz~ 150MHz Approx. 1.5div or 15mV; 150MHz~ 350MHz Approx. 2div or 20mV; 350MHz – 500MHz Approx. 2.5div or 25mV
    • Range: ±15V
    • Sensitivity:
      • GDS-31XX GDS-33XX: DC~ 150MHz Approx. 100mV; 150MHz~ 250MHz Approx. 150mV; 250MHz~ 350MHz Approx. 150mV; 350MHz 500MHz Approx. 200mV
    • Input Impedance: 1MΩ±3%, ~16pF



  • Timebase
    • Timebase Range:
      • GDS-315X, GDS-325X, GDS-335X: 1ns/div ~ 100s/div (1-2-5 increments); ROLL: 100ms/div~ 100s/div
      • GDS-350X: 1ns/div~100s/div (1-2.5-5 increments); ROLL: 100ms/div~ 100s/div
    • Pre-trigger: 10 div maximum
    • Post-trigger: 1000 div maximum. The number of divisions depends on the time division.
    • Timebase Accuracy: ≥1 ms time interval ±20 ppm over



  • X-Y Mode
    • X-Axis Input: Channel 1; Channel 3
    • Y-Axis Input: Channel 2; Channel 4
    • Phase Shift: ±3° at 100kHz



  • Acquisition
    • Real Time Sample Rate:
      • 150/250/350MHz models: 5GSa/s (MAX)
      • 150/250MHz models with 2CH: 2.5GSa/s
      • 500MHz models: 4GSa/s (MAX), 2GSa/s per channel
    • ET Sample Rate: 100GSa/s maximum for all models
    • Record Length: 25k points/channel
    • Mode: Normal, Average, Peak Detect, High Resolution, Single Sequence
    • Peak (Glitch) Detection: 2ns (MAX)
    • Normal: Acquire sampled values.
    • Average: From 2 to 256 waveforms included in average.
    • Peak Detect: Captures glitches as narrow as 2 ns at all sweep speeds
    • Hi Res: Real-time boxcar averaging reduces random noise and increases vertical resolution



  • Cursors and Measurement
    • Cursors: Amplitude, Time, Gating available
    • Automatic Measurement: 28 sets: Vpp, Vamp, Vavg, Vrms, Vhi, Vlo, Vmax, Vmin, Rise Preshoot/Overshoot, Fall Preshoot/Overshoot, Freq, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle, and nine different delay measurements (FRR, FRF, FFR, FFF, LRR, LRF, LFR, LFF, Phase)
    • Cursors measurement: Voltage difference between cursors (ΔV), Time difference between cursors (ΔT)
    • Auto counter: 6 digits, range from 2Hz minimum to the rated bandwidth



  • Power Measurements (Option)
    • Power Quality Measurements: V RMS, I RMS, True Power, Apparent Power, Reactive Power, Frequency, Power Factor, Phase Angle, V Crest Factor, I Crest Factor, (+)V Peak, (-)V Peak, (+)I Peak, (-)I Peak, DC Voltage, DC Current, Impedance, Resistance, Reactance
    • Harmonics: Frequency (Hz), Magnitude (%), Mag. RMS (A), Phase (°), Limit (A), Limit (%), Pass | Fail, Max all, Windows (A), 200% Limit, POHC Limit, THD-F, THD-R, RMS, Overall, POHC, POHL, Input Power, Power Factor, Fundamental Current, Harmonic 3, Harmonic 5
    • Ripple Measurements: Ripple, Noise, In-rush current, First peak, Second peak



  • Control Panel Function
    • Autoset: Single-button, automatic setup of all channels for vertical, horizontal and trigger systems, with undo autoset
    • Auto-Range: allow you to quickly move from test point to test point without having to reset the oscilloscope for each test point
    • Save Setup: 20 sets
    • Save Waveform: 24 sets



  • Display
    • TFT LCD Type: 8″ TFT LCD SVGA color display
    • Display Resolution: 800 horizontal x 600 vertical pixels (SVGA)
    • Waveform Interpolation: sin(x)/x Equivalent Time Sampling
    • Display Mode: YT, XY
    • Display Graticule: 8 x 10 divisions
    • Waveform Update Rate: 3,500 waveforms per second maximum



  • Interface
    • RS232C: DB-9 male connector
    • USB Port: 2 sets USB 2.0 High-speed host port; 1 set USB High-speed 2.0 device port
    • Ethernet Port (LAN): RJ-45 connector, 10/100Mbps
    • SVGA Video Port: DB-15 female connector, monitor output for display on SVGA monitors
    • GPIB: GPIB to USB adapter (Option)
    • Go-NoGo: BNC, 5V Max, 10mA CMOS open collector output
    • Internal flash disk: 64MB
    • Kensington Style Lock: Rear-panel security slot connects to standard Kensington-style lock.
    • Line output: 3.5mm stereo jack for Go/NoGo audio alarm



  • Power Source
    • Line Voltage Range: AC 100V~240V, 48Hz~63Hz, Auto selection
    • Power Consumption: 96VA
    • Miscellaneous
      Multi-language menu: Available
    • On-line help: Available
    • Time clock: Time and Date, Provide the Date/Time for saved data



  • Dimensions
    • 400W x 200H x 130D, Approx. 4kg



Probe Specifications

  • Model-specific Probe Specifications
    • GTP-501R
      • Applicable to: GDS-3502/GDS-3504
      • Bandwidth: DC 500MHz
      • Rise Time: 0.7ns
      • Input Capacitance: ~11.5pF @ 100MHz
      • Compensation Range: 8~20pF

Accessory

  • User manual CD x 1 , Power cord x1
  • GTP-501R
    500MHz(10:1) passive probe for GDS-3502/ 3504 (per channel)



Optional Accessories

  • GUG-001
    GPIB to USB adapter
  • GTP-033A
    35MHz 1:1 passive probe
  • GTP-352R
    350MHz(20:1) passive probe
  • GDP-025
    25MHz high voltage differential probe
  • GDP-050
    50MHz 25MHz high voltage differential probe
  • GCP-300
    Current Probe, DC ~ 300kHz, 200A
  • GCP-500 Current Probe, DC ~ 500kHz, 150A
    GCP-530
    50MHz/ 30A Current probe
  • GCP-1000 Current Probe, DC ~ 1MHz, 70A
    GCP-1030
    100MHz/ 30A Current probe
  • GCP-206P
    Power supply for current probe (2 input channels)
  • GCP-425P
    Power supply for current probe (4 input channels)
  • GTL-248
    GPIB Cable, Double Shielded, 2000mm
  • GTL-251
    USB-GPIB Adapter, GPIB-USB-HS, USB 2.0, Hi-Speed USB compliance, 2000mm
  • GSC-008
    Soft Carrying Case
  • GTL-110
    Test lead, BNC to BNC connector
  • GTL-232
    RS-232C cable, 9-pin female to 9-pin female, Null Modem for computer
  • GTL-246
    USB 2.0 cable, A-B type cable 4P, 1800mm
  • GRA-411
    Rack Adapter Panel
  • GDB-03
    Oscilloscope Education and Training Kit
  • GKT-100
    Deskew fixture
