Ethernet Over Bonded E1 NTU Card FRM220A-iMux16T-B
- Ethernet to E1 Conversion Converts 10/100Base-TX Ethernet to 16 E1 interfaces for seamless integration with legacy systems.
- Bonded E1 Technology Supports Ethernet bonding over multiple E1 links for enhanced bandwidth and reliability.
- Cost-Effective Connectivity Enables high-speed Ethernet services over existing E1 circuits, minimizing infrastructure upgrades.
- Flexible Data Rates Offers scalable data rates, suitable for both enterprise and telecom applications.
- BNC Cable Support Utilizes standard 16 E1 BNC cables for easy installation and reliable connectivity.
The Ethernet Over Bonded E1 NTU Card FRM220A-iMux16T-B is a versatile and high-performance network interface card designed to provide seamless connectivity between Ethernet networks and E1 circuits. This 10/100Base-TX to 16 E1 multiplexer card efficiently converts Ethernet data into E1 format, enabling the transmission of Ethernet traffic over legacy E1 lines. It supports bonding of multiple E1 links for enhanced bandwidth and reliability, making it ideal for environments where high-speed Ethernet access is required over existing E1 infrastructure. Equipped with 16 E1 interfaces, each connected via standard BNC cables, the FRM220A-iMux16T-B ensures robust, cost-effective connectivity with flexible data rate options. It is particularly well-suited for enterprises and telecom providers needing to extend Ethernet services over long distances without the need for significant infrastructure upgrades.
Specifications
E1 Interface | Framing | CCS+CRC (Framed) | Power Input | 12VDC | ||
Standard | ITU-T G.703/G.704/G.706 & G.732, G.823 | Power Consumption | < 12W | |||
Encapsulation Protocol | VCAT & LCAS (ITU-T G.7042) GFP-F (ITU-T G.7041) | Dimensions |  iMux16 : 159.5 × 42.1 × 88mm (D×W×H)                                                                              | |||
iMux8/4 : 159.5 × 20.8 × 88mm (D×W×H) | ||||||
Bit rate | 2.048Mbps± 50ppm (up to 5E1) | Weight | 130g | |||
Line code | HDB3 | Temperature | 0 ~ 50°C (Operating), -10 ~ 70°C (Storage) | |||
Clock setting | Internal OSC or recovery clock | Humidity | 10 ~ 90% RH (non-condensing) | |||
Receive level | -43dB | |||||
Certifications | CE, FCC | |||||
Line impedance | 75 ohm (BNC) / 120 ohm (RJ45) | |||||
MTBF | 65,000 hrs | |||||
Jitter Performance | Complies with ITU-T G.823 | |||||
Pulse Mask | Complies with ITU-T G.703 | |||||
Pulse amplitude | Nominal 2.37V ± 10% | |||||
Delay Variance | 220ms | |||||
Connector | RJ45, BNC | |||||
Diagnostics | Digital remote loopback | |||||
Ethernet Interface | Standards | IEEE 802.3, 802.3u, 802.1q VLAN,
802.1d bridging |
||||
Mac Address | 1K | |||||
Data rate | 10/100Base-TX, Half/Full duplex | |||||
Connector | Â RJ45 10/100Base-TXÂ Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â | |||||
Power, ALM, E1 signal loss | ||||||
Indications | Power, ALM, E1 signal loss, E1 Alarm(AIS, LOF, RAI, LOMF), LAN link /ACT, 10/100M, SD (100Base-FX) |
Ordering Information
ModelName | Description |
FRM220A-iMux16T-B | 10/100Base-TX to 16 E1 mux card with 16E1 BNC cable |
Â

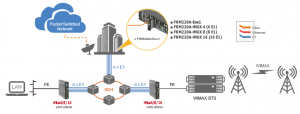

Application
Â
