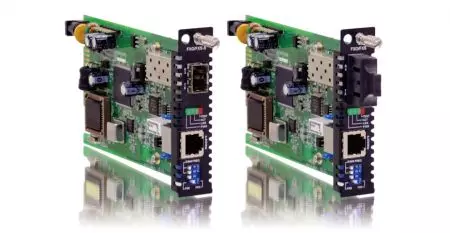

Voice over Fiber with In-Band Management FRM220-FXO/FXS

Voice over Fiber with In-Band Management FRM220-FXO/FXS

  • FXO/FXS Interfaces Provides seamless integration between legacy telephony systems and fiber-optic networks.
  • In-Band Management Allows for remote configuration, monitoring, and management of the device.
  • High-Quality Voice Delivers clear and reliable voice communication over long distances via fiber.
  • Scalable Solution Easily supports both VoIP and traditional telephony, offering flexibility for future expansion.
  • Cost-Effective Affordable alternative for businesses upgrading to fiber-optic networks while maintaining existing infrastructure.
Send Enquiry

  • Supports FXO/FXS interfaces
  • In-band management for remote configuration
  • High-quality voice over fiber
  • Scalable for VoIP and legacy systems
  • Easy integration with telecom infrastructure
  • Cost-effective VoF solution
  • Reliable long-distance communication

The FRM220-FXO/FXS Voice over Fiber (VoF) module is a high-performance, cost-effective solution designed to deliver reliable voice communication over fiber-optic networks. It integrates both FXO (Foreign Exchange Office) and FXS (Foreign Exchange Station) interfaces, allowing seamless connectivity between legacy telephone systems and modern fiber-optic infrastructure. With in-band management capabilities, the FRM220 enables remote monitoring and configuration through its secure, user-friendly interface, ensuring simplified network management and troubleshooting. This module supports a wide range of voice protocols, ensuring compatibility with various telecom services and providing high-quality voice transmission even over long distances. It is ideal for businesses looking to migrate to fiber-optic networks while maintaining their existing telephony equipment, delivering enhanced scalability, flexibility, and performance for VoIP and legacy telephony integration.

Specifications

Optical Interface Connector SFP-LC / 1×9 (SC, ST, FC)
Fiber MM 62.2/125μm, 50/125μm, SM 9/125μm
Rate: 51.84Mbps
Distance MM 2km, SM 15/30/50km, WDM 20/40km
Wavelength MM 1310nm, SM 1310, 1550nm
WDM 1310Tx/1550Rx (type A)
1550Tx/1310Rx (type B)
Indications LED (Power, FX Link, Phone Act, Test)
Power Input 12VDC
Power Consumption < 6W
Dimensions 159.5 × 20.8 × 88mm (D×W×H)
Weight 120g
Temperature 0 ~ 50°C (Operating), -10 ~ 70°C (Storage)
Humidity 10 ~ 90% non-condensing
Certification CE, FCC
MTBF 65,000 hrs
Electrical Interface Connector RJ-11
FXO mode Impedance : 600 ohms
Coding : 16 bits liner
Loop Current : 10~100mA
Ring Frequency : Acceptable 20 ~55Hz
Insertion Loss: 0.0 ± 1.0dB at 1000Hz
Level Gain : TX 0dB, RX -3dB
FXS mode Coding : 16 bits liner
Dial: DTMF and Dial Pulse
Battery Source: 48VDC ± 4V
Ringing Waveform : Sine wave
Impedance : 600 ohms
Ringing Frequency : 20/25/30/35/40/45/50/55 Hz selectable
Ring Cadence: FXS to FXS : On / 1 sec, Off / 2 sec
FXO to FXS, Reproduces the cadence detected by FXO
Insertion Loss 0.0 ± 1.0dB at 1000Hz
REN: 4.0B(Ring Equivalence Number)
Level Gain : TX 0dB, RX -3dB

Ordering Information

Model Name Description
FRM220-FXO/FXS FXO / FXS fiber converter card
Connector Type Connectivity Distance
SC, ST, FC

(Not Applicable for SFP type)

002: 2km 015: 15km 030: 30km 050: 50km

20A: WDM 20km A type 20B: WDM 20km B type 40A: WDM 40km A type 40B: WDM 40km B type



Application
Figure 1 : Automatic Ring down hotline
Automatic Ring down hotline
Figure 2 : Voice Transmission from 2km to 120km over fiber
Voice Transmission from 2km to 120km over fiber
Figure 3 : Selectable FXO or FXS mode
Selectable FXO or FXS mode
