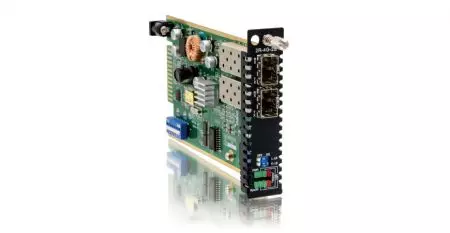

4G 2R Transponder FRM220-4G-2S

4G 2R Transponder FRM220-4G-2S

  • Multi-protocol Support Compatible with bit rates from 28 Mbps to 4.25 Gbps, including Fast Ethernet, Gigabit Ethernet, OC-3, OC-6, OC-12, OC-24, OC-48, FC-1, FC-2, and FC-4.
  • Advanced Network Management Managed via Web, Telnet, and SNMP in a central FRM220 chassis.
  • Link Fault Pass-Through (LFPT) Ensures seamless link recovery in case of faults.
  • Optical Repeater Function Re-amplifies and reshapes signals for optimal transmission.
  • Diagnostics & Error Detection Features Auto Laser Shutdown (ALS), SFP monitoring, and transceiver error alarm detection for reliable operation.
Send Enquiry

  • Supports multiple protocols (28 Mbps to 4.25 Gbps) Fast Ethernet, Gigabit Ethernet, OC-3, OC-6, OC-12, OC-24, OC-48, FC-1, FC-2, FC-4
  • Network management via Web, Telnet, SNMP in FRM220 chassis
  • Link Fault Pass-Through (LFPT)
  • Auto Laser Shutdown (ALS)
  • Local configuration via DB9 console port (CH01M/CH02M)
  • Digital diagnostic monitoring of SFP module
  • Optical repeater functions (Re-amplification, Re-shaping)
  • Facility loopback on Client/Line sides
  • Transceiver transmitter error alarm detection

The FRM220-4G-2S optical regeneration device is designed for high-performance signal transmission, offering both re-amplification and re-shaping functions. It supports a wide range of protocols with bit rates ranging from 28 Mbps to 4.25 Gbps, including Fast Ethernet, Gigabit Ethernet, OC-3, OC-6, OC-12, OC-24, OC-48, and various Fiber Channel standards (FC-1, FC-2, FC-4). This versatile device allows for network management through Web, Telnet, and SNMP interfaces when integrated into the central FRM220 chassis, providing real-time monitoring of the converter card’s status, type, version, fiber link status, and alarms. It features advanced functions such as Link Fault Pass-Through (LFPT), Auto Laser Shutdown (ALS), and digital diagnostic monitoring for SFP modules. Local configuration can be performed through a DB9 console port, and it also supports optical repeater functions with facility loopback capabilities on both client and line sides. The FRM220-4G-2S ensures reliable performance with error detection and the ability to detect transceiver transmitter alarms.

Specifications

Optical Interface

Connector           SFP LC

Data rate               28Mbps ~ 4.25Gbps

 Duplex mode      Full duplex                                    Fiber          MM 50/125μm, 62.5/125μm.

Indications        LED (PWR, Line Link, Client Link, Test, Loop back,Port Active, Alarm)

Power Input       Card : 12VDC                                                               Standalone : AC, DC options



                             SM 9/125μm

Power

Consumption

< 7W



Distance            MM 2km, SM 15/30/50/80/120km,

                             WDM 20/40/60/80km                   Wavelength          MM 1310nm, SM 1310,1550nm

WDM 1310Tx/1550Rx (type A)

          1550Tx/1310Rx (type B)

                                                      CWDM 1470 ~ 1610nm



Ordering Information

ModelName Description
FRM220-4G-2S 4G 2R Transponder, (optional SFP module)
