EMI Pre Compliance Tester Handyscope HS6-DIFF-1000XMEG

The powerful capabilities of the Handyscope HS6 DIFF – 1000XMESG EMI analyzer give the user the possibility to quickly perform a good EMI compliance test. With this cost effective test, time and money are saved by avoiding extra visits to expensive EMC testing facilities. The supplied EMI probe set TP-EMI-HS6 contains three magnetic field (H field) probes and one electric field (E field) probe. The tripod ensures that the probes can be positioned properly at the object under test.

Figure 2: Above: a total spectrum from 0 Hz to 500 MHz and 3 displays with magnified parts of the live spectrum. Below: the total time domain signal and a magnified part of the time domain signal, live with the spectrum.

The Handyscope HS6 DIFF – 1000XMESG EMI analyzer has a very low resolution bandwidth of up to 7.45 Hz (at a span of 500 MHz), which is unique in its class. As a result, details in each part of the spectrum can be analyzed thoroughly.

Note: A resolution bandwidth of 7.45 Hz at a span of 500 MHz gives a total of 67,108,864 spectral components. When your display is 1920 pixels wide, you require 34,952 displays to show the full spectrum 1:1. 34,952 displays with a width of 50 cm (23 inch diagonal) each, gives a total display width of 17.47 km (10.85 mile)! Therefore, if you zoom in 35,000 times, you will get the spectral components 1:1 on your display. That is exceptional for an EMI analyzer and it makes each frequency component very well visible.

The large dynamic range of 140 dB allows the measurement of a wide variety of interference frequencies. Standard limit lines according to EN61326-1:2006/EN55011:2007 can be switched on or off. The resolution bandwidth and frequency range can be selected individually.

Figure 3: Combilog Antenna

There are three operating modes: Normal, Average and Max Hold. Normal mode displays the spectrum of the source trace. Averaging mode is effective in reducing the noise of the signal, to see more of the harmonic or carrier detail. You can select the number of spectra to be averaged. Max Hold displays the maximum level that the signal reaches and is useful for frequency measurements where it shows the history of peak values across the frequency axis. Averaging and Max Hold history can be cleared manually to start a new measurement.

With the extensive marker capabilities in the graph, various aspects of the spectrum can be measured.

The amplitude unit can be set to dB, dBv, dBmV, dBµV, dBµV (at 10m) and dBm. The amplitude range can be set to one of three ranges: 0 to 100 dBµV, 20 to 120 dBµV or 40 to 140 dBµV. For accurate amplitude measurement, a flat top window is used by default. Besides the flat top window, eight other windows can be selected from.

The EMI analyzer can also be used as normal spectrum analyzer. With a biconical antenna or Combilog Antenna a spectrum of 10 MHz to 500 MHz can be measured.

Figure 4 shows a spectrum measured with a Combilog antenna which was placed outside. Next to the full spectrum from 0 Hz to 500 MHz, there is also a view with the FM band of 87.5 MHz to 108 MHz, an FM radio station at 92.2 MHz and even an AM radio station at 1600 kHz. The time domain signal is also shown, as well as a zoomed in part of the time domain signal. All windows are real time and correlations between different frequencies and the time domain signal can be conveniently viewed. The multi window feature of the EMI analyzer offers the user unlimited analysis and display capabilities.

Figure 4: Using the Quick Setup button, the EMI analyzer can be controlled fast and easy.

The TiePie HS6-DIFF-1000XMEG is a professional USB-powered EMI pre-compliance tester designed to help engineers identify and analyze electromagnetic interference early in the development process. Combining a high-resolution oscilloscope with a real-time spectrum analyzer, it enables efficient, cost-effective EMI diagnostics without the need for expensive external EMC lab tests.

Featuring four fully differential input channels, the HS6-DIFF-1000XMEG offers 1 GSa/s sampling, 250 MHz bandwidth, and a dynamic range up to 140 dB. Its built-in EMI analyzer covers a frequency span of 0 to 500 MHz with a multi-window FFT display, allowing simultaneous views of the full spectrum and zoomed-in sections for precise emission localization.

A standout feature is its ultra-low 7.45 Hz resolution bandwidth, providing over 67 million spectral components for highly detailed analysis. The device supports standard EMI limit lines (EN55011, EN61326), facilitating fast and accurate pre-compliance testing.

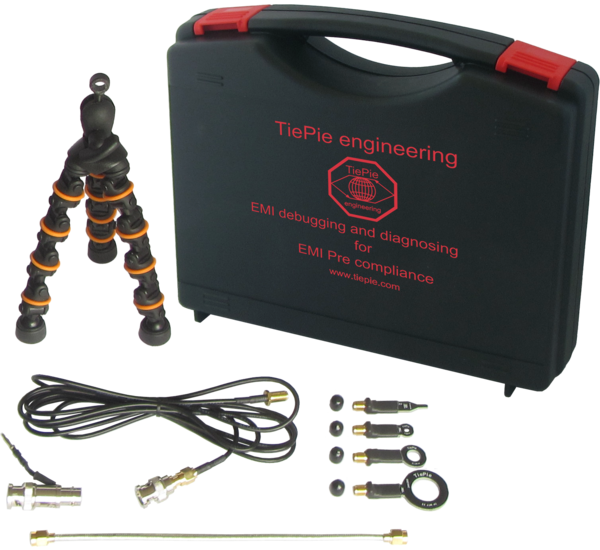

The package includes the TP-EMI-HS6 probe set (3 magnetic H-field and 1 electric E-field probes), tripod, and adapters to position probes accurately. SafeGround technology ensures safe and reliable differential measurements. Compact and USB-powered, the HS6-DIFF-1000XMEG is ideal for lab or field EMI troubleshooting.

Model: HS6-DIFF-1000XMEG
Bandwidth: 250 MHz
Sampling Rate: Up to 1 GSa/s
Input Channels: 4 fully differential
Vertical Resolution: 8 to 16 bits
Memory Depth: 256 Mpoints/channel
Frequency Span (EMI): 0 Hz to 500 MHz
Resolution Bandwidth: Down to 7.45 Hz
Dynamic Range: 140 dB
Display Modes: Multi-window FFT, Normal, Average, Max Hold
Amplitude Units: dB, dBm, dBµV, dBmV, dBµV@10 m
Limit Lines: EN55011:2007, EN61326-1:2006
Included Accessories: TP-EMI-HS6 probe set, tripod, SMA/BNC adapters, cables
Power: USB-powered
Grounding: SafeGround switching technology
Warranty: Typically 5 years (confirm with seller)

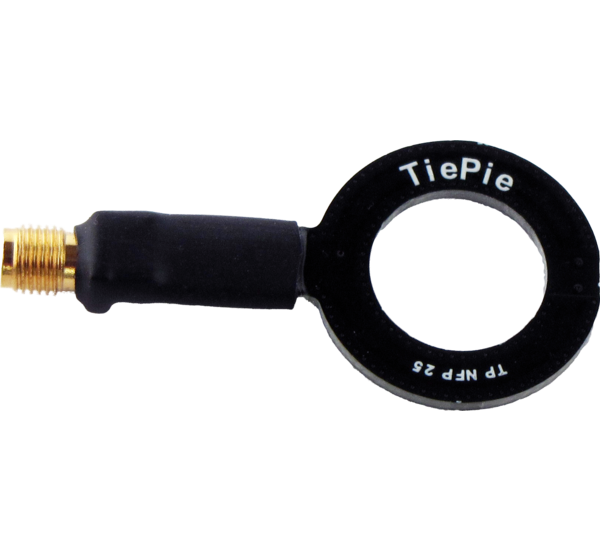

TP-NFP-25 H field probe: 25 mm diameter, SMA connector

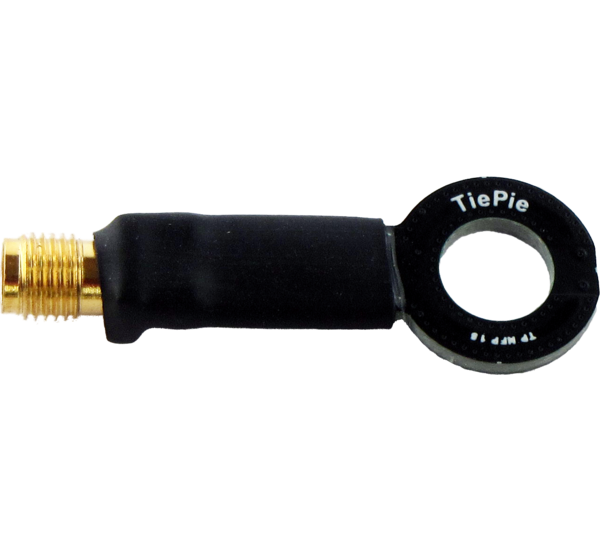

TP-NFP-15 H field probe: 15 mm diameter, SMA connector

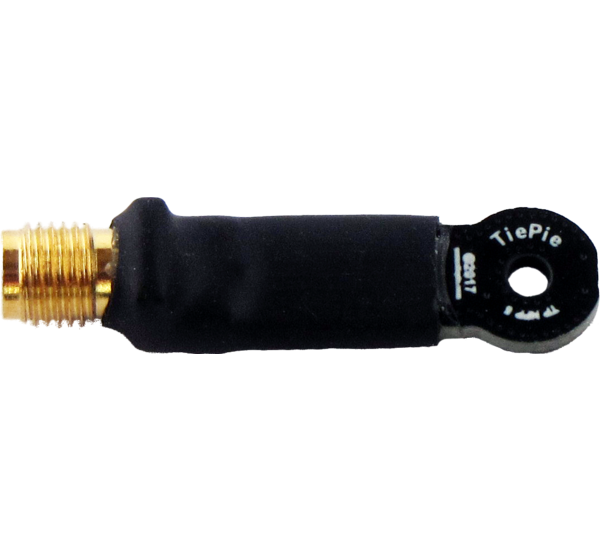

TP-NFP-5 H field probe: 9 mm diameter, SMA connector

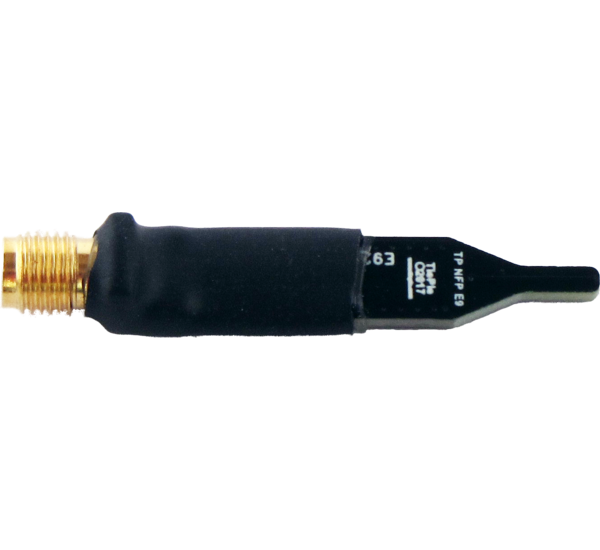

TP-NFP-E9 E field probe: 2 mm tip, SMA connector

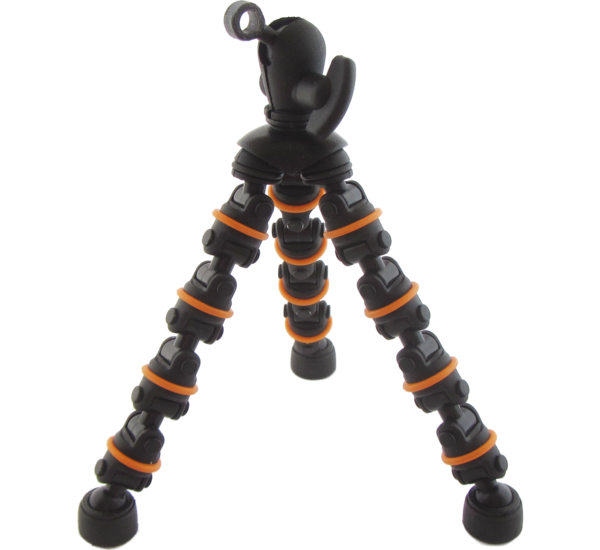

Tripod TP-3P-15: up to 18 cm high

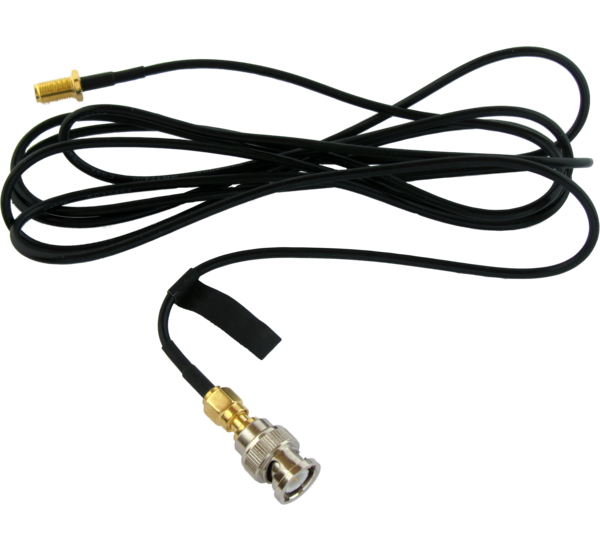

Antenna cable TP-BNC-SMA-200: flexible, 200 cm long, SMA to BNC
Antenna cable TP-SMA-20: semi flexible, 20 cm long, SMA to SMA

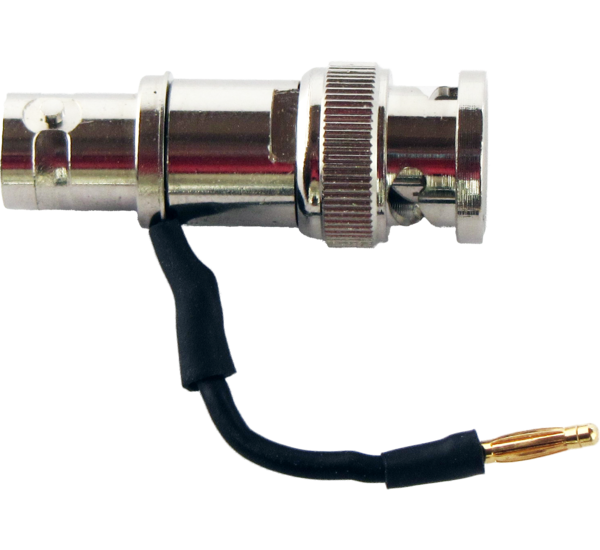

Grounded 50 Ohm BNC terminator TP-BNC-T50G: BNC to BNC, 5 cm ground lead with 2 mm banana plug

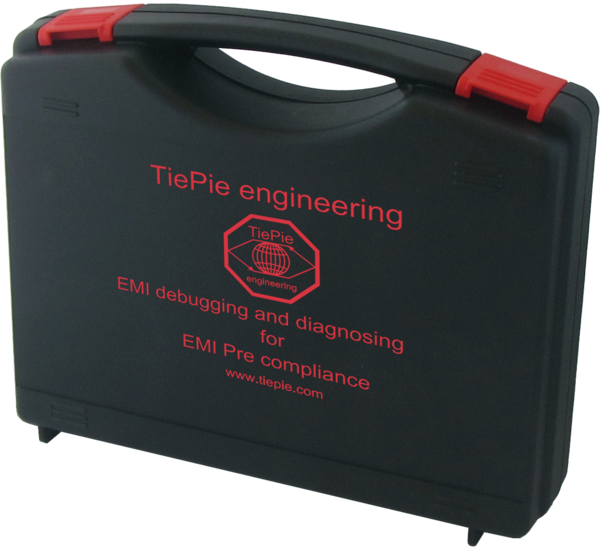

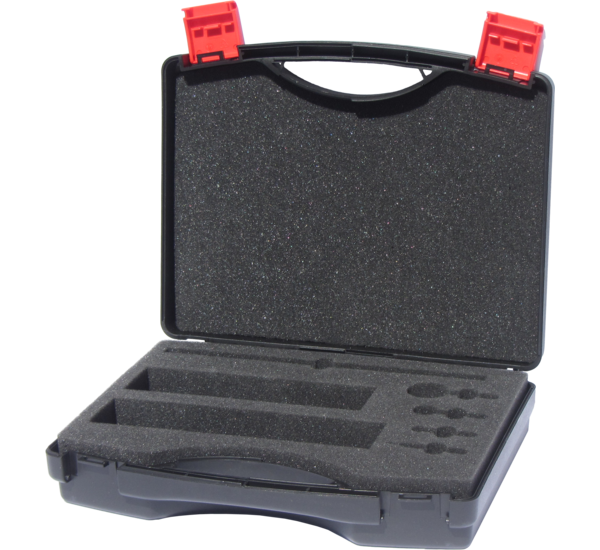

Carry case BB251: 255 x 210 x 60 mm
