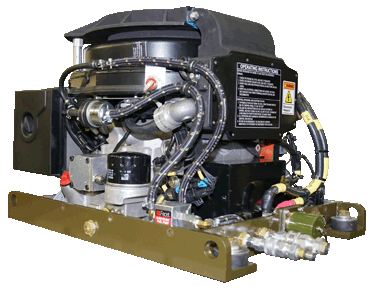

Auxiliary Power Unit 5kW APU PN

Specifications

Exterior Dimensions (L x W x H) 620 x 500 x 450 mm
Weight (with enclosure) ~95 kg
Electrical Output 5 kW @ 28 VDC
Alternator Current Limit 180 A
Alternator Type Compact Permanent Magnet (PMG)
Alternator Speed 1400 – 2800 rpm
Engine Manufacturer Hatz (Germany)
Engine Model 1B50 Air-Cooled
Engine Power 8 kW (ICFN)
Engine Over Speed Protection 3000 rpm
Engine Cooling Type Air (using engine fan)
Fuel Type Diesel
Fuel Consumption 1.92 L/hr @ 5 kW output
Noise Level < 78 dB
Operating Temperature -32°C to +55°C (-25.6°F to 131°F)
Low Temperature Startup 3 automatic attempts, air and oil heaters, manual start handle
Protections Reverse polarity, overcurrent, overvoltage, overtemperature, low oil pressure, emergency kill switch
Enclosure Material Aluminum
CANBus Communication CAN 2.0
Application Wheel vehicles, military trucks, genset systems

Product description

The 5kW APU PN 502-9900 Auxiliary Power Unit is a compact and rugged power solution designed for military vehicles, trucks, and genset applications. It features a Hatz 1B50 air-cooled, 8 kW diesel engine coupled with a compact permanent magnet generator directly mounted on the flywheel. Delivering up to 5 kW of electrical power at 28 VDC, the unit provides reliable power with low fuel consumption.

Built to withstand harsh environments, the APU meets MIL-STD-810F (sand & dust) and MIL-STD-461E (EMC) standards. Integrated CANBus 2.0 control allows precise management and monitoring, while multiple safety protections ensure secure operation, including reverse polarity, overcurrent, overvoltage, overtemperature, low oil pressure, and emergency kill switch. Its compact aluminum enclosure and lightweight design make it easy to integrate into existing vehicle or genset configurations.

Features

Delivers 5 kW electrical power at 28 VDC for reliable operation in military vehicles and gensets
Powered by a Hatz 1B50 air-cooled, 8 kW diesel engine
Compact permanent magnet generator directly mounted on the engine flywheel for efficient power conversion
Rugged design meeting MIL-STD-810F (sand & dust) and MIL-STD-461E (EMC) standards
Equipped with CANBus 2.0 for monitoring and control, plus multiple safety protections including reverse polarity, overcurrent, overvoltage, overtemperature, low oil pressure, and emergency kill switch
