1:1 Multi-mode Optical Protection Switch

Features

Latch feature, if power is lost the switch remains in its current state
Work with Multi-mode 850 wavelength
Traffic is switched in one of two modes : non-revertive, manual
Programmable RX threshold setting for switch-over
Optical interface type : LC connector
Working and protected lines are physically separated fiber
High channel isolation
Highly stable and reliable

Overview

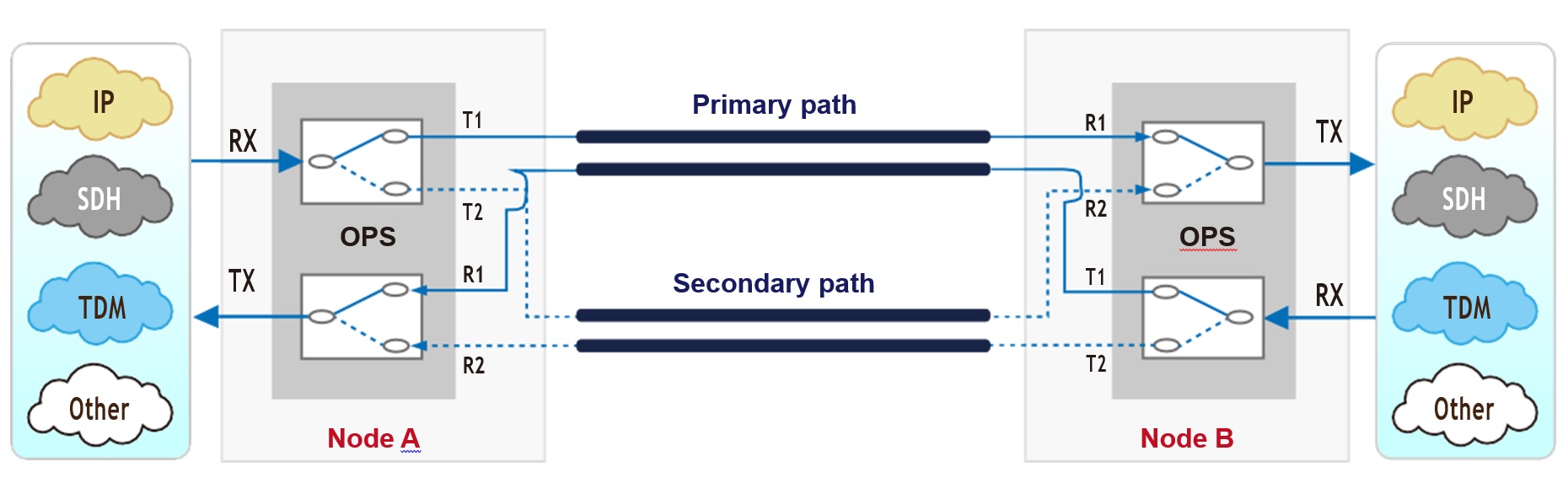

This solution includes monitoring capabilities for the working fiber only. In case of a fiber cut in the active path, traffic will be switched over to the protected path in less than 50ms. Monitoring is available through SNMP Management when both card is placed in a rack with SNMP management. The management can view the converter card’s status, type, version, fiber link status and alarms. The card can be configured to enable or disable the port, reset the port, and configure receive threshold levels for path switching.

Connecter	LC / PC LC / PC	Cross-talk	≥ 30dB (SM)
LEDs	Power System, Working Path, Protection Path, Work mode	Restoration Time	≤20ms
Power	DC 12V In	Power Consumption	< 3W
Operating Wavelength	850nm	Dimensions	159.5 × 20.8 × 88mm (D×W×H)
Fiber Type Multimode	50/125um	Weight	130g
Switch Type	2×1 / Latching	Temperature	0 ~ 50°C (Operating), -10 ~ 70°C (Storage)
Input Power (Optical)	-30~5dBm	Humidity	5%RH to 95%RH non-condensing
Insertion Loss	≤ 3dB (Pair)	Certification	CE, FCC
Return Loss	≥ 30dB (SM)	MTBF	65,000 hours
