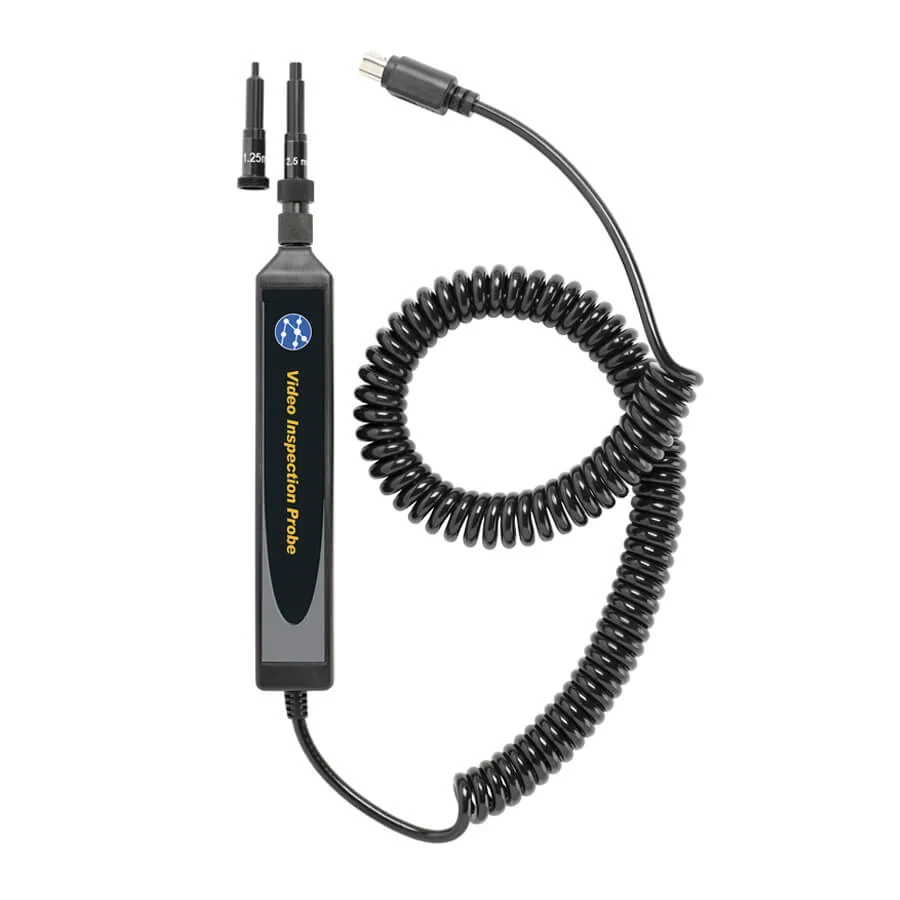

    FiberMASTER Video Inspection Probe – R240-VIP

    • Auto-centering camera and LED illumination for repeatable, high-contrast images of connector endfaces, reducing inspection time in the field.

    • Integrated Pass/Fail analysis with customizable criteria—quickly identify scratches, pits, contamination, or polishing defects without manual grading.

    • Universal 1.25mm and 2.5mm adapters plus a rugged handpiece make it compatible with LC, SC, ST and MPO workflows.

    • Seamless connectivity to FiberMASTER OTDR, light source, power meter and CertSoft software for test result correlation and automated reporting.

    • Compact, battery-powered design with durable housing and included accessory kit for technicians needing reliable, portable inspection on every jobsite plus onsite calibration sticker and a two-year limited warranty.

    Send Enquiry

    Send Inquiry

    Key Features

    • Auto-centering optical head for consistent probe alignment

    • High-resolution camera with LED illumination and adjustable focus

    • Built-in Pass/Fail image analysis with user-configurable acceptance criteria

    • Universal 1.25mm & 2.5mm interchangeable adapters (LC/SC/ST compatibility)

    • Seamless integration with FiberMASTER OTDR, light source, power meter and CertSoft software (image & trace linking)

    • Battery-powered portability with USB-C charging and battery status indicator

    • Rugged, IP-rated handpiece and ergonomic design for field use

    • On-device image capture, storage and export (USB / software sync)

    • Accessory kit: cleaning tools, dust caps, spare adapters, and protective carrying case

    • Two-year limited warranty and onsite calibration sticker included

    The FiberMASTER Video Inspection Probe is a precision handheld inspection tool engineered for fast, repeatable endface imaging and automated Pass/Fail analysis. Its auto-centering camera and high-intensity LED illumination deliver crisp, high-contrast images of connector endfaces, allowing technicians to rapidly detect scratches, pits, contamination and polishing defects. Built to integrate seamlessly with the FiberMASTER ecosystem, the probe works with OTDRs, light sources and power meters and pairs with CertSoft test-management software so inspection results and images are automatically linked to test traces and reports.

    Designed for everyday field and lab use, the unit includes universal 1.25mm and 2.5mm adapters that support LC, SC, ST and various legacy connectors. The rugged handpiece and ergonomic design make long inspection sessions comfortable, while battery-powered portability and an included accessory kit (cleaning tools, connector caps and protective case) ensure the probe is ready for deployment on installation, turn-up, troubleshooting or maintenance tasks. Configurable Pass/Fail thresholds, image capture, and automated reporting reduce human error and speed workflow handoffs.

    FiberMASTER Video Inspection Probe – Specifications
    Parameter Specification
    Camera Resolution 640 × 480 pixels (true color)
    Field of View (FOV) ~200 µm diameter (typical, depends on adapter)
    Illumination High-intensity white LED, adjustable brightness
    Pass/Fail Analysis Onboard algorithm with configurable acceptance thresholds
    Adapter Compatibility Universal 1.25mm (LC) and 2.5mm (SC/ST) adapters
    Connectivity USB-C (data & charging), integration with FiberMASTER OTDR, Power Meter, Light Source and CertSoft
    Image Storage ≥1,000 images, export via USB or CertSoft sync
    Dimensions 160 mm × 35 mm × 30 mm (L × W × H)
    Weight ~150 g (handpiece only)
    Power Rechargeable Li-ion battery, USB-C charging, 6–8 hrs runtime
    Operating Temperature 0°C to +45°C
    Storage Temperature -20°C to +60°C
    Ingress Protection IP54 rated (dust and splash resistant)
    Compliance CE, RoHS
    Warranty Two-year limited warranty
    PCVFL- Precision Coupled Visual Fault Locator
    , , , ,
    PCVFL- Precision Coupled Visual Fault Locator
    Condition

    New
    Read more
    FiberMASTER MM/SM power meter with MM/SM light source
    FiberMASTER MM/SM power meter with MM/SM light source
    Read more
    R240-SL-SCSC-A – Launch Cable, SM G.657 A1, 150m, SC–SC APC
    R240-SL-SCSC-A – Launch Cable, SM G.657 A1, 150m, SC–SC APC
    Read more
    FiberMASTER Video Inspection Probe – Accessories
    Accessory Description
    1.25mm Adapter For LC connectors
    2.5mm Adapter For SC, ST connectors
    USB-C Cable For charging and data transfer
    Cleaning Pen For maintaining connector endfaces
    Dust Caps Protects probe tip and adapters from contamination
    Protective Carrying Case Durable case for storage and transport
    Quick Reference Guide User instructions for setup and operation
    Onsite Calibration Sticker Certification for quality assurance
