FiberMASTER Quad OTDR R240-QIP

Key Features

Quad-wavelength OTDR capability for both multimode and single-mode fibers
Integrated optical power meter with universal connector adapters (LC, SC, FC, ST, 1.25mm UNIV, 2.5mm UNIV)
Built-in inspection port with stylus and on-board cleaning pens (1.25mm & 2.5mm)
Visual Fault Locator (VFL) for quick break and bend detection
Touchscreen interface with stylus for convenient field operation
Long-life lithium-polymer battery for extended onsite runtime
Rugged rubber housing and included protective carry case for transport
Supplied MM and SM patch cords for immediate testing (LC-SC, SC-SC)
USB cable and quick reference guide for rapid setup and data export

The FiberMASTER Quad OTDR R240-QIP is a professional-grade optical time-domain reflectometer engineered for fast, accurate fiber characterization in both multimode and single-mode networks. It combines quad-wavelength OTDR measurements with an integrated optical power meter and inspection port so technicians can locate events, measure splice and connector loss, and verify end-to-end link performance without swapping instruments. The bright visual fault locator (VFL), touchscreen with stylus, and on-board cleaning tools speed everyday troubleshooting and reduce repeat site visits.

Designed for field reliability, the R240-QIP features rugged rubber housing, a long-life lithium-polymer battery and a protective carry case for safe transport. Multiple universal power-meter connector options (LC, SC, FC, ST, 1.25mm UNIV, 2.5mm UNIV) and a full set of MM/SM patch cords let teams deploy instantly. The unit’s intuitive user interface, quick-ref guide, and included accessories make it ideal for installers, maintenance crews and network engineers who demand accurate results under real-world conditions.

Detailed Specifications

Specification	Details
Model	FiberMASTER Quad OTDR R240-QIP
OTDR Wavelengths	Quad wavelengths (MM & SM — model-dependent wavelengths, e.g., 850/1300nm multimode, 1310/1550nm single-mode)
Dynamic Range	Application-dependent (refer to model-specific datasheet for dB dynamic range per wavelength)
Dead Zone (Event/Attenuation)	Typical event and attenuation dead zone specs depend on wavelength and pulse width — see datasheet
Optical Power Meter	Integrated; supports adapters LC, SC, FC, ST, 1.25mm UNIV, 2.5mm UNIV
Visual Fault Locator (VFL)	Built-in red laser for break and bend detection
Inspection Port	On-board connector inspection port with stylus for quick visual inspection
Display & Interface	Color touchscreen with stylus; intuitive menu and measurement visualization
Battery	Rechargeable lithium-polymer battery — extended runtime (hours dependent on usage)
Physical	Rugged rubber housing; kickstand; protective carry case included
Storage & Connectivity	USB cable for data export; internal storage for traces and reports
Operating Temperature	Field-rated operating range (refer to product datasheet for exact figures)
Weight & Dimensions	Handheld form factor — see datasheet for exact weight and dimensions
Standards & Compliance	Complies with applicable fiber test instrument standards (refer to datasheet)

Fiber Optic Test And Communication, Test & Measurement, Testers, Optical Testers, Communication

PCVFL- Precision Coupled Visual Fault Locator

Condition	New

Fiber Optic Test And Communication

FiberMASTER Video Inspection Probe Tip – FC

Fiber Optic Test And Communication

R240-SL-SCLC – Launch Cable, SM G.657 A1, 150m, SC-LC

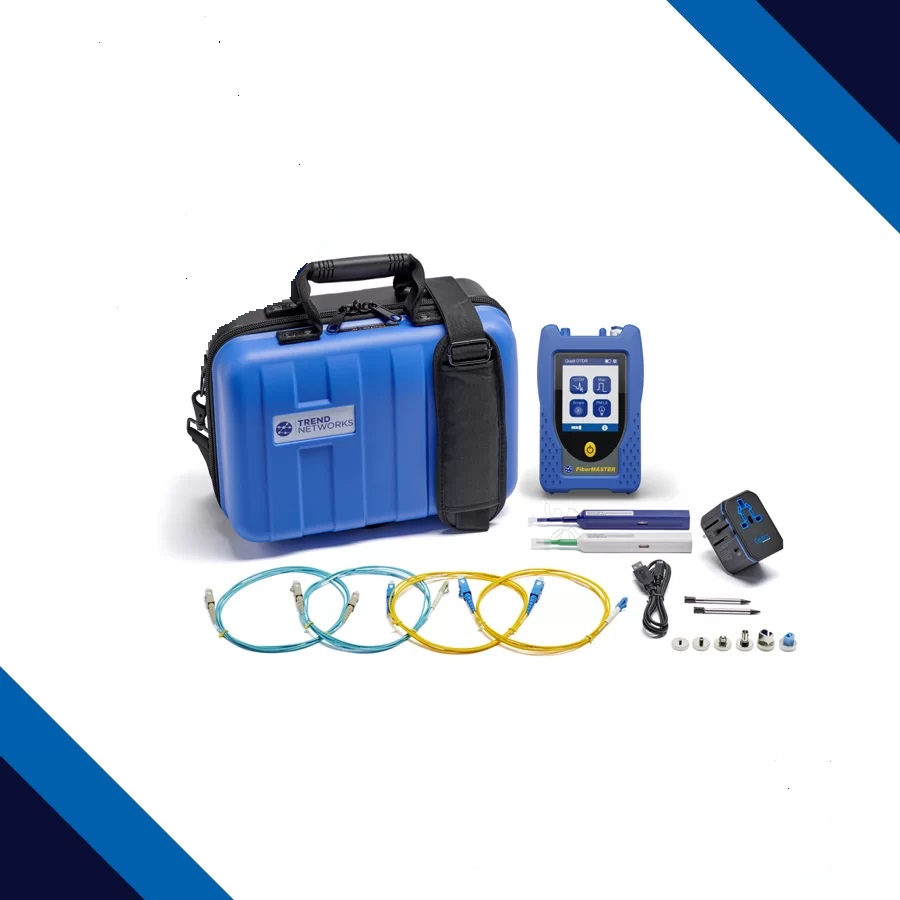

Item	Quantity / Notes
Power Adapter	1
USB Cable	1
Stylus Pens	2
Carry Case	1 (protective)
Cleaning Pens	1 × 1.25mm, 1 × 2.5mm
MM Patch Cords	2m LC-SC (1), 2m SC-SC (1)
SM Patch Cords	2m LC-SC (1), 2m SC-SC (1)
Power Meter Connectors / Adapters	LC, SC, FC, ST, 1.25mm UNIV, 2.5mm UNIV
Quick Reference Guide	1
