FT III/IV-Cable and adapter kit LC SM 9/125µm

Key Features

Purpose-built for FiberTEK III and FiberTEK IV test instruments
Single-mode 9/125 µm fiber (SMF-28 / equivalent) construction

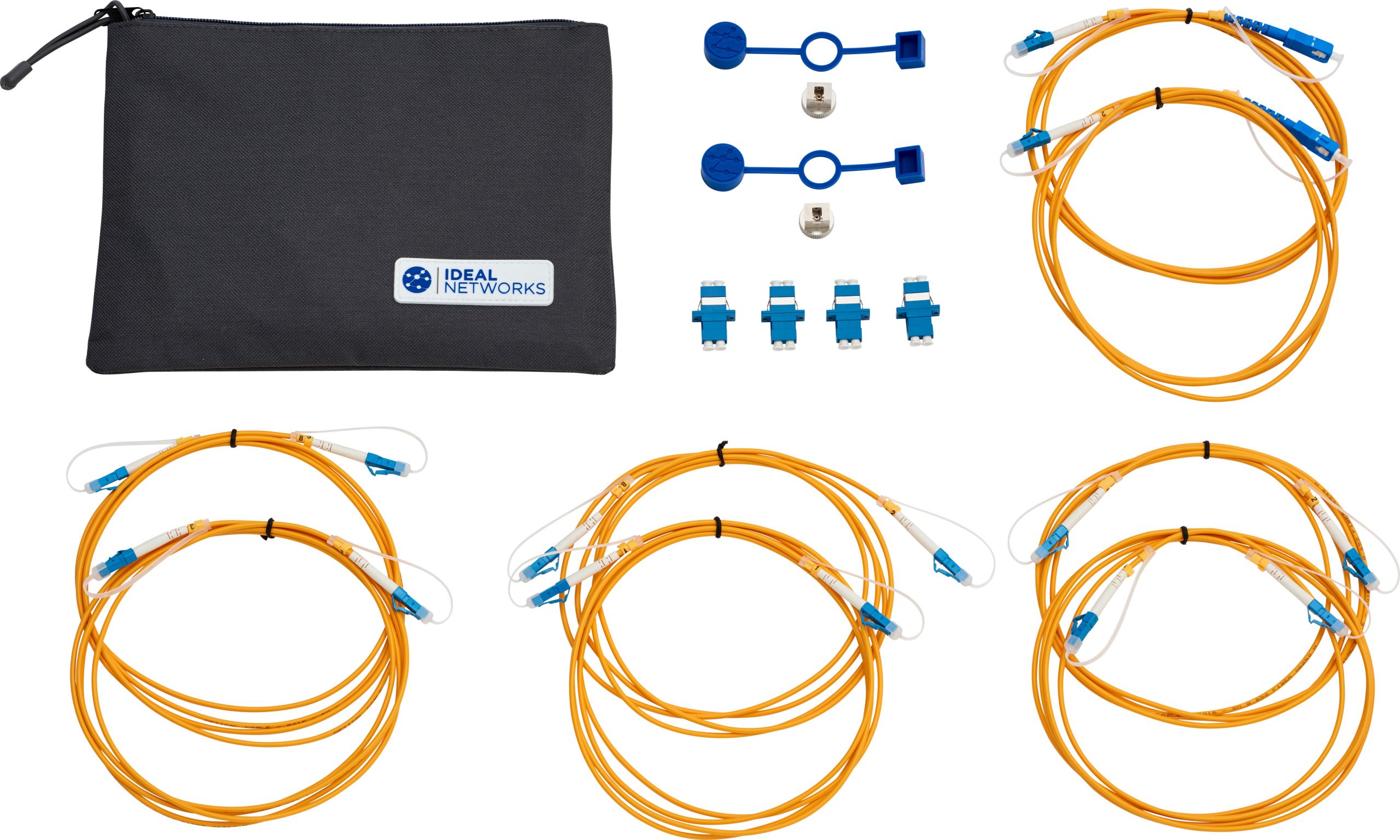

Includes 6 × LC–LC and 2 × LC–SC factory-terminated patch cords
4 × LC–LC precision couplers and 2 × LC photodiode receiver adapters with protective boots
Protective semi-rigid pouch with internal compartments for organized storage
Precision ceramic ferrules and alignment sleeves for low insertion loss
Receiver boots to protect photodiode interfaces and preserve cleanliness
Jacket options: PVC (standard) or LSZH (optional) for site compliance
RoHS-compliant materials

The FT III/IV – LC SM 9/125µm Cable & Adapter Kit is engineered for single-mode field testing with FiberTEK III and FiberTEK IV platforms, delivering a complete set of LC patch cords and receiver adapters for immediate deployment. The kit contains six factory-terminated LC–LC single-mode patch cords and two LC–SC single-mode patch cords, assembled using 9/125 µm fiber and precision-polished connectors to provide consistent optical performance and dependable measurement repeatability. Included LC–LC couplers and photodiode receiver adapters extend compatibility with a variety of instrument ports and legacy equipment, ensuring technicians can connect, measure, and verify single-mode links without delay.

Housed in a rugged, semi-rigid pouch, the kit is built for portability and field durability. Connector ferrules and alignment sleeves are precision-matched to minimize insertion loss and preserve end-face integrity; the receiver adapters are fitted with protective boots to shield photodiode interfaces from dust and impact. Clear labeling and an organized layout reduce setup time and the risk of cross-connection, enabling fast, accurate certification, troubleshooting, and maintenance workflows for single-mode fiber networks.

Parameter	Specification	Details
Product Name	FT III/IV — LC SM 9/125µm Cable & Adapter Kit	Single-mode cable and adapter kit for FiberTEK III/IV
Fiber Type	Single-mode 9/125 µm	SMF (G.652/G.657 compatible)
Included Cables	6 × LC–LC, 2 × LC–SC	Factory-terminated; standard lengths—specify at order
Couplers	4 × LC–LC	Precision ceramic alignment sleeves
Receiver Adapters	2 × LC photodiode adapters with boots	Compatible with standard instrument photodiode inputs
Connector Type	LC primary, SC secondary	UPC/PC terminations available—specify polish type
Insertion Loss (typ.)	≤ 0.25 dB per mated pair	Factory typical; may vary with length and connector type
Return Loss (typ.)	≥ 45 dB (UPC)	Depends on polish type; AP C options available on request
Jacket Material	PVC standard or LSZH optional	Specify at time of order for site compliance
Operating Temperature	−10 °C to +60 °C	Typical field operating range
Storage Temperature	−20 °C to +75 °C	Store in a dry, dust-free environment
Pouch Dimensions	Approx. 220 × 140 × 40 mm	Semi-rigid with compartments for cords and adapters
Weight (kit)	Approx. 350 g	Includes cables, couplers, adapters, and pouch
Compliance	RoHS	Lead-free materials
Part Number / SKU	FT-CK-LC-SM-9-125	Standard catalog SKU

Item	Description	Quantity	Notes
LC–LC Single-Mode Patch Cord (9/125 µm)	Factory-terminated LC–LC patch cord, single-mode	6	Standard lengths available; color-coded ends
LC–SC Single-Mode Patch Cord (9/125 µm)	Factory-terminated LC–SC patch cord, single-mode	2	SC connector for legacy ports
LC–LC Coupler	Female-to-female LC precision coupler	4	Precision alignment sleeve for low loss
LC Receiver Adapter (Photodiode) with Boot	Adapter for instrument photodiode/receiver input with protective boot	2	Protects detector interface and maintains cleanliness
Protective Pouch	Semi-rigid zippered pouch with internal compartments	1	Organized storage and crush resistance for field use
