FT III/IV-Cable and adapter kit LC MM 50/125µm

The kit includes six 50/125 µm LC to LC patch cords and two LC to SC patch cords, ensuring technicians have the essential connections for multimode fiber testing in the field.
Two LC photodiode receiver adapters with protective boots connect directly to instruments, providing stable and accurate power readings as well as dependable detector measurements.
Four LC to LC couplers allow quick extension or joining of existing fiber links, offering added flexibility without the need for re-termination.
Factory-terminated cords are neatly organized in a protective pouch that maintains cleanliness, durability, and portability during deployment.
Pre-configured quantities with clear labeling reduce setup time, improve measurement repeatability, and keep workflows efficient for certification, troubleshooting, and ongoing maintenance.

Key Features

Compatible with FiberTEK III and FiberTEK IV test instruments
Multimode 50/125 µm fiber construction (OM1/OM2 class compatibility)
Factory-terminated LC and SC connectors for consistent optical performance
Includes LC–LC couplers and LC photodiode receiver adapters with boots
Protective pouch for storage and transport
Color-coded/marked cables for fast identification
Reduces setup time and preserves connector end-face cleanliness
Ideal for certification, verification, troubleshooting, and training

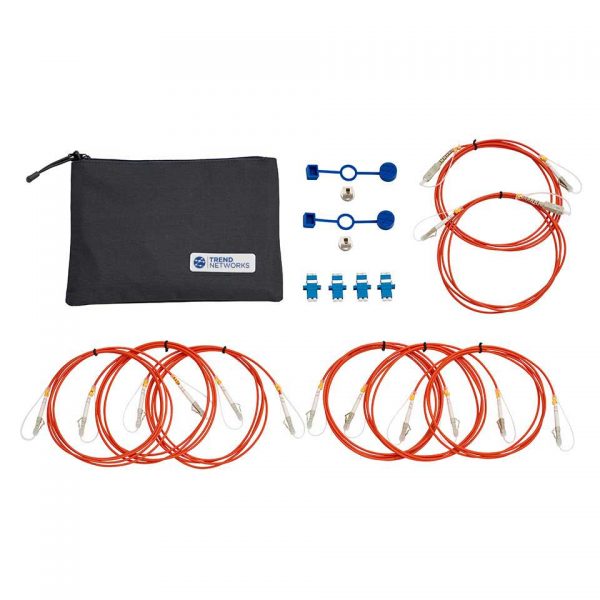

The FT III/IV — LC MM 50/125µm Cable & Adapter Kit is an essential accessory package designed to enhance the performance and versatility of FiberTEK III and FiberTEK IV testing platforms. This comprehensive kit includes six LC–LC multimode patch cords, two LC–SC multimode patch cords, four LC–LC couplers, and two LC receiver adapter photodiodes with protective boots, all housed in a rugged, protective pouch for secure transport. Each patch cord is constructed from high-quality 50/125 µm multimode fiber and factory-polished LC connectors to ensure stable optical performance, low insertion loss, and consistent measurement repeatability. The inclusion of both LC–LC and LC–SC connectivity allows technicians to interface seamlessly with modern installations as well as legacy fiber systems, providing greater flexibility in the field.

Purpose-built for demanding environments, this kit is engineered to streamline fiber testing, certification, and troubleshooting workflows. The zirconia ceramic ferrules in the connectors and couplers deliver precise alignment and long-term durability, while the protective boots on the receiver adapters safeguard delicate photodiode assemblies from dust, damage, and contamination. Clear component labeling, compact form factor, and organized storage within the pouch reduce setup time, minimize the risk of connector damage, and maintain end-face cleanliness. Designed with field technicians in mind, the FT III/IV — LC MM 50/125µm Cable & Adapter Kit ensures that essential accessories are always on hand, enabling fast, accurate, and repeatable results in multimode fiber testing applications.

Parameter	Specification	Details
Product Name	FT III/IV — LC MM 50/125µm Cable & Adapter Kit	Complete multimode LC cable and adapter set for FiberTEK III/IV
Fiber Type	Multimode 50/125 µm	OM1/OM2 class compatibility; 50 µm core, 125 µm cladding
Included Cables	6 × LC–LC, 2 × LC–SC	Factory-terminated, PVC or LSZH jacket options
Couplers	4 × LC–LC couplers	Female-to-female, precision alignment sleeves
Receiver Adapters	2 × LC photodiode receiver adapters with boots	Compatible with standard instrument photodiode inputs
Connector Type	LC (primary), SC (secondary)	LC UPC/PC and SC UPC/PC terminations available
Insertion Loss (typ.)	≤0.3 dB per mated pair	Factory-terminated typical value; actual may vary by length
Return Loss (typ.)	≥20 dB (PC)	Depends on polish type and connector
Operating Temperature	−10 °C to +60 °C	Field operating range
Storage Temperature	−20 °C to +75 °C	Store dry and dust-free
Jacket Material	PVC (standard) or LSZH (optional)	Specify at order for compliance with site requirements
Pouch Dimensions	Approx. 220 × 140 × 40 mm	Semi-rigid construction with compartments
Weight (kit)	Approx. 350 g	Includes cables, adapters, and pouch
Part Number / SKU	FT-CK-LC-MM-50-125	Standard catalog SKU
Compliance	RoHS	Lead-free materials

Item	Description	Quantity	Notes
50/125 µm LC–LC Patch Cord	Factory-terminated multimode LC–LC patch cord	6	Various lengths available; color-coded ends
50/125 µm LC–SC Patch Cord	Factory-terminated multimode LC–SC patch cord	2	SC connector for legacy equipment
LC–LC Coupler	Simple LC female-to-female coupler for mating or extension	4	Panel or field use
LC Receiver Adapter (Photodiode) with Boot	Adapter for connecting instrument photodiode/receiver; includes protective boot	2	Protects detector interface and maintains cleanliness
Protective Pouch	Semi-rigid, zippered pouch with internal compartments	1	Holds all cords and adapters; resists crushing
