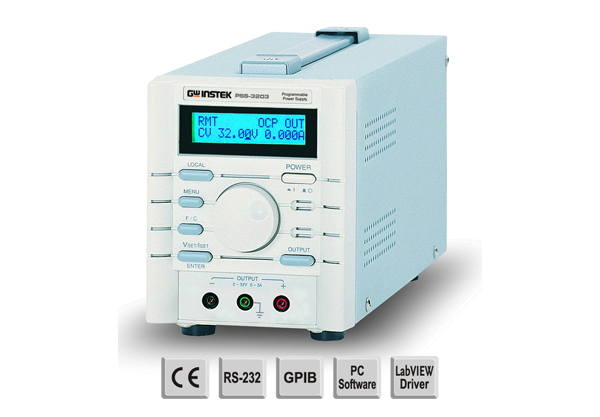

PSS-3203GP Programmable Linear D.C. Power Supply

Key Features

Output Voltage: 0-32V DC
Output Current: 0-3A
Power Output: 96W
Interface GPIB, RS-232, USB
Low Ripple & Noise Linear regulation for clean output
Programmable Control Ideal for automated test systems
Digital Display High-resolution voltage and current readouts
Protection Features Overvoltage and overcurrent protection
Memory Function Stores multiple preset configurations
Applications Suitable for lab, R&D, and industrial use

The PSS-3203GP Programmable Linear D.C. Power Supply is a high-performance, single-channel programmable DC power source designed for precision and reliability in laboratory, industrial, and automated testing environments. Delivering an adjustable output of 0-32V and 0-3A with a maximum power output of 96W, this linear power supply ensures low ripple and noise, making it ideal for sensitive electronic applications. It features advanced programmability through GPIB (IEEE-488), RS-232, and USB interfaces, enabling seamless integration into automated test setups. With its high-resolution digital display, user-friendly interface, and support for remote control and monitoring, the PSS-3203GP offers accurate voltage and current regulation, overvoltage and overcurrent protection, and memory storage for preset configurations, making it a versatile and dependable tool for a wide range of DC power testing needs.

PSS-Series Specifications

The specifications apply when the PSS-Series is powered on for at least 30 minutes under +20°C~+30°C.

	PSS-2005	PSS-3203
OUTPUT
Voltage	0~20V	0~32V
Current	0~5A	0~3A
OVP	0~21V	0~33V
LOAD REGULATION
Voltage	< 3mV ( < 5mV rating current > 3A)
Current	< 3mA ( < 5mA rating current > 3A )
LINE REGULATION
Voltage	< 3mV
Current	< 3mA
RESOLUTION
Voltage	10mV
Current	1mA ( 2mA, rating current >3A )
OVP	10mV
PROGRAM ACCURACY (25±5° C)
Voltage	< 0.05% + 20mV
Current	< 0.1% + 5mA (10mA, rating current> 3A)
OVP	< 0.05% + 20mV
RIPPLE & NOISE (20Hz ~ 20MHz)
Voltage	Ripple≦1mVrms / 3mVp-p Noise≦2mVrms / 30mVp-p
Current	< 3mArms ( < 5mArms, rating current > 3A )
TEMPERATURE COEFFICIENT (0~40° C )
Voltage	< 100ppm + 3mV
Current	< 100ppm + 3mA
READBACK RESOLUTION
Voltage	10mV
Current	1mA ( 2mA, rating current > 3A )
READBACK ACCURACY (25±5° C)
Voltage	< 0.05% + 10mV
Current	< 0.1% + 5mA (10mA rating current > 3A)
READBACK TEMPERATURE COEFFICIENT
Voltage	< 100ppm + 10mV
Current	< 100ppm + 5mA ( + 10mA rating current > 3A )
RESPONSE TIME
Voltage Up 10%~90%	< 100mS
Voltage Down 90%~10%	< 100mS ( ≧10% rating load )

DRIFT
< 100ppm + 10mV
< 150ppm + 10mA
INTERFACE
Standard : RS-232C Option : GPIB (IEEE488.2)
POWER SOURCE
AC100V/120V/220V±10%, 230V (+10%~-6%), 50/60Hz
ACCESSORIES
User manual x 1 Power cord x 1 Test lead GTL-105 x 1 [or European Test Lead GTL-203 x 1]
DIMENSIONS & WEIGHT
108(W) x 140(H) x 315(D)mm Approx. 4.8kg
