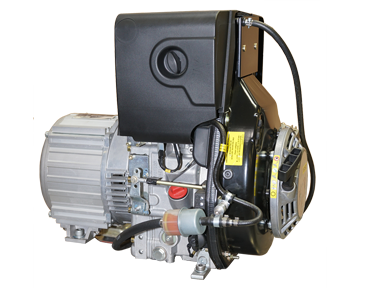

Set 5kW – 240 VAC Power Generator | DCT

Specification

Overall APU Specifications

Exterior Dimensions (L × W × H): 530 × 430 × 515 mm
Gross Weight: ~100 kg
Electrical Output: 2 × 2.5 kW @ 240 VAC, 60 Hz
Engine Type: Hatz 1B50 diesel, single-cylinder, air-cooled
Engine Power: 8.5 kW @ 3600 rpm
Fuel Type (Diesel): JP8, DF-1, DF-2, DF-A, NATO fuels F-34, F-35, F-44, F-54
Protection: 2 × 20 A circuit breakers
Fuel Consumption: ~2 liters/hour @ 3600 rpm

Generator System

Alternator Type: Permanent magnet, single phase, 2-pole
Coupling: Flywheel and single bearing
Nominal Output Voltage: 240 VAC
Alternator Efficiency: 90%
Power Quality: THD < 5%
Voltage Droop: <5%
Cooling: Shaft-mounted fan

Operating Parameters

Operating Temperature: –32 °C to +55 °C
Altitude: Sea level to 3,050 m
Sand and Dust Protection: Per MIL-STD-810F
EMI Compliance: Per MIL-STD-461E

The latest 5 kW, 240 VAC diesel generator from Marvin Land Systems uses advanced permanent magnet technology to deliver reliable power for military and field applications. It provides two independent 2.5 kW outputs, supplying AC voltage loads for vehicles, shelters, tents, and stationary systems.

The rotor with embedded magnets ensures high performance at low weight, eliminating the need for an automatic voltage regulator (AVR), diodes, or capacitors. The generator delivers a pure sine wave output with low harmonic distortion for sensitive equipment.

This 5 kW GenSet is part of a versatile generator family, configurable for 50 or 60 Hz frequencies, 2- or 4-pole designs for high or low speeds, and windings for single-phase or three-phase power in Delta or Y configurations.

Powered by a robust 1B50 Hatz single-cylinder, air-cooled diesel engine, the GenSet can be installed in an open frame or an enclosure for reduced noise and outdoor operation. Speed can be mechanically set or electronically governed.
